Door panel — removal, tweeters, and water drainage

Tags: #door-panel · #clips · #removal

Removal procedure: (1) remove the door-handle overlay trim (it hides screws); (2) carefully pop the panel from the bottom, unsnapping the plastic clips — these frequently break; (3) avoid pulling near the window gasket/seal. To reinstall: insert clips into their pockets and snap into place from the bottom. Replacement Lada Priora clips (Wildberries SKU 163460312) are more durable than OEM, with rubber buffers — plan for some clip breakage during the job either way ^1234567.

High-frequency tweeters: the door panels have tweeter placeholders on the upper door. Stock fitment varies by trim level — luxury trims may have working tweeters, mid-range trims may have non-functional units, base trims have blanks only. Tweeters can fail internally (a broken wire inside the connector) and can be repaired by soldering, or upgraded with 1" aftermarket units; thermoglue is used for fitment ^89101112.

Water inside the door / drainage: water accumulating at the bottom of the door panel after removal is normal drainage from the weatherstripping — it should exit through drainage holes around the bottom perimeter of the door, so finding water there indicates the drainage system is working, not failing ¹³¹⁴. Broken plastic mounting clips can be repaired with cyanoacrylate (superglue): apply glue, sprinkle baking soda on the wet glue to harden it, then apply glue again for a strong joint; cosmophene/ cosmofen adhesive is an alternative that also works. Green clip fasteners are the standard color; yellow variants are also seen. The trim clips are generally strong and difficult to remove ^1516171819.

Door speaker crackling — oxidized contacts: crackling from the door speakers when the cabin is heating up, disappearing once warm, indicates oxidized electrical contacts (speakers are prone to oxidation in this vehicle). Fix: remove the door trim, inspect the speaker connectors for corrosion, and clean the contacts. Water ingress (e.g. from fall rain accumulation) makes it worse. The stock cabin speakers themselves are durable, but the contacts need maintenance ²⁰²¹.

Door speaker replacement — Mazda 3 5x7 compatibility: the standard oval speakers on the X80 are 5x7 inches, the same size as Mazda 3 factory speakers. Recommended aftermarket option: Hertz 5x7 speakers, ~3,000 RUB per pair (RU market, circa 2021–2022; reported November 2024). Users report good performance from this upgrade ²².

Removal time and connector fragility: door panel removal is straightforward and normally takes about 10–15 minutes with proper technique — the OEM speakers become visible/accessible once the panel is off ²³. Time can vary a lot by conditions: removal has taken as little as expected for someone with steady hands, but up to half an hour for others, and cold weather stiffens the plastic and makes clips more likely to break — one owner broke a mounting clip during a low-temperature (+5°C) autumn removal, and a separate owner broke one that was wedged in so tightly it was hard to extract even with pliers, and simply left it out rather than force it back in. Expect one or more connectors/clips to potentially break if handled carelessly; the panel still reinstalls fine with a broken clip or two, just slightly less securely ²³²⁴²⁵.

Confirming report — clips, cold-weather brittleness, and speaker upgrade payoff: a separate speaker-upgrade project independently confirms several points above: door-panel fastener clips (plastic "pistons") are standard and available as a universal pack on Ozon; warm-weather removal is markedly easier than cold, since the plastic becomes brittle and prone to cracking at +5°C or below; Lada Priora (ВАЗ Priora) plastic clips are confirmed as compatible replacements for any clips broken during the job. The resulting sound-quality improvement from the aftermarket speaker upgrade was reported as substantial ^{26272829303132333435}.

Door bottom panel plastic trim removal: the plastic trim on door bottom panels is held by clips and double-sided tape; the trim can break during removal. Gentle removal method: use a hairdryer/heat gun to warm the adhesive before pulling — this preserves the clips better. Full removal may require removing the door panel and speaker assembly first. Always remove carefully or risk breaking the clips ^3637383940.

Driver's-side door panel removal — quick reference: (1) remove the decorative cover from the door handle; (2) unscrew the bolts behind the handle; (3) remove the decorative cover from the door lock lever; (4) unscrew the bolt under that cover; (5) carefully peel off the panel — it uses clips. Reference: a Drive2 article by "Фаб" on door soundproofing (shum-isolation, part 1) covers the same steps in more depth ⁴¹⁴²⁴³.

Driver's door panel removal — clip sequence and spare-clips tip: further procedural detail confirming the quick reference above: use clip-removal tools to unclip fasteners around the panel perimeter — avoid removing the handle and sill trim completely. The panel unclips from the bottom first, then lifts upward off the upper rail. Prepare spare clips before disassembly, since breaking clips during the job is common (consistent with the clip-fragility notes above). A video tutorial exists in the community showing the proper unclipping sequence. The panel can be removed without disconnecting power if the electrical connectors are handled carefully ⁴⁴⁴⁵⁴⁶.

Front door panel removal — screw locations confirmed (short reference): two bolts are located under the overlay of the large door handle, plus one more bolt under a cap in the door-opening-handle recess. After removing those three fasteners, pull sharply from the bottom to unsnap the clips, then lift slightly and pull the panel out from under the handle to the side. Confirming report: with careful, gentle work the clips come off intact — nothing complicated about the job ^47484950.

Media

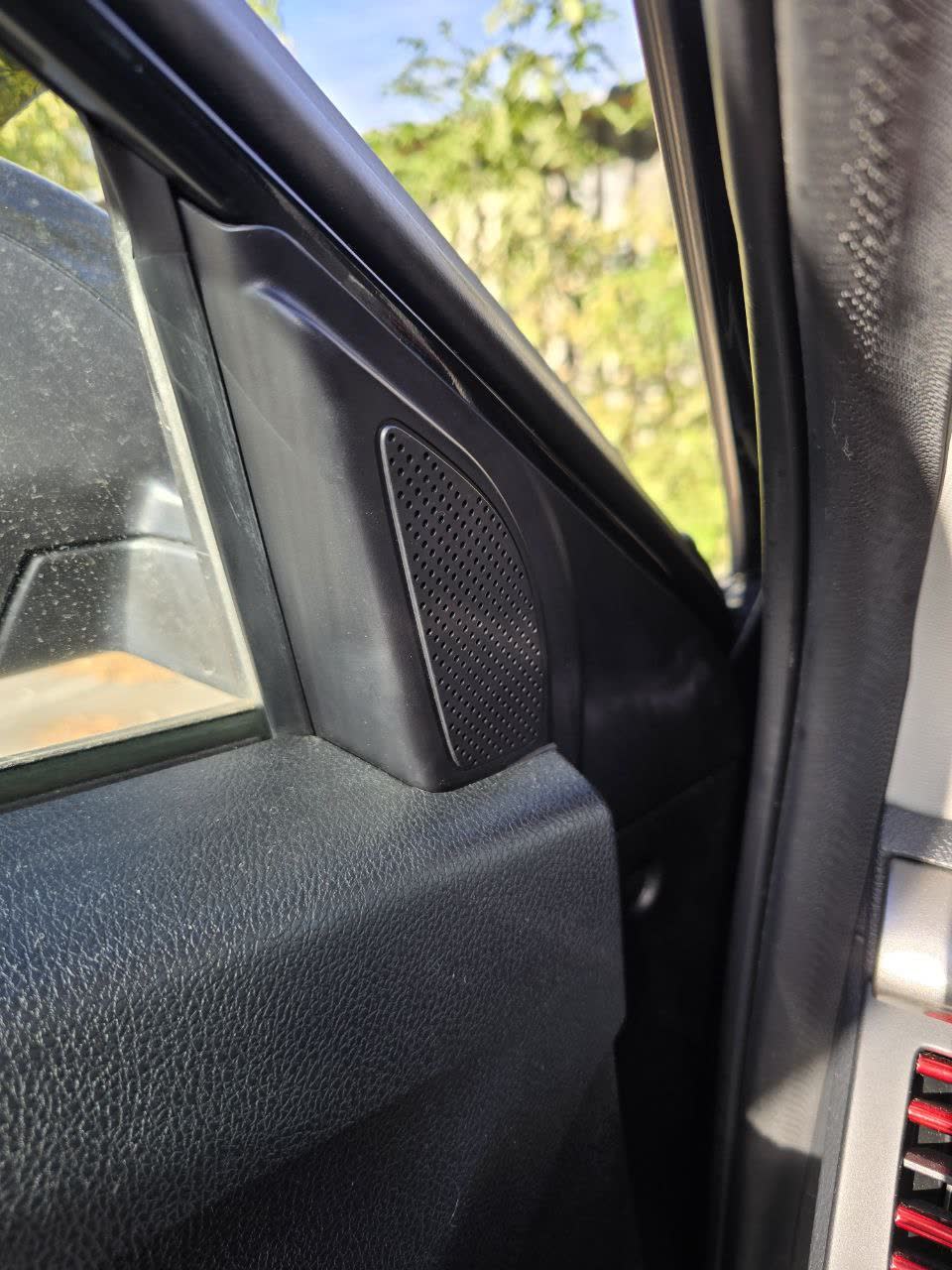

Door panel tweeter mounting area with perforated grille and speaker cavity

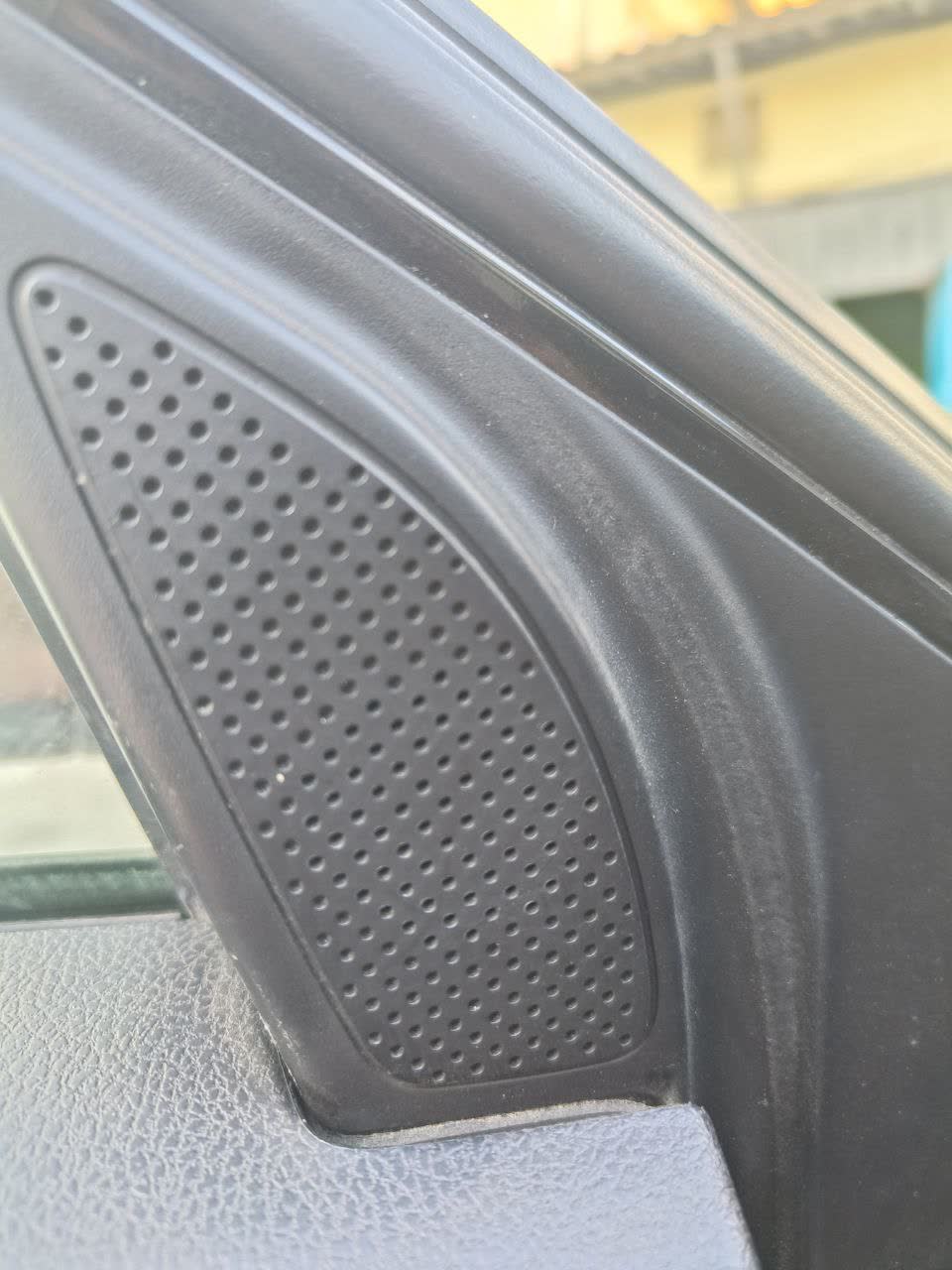

Close-up of tweeter mounting area, door panel

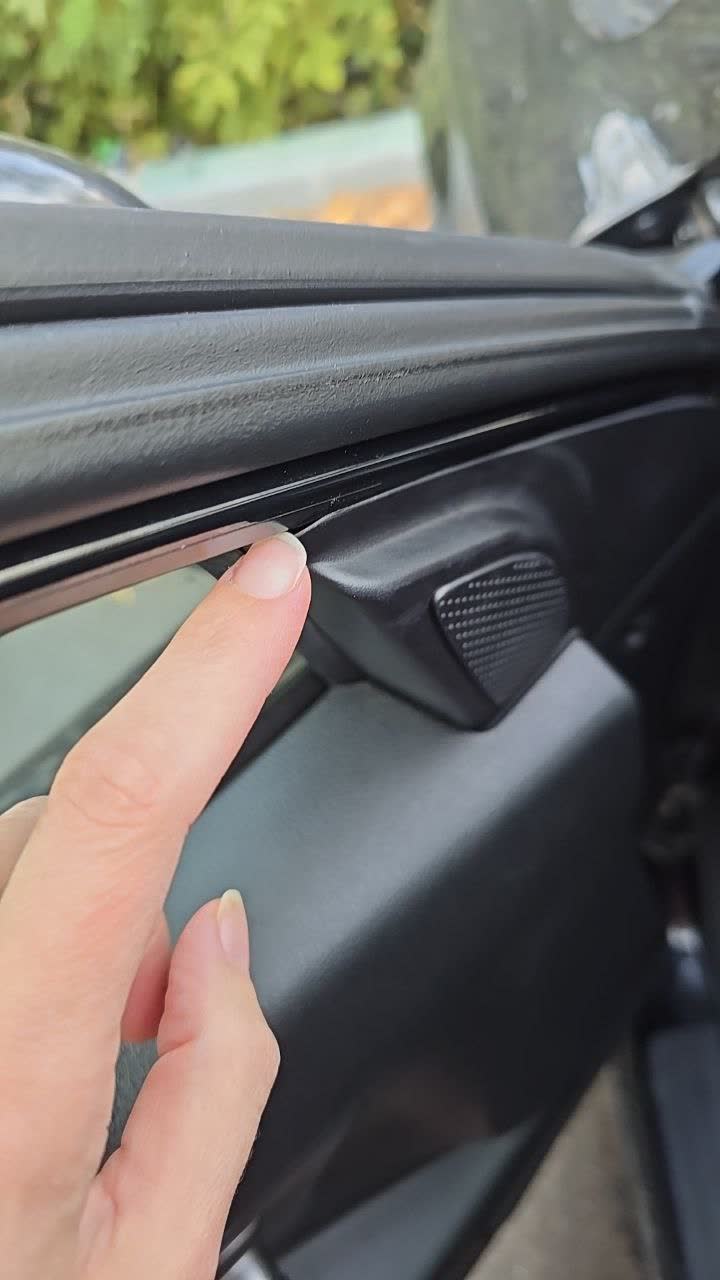

Door panel clip mechanism and mounting points

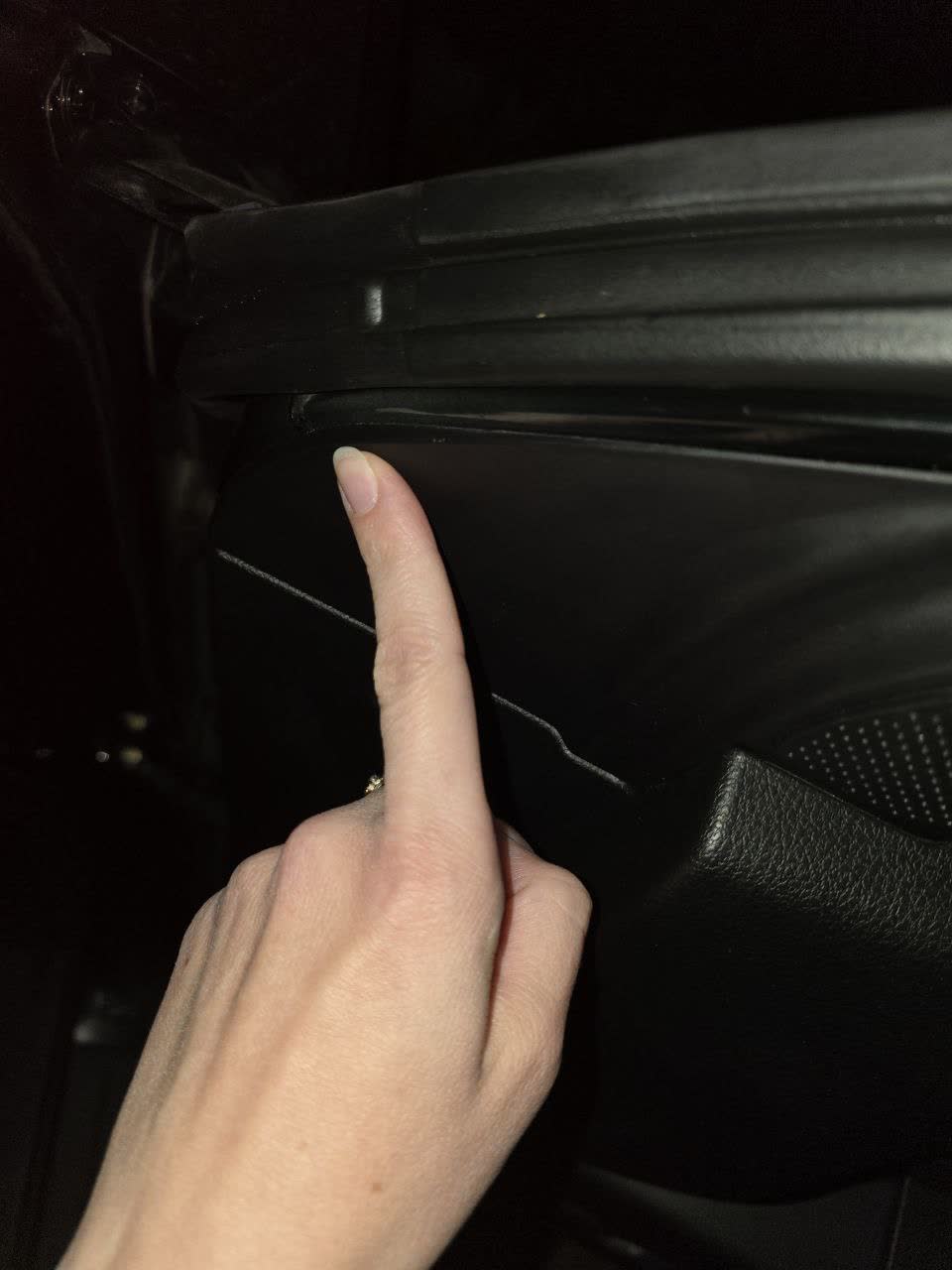

Replacement Lada Priora clip compared to OEM clip

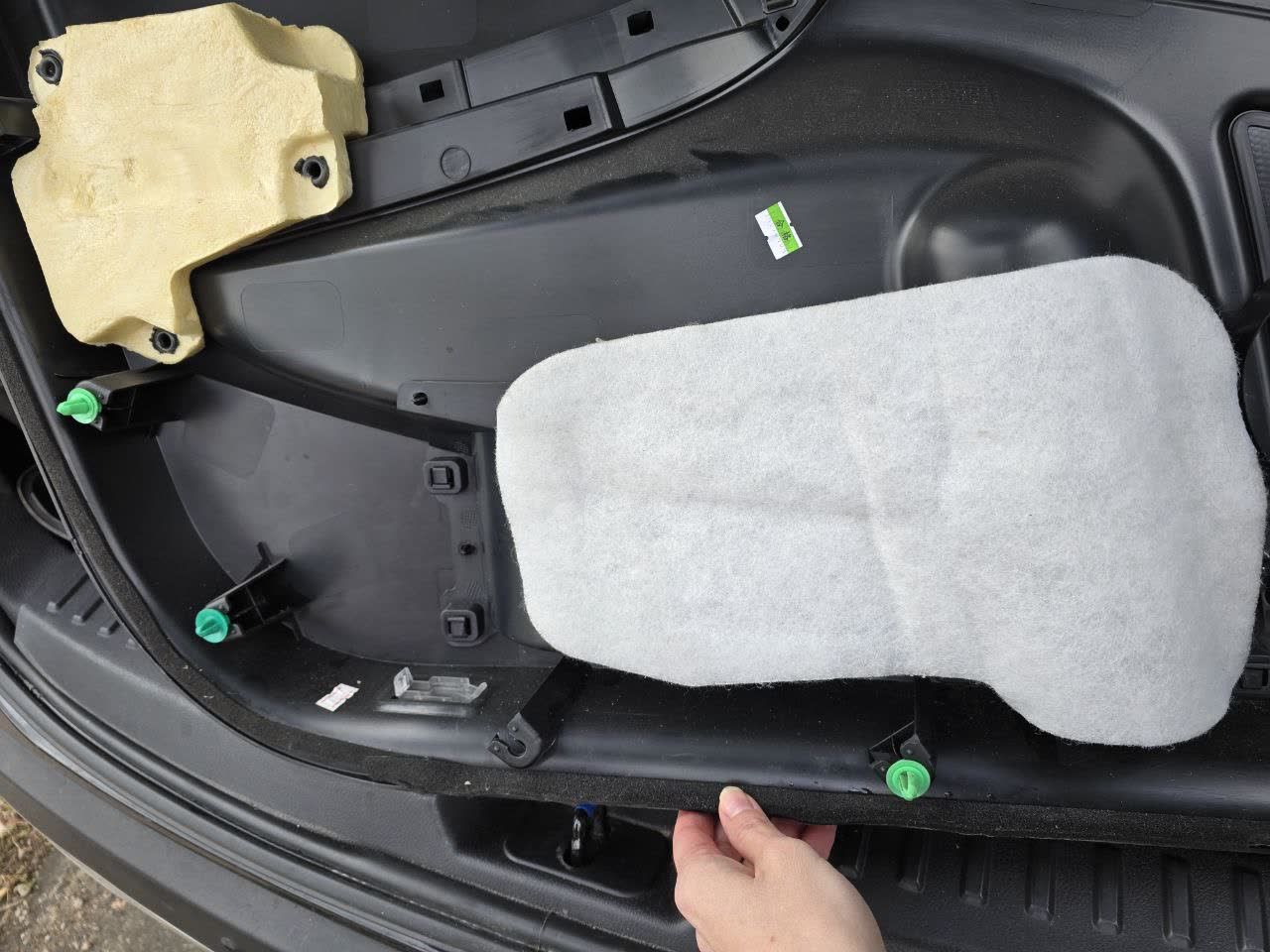

Door panel interior showing moisture and gray sponge padding

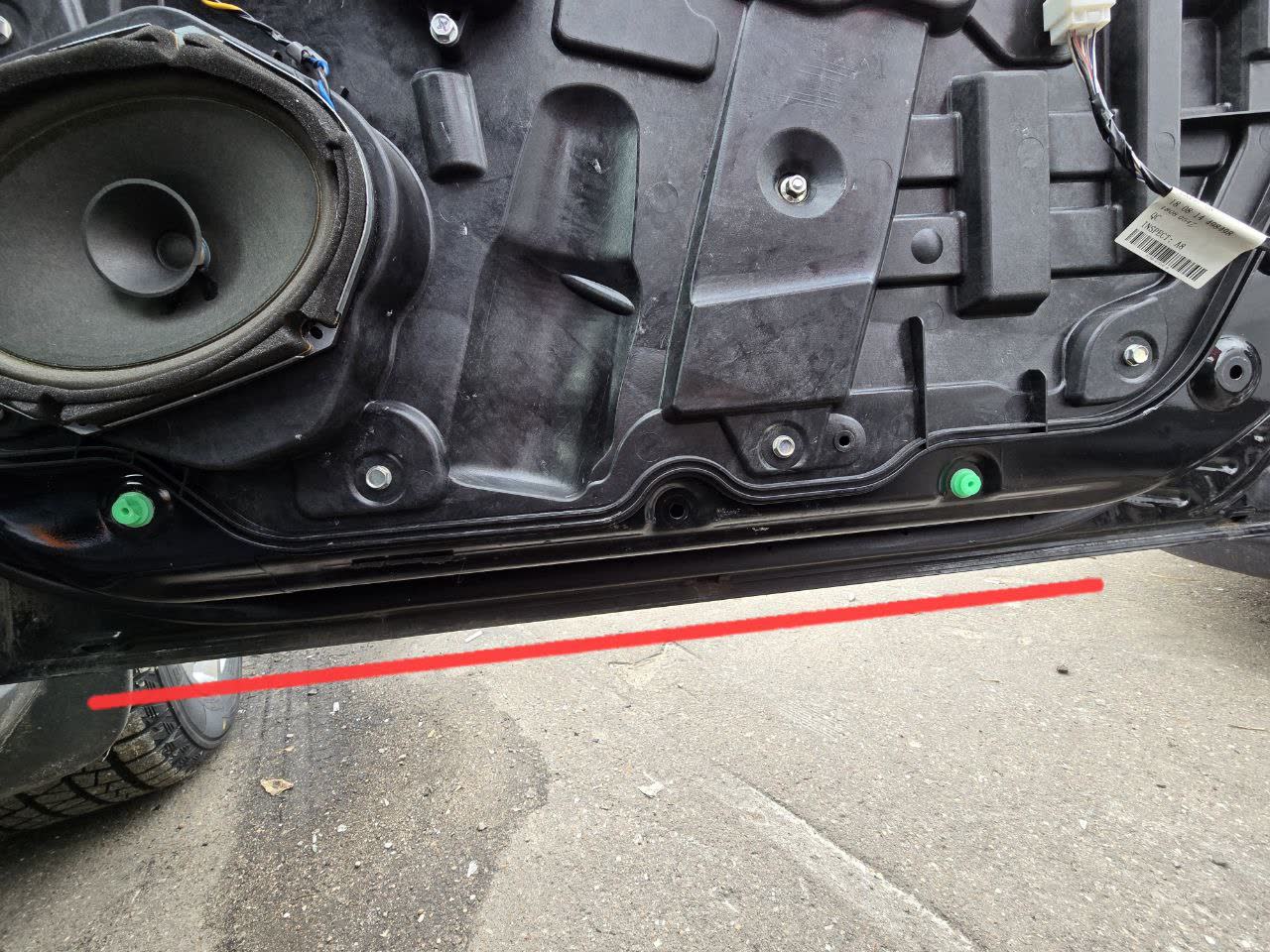

Door trim removed showing drainage areas and clip mounting points

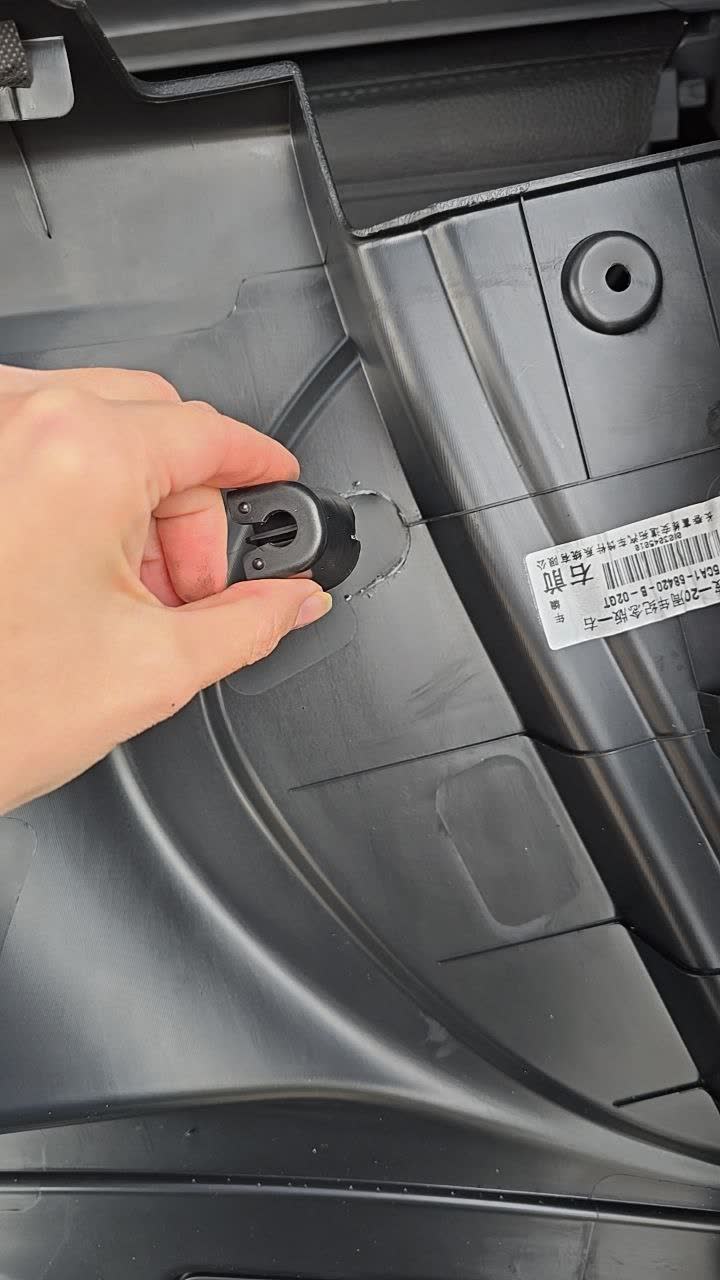

Broken plastic mounting clip
