Paint color codes — location and known values

Tags: #paint

The car's paint color code is located on the door jamb or the driver-side pillar specification plate. Color shops use this code to mix matching paint for repairs ¹²³⁴.

Known codes reported by owners: - A4D — Arctic White, for 2018+ FAW X80 models ⁵⁶. - 32V — Agate Red, factory spec for certain model years ². - A4D (Arctic White, Acrylic) is also catalogued under paint code RF1000-1; this white is reported prone to fading over time, so professional color-matching is recommended for touch-up/repair work rather than assuming an off-the-shelf match ^7891011. - 7В KNIGHT BROWN metallic pearl xerallic — nominal/documented standard color code, also identified as "Coriander 790" in a separate reference (a previous Lada Granta owner recognized the same shade). In practice, professional painters rarely rely on the code alone — they typically pull a reference part (e.g. the fuel filler door or a bumper section) and match by physical shade/tone/sample rather than trusting the code number, since a physical color-chip match is more reliable ¹²¹³. - 41v — a soul-red shade, used from approximately the 2018 model year onward as the standard factory finish for red units ¹⁴¹⁵¹⁶. - 41V — independently corroborated: FAW-CAR's official name for this code is "Soul Red" (solid, not metallic), listed by a seller as used across 2014–2023. A touch-up correction pen for chips/scratches in this color is available via Ozon ¹⁷.

Finding your color code — fuel-door label method: to determine the X80's exact paint color code, remove the fuel-filler door cap/cover and check the color label on its interior surface — the label states the factory paint specification for exact matching ¹⁸¹⁹.

Knight Brown touch-up paint — sourcing (Nov 2025): a base + clear-coat touch-up kit for the FAW Besturn X80 brown/Knight Brown color is available in a 40 mL size from the CarBase supplier. One owner ordered it via Ozon, which was ~100 RUB cheaper than WildBerries for the same kit (Nov 2025, RU market). An alternative aerosol option is SKULL Aerosol Enamel "Coriander" metallic (520 mL) — but since it's a straight color coat, a separate clear coat must be applied afterward for durability ^2021222324.

Factory red = Mazda V32 "Agatred": after trying to color-match X80 red against Chinese-market swatches and doing test spray-outs, one painter found the correct match was much simpler — the X80's factory red is identical to Mazda color code V32 (Agatred). This lets owners source matching touch-up/repaint paint from Mazda-parts suppliers rather than FAW-specific channels ²⁵. This appears to be a different/updated reference to the same red covered by code 41v above — cross-check both codes against a physical color-chip match before ordering paint.

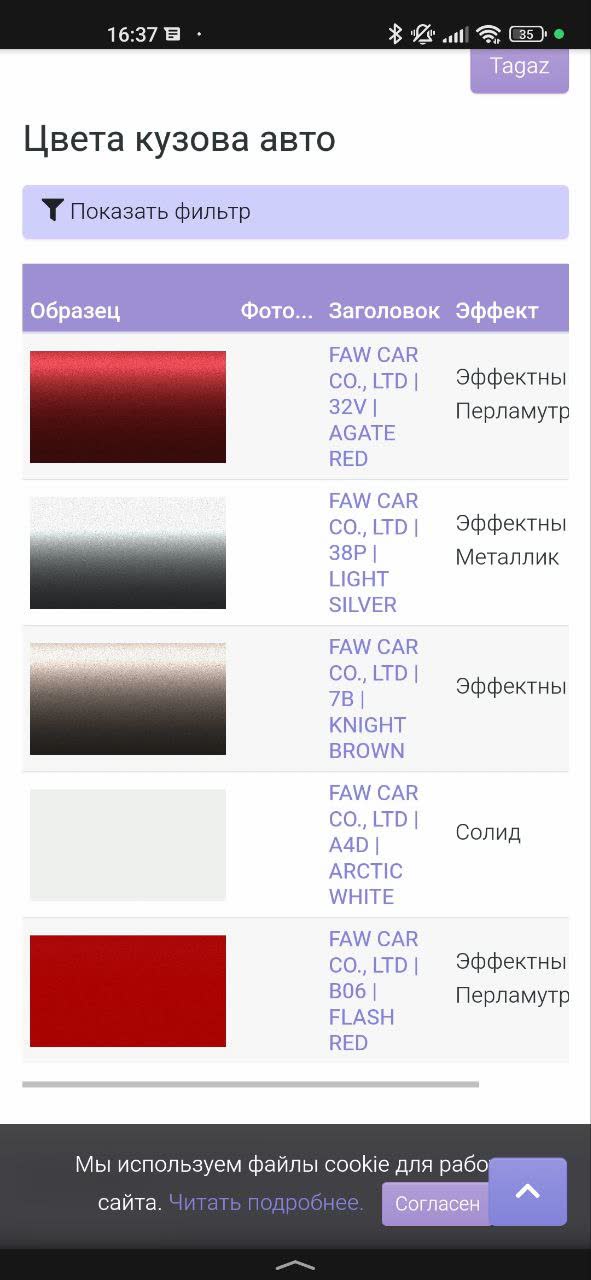

Additional factory color codes and no dashboard badge confirmation: further confirming the fuel-door label method above (no dashboard color badge exists on the X80), the following FAW factory color options were additionally reported: 38P LIGHT SILVER (metallic), B06 FLASH RED (pearl) — in addition to the 32V Agate Red, 7B Knight Brown, and A4D Arctic White codes already listed above. As with the other colors, Mazda paint codes are also usable for color-matching on red variants ^262728293031.

Knight Brown touch-up kit — additional confirmation (March 2026): a 40 mL base + clear-coat touch-up kit specifically for 7B KNIGHT BROWN is available on OZON, confirming/matching the November 2025 sourcing note above — recommended for small chips and scratches ³².

Touch-up kits — practical application results and metallic-paint limitations: touch-up kits (FixPaint Double brand or similar) are available on Ozon and Wildberries. One user reported that a 7B-brand paint matched perfectly, while metallic paints from other kits are impossible to apply evenly with a brush — for proper metallic color correction, professional painter application is recommended. Small touch-ups in inconspicuous areas work adequately with brush-applied kits; full door repainting is often necessary for visible areas ^{33343536373839}.

A7 "Huanying Black" — pre-facelift black code: for the black pre-facelift (2012–2017) Besturn X80, the reported paint code is A7 "Huanying Black" (Oley paint type). This is in addition to the red (32V "Agate Red", restyled 2018+) and other codes listed above; codes for white and other colors are also in circulation but reported as prone to variation — custom color matching is recommended when replacing body panels ^4041424344.

Media

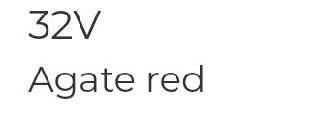

Paint color specification card showing "32V Agate red" with color swatch

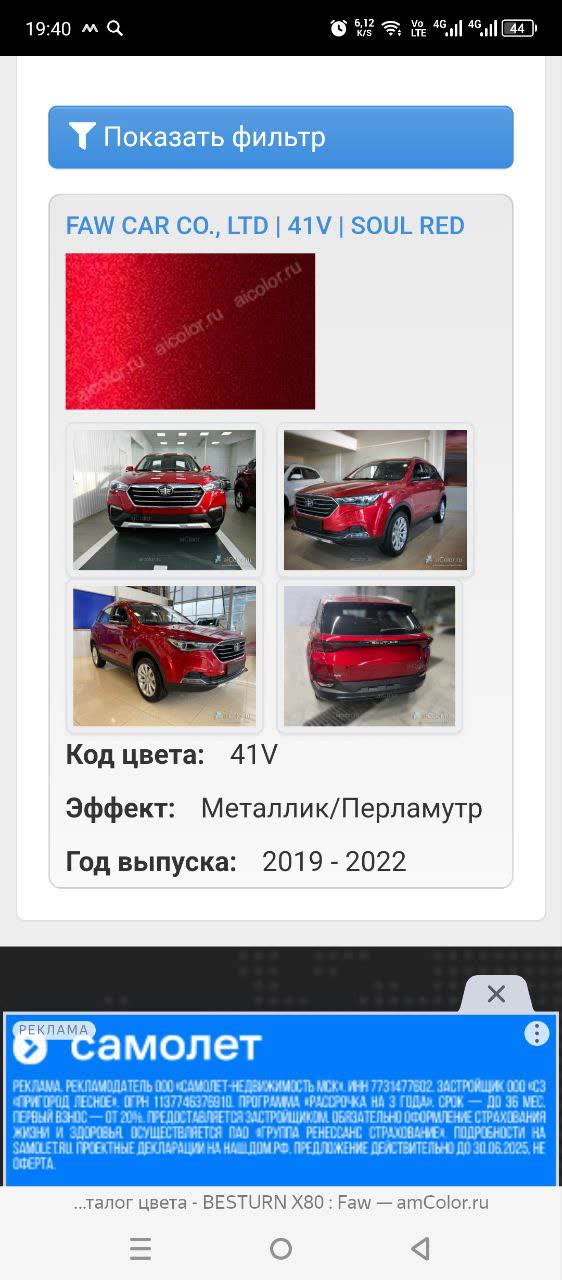

Vehicle painted in the 41v soul-red factory color

Screenshot/photo showing the paint color reference location on the vehicle, near the fuel door area

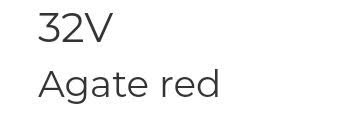

Paint code reference showing "32V Agate red" for restyled red models

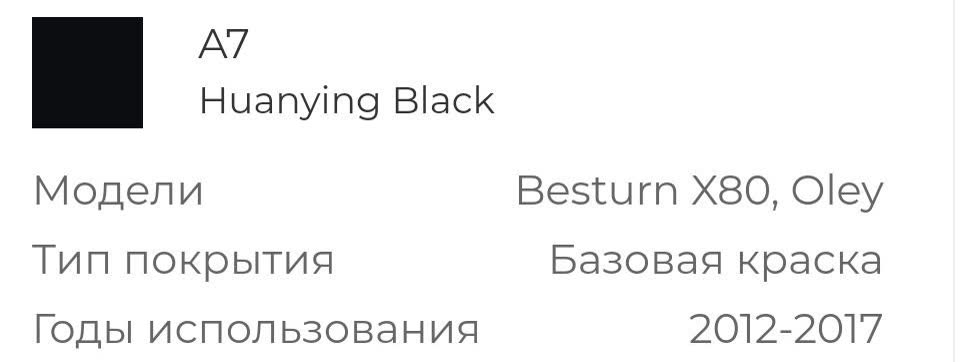

Paint code documentation showing "A7 Huanying Black" for 2012-2017 models
