Air conditioning — refrigerant system and diagnosis

Tags: #hvac · #bearing · #mazda-6-compat

Refrigerant capacity. The X80's A/C system holds 500 g of refrigerant (freon).¹² The refrigerant type/spec is printed on a nameplate sticker, reportedly on the radiator top or in the owner's manual — check under the hood for the exact marking before a recharge.³⁴ Whether the system is single-circuit or dual-circuit was raised as an open question by one owner and not conclusively answered in this thread.⁵

Compressor mechanics. The A/C compressor is mechanically driven via belt and pulley (not electrically driven) — it directly loads the engine through the belt, not indirectly via the alternator/generator.⁶⁷ Internally it uses pistons to pump refrigerant and build pressure.⁸ Clutch engagement (turning the compressor's drive on/off) is purely electrical; the ECU does not directly control compressor output pressure.⁷ When the compressor engages, the cooling fan also engages automatically at its first speed.⁹

Voltage-drop "nudge" sensation — disputed. One owner reports a voltage drop to 7–8V during simultaneous fan+compressor activation, producing a subtle engine "nudge" felt through the car, and attributes any perceived jolt specifically to the A/C clutch disengaging (not the fan).⁹¹⁰ Another owner reports never noticing this sensation despite extensive driving with the fan continuously on (e.g. mountain driving), and doubts the effect is generally perceptible.¹¹¹² Document as a live disagreement rather than settled fact — the underlying electrical behavior (7–8V dip) is described consistently, but perceptibility in the cabin is disputed.

Fuel consumption from A/C use. Running the A/C increases fuel consumption versus not running it, but by less than driving with the windows open at speed.¹³ Basic operation: press the A/C button, set an initial cooling temperature (commonly 18°C to start), and select fan speed 3–4; once the cabin cools, raise the set temperature. An Eco mode is confirmed present on pre-facelift/дорест trims; presence on facelift/рест trims (even in Luxury spec) is unconfirmed/unclear in this thread — one owner with a рест Luxury car wasn't sure if theirs had it.¹⁴¹⁵¹⁶

A/C not cooling after winter — refrigerant-first diagnosis. A recurring seasonal complaint: A/C blows warm instead of cold after winter dormancy. First check: refrigerant level — the system is described as very sensitive, where even a 30–50 g deficit (well under the 500 g full charge) can cause the system to fail to cool or auto-shut-down as a protection behavior.¹⁷¹⁸ Check for leaks before simply recharging. One owner also heard an unusual squeaking/hissing sound from the climate-control motor when switching modes, suggesting a possible motor-bearing issue in the climate unit as a secondary/unrelated cause worth ruling out.¹⁹ Recharging itself is described as an inexpensive procedure; some minor issues have reportedly self-resolved over time without intervention (unexplained, possibly a self-sealing micro-leak).²⁰²¹ Official dealerships can charge with the correct refrigerant type; independent shops report they can also do the job if the correct spec is confirmed first (see capacity/spec note above).²²²³

Freon-leak detection method. To locate a small A/C refrigerant leak, use a dedicated freon "sniffer"/probe (пробник) — a tool that detects freon particles in the air. Place the probe near suspected leak points (e.g. inside air-intake ducting) and watch/listen for its detection signal. This method found an internal leak in at least one case and is reported as more effective than visual inspection alone for small leaks in A/C lines and connections.²⁴²⁵

High-ambient-temperature performance. One owner reports the A/C performs like an aircraft's — very strong — even at 35°C+ ambient temperature, including in mountain passes, suggesting the system has solid cooling-capacity margin under extreme heat.²⁶

Insulating the refrigerant lines improves summer performance. One owner wrapped both the supply and return A/C refrigerant lines with heat-insulating pipe foam plus foil-backed tape. This noticeably improved cooling performance in summer heat and prevented compressor overheat shutdowns.²⁷

Compressor engagement threshold and external-sensor accuracy. The A/C compressor typically engages around -5°C external temperature and not below it.²⁸²⁹ However, the external-temperature sensor feeding the climate display is reported as significantly inaccurate: e.g. reading -1°C when actual temperature was -11°C,³⁰ +3°C after a cold start at -22°C, and as high as +73°C after ~30 minutes of slow driving (20–30 km/h) on a ~31°C day — the sensor reportedly doesn't stabilize until the car reaches speed.³¹³² Note: the Auto-mode indicator on the climate display shows whenever Auto mode is selected — it does not by itself indicate the compressor is actually engaged; don't confuse the two.³⁰

Compressor grinding noise = bearing wear. A grinding/grating noise from the A/C compressor that increases with RPM, especially after a refrigerant recharge, points to a worn/failing compressor pulley bearing rather than the compressor body itself. Diagnosis: remove the serpentine belt and manually rotate the compressor pulley by hand, checking for radial play — play confirms bearing wear. Community experience: bearing failure is more common than full compressor failure when this noise appears right after a routine recharge.^3334353637

Compressor cross-reference parts (2.0L engine). For the FAW Besturn X80/X80F 2.0L engine (2013–2022), aftermarket A/C compressor alternatives are: KCZ2158YU (Krauf brand) and 5DA161450A (KPR brand). These are also reported to fit the Hongqi H5 2.0L (2023+).³⁸

Compressor failure — common cause and repair cost (restyled 2.0L automatic). On the restyled X80 with the 2.0L automatic, A/C compressor failure is often caused by one of the internal gaskets/seals leaking oil, which drops refrigerant pressure and stops the A/C from cooling properly.³⁹ A full replacement compressor (matching the specific part number for a 2019 2.0L automatic) costs from roughly 38,000 RUB (July 2026, RU market) — a price one owner found discouraging enough to ask the community for cheaper sourcing options.^4041424344 A cheaper alternative for this specific failure mode is to replace just the leaking gasket/seal instead of the whole compressor, at roughly 25,000 RUB (July 2026, RU market).⁴⁵⁴⁶ See the cross-reference part numbers above (KCZ2158YU/Krauf, 5DA161450A/KPR) for full-compressor replacement options.⁴⁷

ECON vs full A/C mode. The A/C has two operating modes: ECON (Economy) cycles the compressor on/off at roughly a 50% duty cycle, producing slightly more humid cooled air and lower engine load — a reasonable highway-speed comfort compromise. Full mode runs the compressor continuously at full capacity for dry, cold air; at high fan speed this can get cold/dry enough to frost the inside of the windshield.^48495051 Live disagreement on why ECON air feels more humid: one owner attributes it purely to on/off compressor cycling; another attributes it instead to a different air-vent/humidity routing in that mode — both explanations are reported without resolution.

Compressor clutch cross-compatibility — Mazda 6 GH. The A/C compressor clutch assembly from a Mazda 6 GH (part CLMZ019, 6PK pulley, 138×134×105×35 mm) fits the FAW Besturn X80 pre-restyle and is cheaper than sourcing the OEM FAW clutch. Confirmed by an experienced mechanic after a successful service installation; labor was about 2 hours plus ~2,500 RUB for a subsequent refrigerant charge (May 2026, RU market).^5253545556

Compressor clutch failure — oil starvation from a leaking pulley. A separate, common compressor-clutch failure mode: refrigerant oil leaks out through the pulley seal, starving the internal friction surfaces of lubrication and accelerating bearing wear. Symptoms: abnormal noise during operation, increasing bearing play, and eventual seizure. Preventive check: inspect the pulley periodically for oil weeping and monitor belt condition — distinct from, but related to, the pulley-bearing grinding-noise pattern described above.⁵⁷

Cold-start compressor rattle — usually benign, watch for it worsening. A rattling/knocking noise from the A/C compressor specifically on cold start, which disappears once the engine warms up, is reported as often normal on older systems — but if the noise becomes excessive or persists after warm-up, treat it as a possible early sign of bearing wear or a refrigerant issue rather than dismissing it outright (low-confidence single report).⁵⁸

Mazda 6 compressor as a full-unit alternative — fitment disputed. Beyond the clutch-only swap above, a full Mazda 6 A/C compressor (LUZAR LCAC 2550) has also been tried as a cross-platform alternative; visual/photographic comparison suggests it's close, but the same reporting user separately noted it "doesn't quite fit" (не совсем подходит) — document as an open fitment question, not a confirmed swap. Other confirmed compressor cross-references for the 2.0L engine restated here for completeness: OEM 5DA161450A (KPR brand), aftermarket KCZ2158YU (Krauf).⁵³⁵⁷⁵⁹

AC clutch jamming — continuous-runtime and cold-weather seizure risk. Low refrigerant charge or worn clutch bearings can cause the compressor clutch to stay engaged continuously instead of cycling normally — one driver reported clutch overheating after roughly 14 hours of continuous runtime on a long highway trip (Rostov, overnight). Seasonal risk: if the clutch is engaged and then jams as ambient temperature drops below the ~-5°C compressor cutoff (see the temperature-threshold note above), the owner may not notice anything wrong because A/C use naturally stops for winter — but a clutch jammed engaged through the cold season accumulates wear and can seize. Symptom to watch for: unusual A/C noise, or cooling that persists even with A/C switched off. Fix: check refrigerant charge level and inspect the clutch for proper disengagement before winter. Live disagreement recorded: one owner disputed whether the compressor can genuinely jam mid-season at all, while another specifically flagged the fall-to-winter transition (when A/C use is toggled on/off) as the highest-risk window for an undetected jam.^{60616263646566}

AC compressor pressure-cutoff protection — separate from the temperature-based cabin logic. The A/C compressor has a dedicated pressure-cutoff switch: when refrigerant pressure reaches a critical level (overcharge or a blocked system), the pressure sensor shuts the compressor off to prevent damage (e.g. line/radiator rupture) — a protective mechanism, not a temperature-based one, operating independently from the cabin-temperature sensor that decides whether cooling is currently wanted. Both systems work together in the X80's overall climate-control strategy.⁶⁷⁶⁸⁶⁹

Continuous high-speed fan even in AUTO mode — a separate multi-cause fault. Distinct from the mechanical-noise issues above: some owners report the HVAC fan running continuously at high speed even with the climate control set to AUTO, causing noise and over-cooling. Reported root causes span several systems: (1) a failed climate-control pressure sensor, (2) a malfunctioning cabin-temperature sensor, or (3) a compressor-control fault. Because the causes are varied, professional diagnostics with a dealer-level scan tool is recommended rather than guessing at a single sensor to replace; fixes range from sensor replacement to ECU reprogramming depending on findings.^70717273

AC not cooling with a working fan — suspect the pressure sensor, not a missing relay. If the A/C fan runs but the compressor never engages, the cause is unlikely to be a missing/blown relay — there is only one general A/C relay in the fuse box, and it either works or the whole system is dead. The more likely suspect is the A/C pressure sensor, located on the refrigerant tube (has its own electrical connector): low refrigerant pressure prevents the compressor from being allowed to engage, as a protection behavior consistent with the pressure-cutoff logic described above.^7475767778

AC failure with a bad smell in traffic — refrigerant leak, diagnose at a charging station. A distinct failure pattern: A/C develops a bad smell ("кондей завонял") followed by the system blowing hot air instead of cold, specifically during traffic congestion. This combination points to a refrigerant leak; recommended diagnosis is a proper A/C charging-station check to verify remaining refrigerant quantity and pinpoint the leak location, rather than guessing and simply recharging.⁷⁹⁸⁰

AC hose replacement — access point and procedure. To replace an A/C refrigerant hose, the main practical access point is from the passenger side, under the dashboard below the glove box — the hose runs from there to the evaporator unit. Full interior panel removal is not always necessary: reaching in from below or removing just the lower dashboard panel is often enough, though some jobs may still require removing additional trim pieces depending on the exact hose run.^81828384

Evaporator refrigerant leak — dye-and-UV diagnosis, and full-replacement cost. A separate refrigerant leak specifically from the evaporator area inside the cabin: possible sources are the thermal expansion valve (TXV), the sealing rings at connection points, or the evaporator core itself. Diagnostic method: add fluorescent dye to the refrigerant charge and inspect with a UV light — this located leak evidence inside the cabin in one confirmed case. Repair scope depends on the exact failure point (TXV seal rings vs. full evaporator), which typically requires evaporator removal to confirm; full evaporator replacement costs approximately 28,000 RUB (RU market, June 2026) because it requires complete dashboard removal — a labor-intensive job.^{85868788899091929394}

Refrigerant type and compressor oil — factory label reference. A factory under-hood label confirms the system uses R134a refrigerant with RAG 100 compressor oil — a definitive spec reference alongside the 500 g capacity figure noted above.⁹⁵⁹⁶⁹⁷

Media

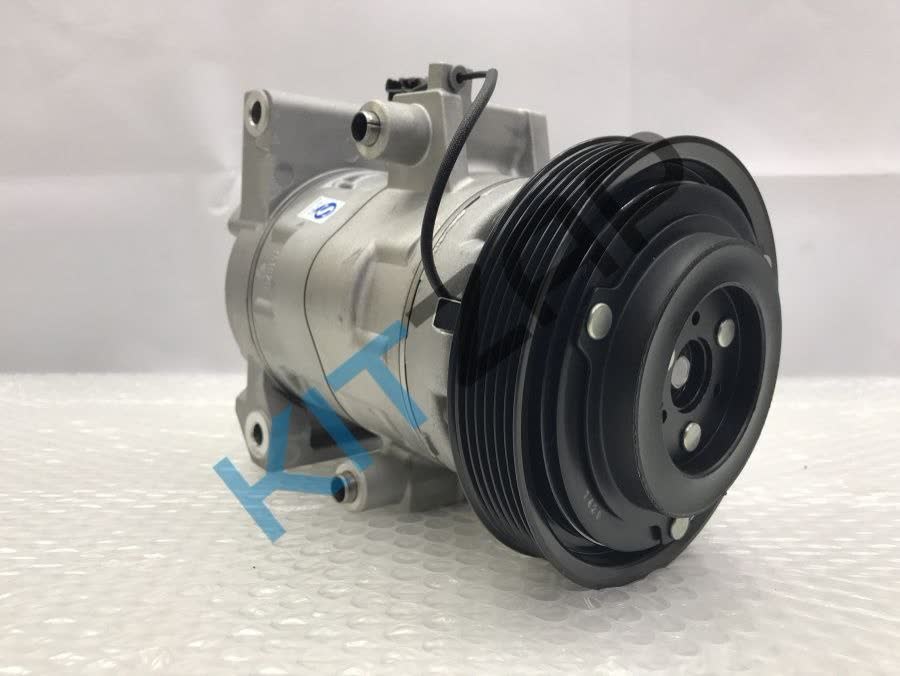

AC compressor assembly with clutch pulley, Mazda 6 GH-sourced component (CLMZ019) installed as a cheaper cross-compatible alternative

Evaporator area photo showing suspected leak zone with UV-dye/oil residue marks used to trace the refrigerant leak

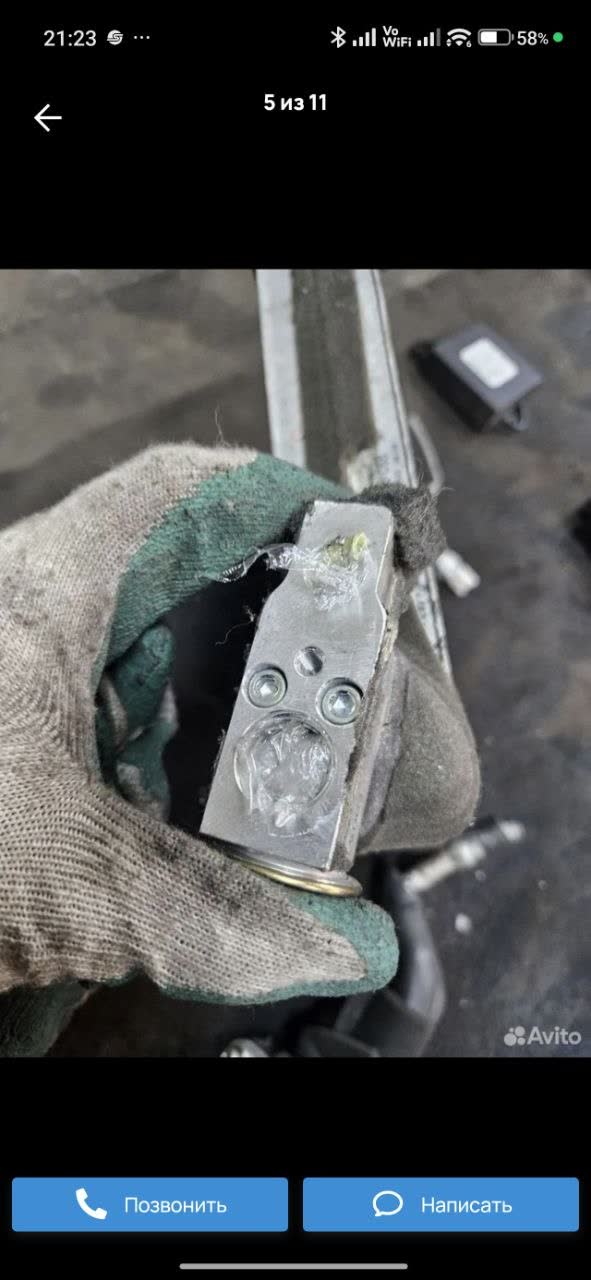

Evaporator connection points with sealing rings, photographed during the leak investigation

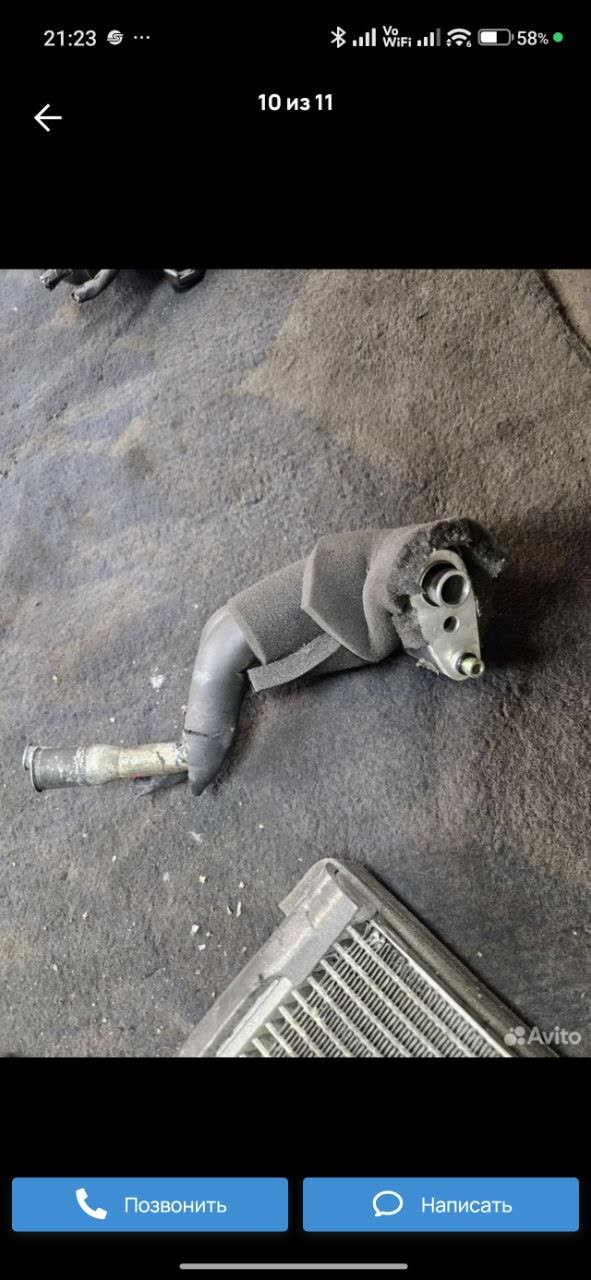

Additional angle of the evaporator/TXV connection area referenced during leak diagnosis

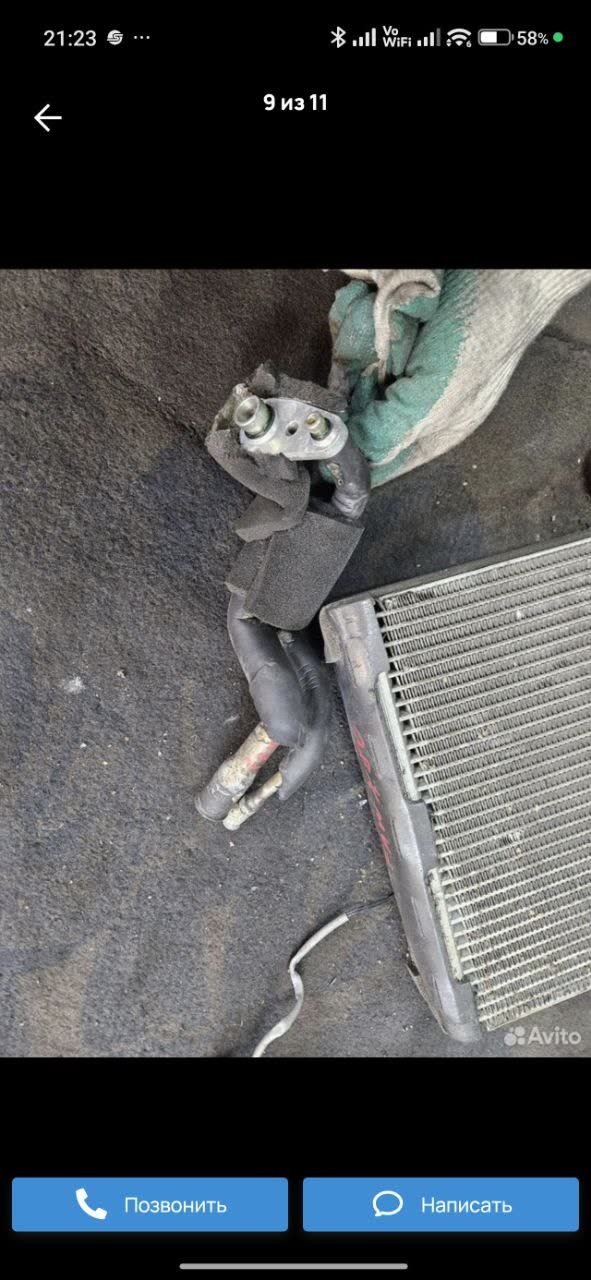

Oil residue marks at a suspected leak point on the refrigerant-line connection

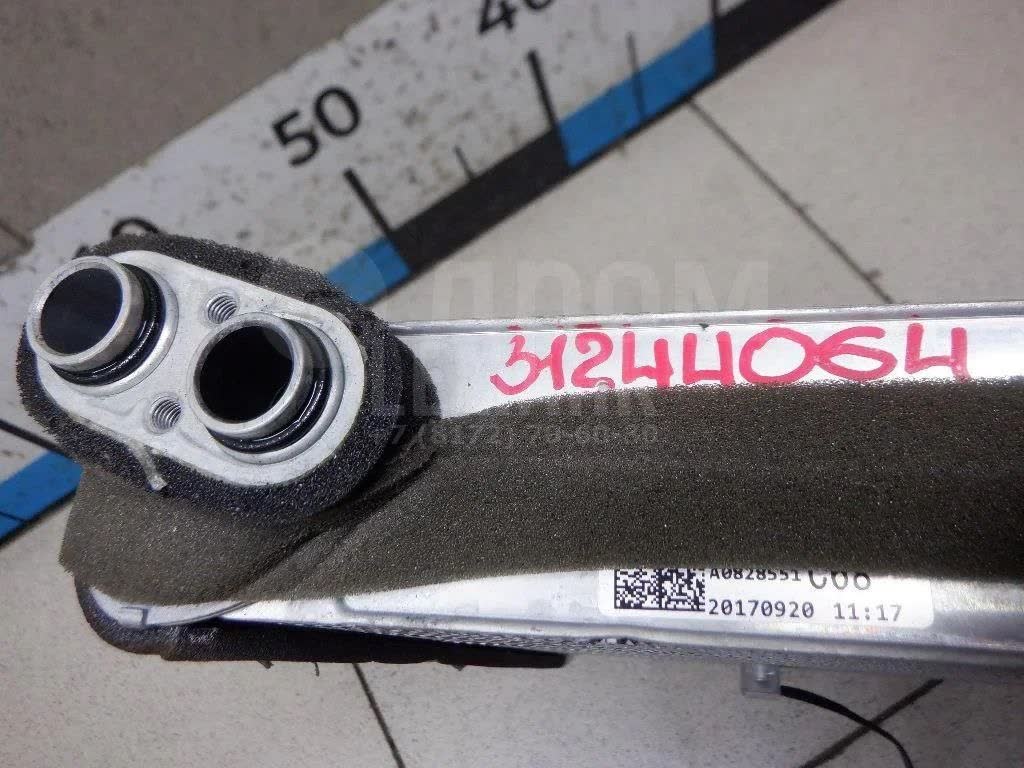

Final diagnostic photo from the evaporator-leak thread, used to decide between seal-ring repair and full evaporator replacement
