AKPP — ATF temperature management

Tags: #automatic-transmission · #atf · #cooling · #temperature

Optimal transmission (ATF) temperature on the X80 is 92–95°C; a 105–110°C threshold is considered critical. The factory heat exchanger for the АКПП is undersized for sustained highway driving in S mode or in hot climates — sustained temperatures over 100°C have been observed in testing. Modern ATF oils can tolerate up to 140°C, but the aluminum АКПП housing itself may fail at lower temperatures, so an additional (auxiliary) ATF cooler/radiator is recommended for longevity, not treated merely as a performance luxury upgrade.¹

A real-world field report backs this up with numbers: on a 2024, 7,000 km summer road trip with fresh ATF, transmission temperature never exceeded 102°C, despite 36–39°C ambient heat, intensive highway overtaking in S mode, and Tbilisi/Baku city traffic. Fresh oil and a correct fill level were called out as critical to this result. The same owner's conclusion: an additional radiator is likely unnecessary for moderate drivers who avoid aggressive S-mode use, but is recommended for performance-oriented/harder driving.²

Checking ATF level (no dipstick). The X80's automatic transmission has no visible dipstick. Level is checked via the drain plug: crack open the drain plug and watch the small internal tube — when the level is correct, fluid begins dripping from that tube.³ When changing fluid, drain whatever comes out and refill with the same volume; the transmission reaches the correct level naturally once refilled to match the drained amount.⁴

Harsh/jerky shifting — diagnosis order. Hard or jerky automatic shifts can have several causes, and owners should check them in this order: (1) dirty or old ATF — check first;⁵ (2) a clogged filter or fluid that hasn't been changed in a long time — for more precise diagnosis, a service visit is recommended;⁶ (3) the transmission has no internal serviceable filter, only a strainer/mesh.⁷ Community characterization: the X80's transmission is "archaic" with no fixed shift schedule — behavior varies almost like it depends on the weather.⁸⁹ One owner reports that flashing a Euro-2 ECU map resolved harshness for them, implying transmission tuning/mapping can also be a factor — though this requires expert ECU reprogramming and should be a later step after fluid/filter checks.¹⁰

AKPP overheating up to 180°C — undersized factory cooler. Some X80 units suffer ATF overheating as high as 180°C due to an undersized transmission cooler from the factory. Symptom pattern: after roughly 30 minutes of aggressive driving, the transmission starts hunting between gears and hesitates on acceleration, then recovers after about 10 minutes of rest. Reported diagnosis: ZF engineers (the transmission's design lineage) confirmed the factory cooling capacity is genuinely inadequate for sustained hard use, consistent with the "additional cooler recommended" guidance above. Fix: install an additional/auxiliary transmission fluid cooler (radiator), and in summer remove the engine under-tray to improve airflow to the transmission area.^11121314

Transmission breather (sapun) location. The transmission's breather/vent ("сапун") is mounted near the battery, hanging off a bolt on the battery mounting bracket/stand.¹⁵¹⁶¹⁷ Useful to know when ruling out pressure-related causes during cooling/fluid diagnostics.

Protection-mode temperature thresholds — two-stage response. The АКПП's built-in overheating protection operates at two distinct temperature levels: the 1st level, around 127°C, activates a dynamic shift-point adjustment mode (DSP) that shifts into higher RPM ranges to reduce heat generation; the 2nd level, around 150°C, reduces engine torque outright. Without an auxiliary cooler, transmission temperature can reach these thresholds during heavy traffic or repeated hard acceleration, because the OEM cooling capacity is limited — consistent with the broader "undersized factory cooler" pattern already documented on this card.^18192021

Auxiliary cooler — Hayden OC-1405 installation, confirmed by two independent reports. Corroborating and adding installation/product detail to the "additional cooler recommended" guidance above: a Hayden OC-1405 auxiliary transmission-fluid cooler (round heat exchanger) has been installed by more than one owner to prevent overheating and K2 friction-pack failure. Installation: remove the stock small rectangular heat exchanger, install an adapter fitting under the tube connections, then plumb in the round Hayden cooler alongside the factory radiator-mounted exchanger. Reported cost: 12,000–15,000 RUB (July 2024, RU market). Recommended timing: install before extended highway driving or frequent towing rather than waiting for symptoms.^{22232425262719}

Partial ATF drain/top-up — remember the gasket, not just the fluid. For a partial automatic-transmission-fluid service (a top-up/partial drain rather than a full fluid change), you need a new gasket/seal in addition to the fresh ATF itself — don't order fluid alone. Confirm the exact gasket requirement with your mechanic before starting, since it's easy to overlook when focused only on the fluid volume.²⁸²⁹³⁰

Media

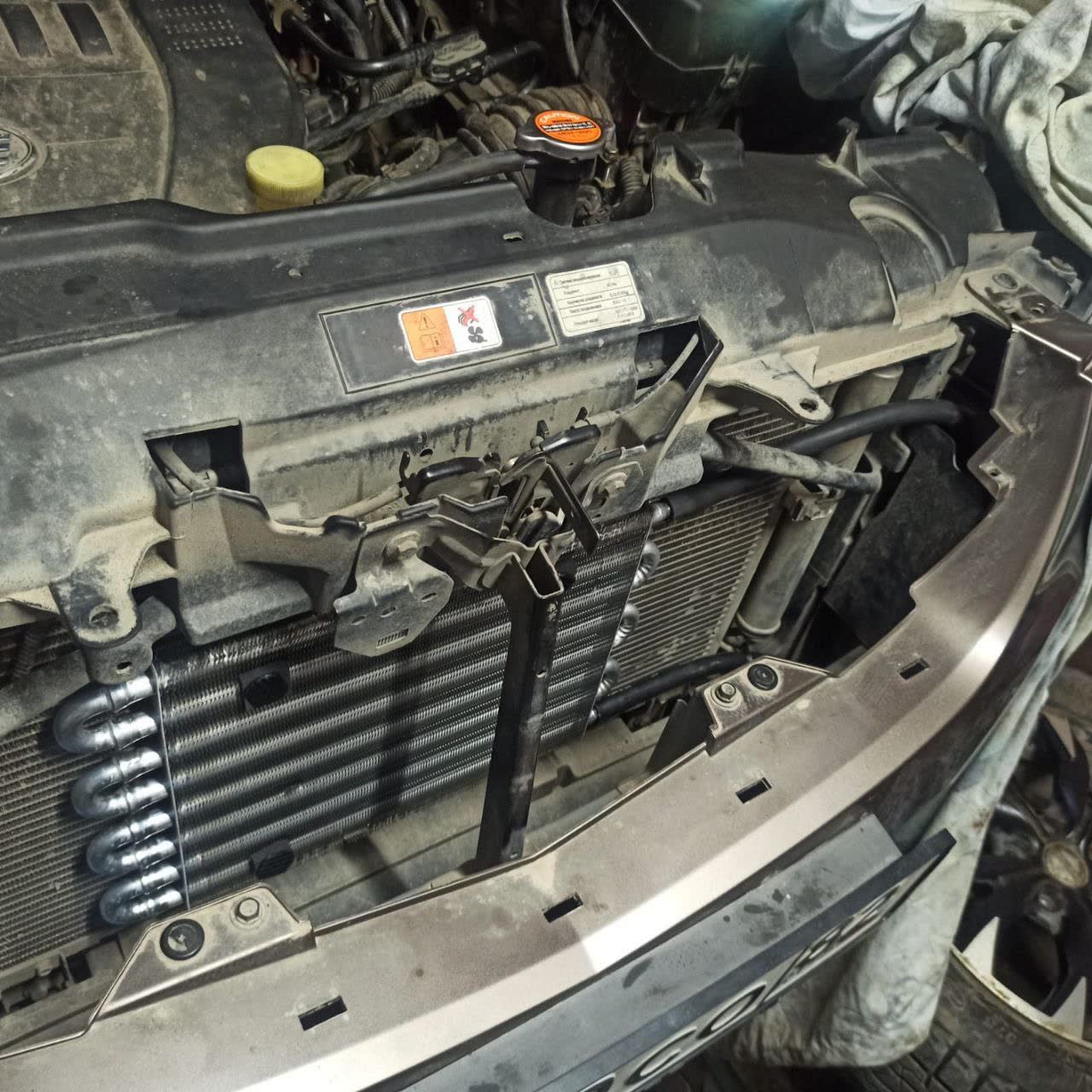

Installed auxiliary AKPP cooler (Hayden OC-1405) with transmission fluid lines connected to both the engine-mounted radiator (left, larger) and the cooler assembly

The round heat exchanger component (Hayden OC-1405) that replaces the stock rectangular transmission cooler
