Dashboard panel removal — A/C and heater access

Tags: #dashboard · #hvac · #heater

To reach the evaporator core for A/C repair (leak fix, clog clearing, etc.), the dashboard must be substantially disassembled: (1) remove the hood-release lever by carefully prying it with a flat tool and pulling downward; (2) disconnect the multiple clips and fasteners in the steering column area; (3) remove the main dashboard retaining bolts; (4) remove the iron support tube/brace below the steering column; (5) remove the heater housing, which likely needs to be split open to reach the evaporator itself. This is a moderate-complexity project requiring several hours with breaks — not a quick job. Along the way, note that the comfort module (BSM) is located under the driver's left knee area, useful to know if you're also troubleshooting comfort-module-related electrical issues while the dash is open ^{123456789101112131415161718}.

Multi-day project — reinforcing confirmation: consistent with the "moderate-complexity, several hours" characterization above, a separate report confirms full dashboard removal is a labor-intensive job requiring multiple working sessions — it cannot realistically be completed in one day. Careful documentation of components and fasteners during disassembly is recommended for reassembly, given the number of disassembly steps involved ¹⁹²⁰.

Media

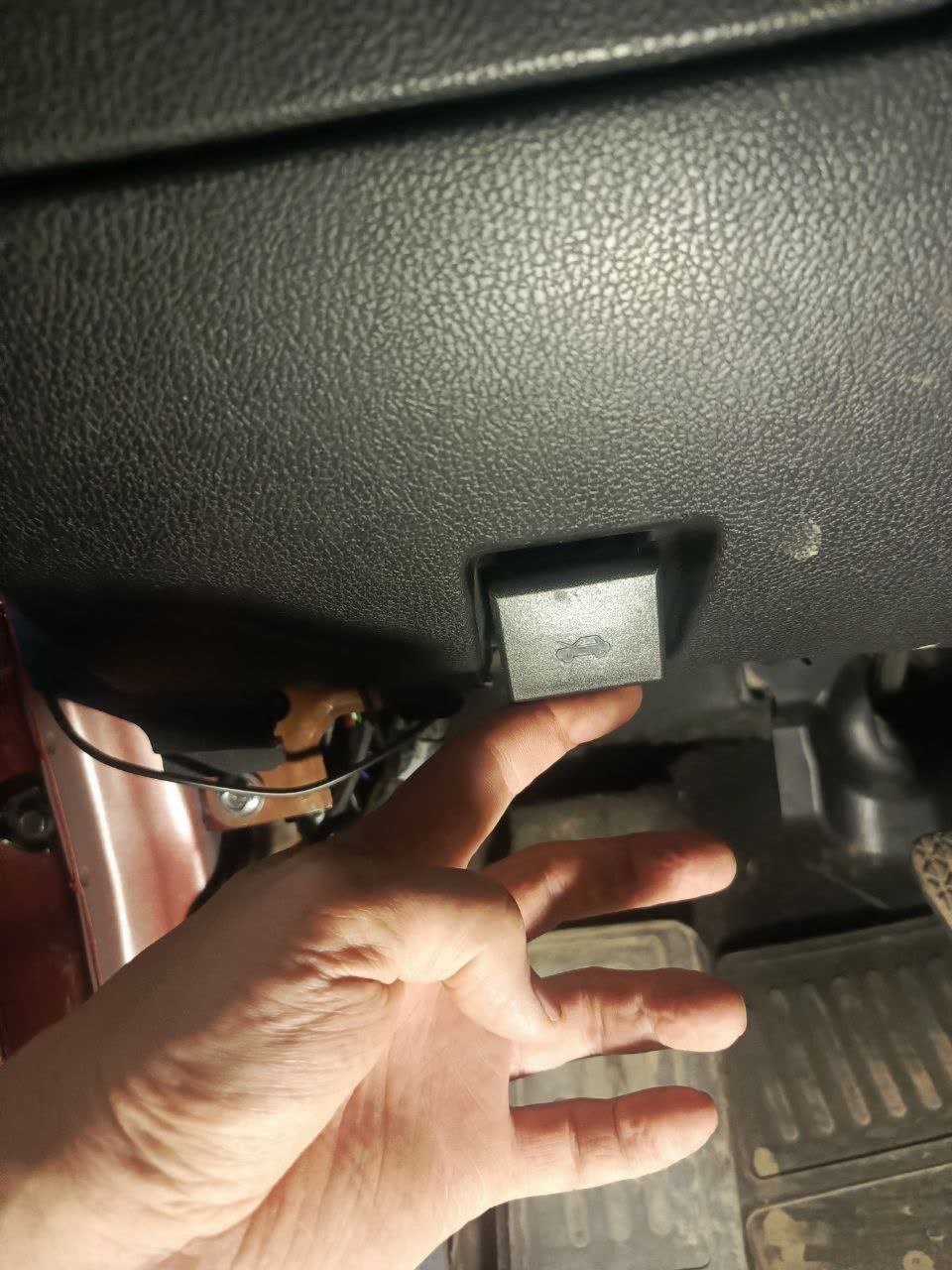

Hood-release handle removal step

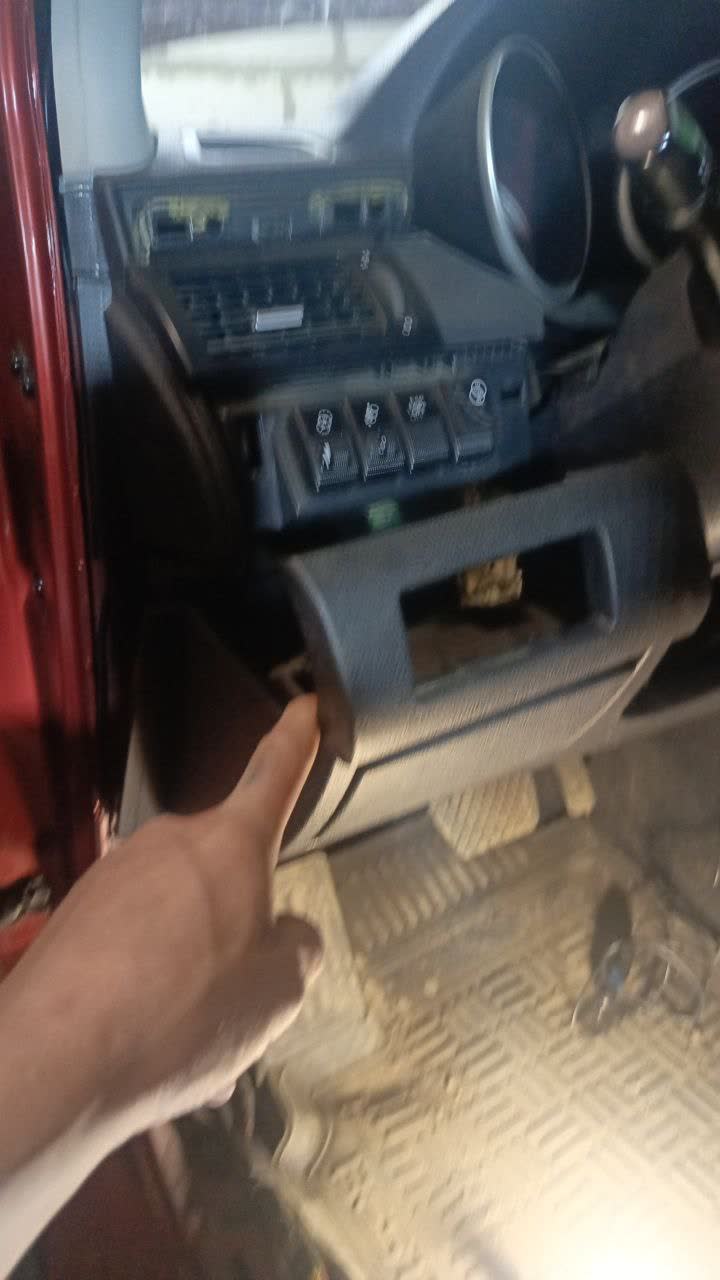

Dashboard disassembly step, exposed wiring harness

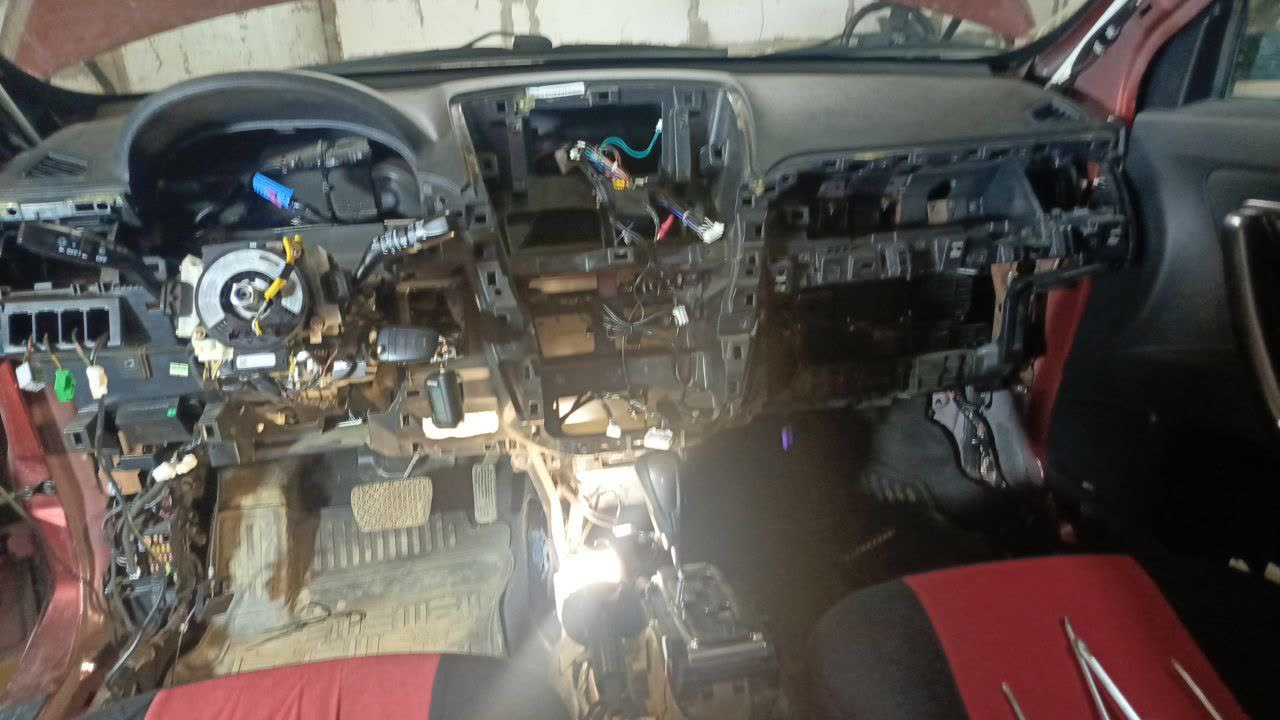

Comfort module (BSM) location under driver left knee area

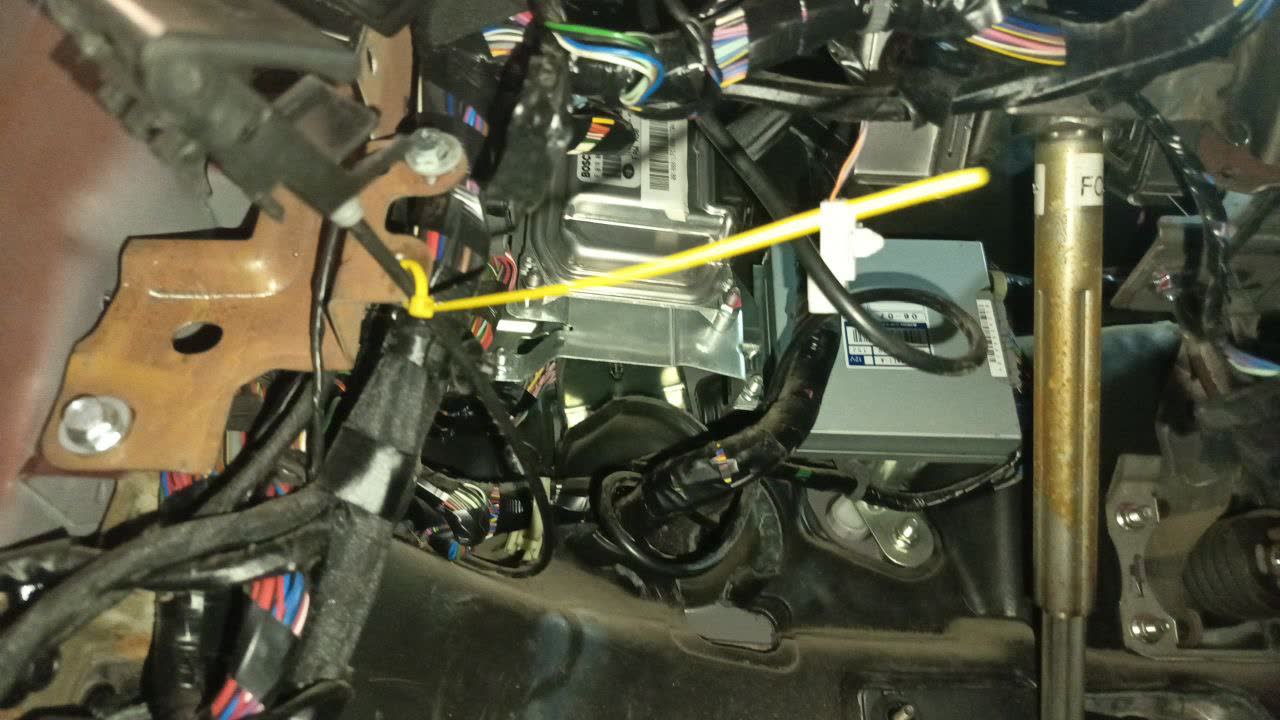

Heater housing visible under the dashboard
