Engine operating temperature and fan engagement

Tags: #temperature · #cooling-fan · #automatic-transmission · #hvac · #cold-start

Baseline (no A/C). Normal FAW X80 engine operating temperature is 92–95°C. Auxiliary cooling fans engage at 98–99°C and pull the temperature back down. Under traffic/idle conditions temperature can climb to about 100°C — still within the range considered normal, as fans should cycle automatically to hold thermal balance.¹ This is independently corroborated: normal city-driving/idle temperature is commonly reported around 99°C, with fan activation at that same threshold considered typical and normal — the thermostat is functioning properly if temperature stabilizes there and doesn't climb further during traffic or low-speed driving. Investigate further (fan motor, thermostat quality, coolant level) only if temperature consistently exceeds 100°C at idle/traffic.²³

Highway gauge reading and dashboard-mark calibration. On the highway, a "4 divisions" gauge reading (roughly the middle of the scale, or slightly above) corresponds to 90–93°C — described as ideal. Rough gauge-mark calibration: 1st mark ≈ 70°C, 2nd mark ≈ 75°C, middle mark ≈ 90°C. Readings above 95–96°C trigger the cooling fan. In winter, even at -10°C to -40°C ambient, the same thermostat/fan behavior applies — don't expect the gauge to read lower purely because the outside air is cold.⁴⁵⁶⁷⁸⁹

With A/C engaged. Normal engine temperature stabilizes slightly lower, around 87–90°C, with anything above 90°C potentially triggering the fans. Two cooling fans are expected to run when A/C is on: a primary fan that runs continuously, and a secondary fan that cycles as needed — frequent fan engagement in this state is normal, not a fault sign. If temperatures run high with A/C on, check in order: both fans are actually operating, the radiator is clean/unobstructed, coolant level is adequate, and water pump condition (a weak pump causes temperature instability).¹⁰

With АКПП (automatic transmission) load. On automatic-transmission X80s, temperatures commonly reach 98–100°C in traffic specifically because of hydrodynamic transmission heat generation feeding into the shared cooling system. On the highway at steady throttle, temperature typically drops back to 90–92°C. A reading of 99–102°C sustained on the highway (not just in traffic) is not normal — it points to a thermostat or other cooling-system problem rather than ordinary АКПП heat load.¹¹

Cold-start warm-up timing (winter). A owner logged a cold start at 9°C ambient: the engine reached 60°C in roughly 11 minutes at idle, with transmission (ATF) fluid warming about 4°C slower than the engine. On the analog/graduated dash gauge, each mark represents roughly 10°C.¹²¹³¹⁴ Recommended winter procedure (-5 to -20°C): idle the engine until coolant reaches 60–80°C, then drive gently at 1,300–3,000 RPM for about 5 minutes before normal use; modern Euro-5-class vehicles are said to tolerate moving off after just 5–10 minutes for emissions-standard reasons, but the transmission and engine oil should still reach working temperature before aggressive driving.¹⁵¹⁶ One community member pushed back that this "gentle idle first" approach is unnecessary and that any oil just needs to reach working temperature by driving, not idling — presented as a live disagreement rather than settled practice.¹⁷

Slow cabin-heater warm-up on a cold start — normal, not a fault. New-car owners commonly report the cabin heater staying cold during the initial warm-up (15–20 minutes at around -5°C) even after the engine itself reaches temperature. This is expected behavior, not a defect: the small coolant circuit (before the thermostat opens the large/radiator loop) has to warm first, and once the thermostat opens to the large circuit, distributing that warmth to the cabin heater core takes additional time. This is not a fault as long as: (1) the engine does reach normal operating temperature, and (2) the heater does eventually warm up while driving. Patience is the fix — engine oil tends to warm faster than coolant, so allow another 5–10 minutes. Only suspect a real problem (stuck thermostat, low coolant, or an air pocket) if the heater still hasn't warmed after 30+ minutes or a stretch of moderate-speed driving.^{1819202122232425}

Hot-climate traffic case study (Krasnodar) — before/after a thermostat-and-hose fix. A field report from a hot-climate region (Krasnodar, June data) illustrates the traffic/A/C temperature pattern already documented above with concrete before/after numbers: before fixes, temperature in heavy traffic with A/C on reached 106–108°C; after replacing the thermostat and repairing a cracked hose, temperature stabilized around 99°C in the same conditions (minimum ~89°C when the fans activate, rarely exceeding 99°C). This corroborates the fan-activation-around-89°C baseline noted above and shows that a properly functioning thermostat/hose set keeps traffic-heat temperatures near that ceiling even in hot regional climates.²⁶²⁷²⁸

Media

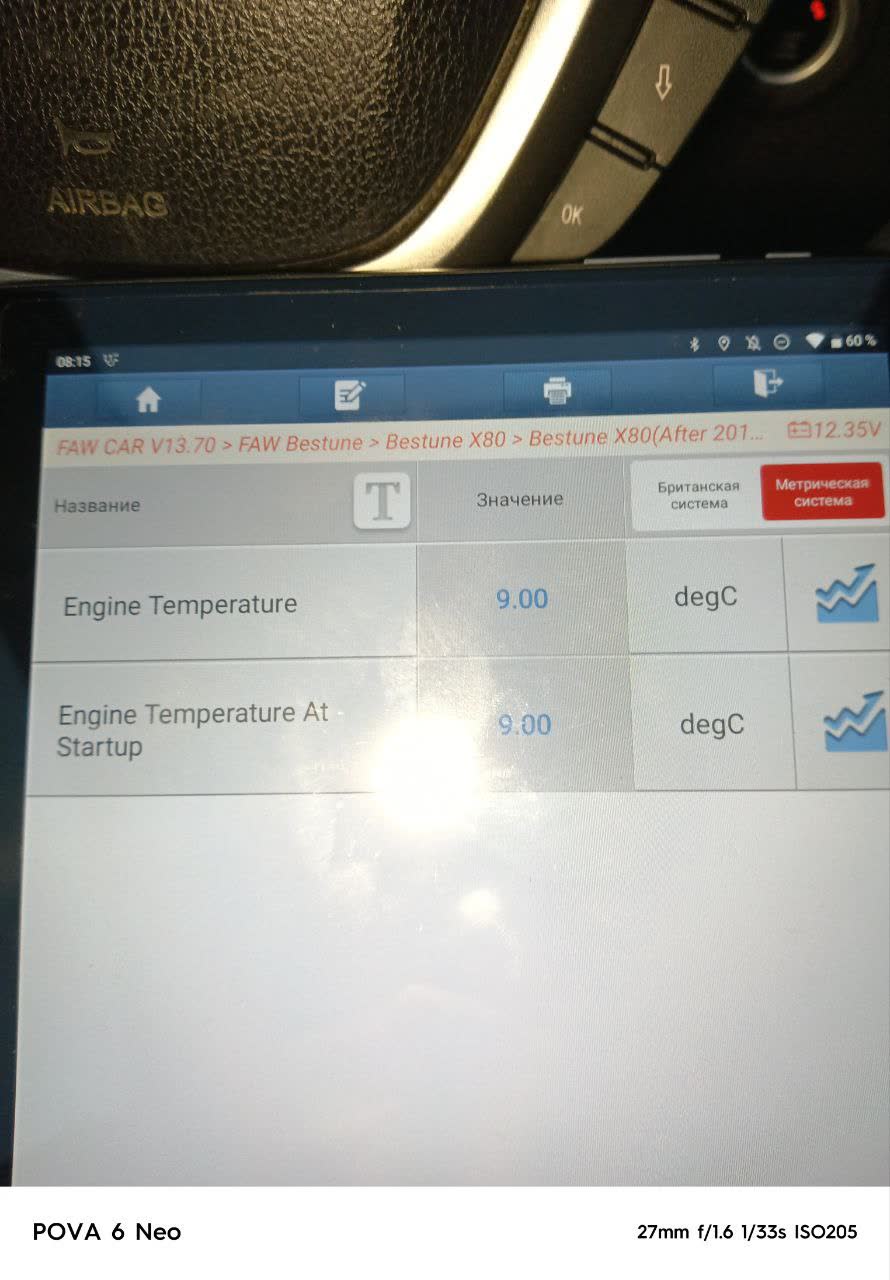

POVA diagnostic-tool dashboard screenshot at the start of a cold-start test: 9°C ambient, engine and ATF temperature readouts at startup

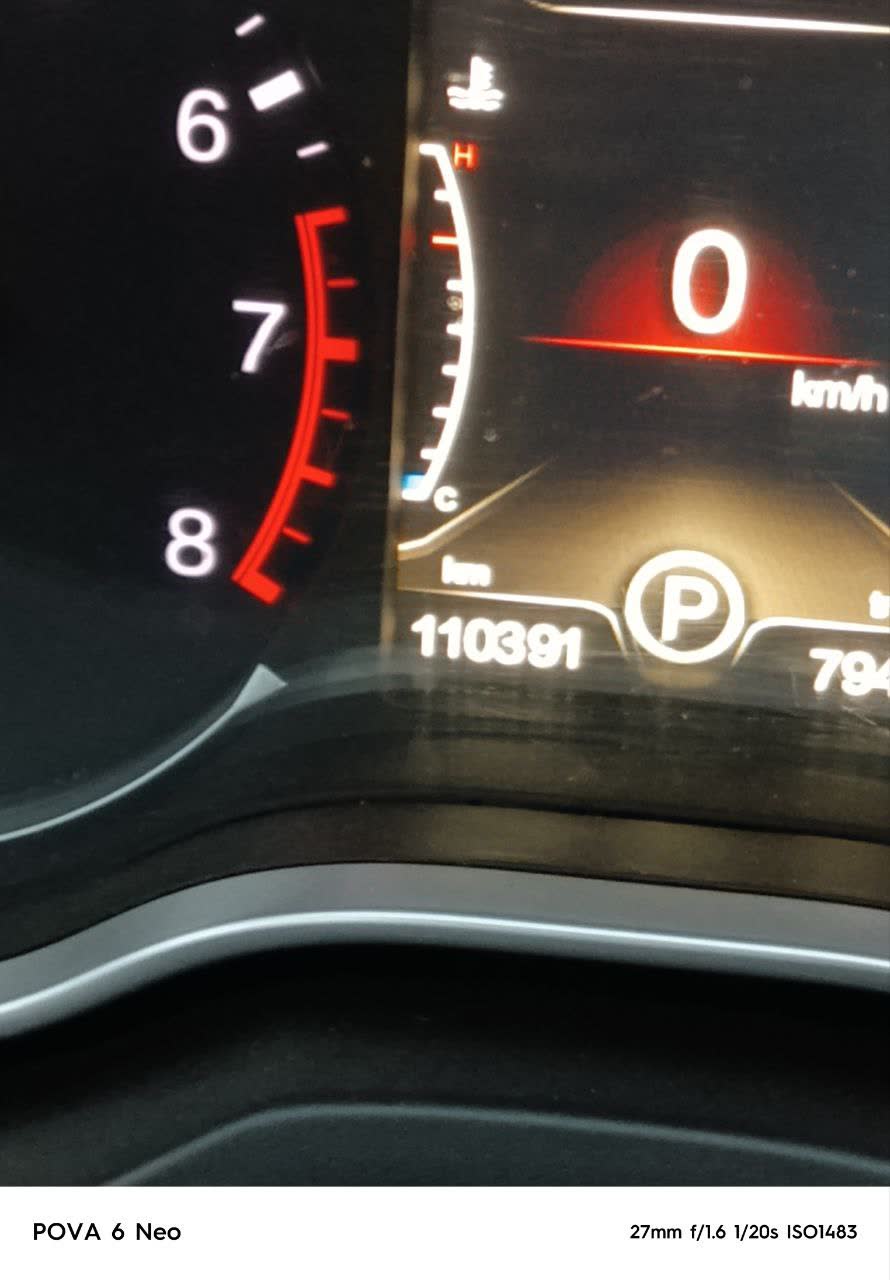

POVA screenshot mid-warmup showing new indicator appearing on the instrument cluster as engine temperature rises

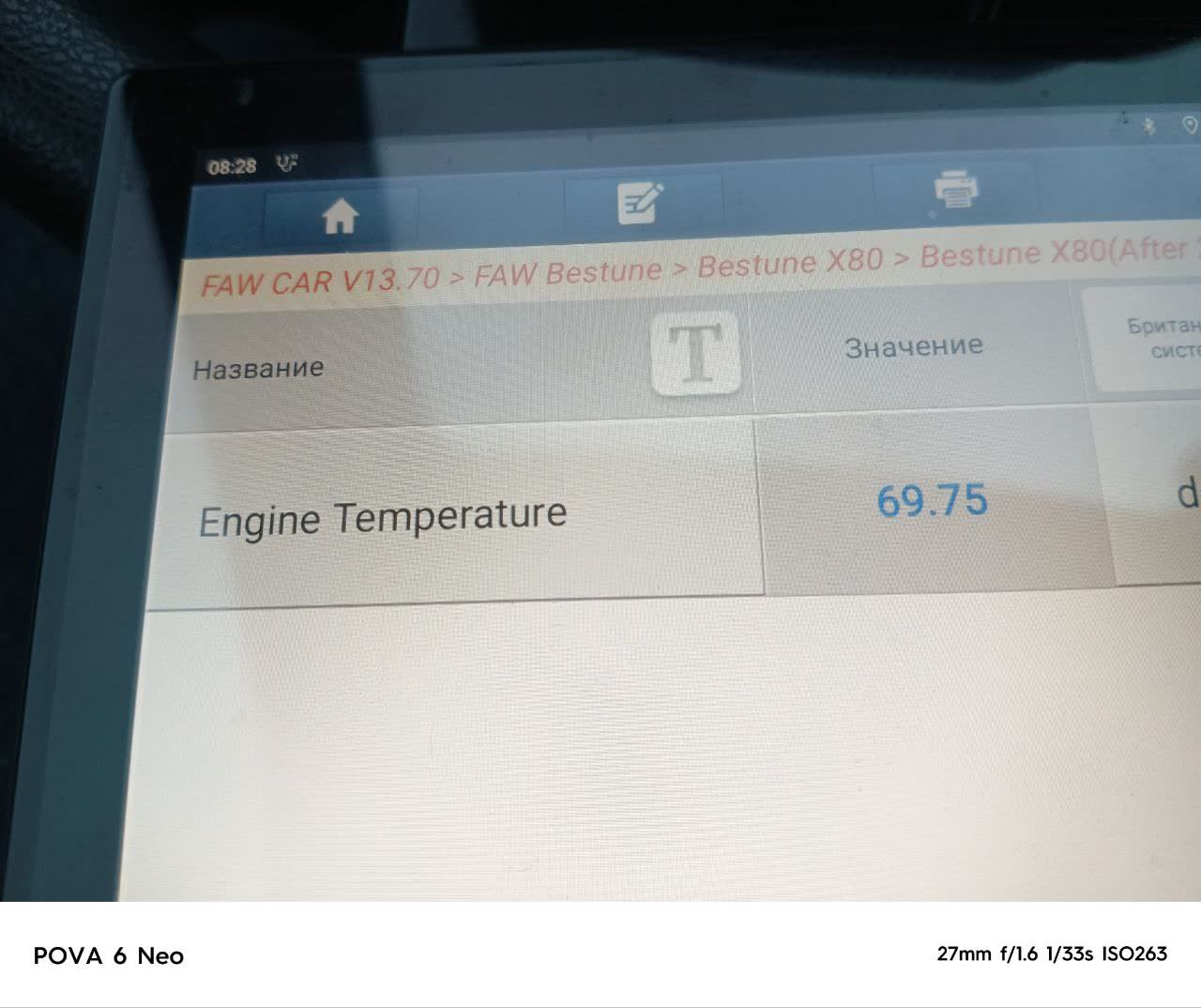

POVA screenshot used to establish that each dashboard gauge mark corresponds to about 10°C, and that ATF warms slower than engine coolant
