HVAC defrost airflow design

Tags: #hvac · #windshield

Air leaks to unintended directions regardless of mode: multiple owners report that the X80's HVAC deflector dampers seal poorly (worn gaskets/seals on the vent dampers), so air escapes sideways instead of being properly directed. Result: even when windshield-only ("лобовое") mode is selected, air is felt blowing from most/all vents at once, weakening the defrost airflow specifically aimed at the glass — a defect one owner traced to worn-out damper seals after partially disassembling the heater unit ^1234567.

Weak footwell airflow is common, even fully warmed up: several owners report the footwell vents blow noticeably weaker than the face-level vents, even after the car is fully warmed — one owner considers this normal across many cars in general, not X80-specific ⁸⁹¹⁰.

AC compressor and windshield-defrost button interaction is inconsistent: pressing the dedicated windshield-defrost button increases fan strength and is expected to trigger the AC compressor (which dries the air and helps clear the glass faster), but behavior varies by owner and by outside temperature — on some cars, the AC compressor does not engage at all when the outside temperature is below 0°C, only the fan speed increases ^1112131415. Some owners deliberately turn AC off in winter because "with it, the windshield doesn't fully demist; without it, it's tolerable" ^{16171819202122}.

Front (dashboard-face) deflectors funnel too much air at the driver's face: the round dash deflectors don't fully close like on some other cars (e.g. a Duster where the vents can be sealed completely) — the X80's deflectors always leave gaps, so air continues to blow toward the occupants' faces even at minimum setting, drying out the cabin and making the feet cold by comparison. Workarounds discussed: partially closing them with the built-in adjustment wheel where present, taping over vents with tape, or physically removing the dash frame to block them — none are fully satisfactory ^232425262728.

Conflicting report — trim/model variation: some users (e.g. one with a "restyle" model) report their deflectors work fine without needing the adjustment wheel, suggesting model/trim variation in deflector hardware. One user reports that adding sound-deadening material ("shumka") to the air-intake resonator improved overall airflow behavior — an unconfirmed, single-report anecdotal fix.

Basic HVAC control layout and behavior: the left dial adjusts temperature (higher = hotter), the right dial controls fan speed (0 to max), and the mode button cycles through air-direction modes (defrost/face/floor). The heater may fail or become intermittent if the antifreeze/coolant level is low (should be at or above the minimum mark). In winter, running the climate system in auto mode at low outside temperatures can cause condensation on door/window seals ^293031323334.

Blower fan cannot run independently of the heater (design limitation): the HVAC system cannot operate the cabin air blower independently of the heating function. At ambient temperatures around 15–18°C, the blower cannot be run in fresh-air mode without the heater also engaging. Owners wanting fresh-air circulation or A/C without heat during mild weather cannot get it — this is a system design limitation, not a failure mode ³⁵.

Front heater duct assembly — do not force a connection between upper and lower tubes: when working behind the dashboard on the front heater air ducts (воздуховоды печки), the upper and lower ducts should not be forced into a direct connection with each other — they simply insert into their own separate mounting clips. If the lower duct doesn't seat in its mount after the tubes have been joined, that's a sign the tubes are incorrectly positioned; they are designed to stay separate rather than mate together directly. One owner initially struggled to determine whether the tubes should connect and confirmed, after community input, that they insert independently (with some effort, but they do seat) ^{363738394041424344}.

Media

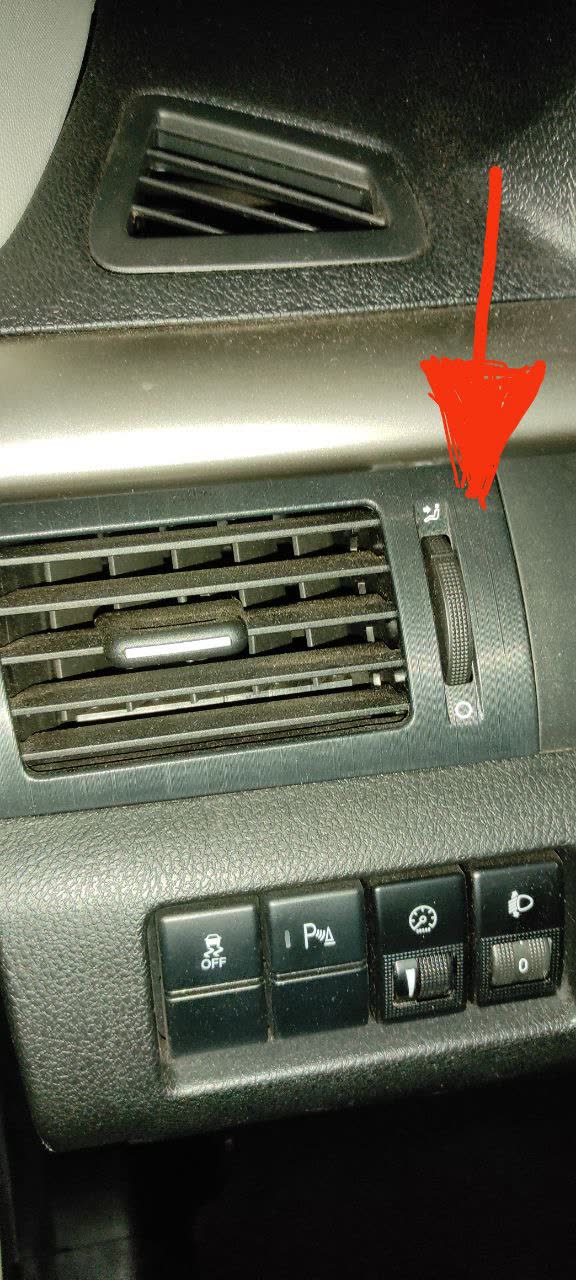

Manual/semi-auto deflector controls on the X80 dashboard; side deflectors have adjustment wheels for partial airflow control, though users note they remain inefficient

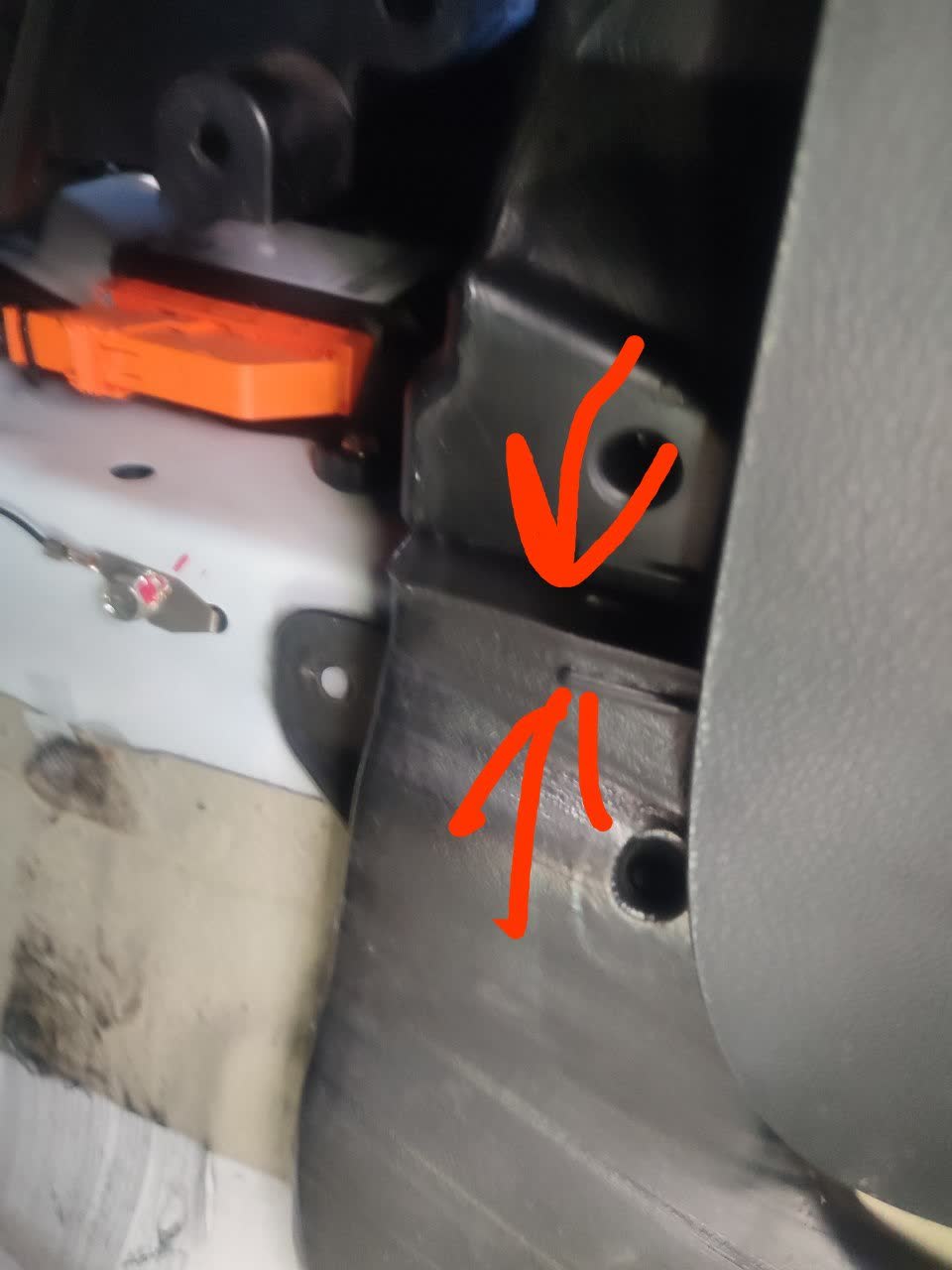

Photo of the front heater ducts behind the dashboard, showing upper and lower tube arrangement

Second photo of the heater duct connection area under discussion

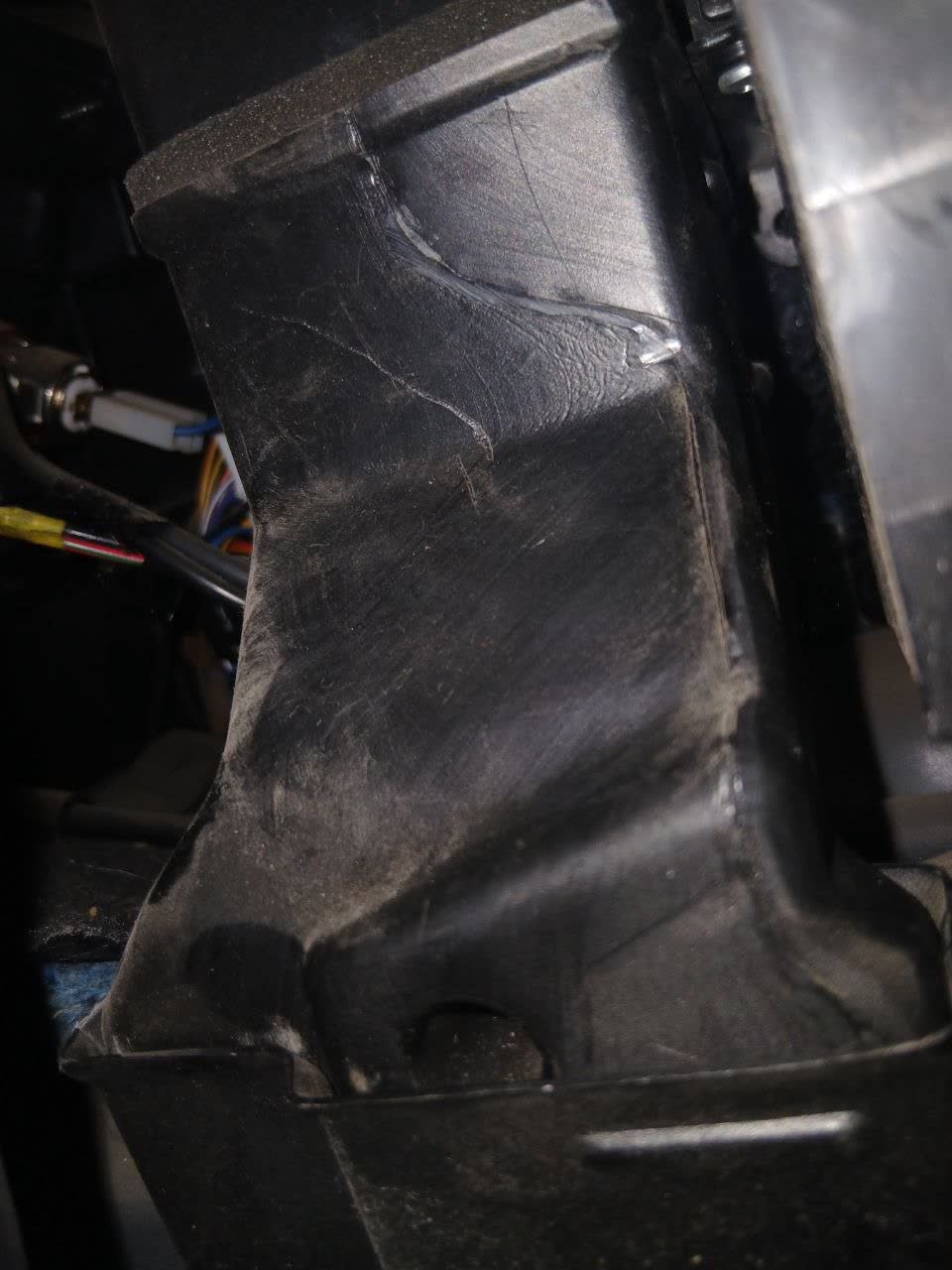

Photo showing the heater ducts simply inserted into their mounting clips without a direct tube-to-tube connection
