Radiator mounting vibration and leaks

Tags: #radiator · #water-ingress · #vibration

Mounting vibration/rattle. A rattle or vibration felt when the engine is running is often caused by worn rubber mounting pads at the top of the radiator. Fix: install rubber shim washers (DU15, roughly one per mounting point) under the existing mounting hardware to take up the wear and restore a firm mount.¹

General radiator leak diagnosis. If coolant leaks from the radiator core: for a small pinhole, cold epoxy or metal brazing can be tried as a temporary or sometimes permanent seal — if that doesn't hold, drain, dry, and reseal with epoxy putty as a next step; if the leak is from a seal failure rather than the core itself, replace the radiator. Key diagnostic question: does the leak occur only under pressure, or is it constant? The radiator cap is a commonly overlooked root cause — a cap that no longer holds correct pressure causes excess system pressure, which itself produces pinhole leaks; verify a new cap actually seals properly before concluding the radiator itself is at fault, especially if a recent radiator replacement shows the same symptom. After any repair, bleed the cooling system for air pockets.²

Leak at the thermostat-housing/hose junction. If coolant seeps specifically from the junction between the upper radiator hose tee (or heat-exchanger block) and the engine block, the gasket/seal at that local interface has failed — this does not necessarily mean the whole engine-block gasket is compromised. Diagnose by removing the top hose and examining the socket/seal; before assuming a major job, confirm the upper hose is hot (thermostat functioning) and the coolant level is stable over time (ruling out a larger internal leak). Disassembly typically reveals a worn gasket at that joint specifically.³

Leak near the coolant temperature sensor — seam vs. crack. A leak from head-mounted components near the coolant temperature sensor may originate either from a factory weld-seam tear or an actual material crack in the casting — visually telling these apart is difficult. A borescope/camera inspection is recommended before committing to a repair, since cost varies widely depending on root cause: simple gasket replacement is cheap, a weld-seam repair is moderate, and a cracked casting may mean replacing the part entirely.⁴

Radiator air-pocket (overflow) valve price — unverified, low confidence. One community mention: an air-pocket/overflow valve for the radiator is available for under 500 RUB (RU market, September 2025), cited as an affordable replacement part. Exact supplier not specified in the discussion — treat as a rough price data point rather than a confirmed sourcing option.⁵

Radiator cap brand and replacement interval. A MASUMA-brand radiator cap (orange box packaging, Japanese and Russian text on the label) is a confirmed OEM-fit option for the X80. The cap has an integral pressure-relief valve and should be inspected during coolant-system maintenance — directly relevant to the "verify a new cap actually seals" advice already on this card, since cap failure is a commonly overlooked root cause of both pinhole leaks and air-pocket complaints elsewhere on this wiki. The packaging references a one-year replacement interval recommendation for the cap.⁶⁷

Correct radiator cap pressure rating — 1.3 bar. The X80 radiator cap should be rated 1.3 bar (1.3 kg/cm²); caps rated 0.9 bar or 1.1 bar are not the correct spec and should not be fitted. A MASUMA cap, model MOX-206, at the correct 1.3 bar rating has run reliably on one owner's car for 3+ years, confirming both the exact pressure spec and the MASUMA brand recommendation noted above.^{89101112131415}

Media

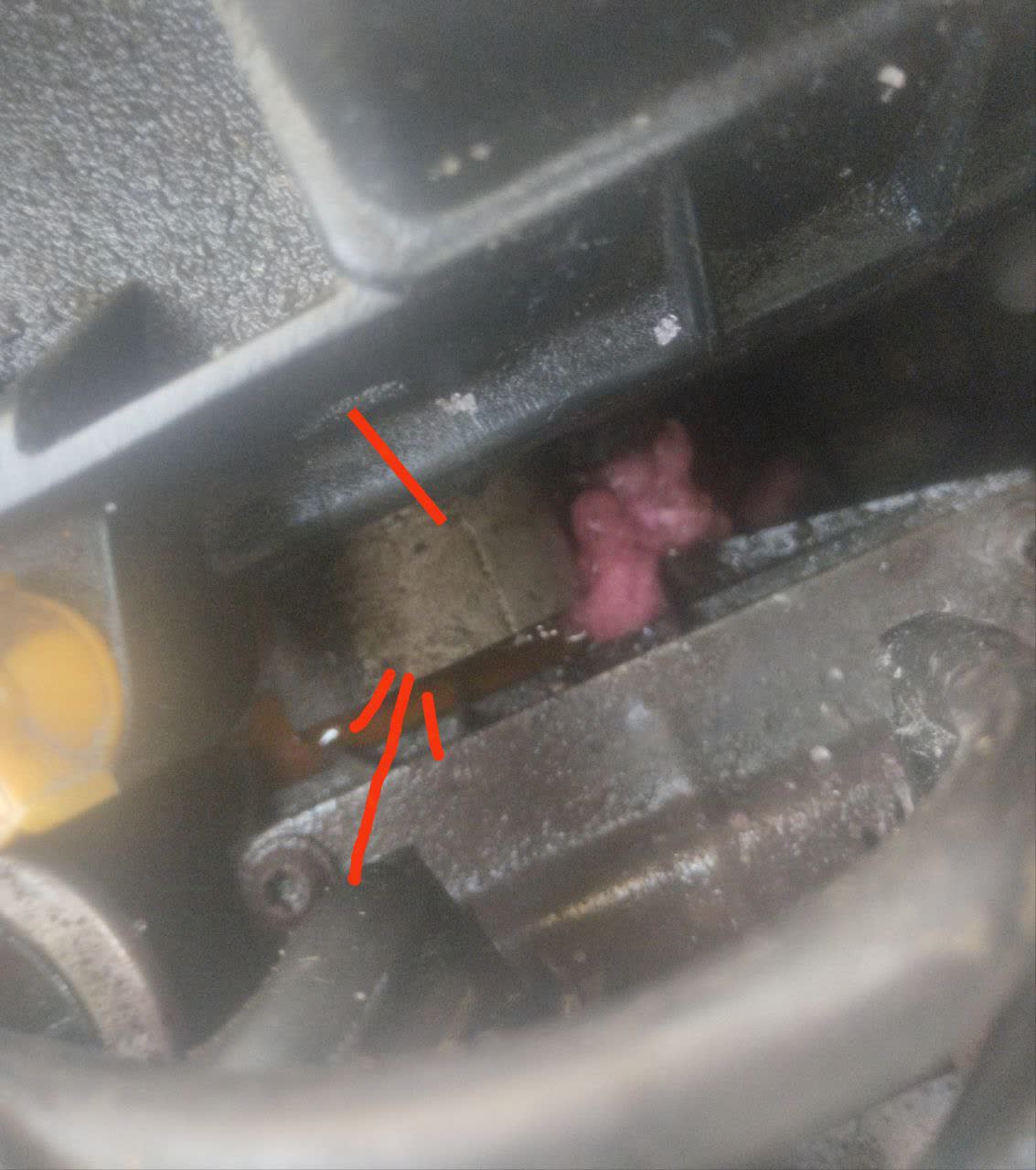

Photo of coolant leak location on the engine head near the temperature sensor, showing wet corrosion staining along the suspected weld seam

Second photo of the same leak area from a different angle, showing the leak path down the engine casting

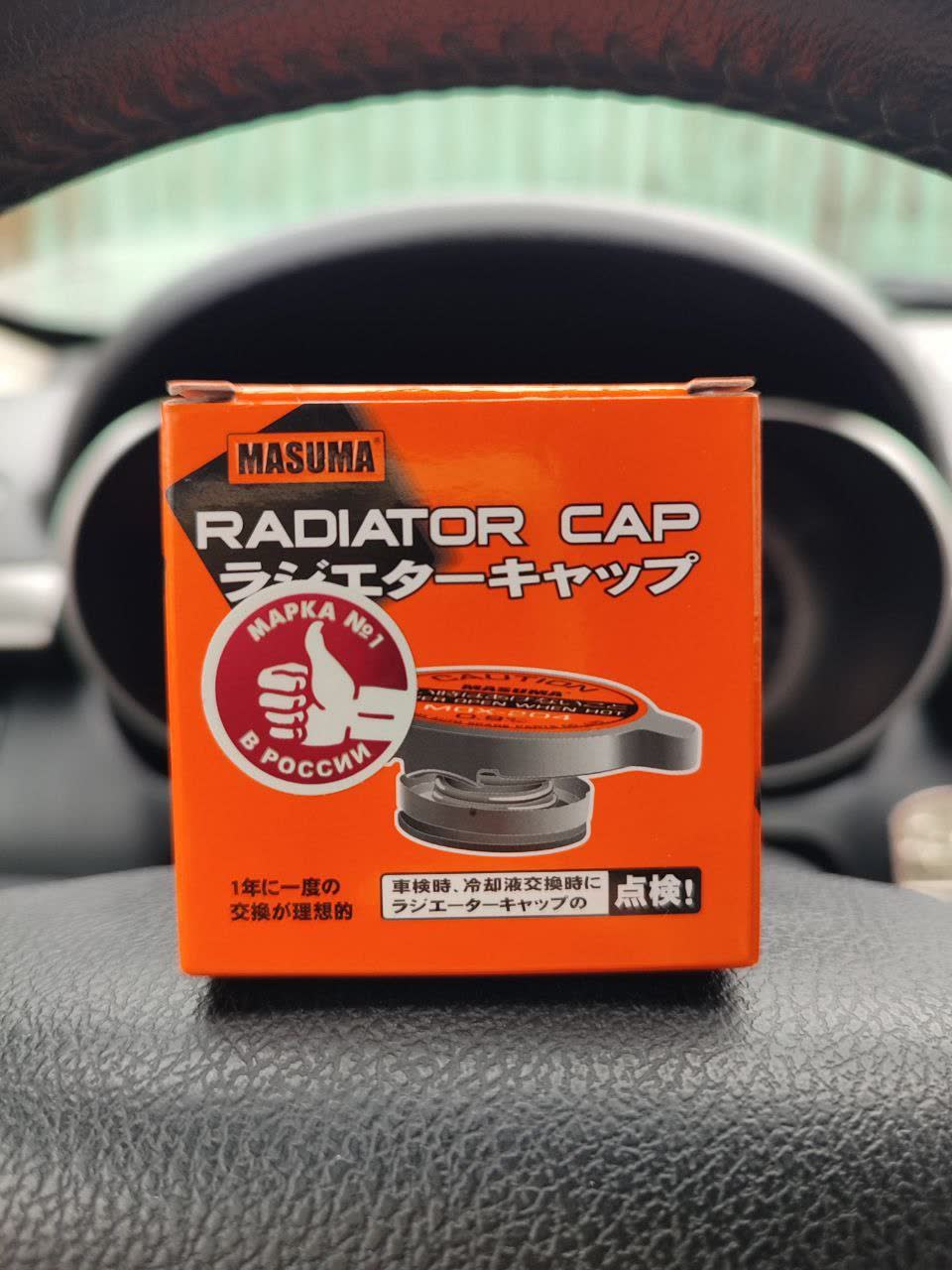

Photo of MASUMA-brand radiator cap in orange packaging, showing Japanese text indicating a one-year replacement interval

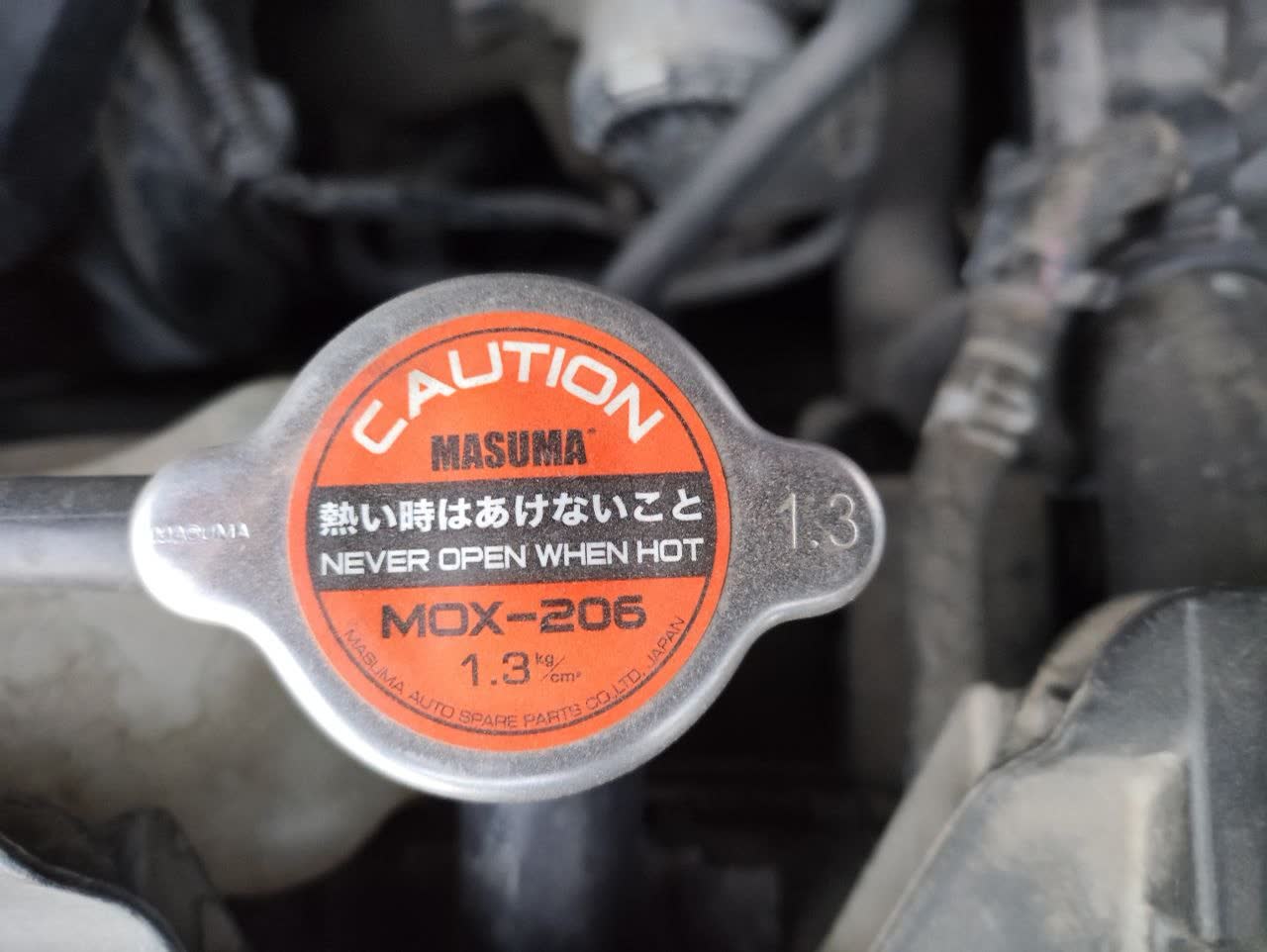

Photo of MASUMA MOX-206 radiator cap showing the 1.3 bar (1.3 kg/cm²) pressure specification label
