Airbag warning light stuck on — battery reset

Tags: #airbag · #warning-light · #connector · #corrosion · #fuse · #cooling-fan · #parking-sensor

If the airbag warning lamp stays lit continuously, two approaches are reported to help: (1) disconnect the battery terminals for about 10 minutes — this sometimes clears transient error states ¹²³; (2) inspect the electrical connectors located under the driver/passenger seats (underneath the seat trim) for corrosion or loose contacts — one owner described this half-jokingly as "the entrance to Narnia," noting it as one of the more common fault points ^{4 5}. Recommended first step regardless: read the fault codes with a scanner before further disassembly ⁶.

Conflict: opinions differ on which to try first — one owner leans toward reading error codes with a scanner before physical inspection ⁶, while another prioritizes going straight to the seat connectors ⁵. In the case followed in this thread, some owners reported the lamp spontaneously went out after a battery reset, while others needed the connector repair to actually fix it ⁷⁸.

Intermittent monthly on/off pattern — same connector suspect. A distinct presentation confirming the seat-connector theory above: the airbag light appears periodically (about once a month), stays lit for 5-6 days, then disappears on its own, in a repeating cycle. The owner suspected a connector making/losing contact intermittently and asked specifically which connectors feed the airbag system ⁹. Answer from the community: the connector under the driver's seat, matching the location already documented above ¹⁰.

A second, unresolved cluster of intermittent airbag-light reports. Multiple additional reports of the same on-again/off-again pattern were logged with low confidence because root cause remains genuinely unclear across cases: one owner's light burned/cleared in roughly monthly cycles; another reported an near-identical yearly pattern ¹¹¹². The standard first-pass diagnostic remains: disconnect the battery to reset, then scan with an OBD reader to identify the actual stored fault rather than guessing ¹³. Per one mechanic's opinion, loose connectors under the seats remain the most common root cause ¹³, but this wasn't confirmed in every case — treat "moisture, a loose connection, or a sensor fault" as the honest range of live possibilities rather than a settled diagnosis ^1415161718. Fully depleted battery as a distinct trigger: in one case, an airbag error (among a bundle of other errors) appeared after the car's battery had gone completely flat; a service visit confirmed the mass of errors traced back to that single flat-battery event rather than a hardware fault in the airbag system itself ¹⁹.

False trigger after a suspension impact — connector, not sensor. The airbag warning light can be triggered by a loose connection in the airbag-sensor circuit after hitting a bump/pothole, rather than by actual sensor failure. Common locations: under the driver's seat connector (an easy fix) or the contacts under the steering column. A simple power-cycle (a few ignition on/off cycles) can reset a false warning caused by a transient electrical blip; a warning that persists suggests real connector/sensor damage rather than a transient glitch ^20212223.

Coin under the seat causing a false airbag error. One resolved case: the airbag warning cleared after finding a 1.5-RUB coin under the passenger seat that was touching the wiring harness. The dealer had misdiagnosed it as a sensor fault. Check under both seats for stray debris before paying for an expensive sensor replacement ²⁴.

Scan first, then check the airbag fuse and its downstream neighbors — a possible link to the cooling fans and parking sensors. Reinforcing the "scan before disassembly" advice above: when the airbag light comes on, run a computer diagnostic scan to read the actual error codes first ²⁵²⁶²⁷. Nothing obviously wrong was found under the hood in this case ²⁸. Fuse locations for this whole electrical panel are documented in a "Предохранители.pdf" (Fuses.pdf) reference file kept in the group's shared files — the airbag circuit itself sits in the cabin fuse block at 10A (see the fuse-box card for the complete labeled list from that same file) ^{29 3031}. One community theory worth checking alongside a scan: the parking-sensor and cooling-fan-relay circuits may share wiring or a common fault path, so a failing cooling fan can cause the parking sensors to glitch and, in turn, trigger a spurious airbag warning — if that pattern is present, replacing the cooling-fan motor (compatible Mazda motors have been sourced as a substitute) has been reported as the actual fix rather than anything airbag-specific.

Media

Manual page showing the airbag system section, including a warning about towing restrictions

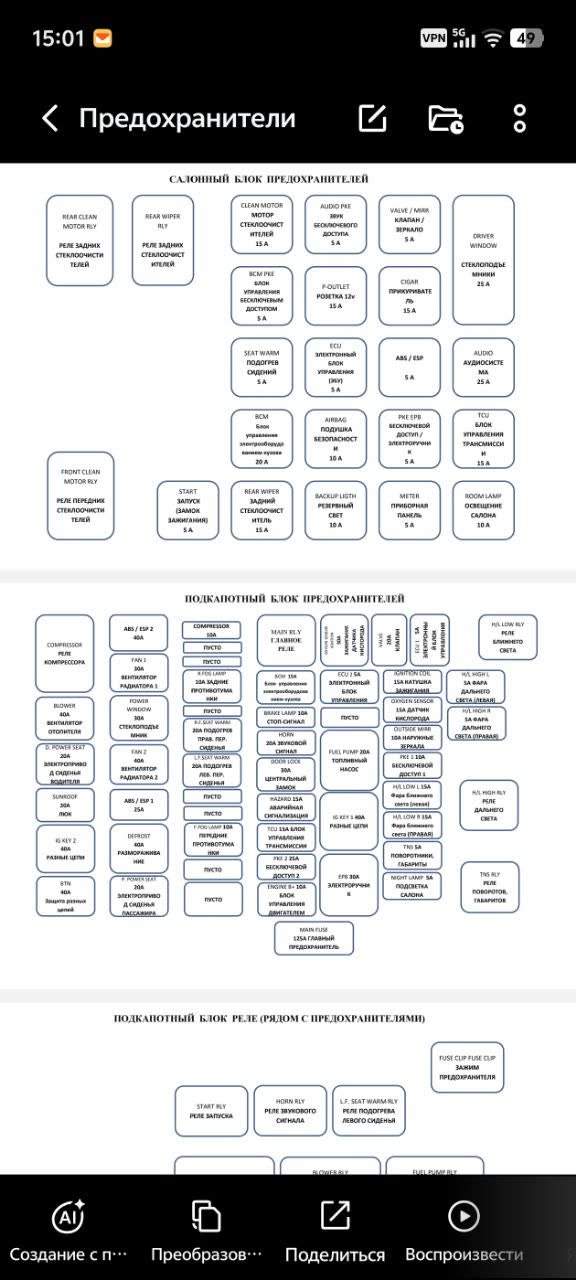

Same "Предохранители" (Fuses) reference-file screenshot documented in full on the fuse-box card — confirms the airbag fuse is rated 10A and sits in the cabin fuse block, alongside every other labeled fuse/relay position
