Battery — self-discharge, health monitoring, capacity

Tags: #battery · #cold-start

Replacement option: Topla Top JIS 75Ah. A Topla Top battery (model TT75J, 75Ah, 740A CCA, 259×175×221mm, article 57529) was confirmed as a working, correctly-fitting original-spec replacement for a 2019 X80 ¹.

Reverse polarity, Asian D26 size, capacity range. The X80 uses a reverse-polarity battery (uncommon on Western-market cars) in the Asian D26 size class (~26Ah class designation; OEM capacity is closer to 77Ah, consistent with the 60/68/78Ah range already noted above — some owners downgrade to 70Ah). The owner's manual doesn't specify polarity, so check before ordering. Recommended brands from this thread: Akom (good reliability; avoid the Tubor sub-brand), Indigo (Korean), Tyumen, Zubr. Typical lifespan 5+ years; failures tend to be sudden (goes to zero) rather than a graceful decline, often from an internal short or terminal moisture ^2345678.

Self-discharge from terminal corrosion. A battery can self-discharge faster if electrolyte/dirt residue on the terminals forms a conducting path between them, creating a leakage current ⁹. Symptom: dashboard clock and fuel-consumption data reset when the engine starts, caused by a voltage dip below 8.2V ¹⁰¹¹. Fix: clean the battery terminals and top surface with an alcohol wipe to remove corrosion/electrolyte residue, which removes the conducting path and stops the discharge ¹²¹³. Before assuming this is the cause, check that terminal voltage is otherwise normal — rule out alternator overcharge or an electrolyte spill from a damaged case ¹⁴.

Specs and health monitoring. The stock battery (Tubor Asia, 77Ah / 650A) typically degrades to SOC 75% / SOH 57% after 5 years of use ¹⁵. VARTA is a recommended replacement brand ¹⁶. Battery health should be checked at a minimum of 12.3V in winter ¹⁷; optimal internal resistance is around 5.5 mΩ (one Tyumen-brand battery tested at 3.9 mΩ, i.e. below spec) ¹⁸¹⁹. Lifespan is reduced by frequent short trips and by leaving the battery in a low-charge state; batteries that have sat in storage for more than 6 months are not recommended ²⁰²¹.

Capacity and cold start. Reported stock capacities vary by configuration/trim: 60Ah, 68Ah, or 78Ah ²²²³. Consensus among owners: OEM capacity is adequate for cold-start conditions, and a replacement should match the OEM spec ²⁴²⁵. Cold weather requires proper maintenance (regular charge monitoring) ^26272829.

AGM/gel battery upgrade. Switching from lead-acid to AGM/gel is possible and reported working well: a Delta-brand 100Ah AGM battery was installed successfully, requiring only a slight modification to the front fender trim/undercarriage to fit ³⁰³¹³². Exide-brand original AGM batteries are also available as an (expensive) option — one owner special-ordered a genuine Exide ³³. Advantages cited for AGM/gel: advertised 14-year lifespan (owners report they often exceed even that in real use), no maintenance required, and better cold-start performance than lead-acid ³⁴. Cost: approximately 15,000 RUB as of January 2025 (RU market) ³⁴³⁵.

Loose/corroded battery terminal causing mid-drive stall and alarm. Symptom: while driving, an alarm/beeping sound (писк) starts, emergency lights activate, and the engine slows or shuts down, then recovers once the car is stopped. Likely cause: a loose or corroded battery terminal connection (клемма на акуме). Fix: check that both the positive and negative battery terminal connections are tight and free of corrosion ³⁶³⁷.

Dashboard flicker and relay chatter as a dying-battery symptom. When battery voltage drops critically, the dashboard instruments flicker erratically and relays cycle/click repeatedly (щелкают - релюхи). This happens because there isn't enough voltage left to keep the relay coils' holding current above the drop-out threshold at the moment power-hungry circuits switch on, so the coils rapidly release and re-engage. This is a sign of a dead/dying battery, not a fault in the other systems it appears to affect ^38394041.

Battery selection, polarity mismatch, and cold-weather performance (Dec 2025 discussion). Most X80s have standard reverse polarity (common on Asian cars, confirming the section above), but some examples — reported as possibly earlier or previously-modified cars — have direct polarity (+ on the left, − on the right); the long cable routing on this car means an adapter or mismatched-polarity battery can still physically connect either way, so verify polarity against your own car rather than assuming ^4243444546. Brand recommendations from this discussion, distinct from the list above: Akom (Korean, 2+ years reliable for one owner) ^{47 48}; Slovenska/Topla/Tapp (Slovenian, 4+ years for one owner) ⁴⁹; Indigo (Korean, works well, matched for size/polarity before install) ⁵⁰. Not recommended: Tyumen — failed within 2 years, quality concerns raised independently of the internal-resistance issue already noted above ⁵⁰. Cold-weather note: winter temperatures below −34°C genuinely stress-test a battery — one owner's car failed to start at exactly that temperature despite the battery being only ~5 years old ⁵¹. If gas (LPG/CNG) equipment is installed, no special battery consideration is needed beyond the above ⁴⁵. Dead-in-cold recovery procedure: try an overnight trickle charge first; if the battery doesn't hold charge after that, replace it rather than repeatedly attempting to revive it ⁴⁶⁵². Typical lifespan again confirmed at 3–5 years; buying near winter is advised to avoid warehouse-aged stock that's already partially degraded before it's even installed ⁵³⁵⁴⁵⁵. Pricing data point: ~12,700 RUB including trade-in credit (700 RUB) for the old unit, Dec 2025 RU market ⁵⁶⁵⁵.

Battery sulfation in extreme cold — density testing and correction. A separate, more technical failure mode distinct from simple end-of-life or terminal corrosion: in winter (−10 to −40°C), a battery with low electrolyte density (below 1.28) freezes and loses capacity rapidly. Telltale symptom pattern: battery shows a healthy-looking 12.5V at rest, but drops to 11.5V under starter load, recovers to full after ~20 minutes of charging, then discharges again within about 10 minutes of use — i.e. it looks okay between tests but can't actually hold a working charge ⁵⁷⁵⁸. Diagnosis: measure electrolyte density with a hydrometer; a reading of 1.2 or below means the electrolyte has been diluted to something closer to plain water, not real electrolyte, and the battery will freeze/lose capacity in cold ^{5960 61}. Correction (skilled work — not a casual DIY task): raise density to the 1.28 winter target using concentrated sulfuric acid and a hydrometer, requiring real skill and care ⁶²⁶³, then slow-charge for 10–12 hours. Notably, this problem has been observed even on new batteries shipped from the factory with unusually low density (1.2) — the battery hasn't been damaged by use, it was simply sold under-spec and works fine in warm weather until cold exposes the deficiency ⁶⁴⁶⁵⁶⁶. CA-CA type batteries are flagged as particularly sensitive to discharge below 11.6V, reportedly losing close to half their effective capacity after such a discharge cycle ⁶⁷. A load-tester/discharge-test check ("нагрузочная вилка") is described as the most accurate way to verify true capacity rather than relying on resting voltage alone ⁶⁸⁶⁹.

Fall/autumn winter-prep maintenance checklist. Before the cold season sets in: (1) check electrolyte density, target 1.28; (2) clean terminals of oxidation with a soda-and-water solution; (3) slow-charge the battery for 10–12 hours at low current ^{7071 727374}. Battery brand/build quality clearly matters here — Varta and better-quality Chinese brands (specifically noted: 2020-model-year-and-newer production) were reported to hold density better over time than cheap imports, with one 2014-vintage battery still in daily service on an X80 at time of report ⁷⁵⁷¹. This checklist directly complements — and should be done before — the density-correction procedure above; catching low density in autumn avoids a cold-snap no-start.

Battery disconnect/reconnect resets several dashboard settings — known and harmless. After replacing or disconnecting the main battery, expect several systems to reset and need reconfiguring: the dashboard clock, audio/climate presets, the automatic window-lift (auto-up/down) feature, and the electronic parking brake's calibrated position (the handbrake may need a manual unlock cycle to relearn). This is documented, known behavior with no permanent damage implied — don't treat these resets as a new fault ⁷⁶.

Battery terminal and clamp cleaning as general preventive maintenance. A general-purpose recommendation, reinforcing several fault patterns already documented above (self-discharge, mid-drive stall, dying-battery relay chatter): clean both the battery terminal connectors and the clamp fasteners on both sides, and use compressed air to remove any trapped moisture around the wire connections. This is called out as a common, easily-overlooked root cause of broader electrical-system failures beyond just battery performance itself ⁷⁷.

Battery requirement note: must support start-stop. Any replacement battery for the X80 must specifically support the start-stop system — this is a real compatibility constraint, not just a capacity/size question. The factory (OEM) battery typically lasts 5+ years under normal use. Beyond the start-stop requirement and physical fit in the battery compartment, choice of replacement brand/spec comes down to budget and driving conditions ⁷⁸⁷⁹.

Anecdotal early-failure report: battery died after ~2 years, roadside. One owner (Сергей) reported the original/replacement battery failing after only about 2 years of service, causing a roadside breakdown. This is a single low-confidence data point rather than a confirmed pattern, but it's consistent with this card's broader theme of premature battery degradation being reported by multiple owners ⁸⁰.

Media

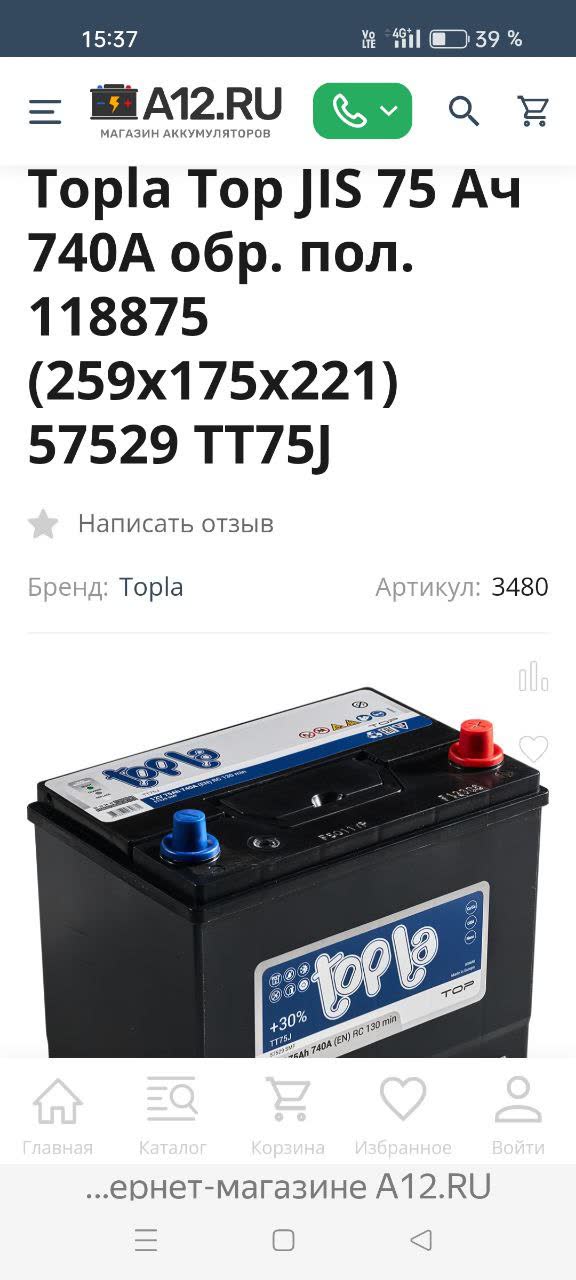

Product photo from A12.RU store showing Topla Top JIS 75Ah 740A battery with specs and price listing

Dirty battery terminal with electrolyte residue, a multimeter measuring the voltage drop across the contaminated surface, and an alcohol wipe used for cleaning

Battery tester display showing internal resistance: ~3.9 mΩ for the Tyumen-brand battery vs. ~5.5 mΩ required

Battery specification label/sheet for a FAW vehicle

AGM/gel battery installed in the FAW X80 engine bay, shown for comparison against the stock lead-acid battery
