BSM module — CAN bus role and corrosion

Tags: #bsm · #can-bus · #water-ingress · #radio

Location (driver's knee area) and P0501 speed-sensor errors. The comfort module/BSM (БСМ) is located under the driver's left knee, near the wheel arch, and carries electrical connections for the parking brake and other systems — it's susceptible to moisture intrusion causing corrosion and electrical faults, so check this area first for unexplained electrical issues ¹²³⁴⁵⁶. A P0501 error (vehicle speed sensor signal out of range) often traces back to this same module: BSM corrosion/oxidized contacts is one of three common causes, alongside a malfunctioning/damaged ABS wheel sensor or a failed transmission input/output shaft sensor. Suggested diagnostic order: check the BSM under the driver's seat area for moisture/corrosion first and clean contacts; then test ABS sensors with a multimeter; only suspect the transmission sensor last — don't jump straight to a transmission diagnosis ^{78910111213 141516171819}.

Dashboard error messages and cleaning vs. replacing. Multiple cryptic dashboard errors or glitches (temperature-sensor errors, immobilizer icons, check-engine) often trace to oxidized contacts on this same BSM/body-system-module block, located behind/underneath the driver's left footwell kick panel, behind the fuse-block cover. Cleaning all connector contacts with contact cleaner resolves most intermittent errors; block replacement is only needed in severe cases ^{202122 23242526272829}.

First troubleshooting step: battery terminal, then contact cleaning. For intermittent error messages, dashboard glitches, or sensor read errors generally, the first step is disconnecting/reconnecting the negative battery terminal. If that doesn't resolve it, inspect connectors related to the symptom (especially this BSM block) for oxidation/corrosion and clean with contact cleaner — many intermittent electrical issues resolve with a good ground connection or clean connectors ^23303132.

The BSM (body control module) block controls rear door locks and the stereo/radio via the low-speed CAN bus, and has a direct functional relationship with the immobilizer lock/control circuit — it manages that lock ³³³⁴. Moisture ingress at connectors located in the driver-side area is the recurring root cause of BSM-related malfunctions: water tends to enter there "somewhere" and travels along the connection path from the front connectors through the side pillars, where contacts are exposed, causing oxidation and downstream symptoms like door-lock malfunctions and radio cutouts ³⁴. Because the BSM sits at the intersection of several subsystems (locks, radio, and by other reports in this knowledge base, also implicated in AKPP shift-quality error codes and in simultaneous multi-key-fob failures), it is worth treating as a suspect any time multiple, seemingly-unrelated electrical symptoms show up together after a wet-weather event — see also the water-ingress and key-fob cards for other BSM-linked failure reports.

Comfort module suspected after jump-starting/power-bank use — rear door + wiper cross-talk. One owner suspects the comfort module (a.k.a. BSM) failed after repeatedly jump-starting the car with a power bank; symptoms that followed: the rear door stopped opening reliably, and — echoing the wiper/door-lock cross-talk pattern already documented above — using the wipers to clear the windshield would sometimes make the rear door open again, not always ³⁵³⁶³⁷. Consistent with the electrical-surge sensitivity of this module, treat frequent jump-starts/power-bank starts as a possible contributing factor in BSM degradation, not just water/corrosion.

"90% of X80 electrical gremlins trace to this block" — a mechanic's rule of thumb, with a worked example. An experienced owner frames BSM (called "всм/бсм" interchangeably in the community — spelling varies) contact oxidation as the majority root cause of this car's electrical quirks: independently-acting wipers, rear-door lock malfunctions, interior-component glitches, and ESP errors were all attributed to this one block in his experience ³⁸. Location, confirmed again: directly behind the fuse panel, at the driver's left knee ³⁹. Repair procedure: disconnect the battery, remove the module, inspect all connector contacts for oxidation, clean with isopropyl alcohol or electronic contact cleaner, reassemble ³⁹. Worked example: recurring rear-door lock failure was resolved not at the BSM itself but by replacing a corroded wire at the GLONASS block under the driver's seat — a second, related trouble spot on the same general moisture-ingress path as the BSM, worth checking alongside it ³⁸.

Magnetola/climate touchscreen goes black, sometimes with flickering tail lights and a no-start — moisture in BSM/VSM. A cluster of related symptoms reported together: the head-unit touchscreen (and its heating/climate control sub-menu) goes completely black and unresponsive; some owners simultaneously see rear tail lights flickering and the head unit switching to night mode unprompted; in worse cases the car won't start at all ⁴⁰⁴¹. Root cause, per repeat diagnosis: damp/ wet BSM ("ВСМ" — note the module is referred to with this near-identical label to BCM in different threads, likely the same physical block) — fix by spraying contact cleaner on the connectors and the board itself, then letting it dry ^4243444546. The module housing can be opened for a more thorough dry-out if spraying the connectors alone doesn't fix it ⁴⁵. Also check the connector under the driver's seat linked to the GLONASS module — cleaning it, alongside the BSM itself, resolved one owner's no-start/erratic-behavior combo ⁴⁷⁴⁸. One owner's car had sat for two weeks with the battery fully disconnected over winter before this fault appeared, suggesting extended power-off time is not protective against — and may even coincide with — this moisture-related failure ⁴⁹⁵⁰. A mechanic-recommended emergency workaround if the standard fixes don't help: run a direct memory-power wire from the relevant circuit straight to the positive battery terminal in the underhood fuse block, bypassing the degraded path — but this is explicitly a workaround, not a repair of the underlying moisture/corrosion problem, and going to a proper auto-electrician is recommended if you're not confident doing electrical work yourself ⁵¹⁵².

Diagnostic and repair sequence when the BCM causes a total no-start with lit dashboard. A detailed worked case: after removing the BCM block for inspection, the dashboard/panel lights stayed lit even with no key in the ignition, and the car then wouldn't start at all ⁵³. Recommended sequence: (1) clean the connector contacts; (2) dry the block thoroughly — an extractor-hood airflow for a couple of hours worked for one owner even when the contacts themselves looked clean, because the actual moisture/condensate was elsewhere inside the housing, not just at the visible pins ^5455565758; (3) temporarily disconnect the battery while doing this. One owner reports the car wouldn't stall/turn off at all without the BCM connected — i.e. removing it can itself cause a no-shutdown symptom, so expect odd side effects while the block is out for service ⁵⁹. Where the oxidation actually concentrates: on the pin side of the connectors, between the pins on the block itself — not necessarily visible without looking specifically there, so a cursory "looks fine" check isn't sufficient ⁶⁰⁶¹⁶².

Transmission overheating and cascading ESP/dashboard errors after heavy off-road/snow driving with ESC disabled. A distinct trigger pattern: after sustained off-road/deep-snow driving with ESC turned off, the transmission overheated, and a wave of dashboard errors followed — multiple warnings cycling in sequence, reappearing every time the ignition is cycled ⁶³⁶⁴. A related symptom noticed with the engine off: an audible buzzing/clicking from the heater box area, with the blend-door flap audibly opening and closing on its own — see also the heater-blower card for other heater-box anomalies, though this specific clicking-with-ignition-off pattern is BCM-adjacent rather than a blower fault ⁶⁵⁶⁶. Battery-terminal disconnect did not resolve this case, unlike the simpler BSM-moisture scenarios above — pointing to a more stubborn/different fault than plain contact oxidation this time, though BCM connector inspection (checking specifically at the connector pins, not just superficially) was still the next recommended step ^676869707160. In hot climates running the reverse problem (transmission overheating generally), a transmission heat-exchanger flush or auxiliary cooler may be needed separately from any BCM work.

Heater + climate + radio all stop simultaneously — moisture under the dashboard, diagnosed with a cheap borescope. Another variant of the "whole climate/audio stack goes dead together" pattern: heater, A/C, radio, and climate controls all stopped working at once; fuses and battery terminals checked fine, and a relay was heard clicking each time the ignition was turned off, without a clear cause identified from that alone ⁷²⁷³. Diagnostic approach recommended: use a cheap phone-camera-based inspection borescope (~500–1,000 RUB, RU market, February 2026) to visually inspect under the dashboard, in the fuse-block area at the driver's left foot, for moisture and check ground-wire connections without fully disassembling the dash first — water on the floor carpet is the giveaway sign of the underlying leak ⁷⁴⁷⁵.

BCM physical location and replacement cost. Location, confirmed again: under the fuse block, at the driver's left foot/knee area ^76777879. A full replacement BCM unit costs approximately 21,000 RUB (Feb/March 2026, RU market); a new/replacement unit requires diagnostic-scanner coding (Diagzone, X-DIAG-class tools) to configure it for the specific vehicle — a BCM swap is not plug-and-play ⁷⁶⁷⁷.

When corrosion is too advanced to clean — full replacement, and how to judge the tipping point. Water intrusion into the BCM produces progressively worse oxidation/corrosion on the internal circuit board; symptoms at this stage include the electronic parking brake, wipers, and climate control activating erratically or without command ^{80 81}. Judgment call for repair vs. replace: if the board shows green/white oxidation across most of its area, treat it as non-recoverable and replace the unit; if corrosion is minor/localized, cleaning with isopropyl alcohol may still recover it ^{8283 84}. As above, a new BCM needs coding for the vehicle's specific configuration (transmission type, sensor set, etc.) after installation ⁸¹.

Preventive maintenance to reduce future BCM water damage. Two concrete preventive steps reported: (1) make sure all sunroof and door drain holes are clear and draining properly — a blocked drain is a frequently-missed root cause of water reaching the BCM area at all, confirmed by one owner who deliberately poured water down the sunroof drain to trace where it actually exits ⁸⁵; (2) apply a conformal/protective transparent lacquer coating to the BCM circuit board itself once it's been cleaned and dried, as a moisture barrier against future ingress, and check/replace any internal desiccant packs ⁸⁶.

Complete electrical failure — no start, no lights, no central lock — BCM contact oxidation as the common thread. A severe presentation: simultaneously no engine start, no headlights/interior lights, and an unresponsive central lock ⁸⁷⁸⁸. Before assuming BCM, quickly rule out a dead key-fob battery and an unreleased/stuck electronic parking brake, since either can mimic part of this symptom set ⁸⁹⁹⁰. If those check out, the same BCM oxidation fix applies: locate the block at the driver's left-foot area, apply electrical contact cleaner, and dry thoroughly with compressed air or a hair dryer — warm ambient temperatures help the drying step, so this repair is harder to do reliably in cold weather ^{9192 93}. A borescope/inspection camera under the dash (as above) helps locate the specific bad ground/connection before disassembly ⁹⁴. Note the mechanism suggested for why poor contact causes broader symptoms: a degraded connection point can locally overheat from the voltage drop across the bad contact, compounding the original oxidation problem over time ⁹².

Engine won't shut off when ignition is turned off — a BCM spring-contact fault tied to seasonal temperature swings. A specific, recurring seasonal variant: the engine keeps running after the ignition is switched off; on automatic-transmission cars this variant only actually shuts off once shifted into reverse ⁹⁵⁹⁶. Root cause: the same BCM contact-oxidation issue as above, but this specific presentation is reported as a springtime phenomenon tied to temperature fluctuations (freeze-thaw cycling), affecting spring-loaded contacts specifically inside the block ⁹⁷. Same fix: clean the oxidized contacts under the dashboard near the fuse block, and dry thoroughly with compressed air or a hair dryer ^9899100.

Media

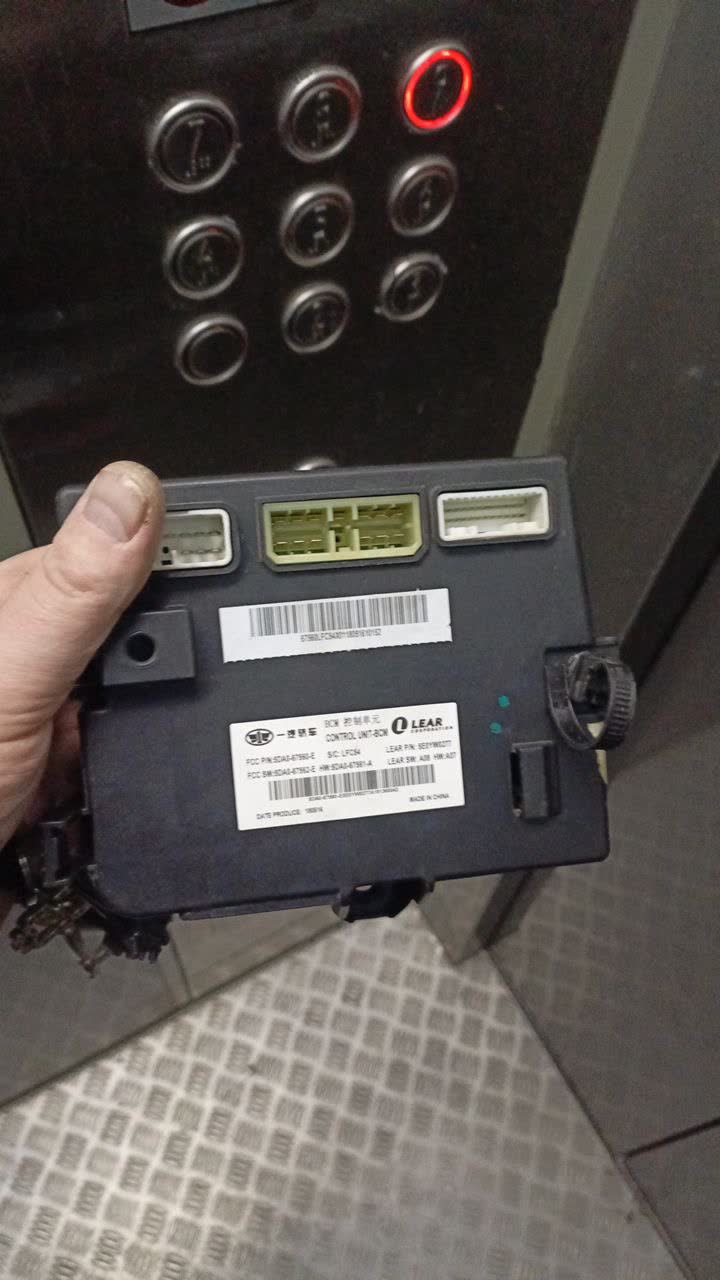

BCM module photo showing contact/connector area during a no-start diagnostic

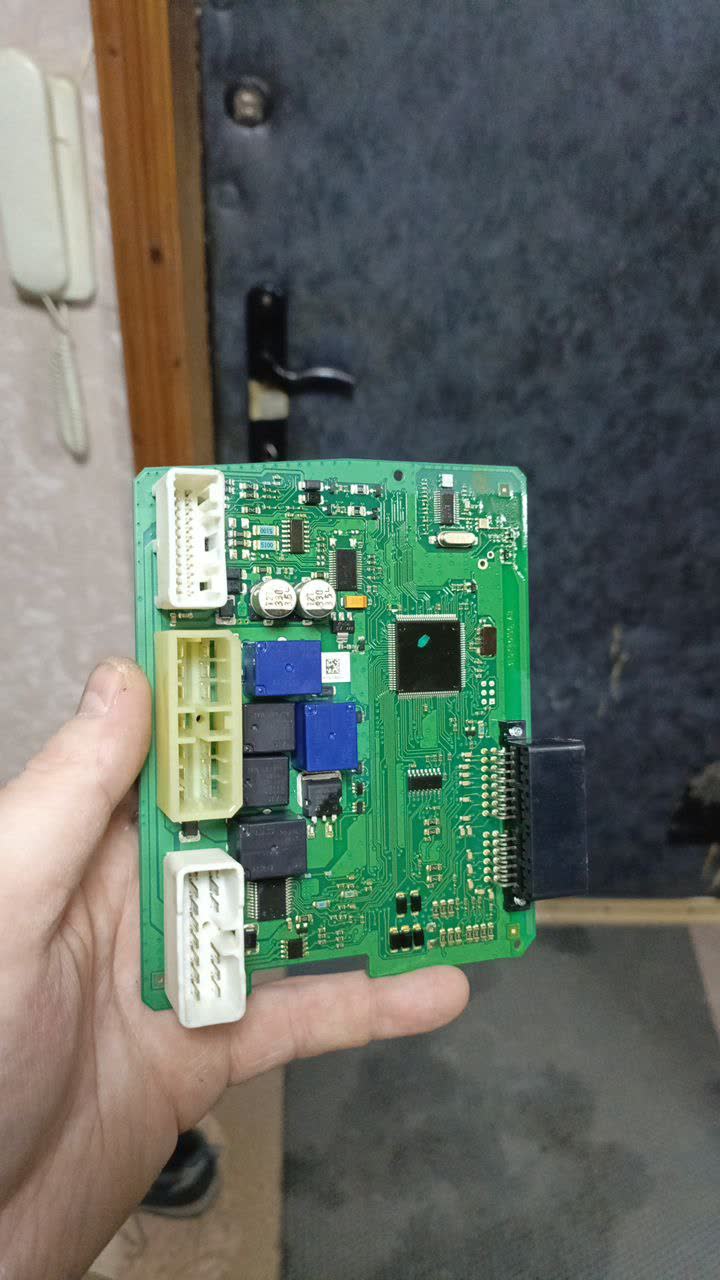

BCM/fuse-block panel photo, part of the same diagnostic sequence

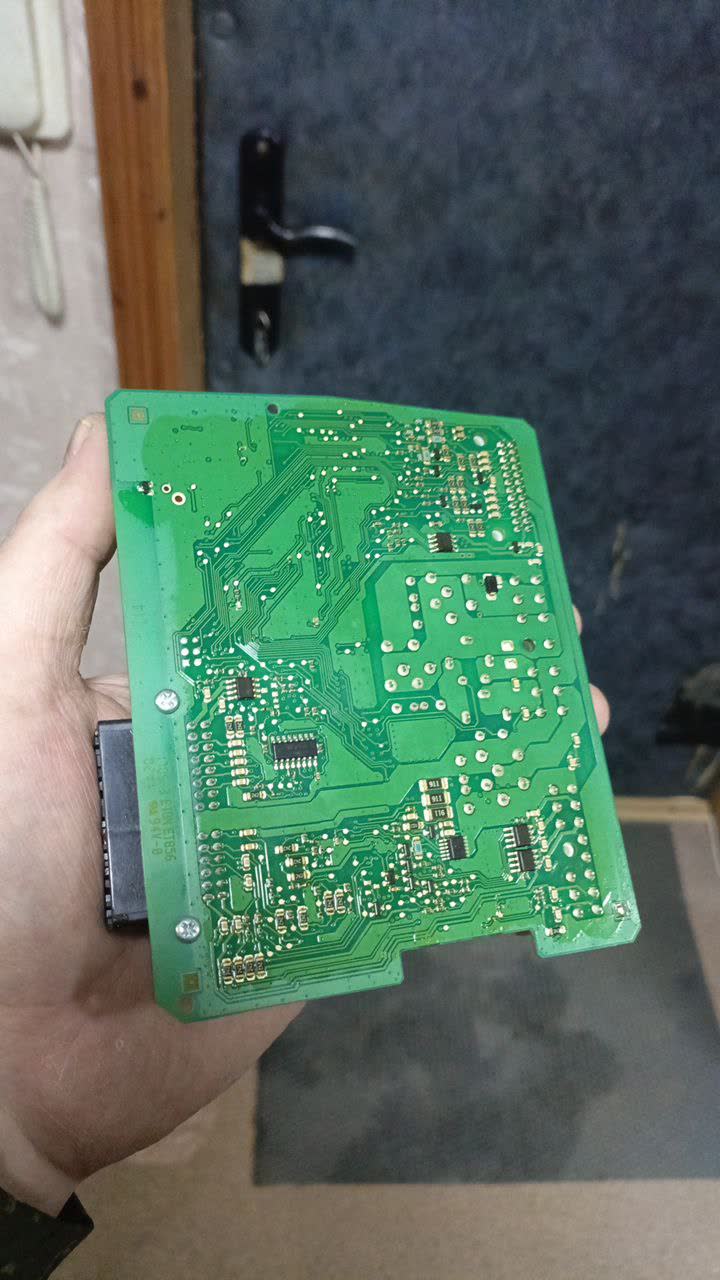

Additional BCM inspection photo from the same sequence

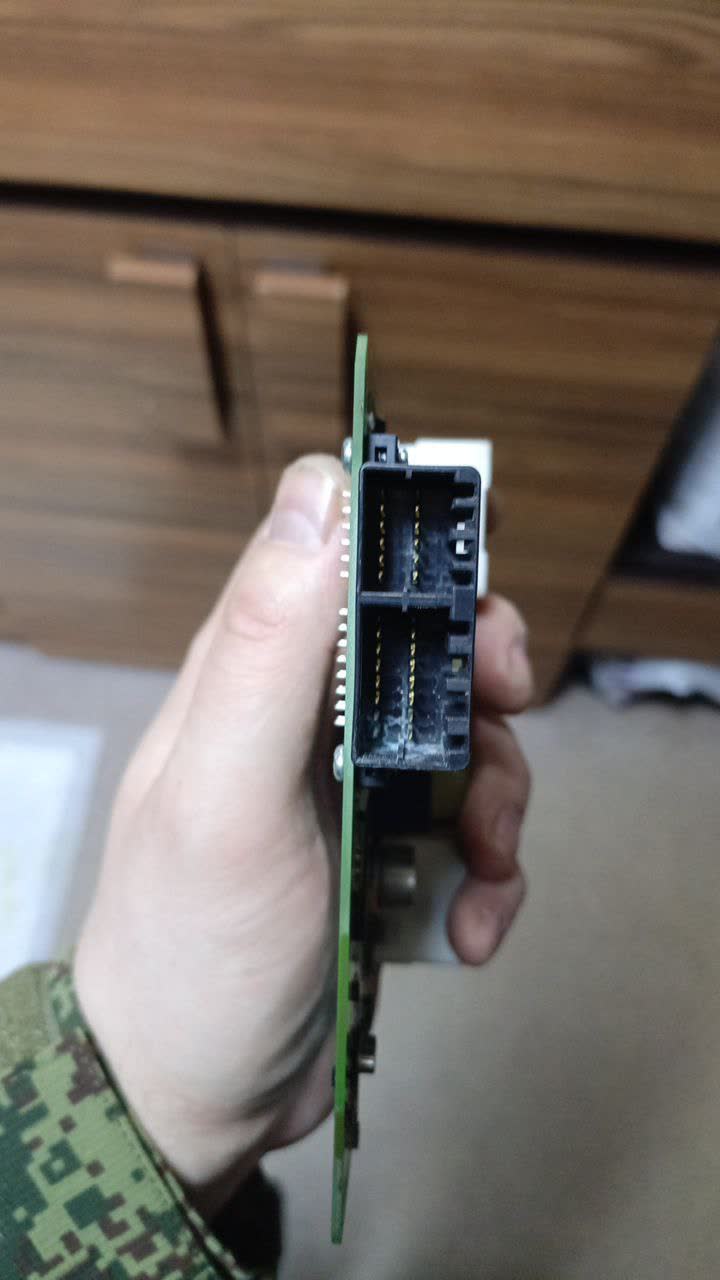

Close-up showing green oxidation on BCM contacts requiring cleaning
