Dashboard cluster blackout — loose connector

Tags: #dashboard · #connector · #turn-signal · #fuse

Symptom: the instrument cluster (gauges and warning lights) stops displaying anything — completely dark — while the car otherwise starts normally and the remote door lock/unlock still functions 1. Since the engine starts and the remote works, the ECU, battery, and central-lock electronics are confirmed fine — the fault is isolated to the cluster display path itself. Cause found: the connector housing socket inside the cluster had come loose/fallen out internally — the fuse-block-style connector block ("колодка") had physically dropped out of its seated position 2. Fix: reseat/reconnect the internal connector housing in the cluster area.

Full reboot mid-drive with erratic fuel-consumption readings afterward — separate, unresolved case. A different failure mode from the connector-fell-out case above: one owner had the entire dashboard reboot spontaneously while driving in light traffic — a complete blackout followed by a full startup sequence, as if the engine had just been started. After the reboot, the fuel-consumption gauge began fluctuating erratically (initially reading 20 L/100km, then dropping to 15 L/100km, still moving). The cause was never diagnosed; it's flagged as a low-confidence report but plausibly points to an electrical or charging-system fault given this card's connector theme 3. A commenter described a Mondeo with the same symptoms where worn alternator brushes left the battery under-charged so the electrics dropped out, and which stopped once the alternator was repaired; he suggests checking battery charge and the alternator 4.

Post-reset gauge anomaly that self-stabilizes — reportedly normal. A related, milder report: after a battery reset, one owner saw an unusual/anomalous dashboard reading. Service confirmed this is expected behavior — the reading stabilizes on its own within some time as the cluster relearns its baseline, and no intervention is required beyond continuing to drive normally 56.

A second, unresolved case — jiggling the under-seat connector did not help, and a turn-signal fault appeared alongside it. A different owner reported the whole instrument cluster dead on startup (no gauge illumination, no climate-control blower) 7. The under-seat connector fix documented above was suggested as a first thing to try 8, but in this case jiggling the connectors under the seat did not resolve it. The owner also noted the left turn-signal/mirror indicator had stopped working around the same time, and suspected multiple fuse-related failures rather than a single loose connector 9. Unlike the m22038/m22048 case, no fix was confirmed here — logged as a related but distinct failure needing further fuse-box diagnosis (see the fuse-box card).

Media

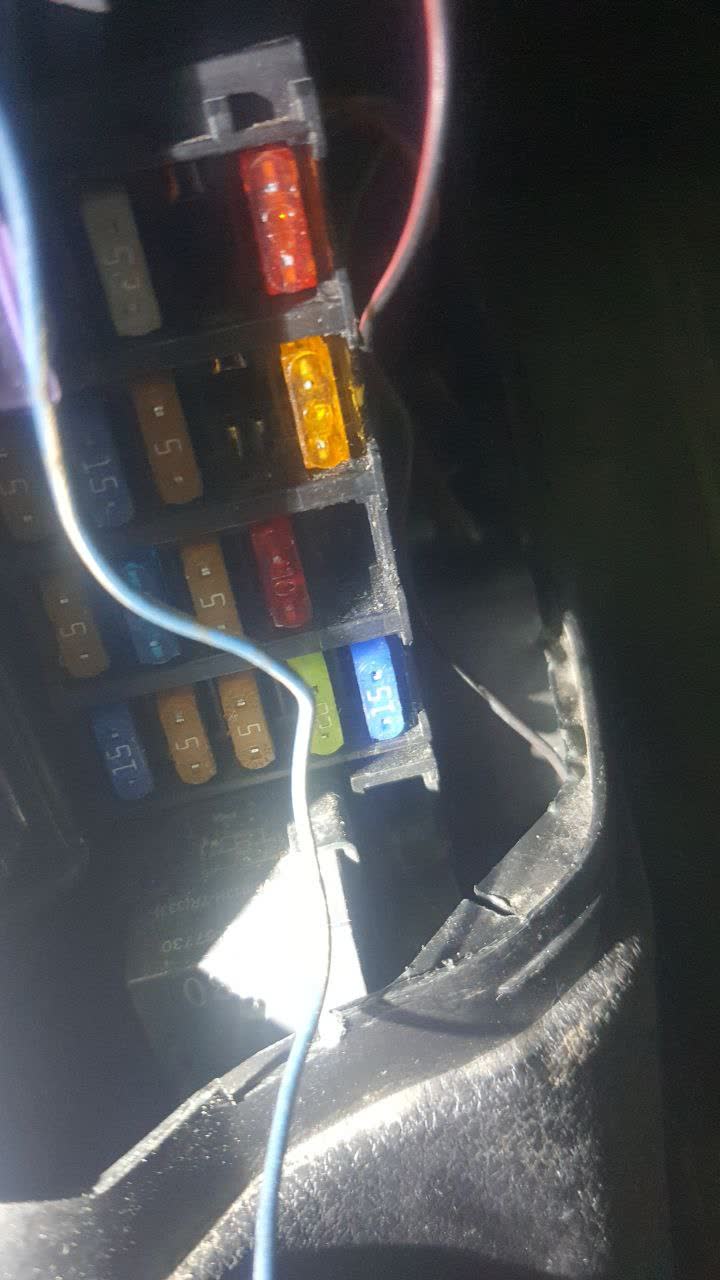

Photo of the dashboard connector area with the internal connector housing exposed/disconnected

Photo of the dashboard connector area with the internal connector housing exposed/disconnected

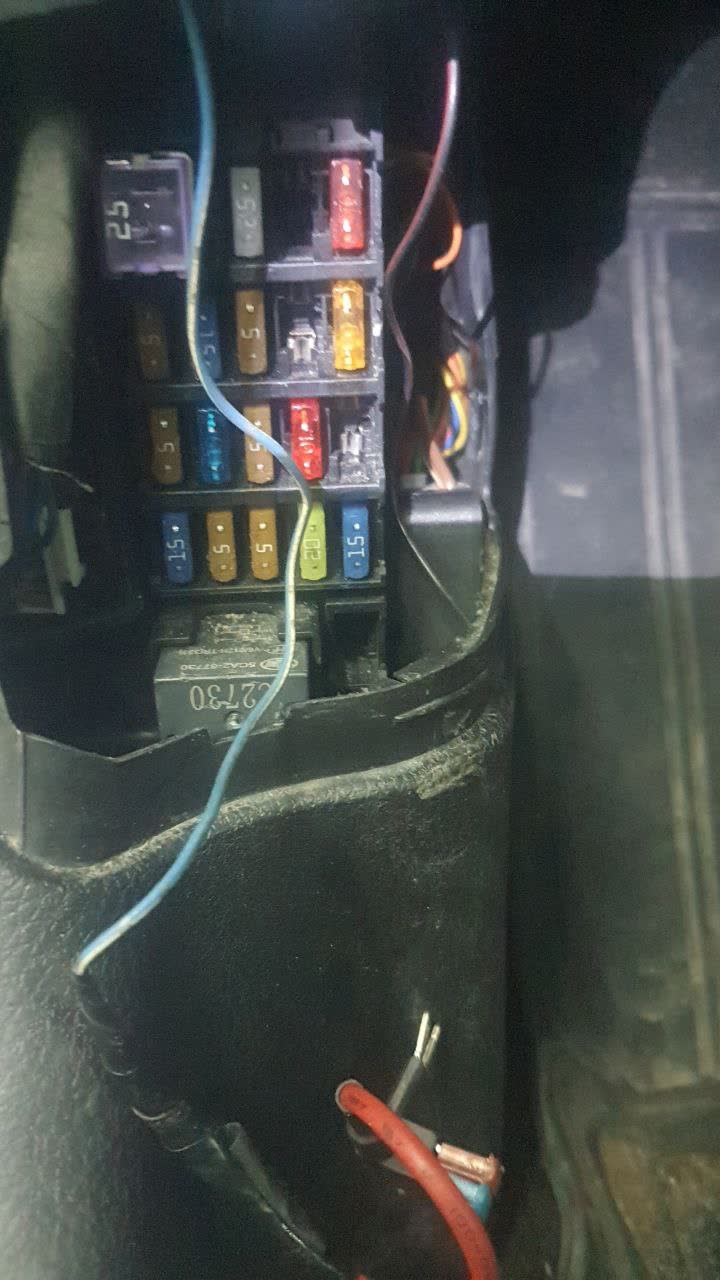

Close-up showing the connector block ("колодка") that had fallen out of position

Close-up showing the connector block ("колодка") that had fallen out of position
