Fuse box layout — pre-facelift vs facelift

Tags: #fuse-box · #pre-facelift · #restyle · #fog-light · #relay · #airbag

Fuse type. The X80's electrical panel uses mini-type fuses throughout ¹²³.

Layout differs completely between generations. Pre-facelift and facelift X80 models have completely different fuse-box schematics and circuit layouts — generic schematics found online often don't match either variant exactly. The facelift fuse box has multiple power distribution blocks for the cabin, passenger side, and rear-passenger side circuits, with different amperage ratings across them. Reference diagrams circulate from Drive2.ru, but even those may not precisely match an individual vehicle's configuration — treat any diagram as a starting point, not gospel, and verify against the physical fuse-box labeling ⁴⁵⁶⁷⁸.

Front fog-light fuse. Front fog lights (sometimes labeled as DRL on the fuse diagram) are protected by a 10A fuse in the engine-bay fuse box. Exact fuse location varies by year/model — cross-check against your fuse-box diagram or ask the community for your specific variant rather than assuming a universal slot number ^{91011 12131415}.

Why removing different fuses has different effects. The fuse block contains multiple protective fuses feeding different circuits. Some circuits are powered before reaching their protective fuse ("preload" circuits), while others are powered only after the fuse — this is why pulling one fuse may kill only part of a system while pulling a main/master fuse kills all electrical power. Do not use fuse removal as a way to shut the vehicle down ¹⁶¹⁷.

Complete diagrams for both cabin and under-hood fuse blocks are available in group files. Confirming and extending the diagram-caution above: full fuse and relay diagrams exist covering (1) cabin fuse-block locations and amperage ratings, (2) engine-compartment fuse-block layout, and (3) power relay assignments. One reference image (подкапотный блок предохранителей) circulated in the community, detailing fuse locations, amperage ratings, and relay assignments including compressor relay, fan relays, engine control, transmission, lighting, and accessory circuits — as with the diagrams noted above, cross-check the specific labels against your own fuse box before relying on any single diagram ^1819202122.

Full "Предохранители.pdf" fuse/relay table — cabin, under-hood, and under-hood relay blocks, with every label. A complete reference file ("Fuses.pdf"/"Предохранители.pdf") circulates in the group's shared files; a screenshot of it gives every labeled position in all three blocks, which corroborates and fills out the diagrams above in detail ²³²⁴: - Cabin fuse block: driver window 25A, audio system 25A, BCM (body control) 20A, TCU (transmission control) 15A, rear wiper 15A, cigarette lighter 15A, 12V power outlet 15A, airbag 10A, room lamp 10A, start/ ignition-lock 5A, ECU 5A, ABS/ESP 5A, PKE/EPB (keyless-entry electric handle) 5A, seat heating 5A, backup light 5A, meter/instrument-panel 5A, keyless-entry audio chime 5A, valve/mirror 5A, plus relays for the front and rear wiper motors. - Under-hood fuse block: main fuse 125A, compressor 40A, blower (heater fan) 40A, radiator fan 1 and fan 2 40A each, defrost 40A, BTN (misc. circuit protection) 40A, ABS/ESP-2 40A, power windows 30A, door lock (central locking) 30A, sunroof 30A, ignition coil 15A, ECM (engine control module) 15A, IG KEY 1/2 (ignition-key/keyless circuits) 15A each, hazard lights 15A, driver/passenger power-seat circuits 20A each, front/rear seat heating 20A each, PKE 2 (keyless-entry) 25A, ABS/ESP-1 25A, engine control module power (B+) 30A, brake lamp 10A, oxygen sensor 10A, outside mirrors 10A, headlight low-beam (both sides) 5A each, headlight high-beam (both sides) 5A each, night/cabin lamp 5A, turn-signal/parking-light circuit 5A, plus an empty/spare position and a fuse-clip spare-fuse holder. - Under-hood relay block (next to the fuse block): start relay, horn relay, blower relay, fuel-pump relay, left front seat-heating relay, plus the front/rear radiator fan relays and compressor relay already noted above.

This directly confirms the airbag circuit's rating (10A, cabin block) — relevant when troubleshooting an airbag warning light (see that card) — and shows several distinct 30A-rated circuits under the hood (power windows, central locking, sunroof, and engine-control-module power), any of which could be the "30A fuse under the hood" referenced in generic troubleshooting reports elsewhere in this section; always confirm the exact position against this diagram or the physical labeling rather than assuming which 30A fuse is meant.

Media

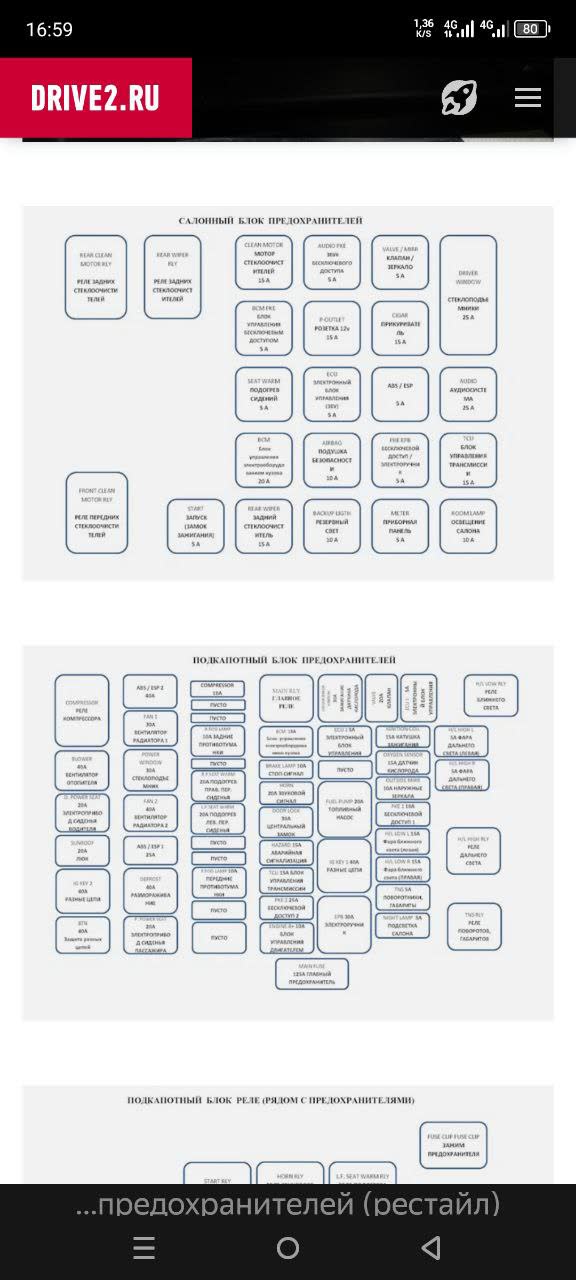

Fuse box schematic from Drive2.ru showing cabin, passenger side, and rear passenger side power distribution blocks (in Russian)

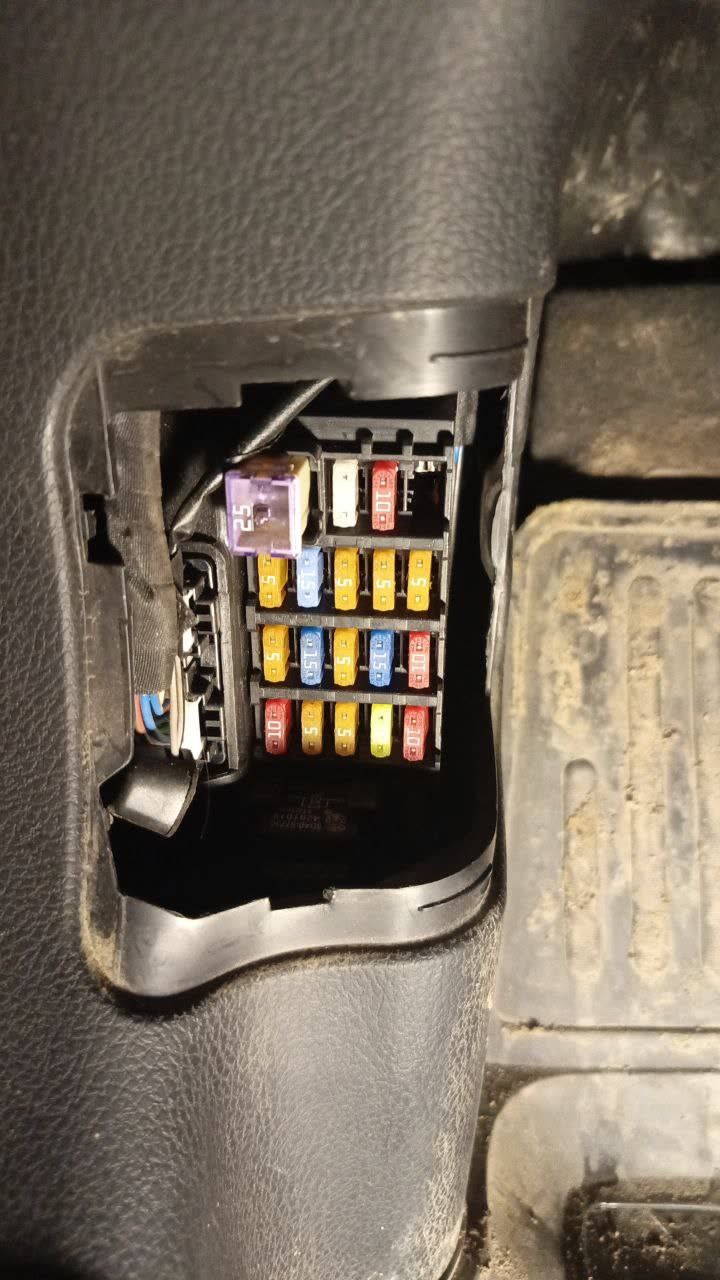

Actual facelift fuse box showing color-coded fuses (yellow, blue, red) in a modular arrangement

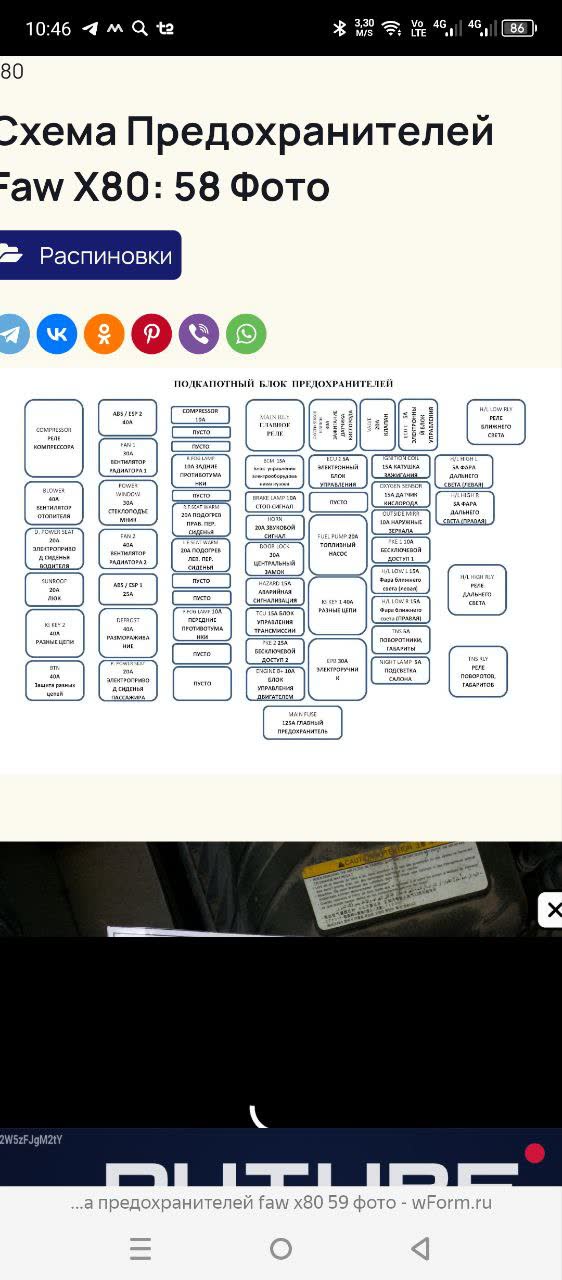

Fuse box diagram showing front fog-light fuse location

Second fuse box diagram photo, engine-bay fuse block

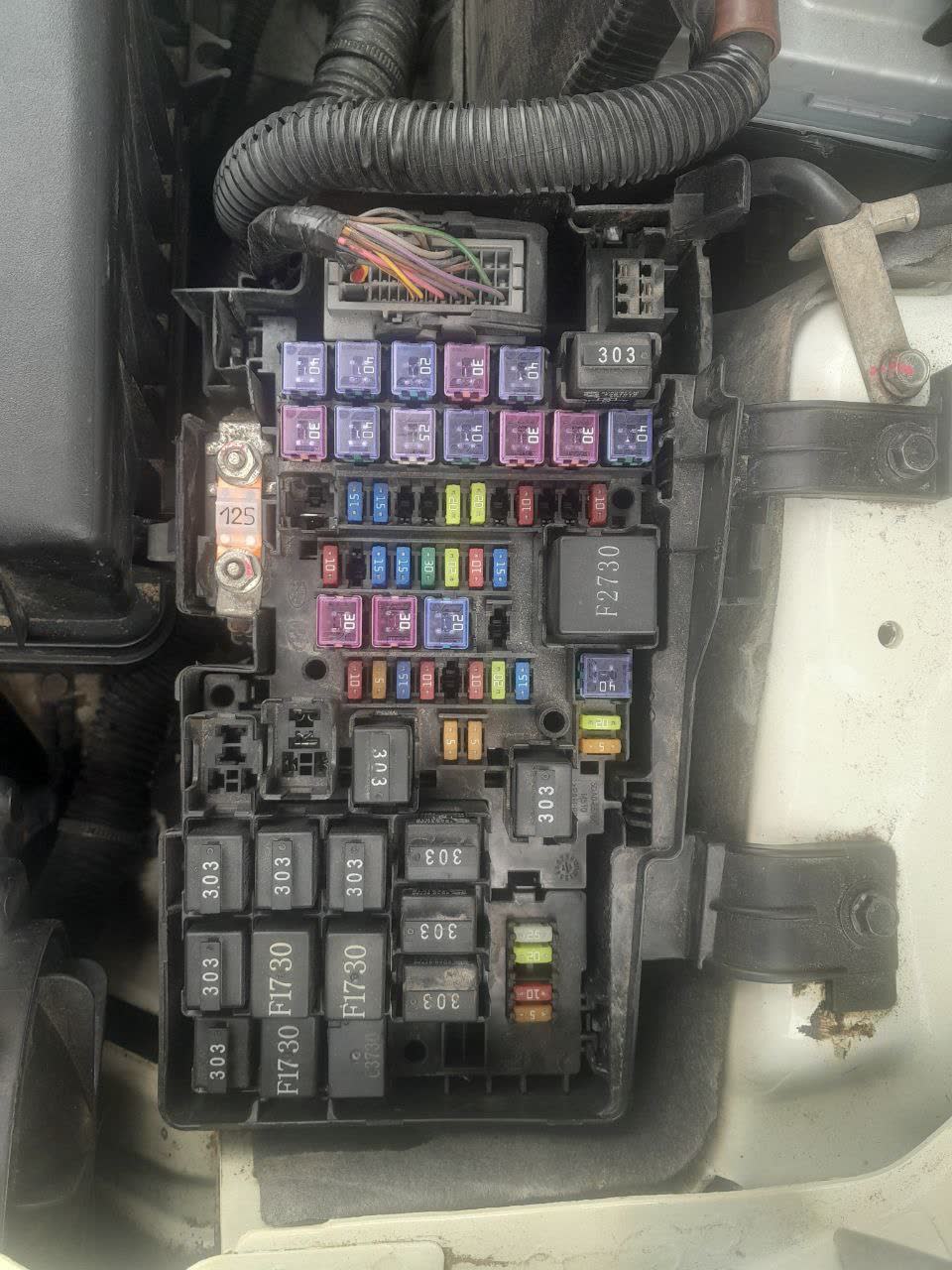

High-resolution fuse-block diagram showing all fuse and relay locations, Russian labels and part numbers (125, 303, PT30, etc.)

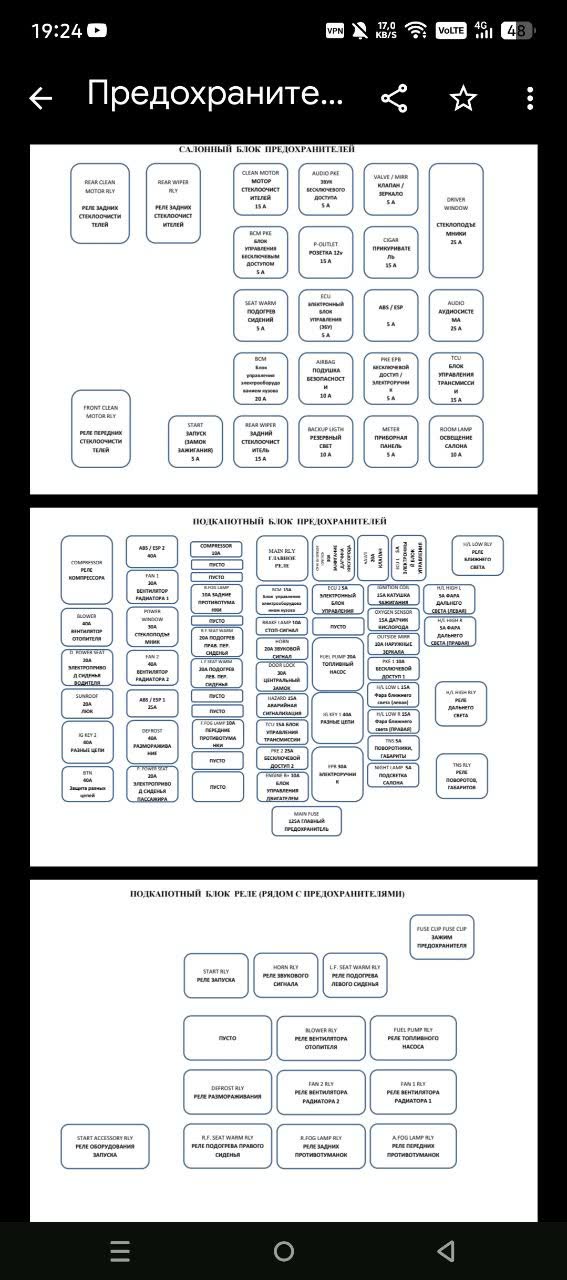

Multi-panel fuse diagram: cabin block (top), under-hood block (middle), power relay block (bottom), with Russian labels for circuit functions

Phone-gallery screenshot of "Предохранители" (Fuses) reference file: three labeled diagrams — cabin fuse block (top), under-hood fuse block (middle), and under-hood relay block (bottom) — every position named and rated (e.g. airbag 10A, main fuse 125A, driver window 25A); the source for the complete fuse/relay list in the text above
