CANBUS module for Android head-unit replacement (pre-facelift vs facelift). Pre-facelift models (2016-2019) do not have a built-in CANBUS module; facelift models (2020+) have one but may still need reconfiguration. A CANBUS adapter module is included in a typical replacement Android head-unit kit and must be programmed in the vehicle's settings menu; when properly installed and programmed, it preserves steering-wheel controls, climate control, the door-open sensor, and air direction mode, and comes with its own wiring harness and RCA connectors ^{12345678 91011}. Real-world confirmation: 4GB/64GB Android units with a 4-inch touchscreen successfully replaced OEM units, with all of steering-wheel buttons, climate control, door-open detection, and air distribution modes (front/defrost/rear) working correctly once the CANBUS adapter was installed ^{1213141516 1718}.

Wiring/power-polarity troubles on Chinese Android units. Installation is complicated by non-standard wiring on Chinese head units versus Russian-market wiring conventions — commonly reversed polarity on CAN-bus connectors and mismatched wire assignments. Fixing this typically requires weeks of back-and-forth with the seller/tuner over firmware variants and a test-and-correct approach; a competent installation shop is recommended over DIY ¹⁹²⁰²¹.

Radio antenna access via the control block. The antenna wire connects through the rear control block that also houses the climate and radio controls, secured with 4 bolts; this block must be fully removed (both the upper screen section and lower climate/switches section) to reach the antenna connector — there is no shortcut to it ²²²³.

Restyled monitor head unit — USB storage support. The restyled X80 head unit with monitor supports external USB media, but only in FAT32 format. Owners have used an external 320GB HDD successfully; an SSD is suggested as preferable to a HDD for vibration resistance. The unit plays both music and video from USB ²⁴²⁵²⁶.

Installation basics. Fitting an aftermarket head unit (ЦИУ/магнитола): disassembly takes about 10 minutes, the connector is plug-and-play, and reassembly/integration takes about 15 minutes ²⁷. A common snag is that the antenna extension wire may be too short and needs extending or splicing by someone skilled in wiring ²⁷. The harder part is CAN-bus configuration — especially on Chinese units — which requires protocol knowledge; one owner spent a year going back and forth with the manufacturer through multiple firmware updates, while others got it right in one pass. Researching a specific unit before buying is recommended ²⁸. A CAN-bus 4-wire adapter cable needed for tablet-style head-unit installs is sold on Ozon (ozon.ru/t/5njoqp); pre-facelift and facelift X80 models need different cable versions ²⁹³⁰³¹.

"Drunk road" (пьяная дорога) display glitch on FrontCam units. FrontCam brand head units (2/32GB RAM version) can show a "drunk road" graphical glitch tied to reverse-gear activation; related symptoms include the park sensors not activating or the rear-view camera glitching ³²³³³⁴. Community fixes tried: a head-unit firmware update; updating CAN-bus settings from the unit's menu; a firmware update on the MCU (auxiliary display module) ^35363738. The issue can reoccur after some time ³⁹⁴⁰⁴¹. A firmware downgrade to a monochrome interface can mask it temporarily but doesn't fix it permanently ³⁶⁴². Note: similar symptoms have separately been reported on manual-transmission cars with a different root cause (see the ESP/traction-control false-warning card).

Antenna extension recommended. Confirming the point above: the factory antenna cable is short, so an antenna extension cable is specifically recommended whenever installing an aftermarket audio system, to ensure proper signal reception ⁴³⁴⁴.

No subwoofer/RCA output on the stock head unit. The factory head unit (non-facelift/"resto" trim confirmed) has no dedicated subwoofer RCA output ⁴⁵⁴⁶. To add an amplifier for aftermarket audio, use a high-level line converter/adapter (a "преобразователь") connected to the factory speaker outputs to derive an amplifier input signal ^{47 48}. Some line converters generate their own REM (remote turn-on) signal automatically on audio detection; others need a separate dedicated 12V remote wire run from the head unit — check which type before buying ⁴⁷. If not already buying an amplifier, get one with a high-level input built in from the start, to avoid needing a separate converter ⁴⁹. Note: connector color coding at the factory harness may vary between "Resto" (restyled) trim units, so verify wiring before assuming a guide made for a different trim applies directly ⁵⁰.

Carlinkit 5.0 wireless CarPlay/Android Auto adapter — confirmed compatible. The Carlinkit 5.0 CPC200-2air adapter is confirmed compatible with the X80, enabling wireless CarPlay and Android Auto on a compatible head unit ⁵¹⁵². Prerequisite: the head unit itself must already support the CarPlay protocol before the adapter will do anything — the adapter alone doesn't add CarPlay support to a unit that lacks it ⁵³. In practice this means a firmware update on the head unit is typically required first to unlock CarPlay support before the wireless adapter becomes useful; one owner sourced the required firmware privately rather than from a public source ^{5354 55}.

"Drunk road" error after a head-unit swap — CAN bus module mismatch. The "drunk road" (пьяная дорога — unstable steering-input) error code can appear on the multimedia/head unit right after changing the radio/multimedia system. Root cause: the CAN bus module ("коробочка"/камбус) fitted is from a different model year than the vehicle. Fix: replace the CAN bus module with one matching the vehicle's year. Alternative fix used by one owner: add a specific wire connection (yellow and brown wires soldered together, then run to a brown connector pin — see message 43104's video for the exact routing), per the multimedia installer's instructions; some installations also need a parking-sensor configuration adjustment afterward ^{5657 58596061}. Conflict: one owner (Марина) fixed it with the wire-connection method, while another (Jürgen@73) preferred replacing the CAN bus module outright — both approaches are reported to work, though the wire method looks like the quicker initial fix based on the video evidence ⁵⁸⁵⁹.

Error can reappear after OBD-scanner clearing — the underlying cause wasn't fixed. The "drunk road" error can be cleared temporarily with an OBD scanner, but returns after driving or after some time. This indicates the root cause (CAN bus module mismatch, or the wiring fix above) wasn't actually addressed — a permanent fix requires replacing the mismatched component or completing the correct wiring change, not just clearing the code ⁶²⁶³.

Android head-unit "drunk road" fix — CAN bus cable routing, step by step. A separate case of the same "drunk road"/unstable-steering-input warning showing on an Android aftermarket head unit, traced instead to an incorrect or missing CAN bus connection from the head unit to the vehicle's ECU. Fix sequence: (1) identify the correct CAN bus cable connector — typically a yellow or brown wire from a numbered pin; (2) check the marketplace listing for the harness/adapter to confirm whether it's the pre-restyling or restyling connector variant, since they differ; (3) connect to the correct ECU CAN bus pin. A video tutorial (circulated on the marketplace where the harness was bought) walks through wiring 5 pins from the dashboard connector; after following it, the false warning cleared. This error originates from head-unit CAN bus misconfiguration, not from the vehicle's own ECU ^{6465 666768697071}.

Firmware error persists with non-stock head unit paired to the stock "Wonder Monitor" display. Installing a non-stock head unit (магнитола) while keeping the stock "Wonder Monitor" instrument display causes a persistent error message, particularly visible while in reverse. With a non-original head unit the error cannot be permanently cleared. Two options: revert to the original head unit — which requires a single firmware flash to clear the error — or keep the aftermarket unit and accept the persistent warning. Some owners diagnosed the underlying fault with a professional diagnostic scanner rather than guessing ^{727374757677787980}.

CAN-bus adapter enables steering-wheel controls and climate/door integration on aftermarket units. A CAN-bus adapter module is what lets an aftermarket head unit read steering-wheel button presses and display climate and door-open status. Some replacement units come with the adapter factory-included; others require sourcing it separately, and quality/functionality vary significantly between manufacturers. Tatarstan-based suppliers were specifically noted by one owner as a source of reliably high-quality CAN-bus adapters ⁸¹⁸².

RAM recommendation for aftermarket Android head units: 6GB over 4GB. A navigation app plus a couple of others (YouTube, VKontakte) running together consume roughly 4GB of RAM on their own, so while a 4GB unit may work, 6GB gives meaningfully more headroom. One owner also reports the 6GB variant they bought had a better audio processor, for only a small price difference over the 4GB version ⁸³⁸⁴.

Head-unit compatibility requires matching firmware/version to the vehicle. An X-REAKO 9-inch 2DIN Android unit (6GB RAM / 128GB storage) was confirmed to fit the X80, but compatibility in general depends on picking a unit software version that has documented compatibility with FAW vehicles specifically — not every listing that fits physically will integrate correctly ⁸⁵⁸⁶⁸⁷.

Teyes CC3L 4/64GB — a specific, well-reviewed Android unit. The Teyes CC3L (4GB RAM/64GB storage) fits the X80 (2018-2022), with an 8-core processor, IPS display, DSP audio, 4G and WiFi. It requires the CANBUS connection for proper integration. One owner reports over 4 years of reliable operation and recommends it over some newer Android 8.0 units ^88899091 (product link: https://ozon.ru/t/DynXuLM).

Teyes CANBUS connection resolves — or at least changes — the "drunk road" (пьяная дорога) dashboard error. After installing a Teyes unit with its CANBUS module properly connected, the "drunk road" ESP-related dashboard error may clear, because the CANBUS module properly integrates the aftermarket unit with the vehicle's electronics. If the error persists after installation, it may point to a steering-wheel-control incompatibility rather than a wiring fault, and can generally be ignored if the rest of the stereo functions normally ^{929394 9596}.

Replacing the head unit with a Chinese Android unit — pick matching TPMS sensors to avoid a reprogramming headache. When replacing the original head unit, Chinese Android options are available (e.g. Canbox H-Line models) ⁹⁷. User recommendation: when replacing, buy a compatible tire-pressure-sensor set from the same brand (TAIS) rather than mixing brands — this avoids signal incompatibility and an expensive reprogramming step to get a different sensor brand talking to the new unit ⁹⁷. See the TPMS card for more on sensor part numbers and programming.

Media

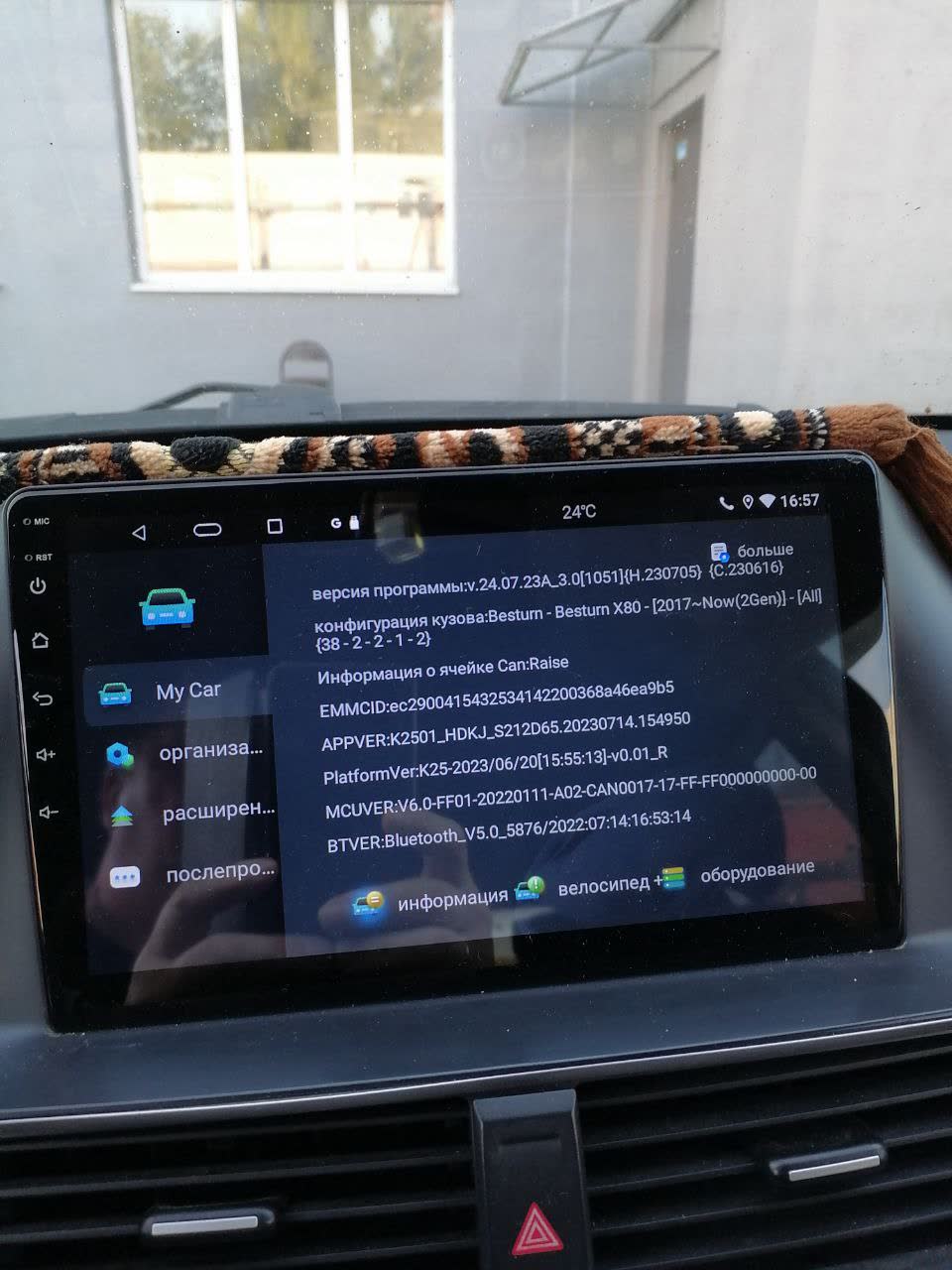

FrontCam head unit CAN-bus settings menu, showing configuration options for various vehicle system settings

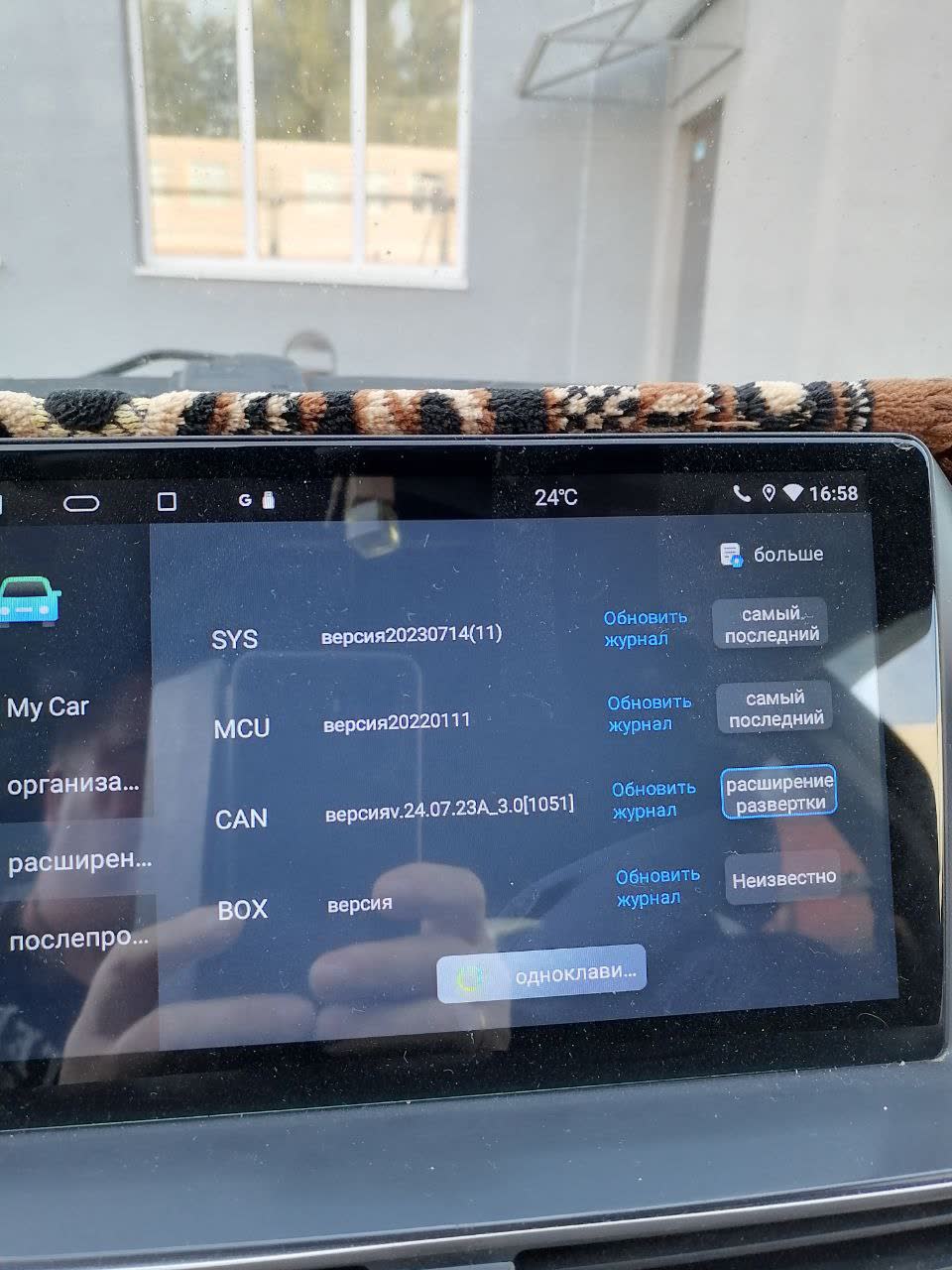

FrontCam head unit CAN-bus settings menu, a second screen from the same configuration sequence
