Headlight adjustment and common faults

Tags: #headlight · #connector

Basic bulb replacement is plug-and-play. Ordinary headlight bulb replacement doesn't require a service visit or dealer equipment — the old bulb unplugs and the new one plugs directly into the housing, no disassembly needed, and standard sockets don't require reaiming/ recalibration afterward ¹²³⁴.

Adjustment procedure. Headlight aim can be adjusted two ways: (1) interior — a dial to the left of the steering wheel controls vertical aim across 5 positions (the dial on the right controls dash brightness) ⁵⁶; (2) under the hood — a plastic wheel/screw near the headlight for fine vertical and horizontal tuning ⁷⁸. The interior control is enough for most cases; the under-hood adjustment is for fine-tuning. Confirming detail from a separate thread: the headlight assembly has two mechanical adjustment bolts, one for horizontal (left/right) aim visible from behind the headlight and one for vertical (up/down) aim that's partially hidden; the interior dial provides only limited-range correction (e.g. for load-induced height changes), while the two screws set the actual beam direction. LED bulb orientation matters here too — an incorrectly oriented replacement bulb will still throw the beam off even with the screws correctly set (see the LED-specific troubleshooting below) ^{91011 121314151617}.

Failure from a burnt connector. Both high and low beams can go out simultaneously; root cause reported was a burnt electrical connector at the lamp socket, from contacts loosening over time ¹⁸. Fix: replace the connector — an inexpensive part, "costs only kopecks" ¹⁹²⁰. Several owners report replacing headlight connectors annually because they keep burning ²¹. Conflict: one alternative raised is to convert to LED headlights instead of replacing stock bulbs — at least one owner switched to LED with success ²².

Whistling/squeaking noise. A whistling or squeaking sound from inside the headlight assembly is most likely the automatic headlight-leveling corrector (the vertical beam-adjuster motor) ²³²⁴. To diagnose: check whether the corrector moves smoothly when adjusted from the steering-wheel control, or park facing a wall and watch the beam shift as the corrector cycles ²⁵²⁶. If it's stuck or noisy, it may need replacement ²⁷²⁸. Separately noted: in winter, mirrors won't auto-fold until manually cycled once after a cold night — a related but distinct issue with electronic actuators ²⁹³⁰.

Auto mode behavior. With the headlight switch in AUTO, the light sensor turns on full headlights (not just DRLs) when ambient light drops enough — e.g. entering a tunnel or going under an overpass; this is normal sensor behavior ³¹³²³³. In winter or for highway driving, some owners prefer manual control, because the auto-unload relay energizes at startup then delays the load, creating a transient voltage sag on the battery ^{34353637383940 41424344454647}.

Repeated headlight fuse blowout despite the bulb looking fine. A distinct fuse-specific failure mode: the headlight fuse blows repeatedly even though the bulb itself appears functional. Suspected causes, in check order: (1) wrong bulb voltage rating installed — one shop reported a case where a 24V bulb had been fitted in place of the correct 12V, which kept blowing the fuse until a wiring "jumper" workaround overheated and melted the wiring harness ("коса") — check bulb voltage rating first ⁴⁸⁴⁹⁵⁰; (2) if the bulb voltage is confirmed correct, look for a shorted/damaged wire insulation or water intrusion into the light assembly instead — one experienced member pushed back on the wrong-voltage theory as the general explanation, noting standard 12V bulbs have historically been used across old Soviet and imported cars without issue, and that a colleague's repeated-blow case was ultimately traced to a specific short/miswire rather than bulb voltage generally ⁵¹.

Front turn signal not working — headlight-connector contact fault. A separate connector-related fault: the front-left turn signal stopped illuminating while the mirror and rear-bumper repeater indicators kept working normally — pointing to a fault isolated to that one bulb's circuit rather than the turn-signal system broadly. Relay-cycling and fuse checks found nothing. Fix: physically wiggling/jostling the wire bundle where it enters the headlight assembly restored function, indicating a loose or moisture-affected contact inside the headlight connector rather than a bulb or relay fault ⁵². Consistent with this card's broader theme, a community member noted X80 connector contacts generally are "not great" ("не айс") — i.e. treat marginal/ intermittent lighting faults as a connector-contact suspect first, before assuming a bulb or relay is bad ⁵³.

Poor headlight beam pattern and adjustment — LED-specific troubleshooting. If headlights point upward into oncoming/following traffic rather than the road (poor beam pattern, hard to see lane markings at night), check in this order: (1) use the interior aim-height dial described above — left of the steering wheel, under the dash — to lower the beam pattern ^5455565758; (2) if the issue appeared right after an LED bulb conversion, the diode orientation inside the bulb may be reversed on one side — LED diodes must face the correct direction (perpendicular to the ground, per one LED maker's instructions) for the beam shutter/cutoff shield inside the headlight housing to shape the beam correctly; diodes facing upward instead of sideways will flare light everywhere instead of forming a proper cutoff ^5960616263; (3) verify the replacement LED bulb is specifically speced for this car's socket — bulbs "made specifically for our socket, marked for the factory fitment" avoid this problem entirely according to one owner who had no issues ⁶⁴⁶⁵⁶⁶; (4) if a shim/adjustment ring exists on the bulb's base, confirm it rotates freely so the beam direction can be fine- tuned in the socket, not just via the interior dial ⁶⁷. Stock halogen bulbs already have a weak beam pattern by comparison, so a properly-oriented LED conversion is reported to meaningfully improve visibility once correctly aimed ⁶¹.

Complete headlight failure — fuse and relay diagnosis. A distinct failure case: the right headlight (both near and far beam) failed completely, then both headlights failed after the owner swapped fuses between circuits while troubleshooting; the relay is heard clicking when switching to high beam. Recommendation: check all fuses first and verify relay operation before going further. Because incorrect DIY electrical work on this car can cascade into worse damage, this is flagged as a case where consulting a professional auto-electrician is safer than continued trial-and-error swapping ⁶⁸⁶⁹⁷⁰.

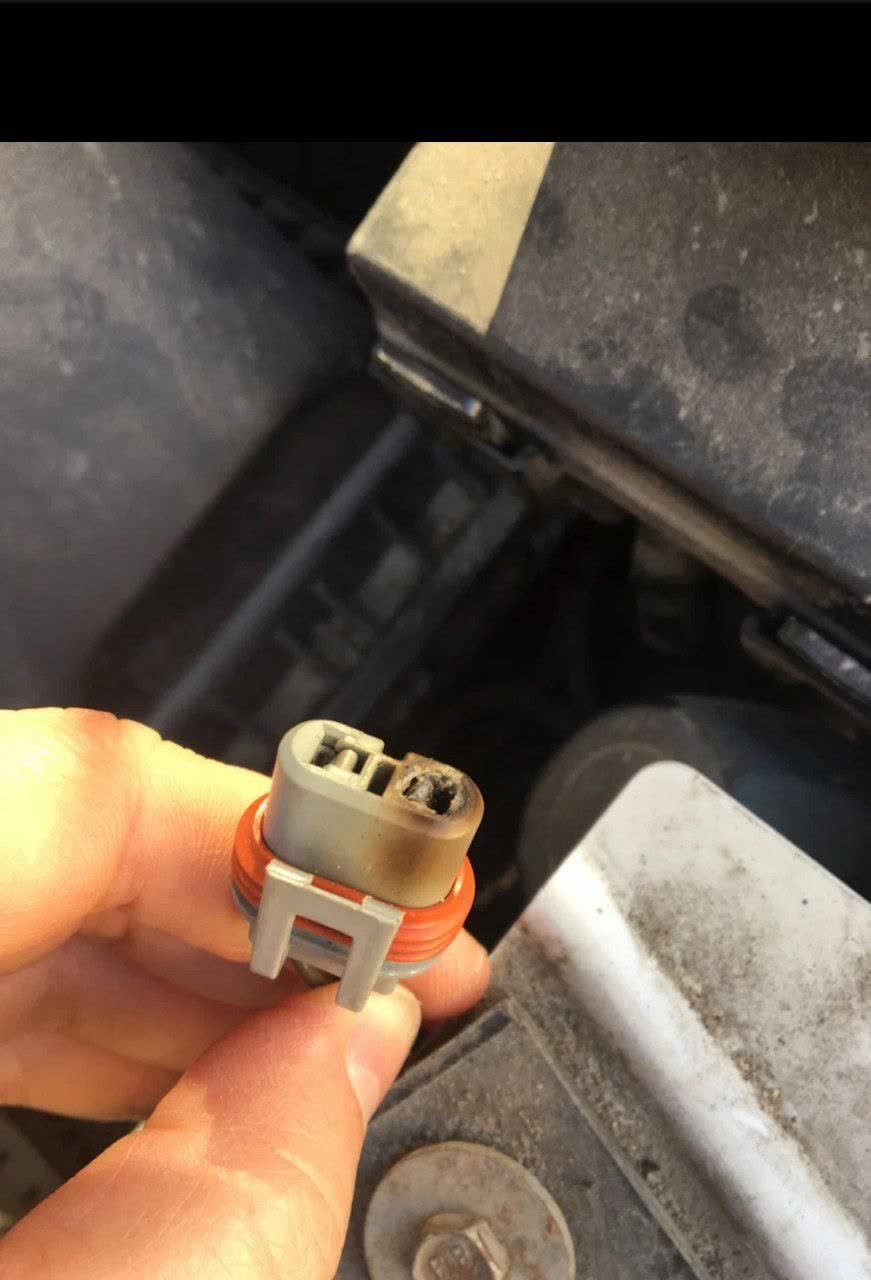

Bulbs burning out rapidly — traced to factory connector corrosion, not bulb quality. A separate failure pattern from the connector-burn case above: the factory headlight connectors (grey/brown colored) corrode over time, and this corrosion — not the bulbs themselves — is what causes replacement bulbs to burn out rapidly. Community reports repeatedly point to the connector rather than bulb quality once this is diagnosed. Connector replacement is an affordable fix. Bulb part numbers seen in this socket: 9012, 9013, or HiR-type bulbs. When chasing this kind of early bulb failure, check the whole wiring harness for load issues and corrosion, not just the connector at the bulb itself ^717273747576.

Factory misalignment risk on LED headlamps. LED headlamps on the X80 may arrive misaligned from the factory. If the beam pattern is off-standard, workshop adjustment (see the adjustment procedure above) is required to prevent dazzling oncoming traffic and to avoid a road-safety/legal violation. Verify the beam pattern against relevant Russian traffic/technical standards after installation or if the factory alignment is suspect ^7778798081.

Headlight levelling knobs (STG) on the lamp housing. The headlight levelling adjusters (STG, корректор фар) are knobs on the back of each headlamp. One owner describes one knob near the radiator grille and the other between the wing and the radiator support, and says a torch is needed to see them ⁸²⁸³. Another owner at first saw only one knob ⁸⁴.
