Monochrome head unit intermittent power loss

Tags: #head-unit · #fuse

The stock monochrome (single-color-display) head unit can stop powering on after previously working intermittently — one owner had it happen again after a prior recovery a year earlier that had lasted a couple of days before returning to normal ¹. Root cause is most likely in the fuse/power-supply circuit rather than the unit itself. Diagnostic steps: pull the head unit out and test for power presence at its connector using a simple test lamp (not a multimeter) — a test lamp makes a dead-power condition obvious even with a weak/partial connection that a multimeter might misleadingly read as "present" ². Specifically check the 5A fuse in the driver-side fuse block ². One owner found the failure traced to an internally blown fuse inside the head unit itself, separate from the main cabin fuse block ³. This is not a one-off — multiple owners have hit the same monochrome head-unit power issue.

Complete power loss while driving, with an audible relay click. A related but distinct case: the head unit doesn't just glitch, it cuts power entirely while driving, and a relay can be heard clicking each time ⁴⁵. Recommended diagnostic order for this variant: (1) check the main power-supply fuses first, not only the head-unit-specific one ⁶; (2) inspect the power connector for oxidation or a loose pin — the same connector issue described above ⁶; (3) rule out the circuit being wired to share power with the ECU, which is a suspected wiring mistake distinct from a simple blown fuse ⁷.

Stock radio not powering on after the car sits idle. If the stock radio fails to power on after the vehicle has been sitting, first disconnect the battery negative terminal and reconnect it — this resets the unit and is the standard first step. Also check that the power on/off button isn't mechanically stuck pressed. If it still won't power up, an internal fuse inside the unit itself may have failed, or the unit needs service; several owners in this thread ended up preferring an aftermarket-unit replacement over repair, citing better reliability and features ^891011121314.

Burned fuse in the driver-footwell fuse block cuts head-unit power. A separate, unrelated case: if the head unit (radio) suddenly stops working entirely, check for a burned fuse in the fuse block located in the driver's footwell (near the left leg space) — this specific fuse controls power to the head-unit circuit and is a distinct failure point from the internal-fuse case above ^1516171819.

Media

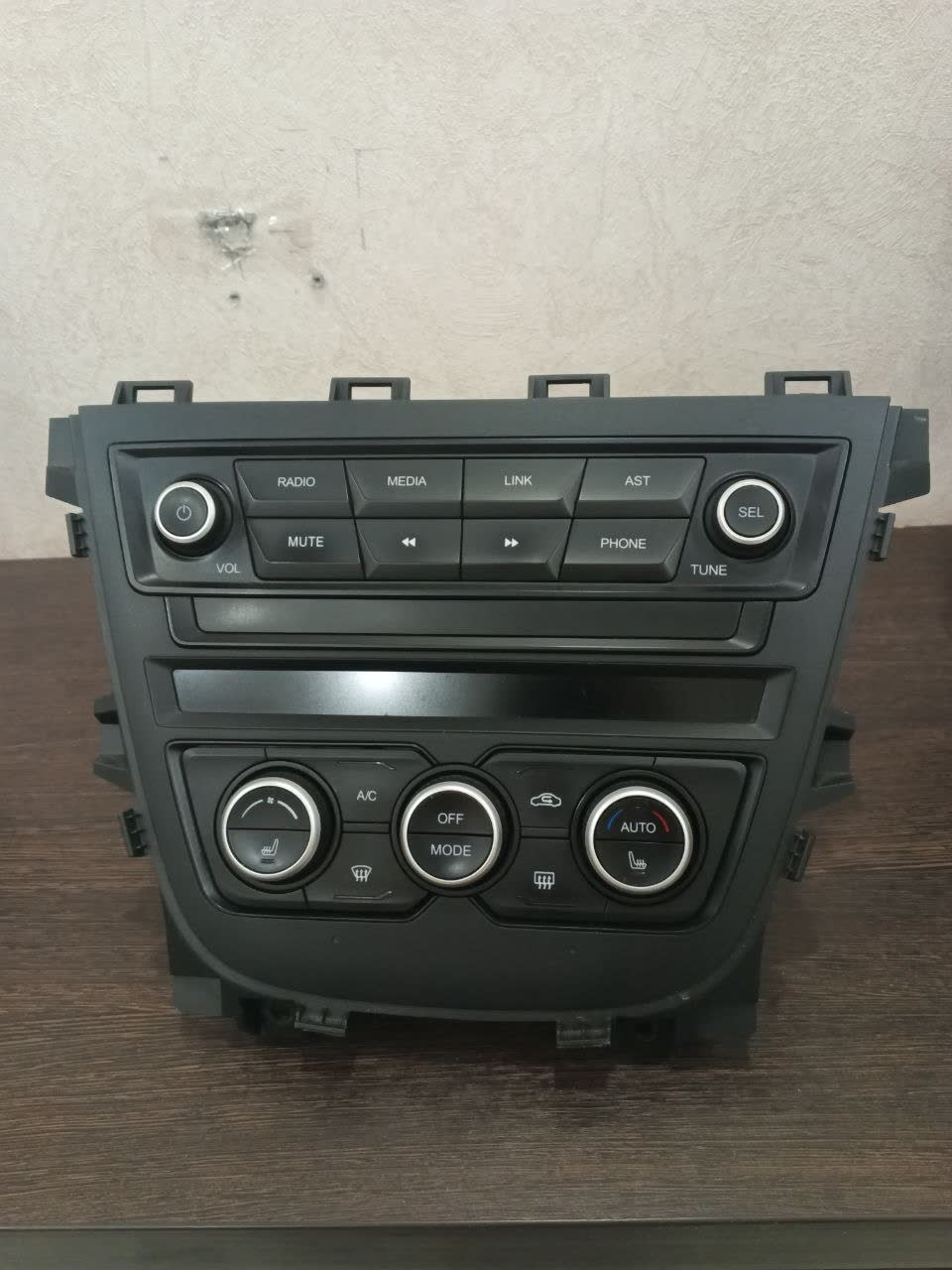

Photo of the head unit (lower radio/audio module, not the dashboard display) that was defective and required replacement

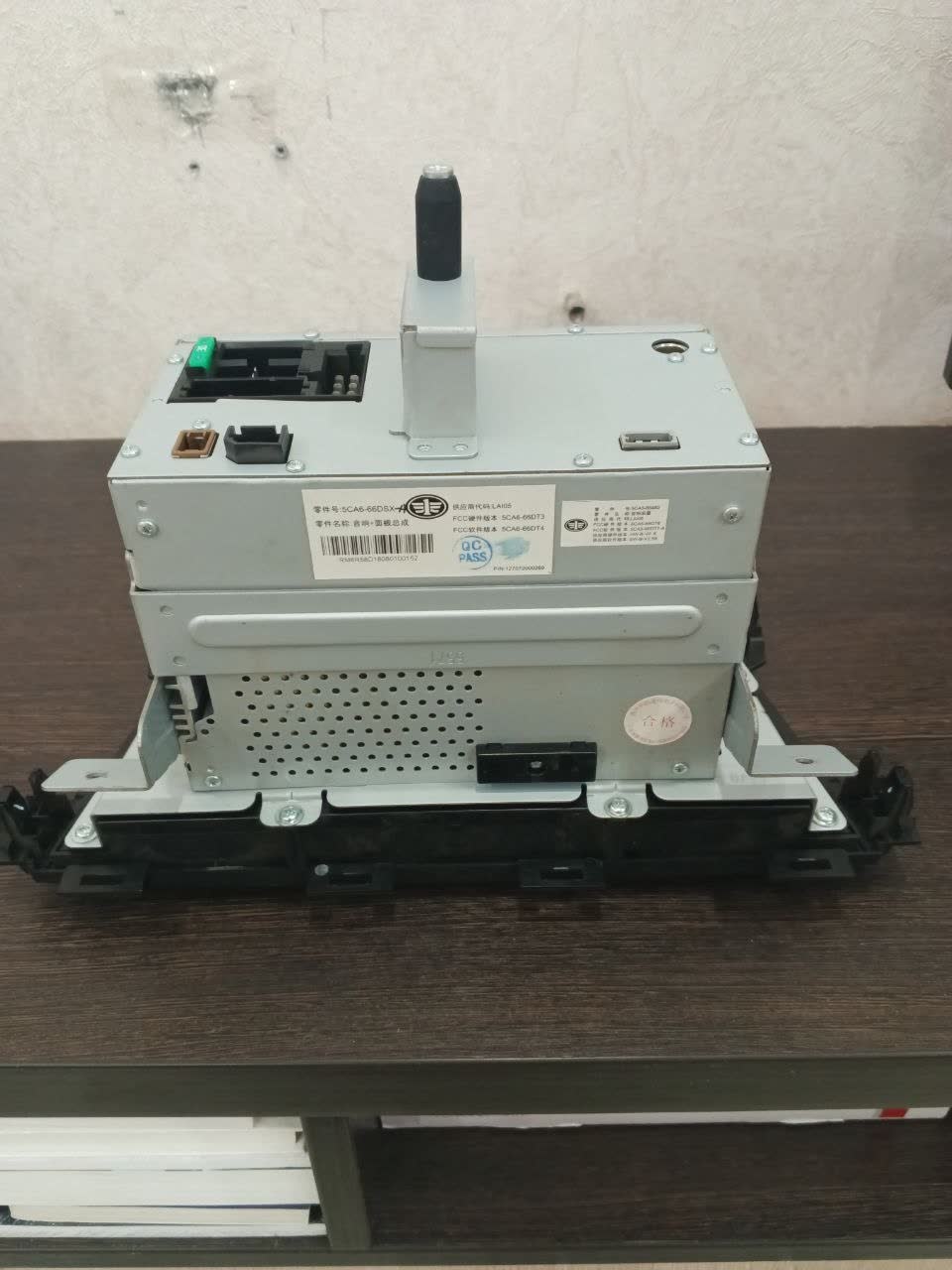

Second photo confirming the location of the defective head unit module
