Rear door connector pin corrosion

Tags: #corrosion · #mirror · #turn-signal · #part-number

Owners report that the left rear door connector is a recurring weak point on the X80: oxidation/corrosion in its pins causes intermittent failures across several unrelated-seeming systems at once — door-lock sensors, power windows (auto-down/up mode not learning), mirrors (working only right at startup), and turn-signal relays. Some pins may be physically broken or corroded beyond simple cleaning. The rear driver-side door is specifically flagged as particularly prone to this ^{12 345678910}.

Fix options, from cheapest to most reliable. (1) Remove the connector and clean pins with electrical contact cleaner — works for mild oxidation. (2) Replace damaged pins individually — pin stock in the correct size is hard to source; Mazda CX-series equivalents are slightly larger and don't fit the thin connector walls, so don't assume cross-compatibility. (3) Improvise a fix with a piece of solder or wire to take up slack in a loose/worn pin ^{1245 679}.

Full connector replacement and part numbers. For a permanent fix rather than pin-by-pin repair: (1) buy a new connector, part 5CA067210B (~1000 RUB, RU market, September 2025) — this resolves window-regulator and door-open-signal failures caused by pin corrosion on the rear left door specifically. (2) Alternative, free but more labor: extract the corroded pin and bypass it with a direct wire run through the door-harness connector (~20 minutes, permanent against future oxidation at that specific point, though it doesn't replace the whole connector). (3) For the trunk/boot door specifically (not a regular door), the equivalent connector part is 5CA267SH2B (~1000 RUB, RU market, September 2025) — confirm which door (left/right, regular vs. trunk) before ordering, since the part numbers are door-specific ^{1112131415161718 1920212223}.

Intermittent rear door won't open — corrosion vs. aftermarket-alarm interference (unresolved which). A separate, partially-overlapping report: the rear door stopped opening reliably (worked intermittently, notably sometimes triggered back into working by using the wipers first) ²⁴. First mechanic consulted made things worse by disassembling the lock without properly diagnosing it; a second visit tested the lock on a bench battery and found it functional in isolation, pointing away from the lock mechanism itself and toward the wiring/connector path ²⁵. Suspected cause: oxidized contacts earlier in the same circuit that also carries power to the wipers — since running the wipers sometimes "unstuck" the door, the wiper circuit and door-lock circuit may share a corroded junction upstream of both ²⁶²⁷. Fuses for wipers and central locking were all visually intact, but a fuse can fail without visible damage, so replacement/swap-testing was still recommended ²⁸. Conflict: whether an aftermarket alarm is the actual root cause, versus plain connector oxidation, was not resolved in the thread — one suggestion was to try resetting the alarm via its service button, or disconnect the battery for 10+ minutes as a general reset, before further disassembly ²⁹³⁰.

Media

Damaged rear door connector pin showing a broken contact clip that needs shimming with solder or wire

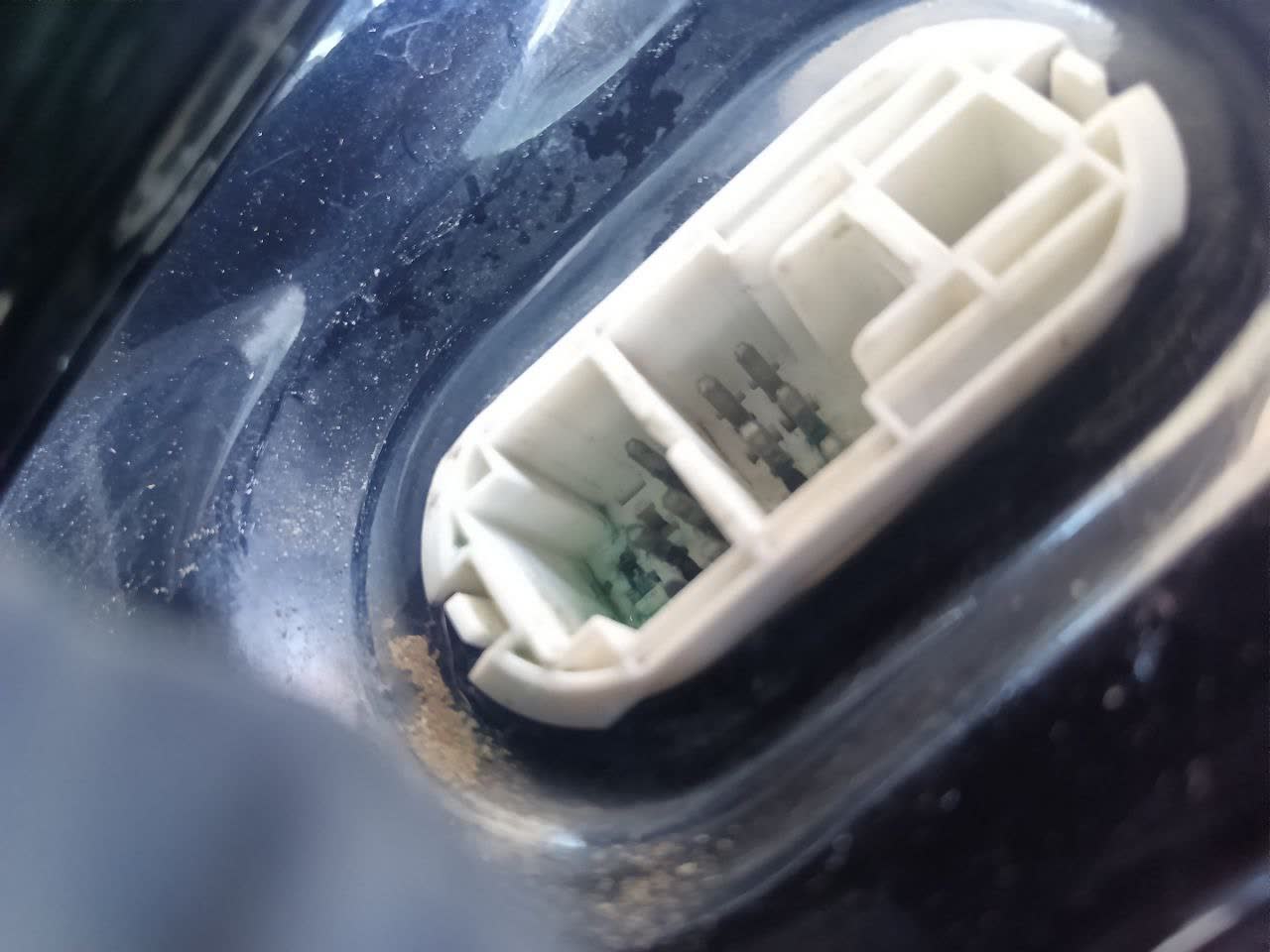

Rear door connector assembly, referenced for the full connector replacement (part 5CA067210B)
