Rear parking sensors — diagnostics and replacement

Tags: #parking-sensor · #diagnostics · #price

Mounting and wiring. The 4 rear parking sensors (parktronics, ПАРКТРОНИКИ) are glued with double-sided tape inside the rear bumper. Each sensor has its own independent connector and the sensors are wired in parallel, not in series (unlike some competitor systems), so one failed sensor does not take down the others ^{12345678910111213141516171819202122}.

Diagnostics. Water or dirt ingress causes false beeping. Several checks were reported: - Click test: ignition on, reverse engaged; working sensors click when touched ^12345678910. Ultrasonic sensors give no physical vibration when pressed with a finger, so a finger press is not a valid manual test ^{111213141516171819202122}. - Wall test (reliable): drive to within 20-30 cm of a wall, engage reverse and watch the display; working sensors show their response for about 1 second before the reading drops off ^{111213141516171819202122}. - Voice-recorder app test: with reverse engaged, hold the phone microphone tip against each sensor and watch the waveform; a working sensor shows frequency changes compared with the surrounding bumper (baseline). One owner confirmed it tells a dead sensor from a working one without a scan tool ^23242526. - Error without sound: with reverse engaged, a sensor error on the dashboard but no beeping means the sensors need replacing ^27282930.

Used cars. Non-working rear parktronics are frequently found on used X80s; several buyers report inheriting them as a common issue ^27282930.

Control module. The parktronic control module is on the right side of the trunk, toward the rear seats; reaching it means removing the rear trim panel (and the interior upholstery panel). If the sensors start misbehaving shortly after a car wash, first check the module's electrical contacts for corrosion or moisture before blaming a sensor ^{31323334353637383940}.

Access and removal. Two reports differ on how much of the bumper must come off: - All sensors can be removed without taking off the rear bumper's silver trim panel. The central sensors are easiest; the outer ones need thin hands or flexible tools but are still removable. Each sensor is held by two clips (top and bottom) that must be pried apart ^{41424344454647}. Another route is from underneath via the trim panel, or removing the gray plastic trim for easier access ^12345678910. - Another owner recommends removing the rear bumper completely for better access, a cleaner installation and proper tape contact for the new sensor: about 15 minutes with the bumper off, noticeably harder and slower without removing it (the alternative being the lower gray bumper cover panel, with limited working room) ⁴⁸⁴⁹.

Replacement. Replacement sensors are aftermarket-available and fairly universal ^12345678910. The mechanism is a simple side clip, taking under 1 minute per sensor with some dexterity ^{111213141516171819202122}. After the part swap, plan a code-clear step: replacing sensors flagged as faulty (positions "2 and 3" glitching) did not clear the dashboard error until the stored codes were cleared with a scan tool at a service centre (2024-08 report); the community compares this to rear brake pad replacement, which likewise does not clear related stored codes ⁵⁰⁵¹.

Part number, cost and failure rate. OEM sensor part number 5GA179120; replacement about 1,625 RUB per sensor (RU market, July 2025) ^{111213141516171819202122}. An earlier report (RU market, May 2024) gave the sensor at about 750 RUB plus labour of about 1,000 RUB per sensor; some owners replaced 4 sensors in 5 years, suggesting a fairly high failure rate, and the official dealer warranty may cover it in the first year of ownership ⁵².

Media

Photo of installed parking sensors after replacement

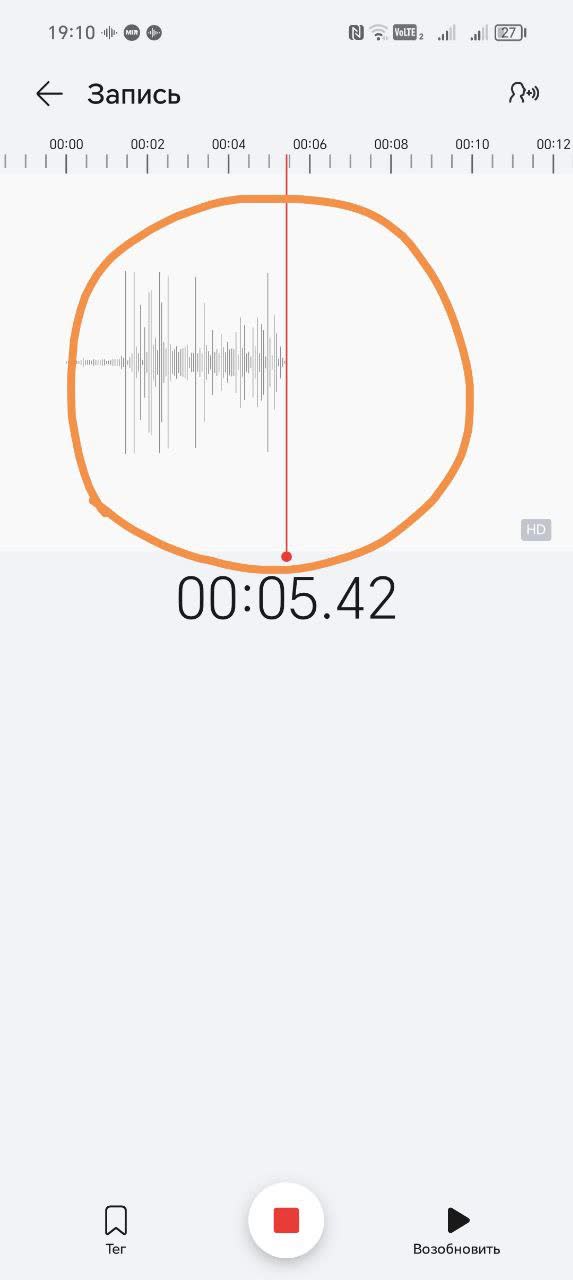

Voice recorder app screenshot showing waveform analysis during a sensor test, with visible frequency peaks indicating ultrasonic signal detection

Second waveform screenshot from the same parking sensor test
