StarLine alarm autostart and configuration

Tags: #alarm · #autostart · #remote-start · #mirrors

Starline as the recommended mid-range option. For owners choosing an alarm/remote-starter system, StarLine is cited as the best value pick in the mid-range tier; installation is recommended at a qualified shop rather than DIY ¹.

StarLine key fob rapid battery drain. A separate, well-documented problem: StarLine fobs can drain their battery in 1-2 weeks even with a fresh cell. Thin (type 15-16) batteries deplete fastest; a thicker type-32 battery lasts longer but its larger size can crack/break the connector tab in the compartment. Suspected root causes (disputed — see conflict below): the fob's transmitter may be in an always-searching mode, pinging the car on every request or brake press; a defective charging circuit on the fob's board; poor battery-contact quality. Diagnostic tip: measure voltage on a removed "dead" battery — if it still reads healthy voltage, suspect the contacts/circuit rather than the battery itself; a phone-repair shop can inspect the board ^{23456 7891011121314 1516171819202122 2324252627282930 3132333435363738 39}. Conflict: the community did not converge on one root cause — continuous transmitter search, defective charger circuit, battery quality, and contact corrosion were all proposed by different owners ^69142739.

StarLine fob head replacement part. Replacement key-fob head part number: 5CA0675RY02, available from Kitparts.ru at 2453+ RUB (as of 2025-09-23); requires re-programming/synchronization after replacement ⁴⁰⁴¹⁴².

A93 installation mistakes — auto-lock and mirror-fold failure. Poor A93 installation technique can cause doors to fail to auto-lock and mirrors to fail to fold when arming the alarm, even though these functions still work correctly with the factory key — i.e. this is an installation-quality issue, not a hardware fault ^{4344 45}.

A93/signal-system install breaking autostart — bypass module needed. Installing an A93 alarm (or reworking related signal components) can cause remote autostart to stop working. Root cause: the alarm's chips wired directly into the car's circuits without a proper bypass module (обходчик). Fix: install a bypass-circuit module and re-solder the chips correctly through it — cost around 2000 RUB (RU market, October 2025) ^{464748 49}.

StarLine A96 weak antenna — DIY fix. The A96 alarm can have weak transmission power from thin factory antenna-wire wrapping, reducing key reception range. Fix some owners use: wind a custom antenna coil from 0.3mm lacquered wire. This improves reception but needs monitoring — one owner had to rebuild the coil 3-4 times per winter over 5 years on the same car, suggesting it's a durability trade-off, not a one-time fix ⁵⁰⁵¹⁵².

A93 with AKPP — enabling autostart. On a StarLine A93 fitted to an AKPP (automatic) X80, autostart is enabled with a long press of button 1; configuration for AKPP happens automatically, no separate transmission-type selection is needed ^53545556.

S96v2 GSM — remote autostart and mirrors. The StarLine S96v2 with a 2G/GSM modem enables remote autostart via smartphone app, plus configurable remote warming/heating accessories ⁵⁷. Mirror-folding behavior depends on how the car was started: mirrors fold/unfold via the physical car remote's button, but if the car was started remotely through the app, manual remote mirror-fold commands may stop responding (mirrors stay folded) ⁵⁸⁵⁹⁶⁰. A single button press on the car remote unlocks all doors ⁶¹. Hands-free (proximity) unlock is available but can misfire in parking lots if the detection range is set too high ⁶²⁶³. Temperature display in the app can fail with older SIM cards or general system glitches — some users see it working, others don't, suggesting it depends on SIM health/firmware version ^6465666768.

Autostart for manual-transmission cars. Procedure: (1) with the brake applied, engage the parking brake, release the brake, then remove the key — engine keeps running; (2) exit and press the alarm's red button to disarm — engine stops and the alarm activates; (3) to remote-start, hold the red button 3 seconds or use the StarLine app; various conditions for remote start can be configured in the app ⁶⁹⁷⁰. There's also a winter-specific alarm setting that lets the driver skip pre-start prep and just trigger a command directly for cold starts ⁷¹.

Integration with the factory horn/siren. The X80 has its own factory siren circuit; a StarLine aftermarket alarm can be configured to work alongside it. Options: adjust the StarLine siren's volume via the installer's PC software; disable/reduce the siren sound via that same programming; if both StarLine and the factory alarm fire together, that's a conflict requiring the factory alarm system to be re-initialized. Correct CAN-bus integration (ideally by a professional installer) avoids dual-siren firing ^72737475.

Battery disconnect does not request a PIN code. Unlike some aftermarket alarm systems, StarLine does not require entering a security PIN code after the car battery terminal is disconnected and reconnected — normal operation resumes without it ⁷⁶⁷⁷. One owner noted an exception: it asked for the code once, which he found frustrating enough to note ("вычеркнул из жизни" — struck it from his life), so this behavior may not be 100% consistent across installs/firmware ⁷⁸.

StarLine can interfere with the OEM key fob. Installing a StarLine alarm can cause interference that disables the native/OEM key fob's button functionality, even though remote lock/unlock commands may still work through the alarm's own transmitter. Community reports point to poor integration or a receiver conflict as the cause; one owner describes his StarLine install as having "wrecked" ("вкрычили" — a residual signal conflict) native key functionality ^79808182. Basic troubleshooting when doors won't lock/unlock via StarLine: check whether the alarm's own panic/emergency fob still works, to isolate whether the fault is in the StarLine unit or in the car-side connection ⁸¹.

StarLine A94 confirmed compatible. The StarLine A94 model is confirmed compatible with the X80, with automatic window control available via key-fob programming. Known issue: the installation can disable OEM key-fob functionality, requiring re-pairing/retraining afterward ^83848586.

StarLine's Chinese CAN module blamed for roughly half of electrical gremlins. A mechanic who worked on multiple X80s estimated that StarLine alarms fitted with a Chinese-made CAN module cause around 50% of this car's electrical problems — random dashboard errors (e.g. ESP mode 3) and intermittent component failures, often missed by dealership diagnosis because the alarm isn't the first thing checked. Before disassembling the electrical system chasing a fault, try a CAN-module reset/recalibration first. One owner's prior car (a Haima) had a similar alarm-related issue that a technician resolved via a service-button reset accessible at the key/door handle ^{87888990 91}.

StarLine A93 v2 with 2CAN2LIN v4 — slave mode alongside the factory alarm. The A93 v2, fitted with a 2CAN2LIN module, can run as a slave alarm alongside the factory system; the 2CAN2LIN v4 module specifically is confirmed supported for the X80 (see StarLine's own compatibility listing) ⁹²⁹³. Behavior reported by owners with both alarms active: closing with the factory key/remote and opening with StarLine (or vice versa) can trigger the factory alarm to sound, unless the installation is configured correctly to prevent it — outcome depends heavily on install quality ^{9495969798 99100}. The OEM key-fob remote-control function reportedly is not supported for the X80 per StarLine's own compatibility notes, since the vehicle protocol isn't listed as compatible for that specific feature ¹⁰¹. After a StarLine A93 install, one owner found the factory key's central-lock function (via the physical lock cylinder) stopped working, though keyless entry from the door handle continued to work — suggesting the interference is specific to the lock-cylinder signal path, not all factory-key functions ¹⁰²¹⁰³. StarLine's own "hands-free" proximity-based lock/unlock feature was tried by one owner and found buggy (spurious lock/unlock cycling triggered from several floors up in an apartment building), with no clear benefit over normal remote operation ¹⁰⁴¹⁰⁵.

Spare key stops starting the car after StarLine installation with chip immobilizer — installer removed the chip from the spare. When a StarLine autostart with a chip immobilizer bypass is installed, the installer may physically extract the transponder chip from the spare key and relocate it into the car itself (part of how the chip-immobilizer bypass is implemented). This leaves the spare key unable to start the car. Fix: get a copy of the chip made so both the primary and spare keys work again — cost for the chip copy was about 2,000 RUB (RU market, August 2024). There was some initial disagreement in the thread about whether this was a mistake by the installer or standard practice: message 9167 initially read the chip removal as installer error, while 9171 clarified this is in fact standard StarLine installation practice requiring a chip copy ^106107108109.

StarLine A93 installation cost with siren: 15,000 RUB (RU market, 2020 pricing). As a price data point distinct from the chip-copy cost above: a full StarLine A93 autostart installation including a siren cost 15,000 RUB as of 2020, from an established installer, covering both the unit and professional fitting ¹¹⁰.

Manual-transmission remote-start sequence (StarLine A93). Full step-by-step for starting a manual-transmission X80 remotely via StarLine A93: (1) start the car normally; (2) press the brake pedal and pull the handbrake fully up; (3) shift into neutral; (4) remove the key from the ignition — this exits the car from "service mode"; (5) close all doors and press the fob's lock button once — the car locks and shuts down; (6) press and hold the red button on the fob for 3-5 seconds to send the remote-start signal — the engine cranks; (7) the fob gives feedback signals once the start completes. To actually drive off: approach the car, press unlock on the fob, engage the clutch, shift into 1st gear, and release the clutch as normal ¹¹¹¹¹².

Real-world remote-start installs, October 2026. One owner added remote start to a StarLine A93 on a manual-transmission car through a StarLine specialist; mirror folding in remote-start mode was the only quirk he noted ¹¹³. Another owner describes the official install as having many crimped joints and requiring the key to be inserted and the mirrors folded as soon as you sit down; he suggests the StarLine CAN-module kit for a simpler two-wire install and says ready-made kits cost more but are easier to set up ¹¹⁴¹¹⁵. A third owner's remote start needed a Launch scan tool to program the key imitation (имитация ключа), and his car's electrics were fussy ¹¹⁶¹¹⁷.

Media

StarLine key fob battery compartment, showing thin battery type

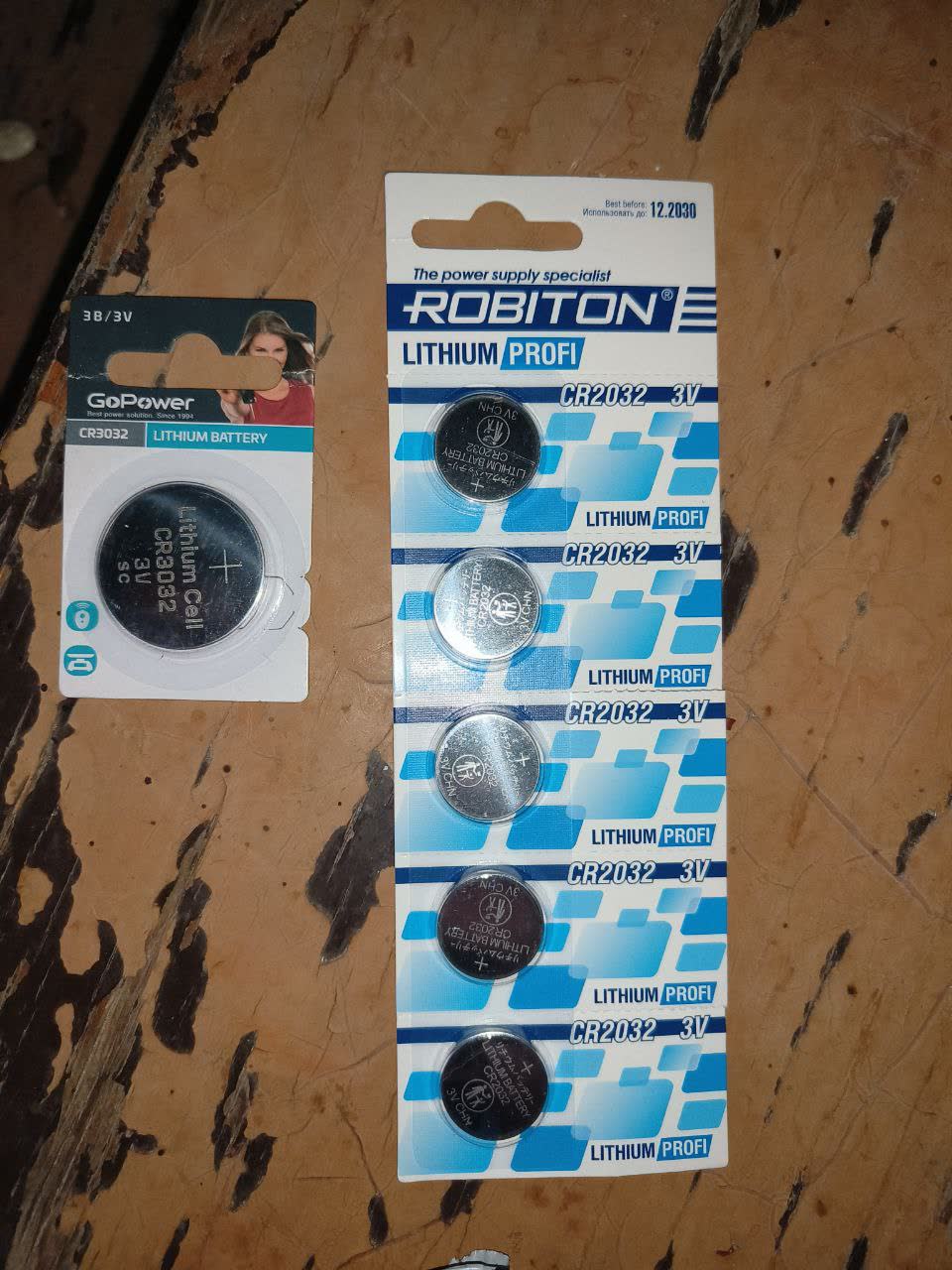

Comparison of thin vs thick StarLine fob battery types

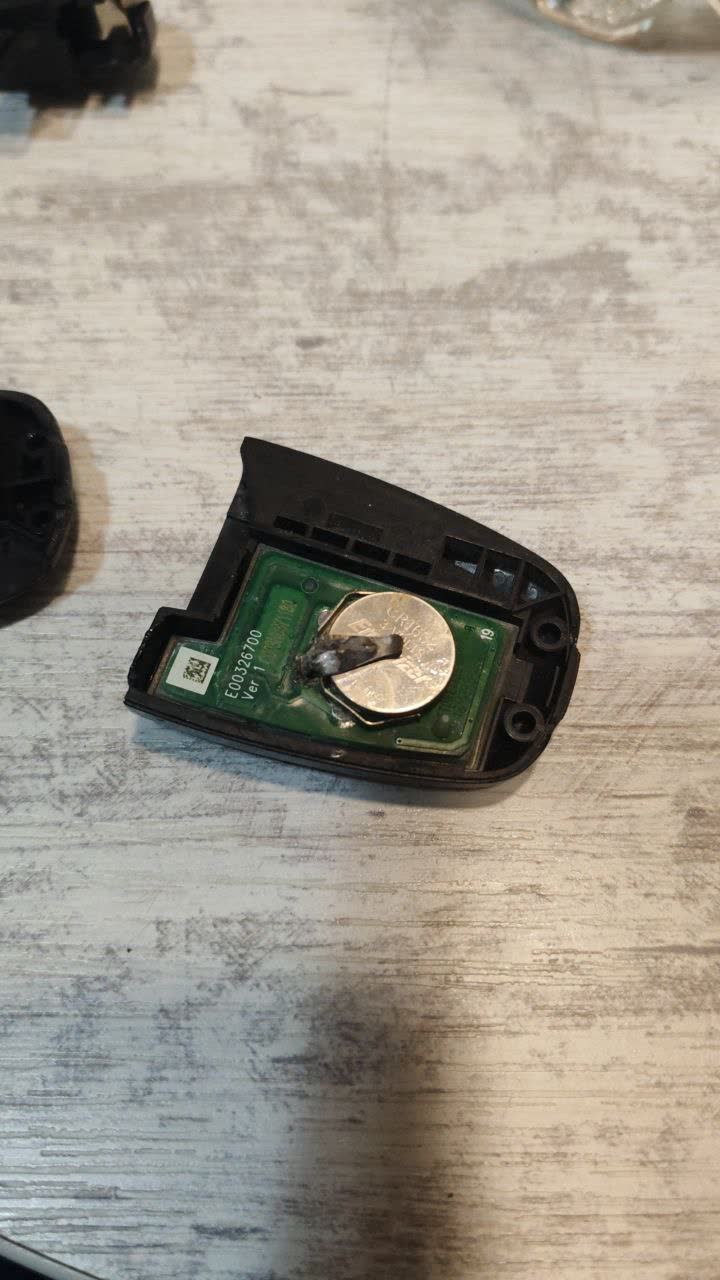

StarLine fob circuit board photo related to battery-drain troubleshooting

Photo of StarLine S96v2 unit hardware showing the GSM modem card

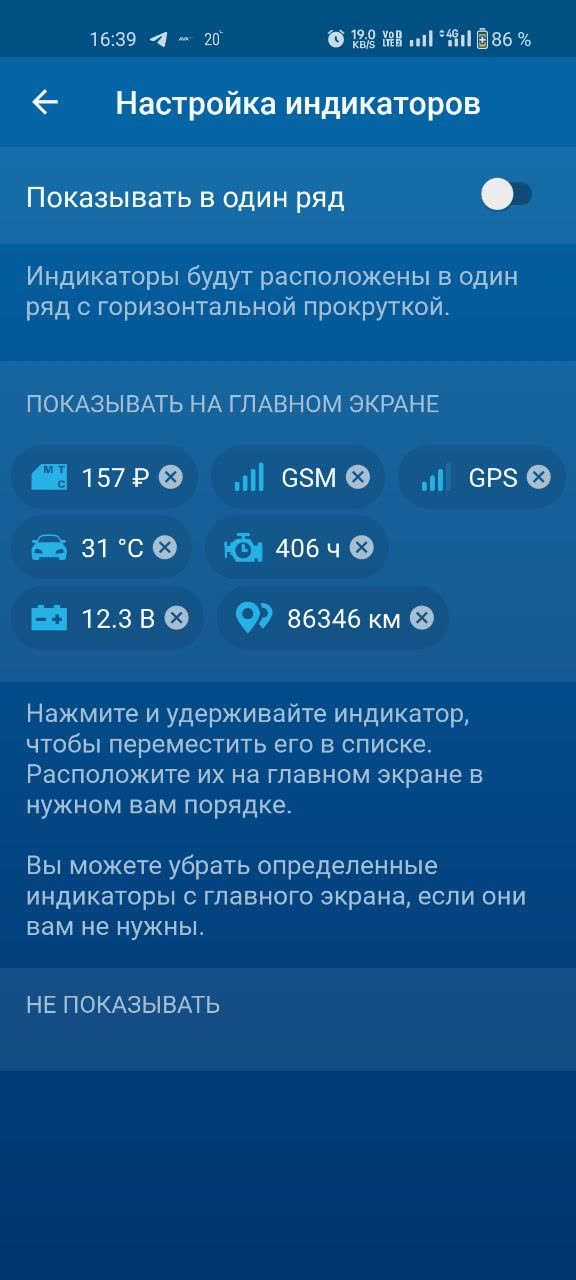

StarLine app screenshot showing the engine temperature display

2CAN2LIN v4 module wiring configuration for the X80
