AKPP longevity — philosophy and auxiliary cooler

Tags: #automatic-transmission · #overheating

"If it's not broken, don't fix it" philosophy. One experienced owner's overall take: the AKPP is robust but temperamental, and if it's running without problems, it's best left alone rather than subjected to unnecessary deep maintenance. At around 240,000 km, this owner was specifically advised by experienced mechanics not to touch the transmission despite it being past typical service intervals¹²³. Normal wear-and-tear seal leakage of roughly 50-100g/year is considered acceptable, addressed with partial fluid top-ups as needed rather than a full service⁴⁵. A full disassembly/rebuild (~200,000 RUB, RU market, Oct 2024) is recommended only if the transmission slips badly or won't shift properly — otherwise, leave a running transmission alone⁶.

Overheating failure case. One owner experienced repeated overheating episodes over the course of a year (coolant/fluid temperature 102-108°C), and multiple different service stations were unable to accurately, correctly, or promptly diagnose the cause. This eventually led to the transmission failing outright at 164,000 km, requiring a full AKPP replacement⁷. The overheating symptom pattern: after sitting in traffic or sustained high-load driving, the transmission would show power loss and a whining/roaring noise until temperature normalized⁸. Regular overheating at these temperatures is understood to accelerate ATF degradation and friction-pack wear, contributing to the eventual failure⁷⁸.

Auxiliary cooler installation (prevention). To prevent a repeat of the overheating problem, an auxiliary ATF cooler radiator was installed. It sits without requiring front bumper removal⁹. One owner following the thread asked how to change AKPP fluid given the cooler sits well above the transmission's own level, and whether the plumbing bypasses, parallels, or series-connects with the main radiator's circuit¹⁰ — the installer's answer is captured below. Key installation notes from the thread: the OEM heat exchanger (which normally routes ATF heat into the main engine coolant loop) is disconnected/bypassed since it's no longer needed, with an adapter fitting connecting the transmission lines to the new auxiliary radiator instead — the main radiator continues to handle only engine coolant separately, while the auxiliary radiator circulates ATF¹¹¹². Adding the auxiliary cooler increases total system fluid capacity by roughly 1.5 liters; a full fluid fill after installation came to about 8L total¹³. Oil drains separately from both the transmission itself and from the new cooler¹³. The change procedure otherwise stays the same as before the cooler was added¹³.

Community-wide durability concern — restated. Multiple owners more broadly report worn transmissions, reinforcing a community-level view that the factory cooling (heat exchanger) is insufficient for the Aisin AKPP under real-world use. The preventive recommendation matches the case above: install an auxiliary AKPP radiator to reduce thermal stress and extend transmission life. Without a cooling upgrade, the perceived risk of premature solenoid/transmission failure is said to increase with vehicle age¹⁴¹⁵.

Aisin 09G thermal stress — VW cross-reference and cooler recommendation. The X80 uses the Aisin 09G automatic transmission, the same unit used in the VW Golf/Jetta, where it reportedly lasts 200,000-230,000 km without a supplemental cooler, and 300,000-500,000 km with one. On the X80, this is the smallest, most thermally stressed configuration of that transmission, paired with a minimal stock cooler; fluid temperature can reach 180°C in traffic, producing weak shift feel and eventual failure. A supplemental transmission cooler is strongly recommended for hot climates or heavy traffic driving; without one, typical lifespan is estimated at roughly 150,000-200,000 km¹⁶¹⁷¹⁸.

Normal fluid-temperature range — restated with real numbers. AKPP fluid temperature runs roughly 80-90°C in spring conditions (around +10°C ambient) and similarly in other mild weather, per scan-tool readings; no significant overheating was observed¹⁹²⁰²¹.

Gentler throttle input reduces heat buildup. Avoiding aggressive throttle input reduces transmission heat generation, extending transmission life and helping prevent overheating — particularly relevant for high-daily-mileage city driving (e.g. Moscow-style commuting, 50-250 km/day), where wear is better tracked in motor-hours than distance²².

Shifts better cold, worse hot — possible pressure/tuning issue. The AT is reported to shift better when cold and worse once at operating temperature, suggesting an oil-viscosity or hydraulic-pressure drop-off with heat. It may hold load through 4th gear when cold but struggle to maintain load when warm — pointing to oil type/pressure or transmission-side ECU tuning. Note: the engine ECU is a Bosch unit, but the transmission may run its own, harder-to-read/reprogram ECU^232425262728.

AISIN 09G lightest variant — no dedicated radiator, adaptation sensitivity, and reset workaround. Restating and adding detail to the Aisin 09G thermal-stress picture already on this card: the X80's AISIN 09G is the lightest variant of that transmission family and is prone to overheating, consistent with the "smallest, most thermally stressed configuration" already noted. It has no dedicated transmission radiator, only a small heat exchanger (consistent with the "minimal stock cooler" already documented). Typical lifespan 200,000-300,000 km, based on older Volkswagen applications (2006-2012) that also lacked extra cooling — from 2012+, VW-platform applications gained additional radiators. Known issue: transmission adaptation is sensitive to driving style; resetting the adaptation (via key-cycle manipulation or a battery/module reset) can temporarily improve shift feel. Overall verdict: comfortable for careful drivers, problematic under aggressive driving^{2930313233343536}.

Earlier, independent operating-temperature measurement — 85-97°C under normal driving. An earlier, independent report gives concrete scan-tool-verified AKPP temperatures: 85-97°C under normal mixed-mode driving (37°C ambient, 5-hour test), measured with an OBD diagnostic device (a Mucar BT200 running Diagzone software) capable of reading real-time AKPP temperature — the standard dashboard only shows engine coolant temperature, not gearbox temperature, which the owner notes makes assessing the need for an auxiliary cooler difficult without such a tool. The manufacturer's critical threshold is cited as 127°C^{3738394041424344}.

Earlier, independent statement of the Aisin 09G cooling gap. Consistent with, and predating, the Aisin 09G thermal-stress case already documented on this card: an earlier thread states plainly that the Aisin 09G in the X80 has an inadequate factory heat exchanger — many other manufacturers add a supplemental radiator to this transmission from the factory, but FAW omitted it as a cost-cutting measure. Community specialists recommend installing an auxiliary AKPP cooler for reliability and longevity, particularly given that (as also noted above) transmission temperature isn't visible on the stock dashboard³⁸³⁹⁴⁵.

Media

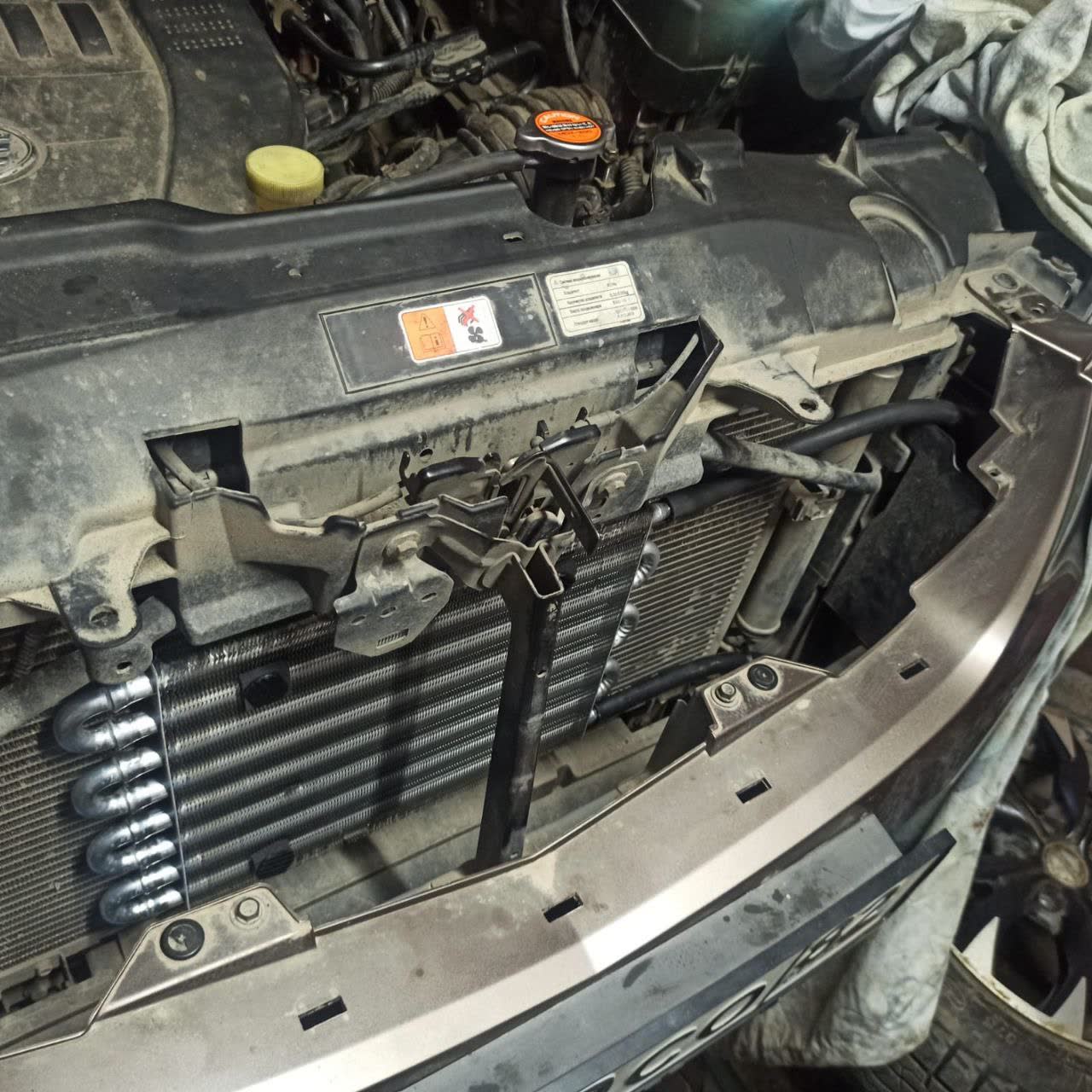

Installed Hayden OC-1405-style auxiliary transmission fluid cooler in the engine bay, dual-radiator setup with braided cooling lines routed below the front bumper without bumper removal
