AKPP drive modes and shifting behavior

Tags: #automatic-transmission

Transmission type. The X80 automatic transmission is a traditional hydraulic automatic with a torque converter — not a CVT and not a dual-clutch robotized gearbox. This matters because the hydro-transformer (torque converter) continues to generate heat while the car is stationary in gear, which is relevant to the N-vs-D-in-traffic debate below¹²³.

Available modes. The X80 AT offers D (Drive), S (Sport), R (Reverse), P (Park), N (Neutral), and M (Manual) modes. D automatically shifts across 6 gears during normal driving. S keeps the transmission in lower gears with higher RPM for a more responsive/sporty feel, at the cost of higher fuel consumption. M mode allows manual gear selection via a +/- lever, with the selected gear (1-6) shown on the dashboard^45678910.

Mode-switching rules. Switching from P to R/D/N/S, or between R/D/S, requires the vehicle to be at a full stop with the brake pedal pressed¹¹¹². Once the car is moving, shifting between the other modes (e.g. D↔S) is possible, but care should be taken to avoid a jarring transmission shock when switching at speed¹³. Manual up/down shifts are possible while driving; the transmission will automatically downshift on its own if engine speed gets too high, overriding the manual selection for safety¹³.

D vs. S characteristics. D mode: shorter/lower gearing progression, softer acceleration, quieter cabin, lower RPM in city driving (about 1200-1500 RPM in 2nd gear)¹⁴¹⁵¹⁶. S mode: longer gearing, requires higher RPM to hold speed (about 2700-3000 RPM in traffic), noisier and more vibration, but gives better highway performance and more predictable cruise-control behavior; also produces higher fuel consumption from prolonged low-gear operation^17181920. D mode is gentler on the suspension and produces less tire noise on smooth roads^21222324.

Cruise control interaction with mode. Cruise control can temporarily allow speed to drift ±15-20 km/h from the set point (e.g. to get around an obstruction); if speed drops below the set point (e.g. after braking), pressing the + button resumes the previously set speed²⁵²⁶. In S mode, cruise control responds more predictably/better than in D mode, where it can trigger abrupt downshifts on hills, producing unwanted jerking²⁷. If actual speed exceeds the cruise setting, cruise deactivates automatically²⁷.

ECO-mode downshift logic. The AKPP uses the MAP sensor (manifold absolute pressure) plus throttle pedal position to judge engine load. A sharp/firm increase in throttle triggers an immediate downshift; a gradual increase in throttle keeps the current gear for economy. To force a downshift while in ECO behavior, a brief sharp throttle "stab" works²⁸²⁹³⁰. On uphill grades with gentle acceleration, the AKPP can hold a high gear (e.g. 3rd) at low RPM as normal ECO-mode behavior for fuel economy, downshifting automatically once more throttle is applied or load crosses a threshold — this has been observed specifically in mountain driving³¹³².

6th-gear low-speed noise quirk. At 40-50 km/h in 6th gear at ~1500 RPM, applying throttle can produce a grinding/knocking noise from the transmission. Manually selecting 5th gear (raising RPM to ~2000) eliminates the noise completely. The likely cause is the transmission attempting to sustain a very low RPM in a high gear. One owner reports this symptom persisting after 6 years of city driving^{333435363738394041}.

N (neutral) vs. holding D in traffic — community debate. There is no consensus on whether to shift to N + handbrake or simply hold D + foot brake/handbrake while stationary in traffic. Advocates for N+handbrake argue it reduces heat buildup in the transmission fluid, since the torque converter continues generating heat while idling in D^42434445. The counter-argument is that frequent D→N→D mode switching adds unnecessary wear and is not needed with a modern AKPP design^46474849. No definitive data was presented by either side¹².

Handbrake behavior in D or N (not P). The manual handbrake can hold the car on an incline without shifting to P. However, standard procedure is to keep the car in P when stopped, using the handbrake only as a secondary hold⁵⁰⁵¹⁵². If the handbrake is used on a slope while in D or N instead of P, testing by owners shows the car can be held, but this is not recommended standard practice — some reports suggest ECU/transmission behavior in this state may be inconsistent if the brake pedal isn't also applied^5354555657.

Park lock vs. handbrake holding power (separate testing). Direct testing showed that the transmission's Park (P) lock alone does not reliably hold the vehicle on an incline — the car's weight on a slope is primarily held by the electronic/mechanical handbrake, not by the transmission's park pawl⁵⁸⁵⁹. The manual's proper parking sequence is: (1) apply the brake pedal, (2) shift to R (Reverse) [not P] — note: this reflects the manual's stated sequence as reported by the source, distinct from ordinary P-based parking described above, (3) engage the electronic handbrake, (4) release the brake pedal⁶⁰⁶¹. On level ground, Park mode provides a secondary safety margin, but on any incline the vehicle can roll if the handbrake isn't engaged; the park lock can slip on grades without simultaneous handbrake engagement⁶².

Shift jerking — 2017 pre-facelift reports (conflict). Some owners report noticeable jerking during automatic-transmission shifts, particularly on 2017 pre-facelift models. One owner describes a noticeable but slight jerk during shifts; another reports smooth operation on straight roads but a strong "kick" from the transmission after sharp turns at 20-30 km/h. Community response is mixed: several suggest this may be a matter of subjective perception rather than a defect, and the Aisin automatic is generally well-regarded for reliability, with one source citing hundreds of positive reviews. A manual-transmission version remains available as an alternative for owners who want to avoid the AT entirely^{6364656667686970}. Conflict: whether this jerking is a normal characteristic or a real defect is unresolved — some owners accept it, others find it problematic.

D-mode aggressive downshifting and gear-hunting (Aisin-based AT). The Aisin-based automatic exhibits overly aggressive downshifting and what owners describe as incorrect shift logic specifically in D (Drive) mode: the transmission engages 6th gear at as low as 60 km/h — too low a speed for such a high gear — and shifts unnecessarily aggressively during acceleration, causing engine rev-bounce and inefficient power delivery. Some owners believe the firmware calibration may be underdeveloped for this application. Workaround: switch to S (Sport) mode or manual shift mode for better throttle response and more consistent engine revs; S mode maintains higher RPM for optimal traction on grades and prevents gear-hunting. Some owners report that a firmware update improved the behavior^{7172737475767778798081828384858687}.

Howling/grinding noise at low speed under load (conflict). A separate anomaly: when the automatic transmission holds a low gear (e.g. 5th) at low speed (~30 km/h) and the driver applies throttle to accelerate, the transmission produces a distinctive howling or grinding sound (гул). Owners consider this abnormal and suggest two possible causes: (1) transmission fluid degradation or an incorrect fluid level, or (2) internal wear of gear-engagement teeth or bearing wear (шестеренки). Changing the transmission fluid temporarily suppresses the symptom but does not cure it if internal wear is the actual cause. In manual-shift mode (lever moved to the manual gate), gear selection reportedly operates smoothly without the noise, which points toward the automatic shift logic itself as a contributing factor rather than the gearset alone^{888990919293949596979899}. Conflict: members disagree on the underlying cause — some attribute the sound to worn bearings, others to gear-tooth wear; the prognosis (normal resonance vs. sign of wear) is unresolved.

D vs. S — fuel consumption angle. Restating the D/S characteristics above from a fuel-economy angle: D-mode ("economy") shifts into longer/higher gears with shorter shift intervals and nominally lower RPM. S-mode holds lower/shorter gears with less frequent shifting and higher RPM — yet community testing shows S-mode sometimes delivers equal or even lower fuel consumption than D, because fewer total shifts can offset the higher-RPM operation. The net effect varies by individual driving pattern¹⁰⁰.

Gearing, RPM at speed, and adaptive shift learning (additional reports). 2nd gear reaches roughly 80 km/h at 5,500 RPM; 4th gear tops out around only 40 km/h before the transmission struggles — gearing is long throughout, and 6th gear is barely used even at highway speeds because of poor synchronization/utilization^101102103. The AKPP's adaptive-learning tuning changes shift behavior based on driving style, which can make it feel inconsistent — sometimes smooth and gentle, other times harsh/aggressive with chattering from low gears; this is by design rather than a fault, but can feel unpredictable^104105106. In S mode specifically, shifting can be harsh with high engine noise, traced to a short 3rd-gear ratio (4th gear tops at ~40 km/h) and poor gear synchronization; transmission oil burning was also reported in this context. Manual (M) mode is recommended for highway driving to avoid this strain^107101108.

Overall gear character and optimal RPM band. Despite feeling responsive off the line, the 6-speed automatic has relatively long overall gearing and is well suited to highway cruising with reasonable economy; shift patterns continue to adapt to driving style and traffic^109110111112. Reported optimal engine operation is in the 3500-4000 RPM band for the best dynamic response — running below 3500 RPM in D feels sluggish, while using Tiptronic/manual-shift or S mode at 4000+ RPM gives noticeably better acceleration with similar fuel consumption to conservative D-mode driving; Euro 5 emissions tuning is cited as intentionally limiting low-RPM performance¹¹³¹¹¹. Separately, the AKPP can safely sustain 5.5k RPM under sustained hard acceleration (e.g. an uphill overtake) without the ECU cutting throttle, provided the driver holds a steady pedal through the maneuver¹¹⁴.

Poor highway throttle response — possible causes (AKPP, unresolved). Some AKPP-equipped cars show sluggish highway response: the gas pedal feels ineffective until pressed hard, and releasing the pedal produces no power response even though the engine revs — the transmission doesn't seem to engage smoothly. Community theories (unresolved): mis-tuned air/fuel mixture (excess air causing hesitation), throttle pedal not properly synchronized with the ECU, or suboptimal firmware calibration. The manual-transmission (MКПП) version is reported to have markedly better throttle response by comparison. One owner who had the ECU reflashed with full standard tuning (no deletions) confirmed the car worked correctly afterward^{115116117118119120121122123124}.

Sport vs. Drive — restated with a city/highway recommendation. Restating and reinforcing the D/S guidance already on this card: for city driving, Sport mode is recommended to reduce gear-hunting at intermediate speeds and feel more responsive. On the highway, Drive is adequate; using Sport on the highway makes the transmission hold gears longer, resist shifting into 6th, and keep the engine at higher (noisier) RPM. Manual mode remains available to override automatic shifting on the highway if desired. Performance note: given the engine's modest power, reaching 197-215 km/h takes significant time and fuel. Fuel consumption is reported as comparable between Drive and Sport at highway speeds^{125126127128129130}.

Harsh 4th-6th downshift shudder under hard acceleration. A separate AT complaint: the transmission shudders harshly when downshifting from 4th toward 6th during aggressive (full-throttle) acceleration; smooth acceleration transitions cleanly. Under cruise control on an uphill grade (125 km/h), the transmission downshifts to 4th and holds ~3,100 RPM for about 10 seconds, then delivers a hard jerk on the upshift to 5th. A transmission-fluid change at 68,000 km showed minor metal particles on the sump magnet, described by a mechanic as normal wear. One concern raised: a possible ruptured hydro-accumulator in the gearbox — countered by the observation that a ruptured accumulator would typically put the transmission into limp mode rather than cause this kind of shudder^131132133134.

Downshifting on inclines — normal, and a spark-plug-related jerk to distinguish from it. Automatic-transmission downshifts from 6th to 4th gear on inclines are normal AKPP behavior, not a transmission fault. However, a separate symptom — jerking/hesitation specifically while holding 4th gear under load — is often caused by worn spark plugs, not by the transmission itself. Spark plugs have roughly a 70,000 km service interval; inspection is recommended starting around 112,000+ km on used vehicles, especially if this jerk is present^{135136137138139140}.

AKPP low-RPM creep and hum — restated as a general characteristic. Automatic-transmission X80s commonly exhibit low-RPM creep/jerking when accelerating from a stop or rolling start, plus an audible hum/grinding noise in the 1000-2000 RPM range that disappears once the gearbox shifts past 2000 RPM. This is reported as characteristic AKPP behavior rather than a fault in most cases, though severe grinding could indicate worn friction packs. Recommendation: avoid heavy loading/towing until the transmission has been inspected at higher mileage^{141142143144145146147}.

Sport mode — full-throttle standstill launch RPM. Restating and quantifying the Sport-mode behavior already on this card: at full throttle from a standstill in Sport mode, the automatic transmission can hold 1st gear to roughly 6,300 RPM before shifting — noticeably higher and more aggressive than Comfort/Drive mode. Manual transmission cars have no Sport mode equivalent^148149150.

Pre-facelift AKPP — two different model identifiers, unresolved. The pre-facelift X80's automatic transmission is identified in the group by two different labels: part number 5CA003000, and separately the designation TF-61SN. Conflict: it's unclear from this data batch whether these refer to the same transmission under different naming conventions (part number vs. transmission-family designation) or are genuinely conflicting sources — cross-check against an authoritative Aisin/FAW catalog before relying on either label alone¹⁵¹¹⁵².

Gear selector stuck/locked after extended non-use — mechanical override procedure. After roughly 1+ week of the vehicle sitting unused, the automatic transmission's gear selector can become stuck/locked, unable to switch positions. Diagnostic steps before assuming a fault: (1) confirm the brake lights illuminate when the brake pedal is pressed; (2) listen for a solenoid click near the selector when attempting to shift; (3) turn the ignition on and check selector response. If genuinely locked: there is a mechanical override button under a small plastic cap/cover on the right side of the selector — pressing it should produce a click and unlock the selector mechanically. After unlocking, turn the ignition off and wait 15-45 minutes for the vehicle's electronic systems to fully power down/sleep before trying again; the selector should then work normally. The suspected cause is a transmission solenoid lock or an electronic glitch triggered by the extended idle period, not a hardware failure^{153154155156157158159160161162163164165166167168169170171172173174175176177}.

Delayed downshift on hills — manual-mode workaround, possible thermal factor. A separate, earlier report on hill behavior: in D mode, the AKPP can be reluctant to downshift automatically on steep grades even at full throttle. Workaround: switch to manual mode (S or the +/- gate) for consistent engine braking and power delivery on hills. In D mode, releasing the pedal first tends to trigger the downshift. Specialists in the thread describe this reluctance as normal transmission behavior rather than a fault, though possible thermal factors (transmission temperature) were raised as a contributing variable^178179180181.

D-mode vs. S-mode selection guidance for manual-to-automatic converts. Separate, earlier guidance on the D/S mode choice already touched on elsewhere on this card: D (economy) mode suits city driving, auto-shifting to higher gears to reduce consumption; S (sport) mode holds lower gears for better acceleration response. Recommendation specifically for owners transitioning from a manual-transmission car: use S mode for better throttle control and engine-sound feedback, and prefer S mode on the highway with A/C running. If present, Eco mode is described as simply D mode with more aggressive auto-upshifting, and cannot be disabled independently¹⁸².

Transmission shift-point tuning via ECU/firmware — unverified claim. A separate, lower-confidence report claims AKPP shift points and shift-quality behavior can be modified via ECU firmware tuning without hardware changes — tuners adjusting DSP (dynamic shift programming) parameters to extend the shifting RPM range or soften shifts. Some tuners reportedly claim they can reprogram the transmission control strategy without vendor documentation, though results are said to vary and this claim is not independently verified within this data batch¹⁸³¹⁸⁴.

Selector requires Park to start; Neutral alone won't start the engine. A separate, more basic behavioral fact: the AKPP requires the gear selector to be in Park (P) to start the engine — Neutral (N) alone does not allow starting, since N is intended only for service use (e.g. allowing the wheels to roll, such as during a tow or a wash). Handbrake position does not affect the ability to start if the selector isn't in P. If the vehicle won't start in N but starts fine in P, the selector is functioning correctly and this is not a fault^185186187.

Media

Video test of whether Park (P) alone holds the vehicle on an incline, compared with the electronic handbrake

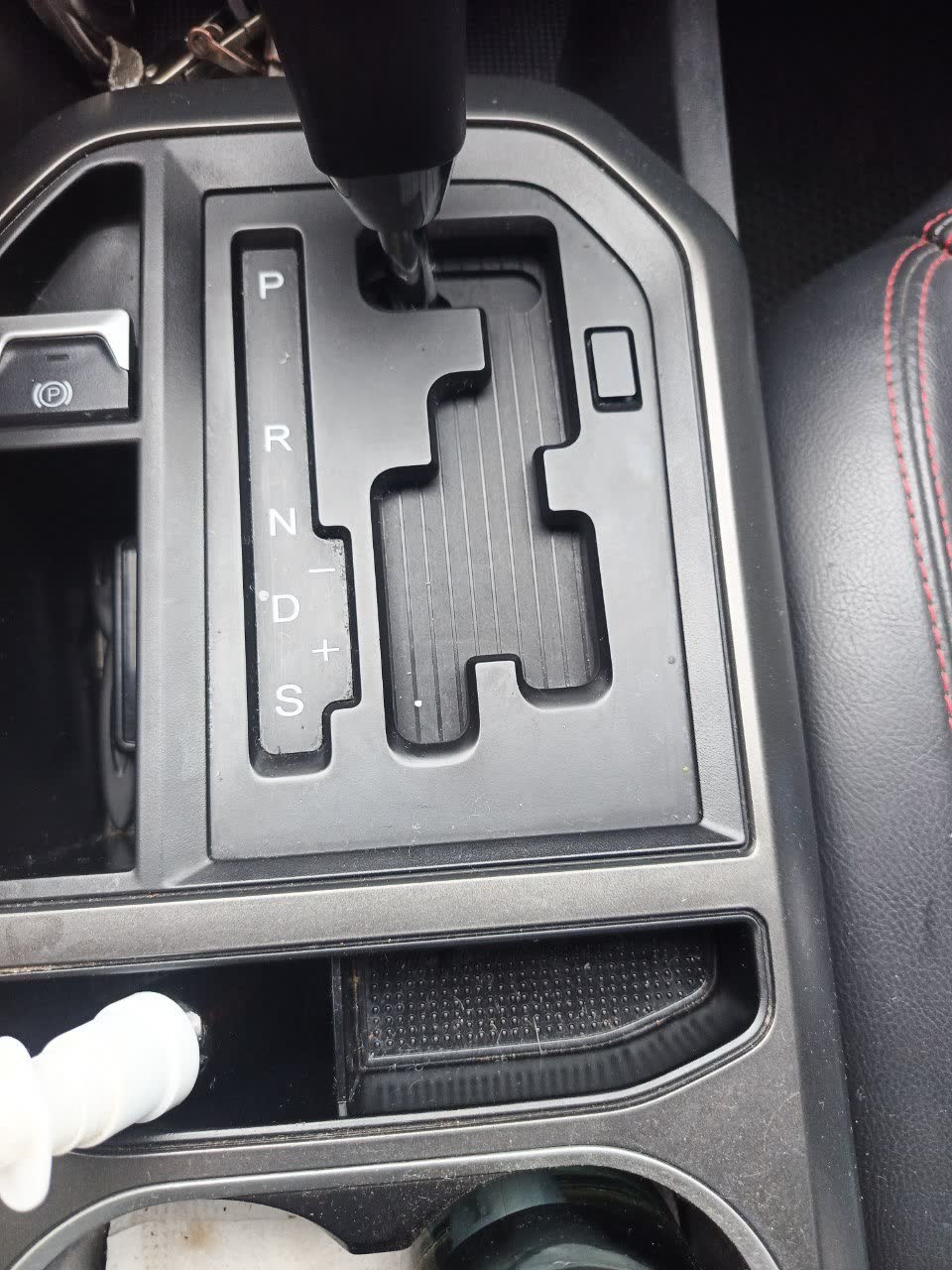

Photo showing the location of the mechanical selector-lock override button under the console cover

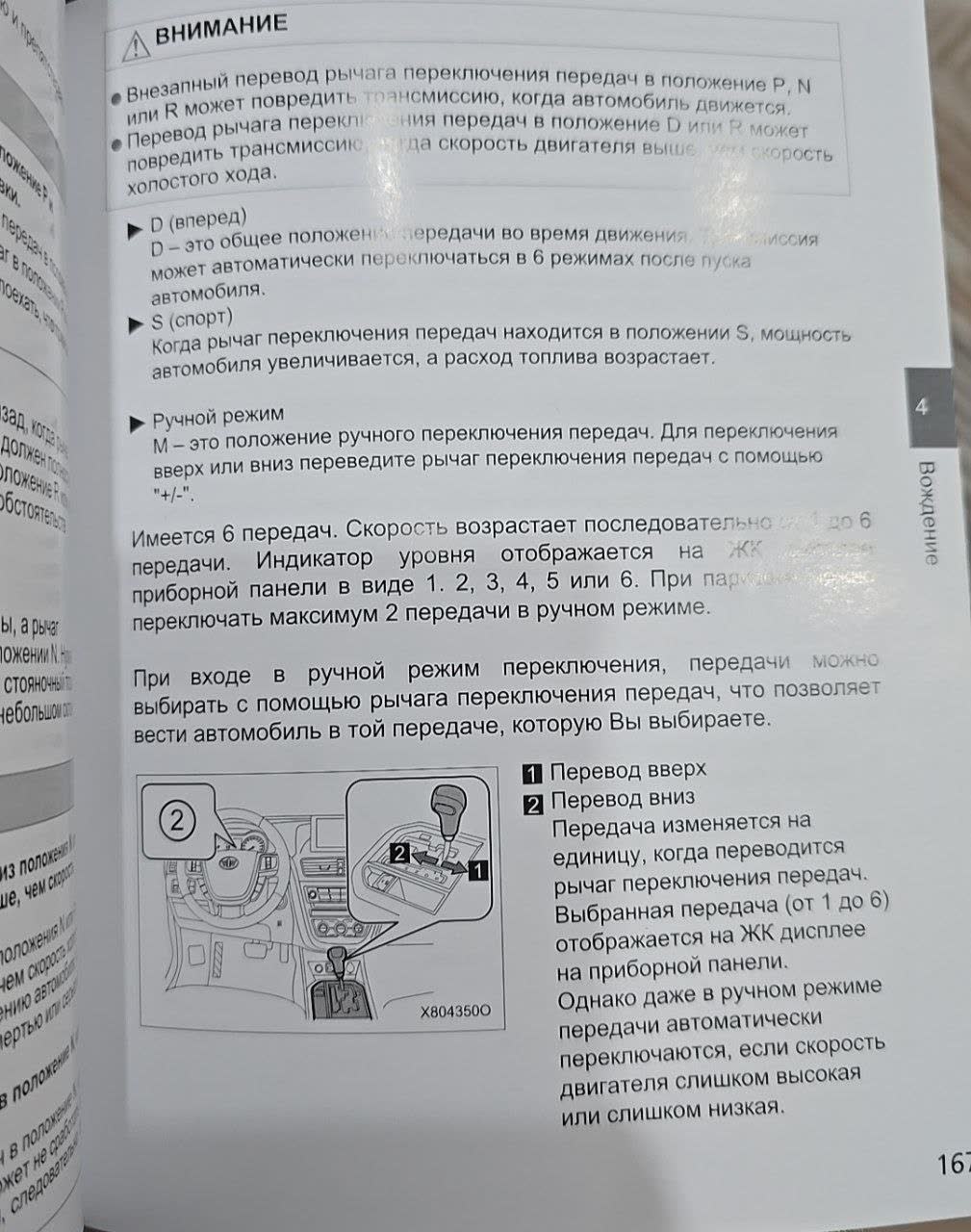

Manual excerpt describing D/S/R/P/N/M transmission mode meanings and the gear-shift lever position indicators

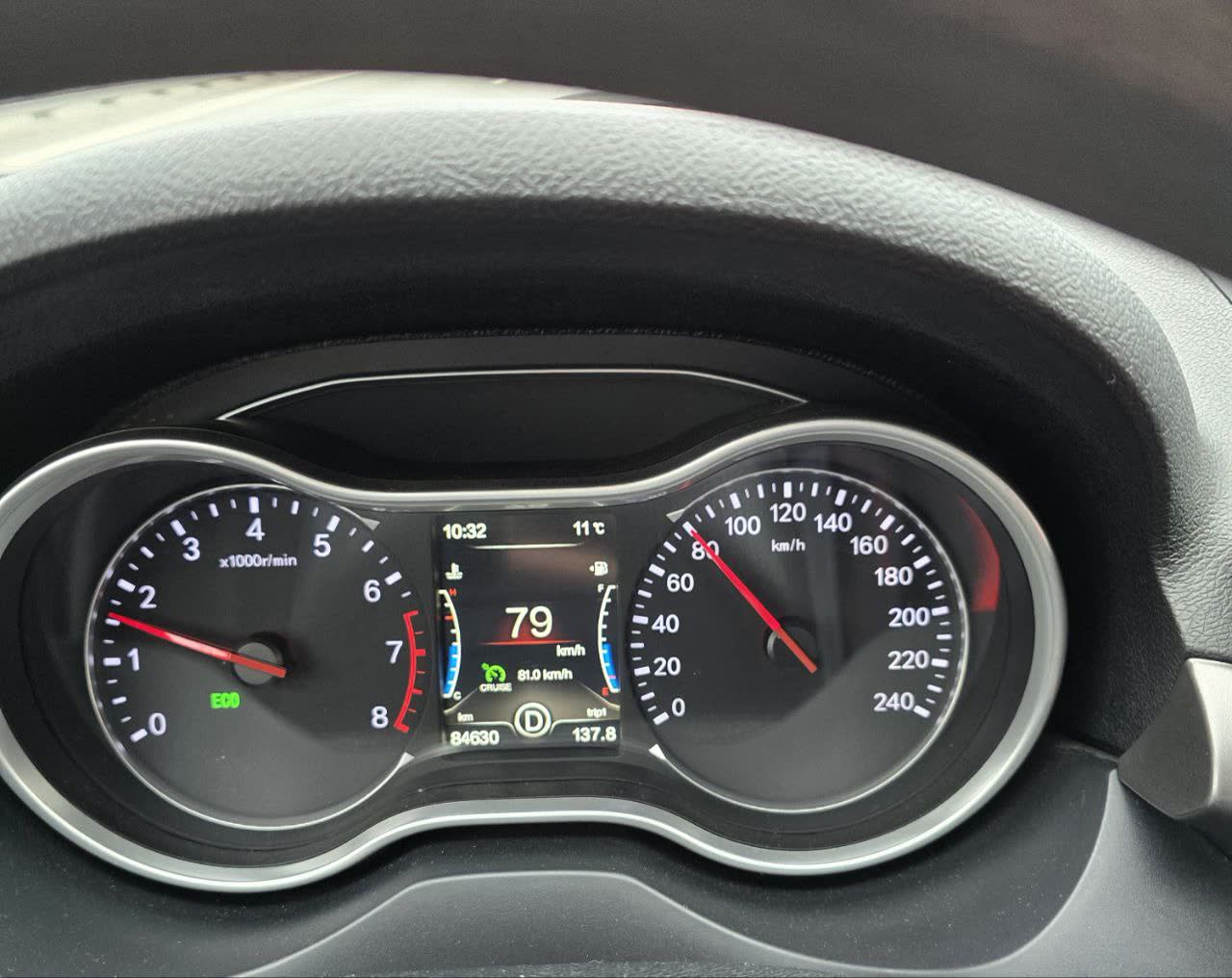

Dashboard fuel consumption display after 4 months of ownership, referenced alongside a cruise-control highway test

Video showing the X80 transmission selector (P/R/N/D/S positions) and the manual handbrake location in the center console
