Coolant overheating — a long diagnostic case

Tags: #overheating · #coolant · #thermostat · #water-pump · #diagnostics · #cooling-fan

One owner describes struggling with a coolant-overheating problem for an entire year. Over that time they replaced, in sequence: 3 thermostats, 2 water pumps, the cooling fan assembly, and the coolant temperature sensor, plus had the radiator cleaned¹. The problem was ultimately resolved only on the next (i.e. yet another/latest) thermostat replacement¹. The owner's own summary: "who would have known," underscoring that the same symptom (high coolant temperature) can have multiple plausible hardware causes, and that root-causing it may require working through several components rather than assuming any single part is the culprit¹.

Cooling fan activation temperature and algorithm. The main cooling fan activates at approximately 98-99°C engine temperature. A second fan activates separately for air-conditioning operation, using a different control algorithm. Frequent/unexpected fan activation is cited as a sign to investigate the thermostat, water pump, or a clogged radiator — consistent with the diagnostic case above²³⁴⁵.

Metal-stamping quality question (low-confidence, unresolved). In a related coolant-system exchange (same conversation discussing a possible head-gasket leak and air ingress into the cooling circuit), one owner posted a close-up photo of a stamped metal part and asked whether the visible marks were normal stamping technique or a sign of poor metal quality. No answer or resolution was captured in this data batch — flagged here as a low-confidence, open observation rather than a confirmed defect⁶.

Major engine/cooling rebuild — component list and radiator-swap attempt. A separate, larger repair job on a high-mileage X80 involved replacing, as part of one combined job: the engine panel, radiator, radiator cooling fan, radiator protection/shroud, black bumper cover, ventilation fans, silver trim around the radiator, narrow radiator grille, and the antifreeze/coolant itself. The owner attempted to fit a Mazda radiator (motivated by the overheating issues already documented on this card) but found the original mounting points did not match, so the original-spec radiator was retained instead. All replacement parts used were OEM. Estimated timeline for the whole job: about 1 week of actual work, extended by a 1-week holiday delay^{7891011121314}.

Media

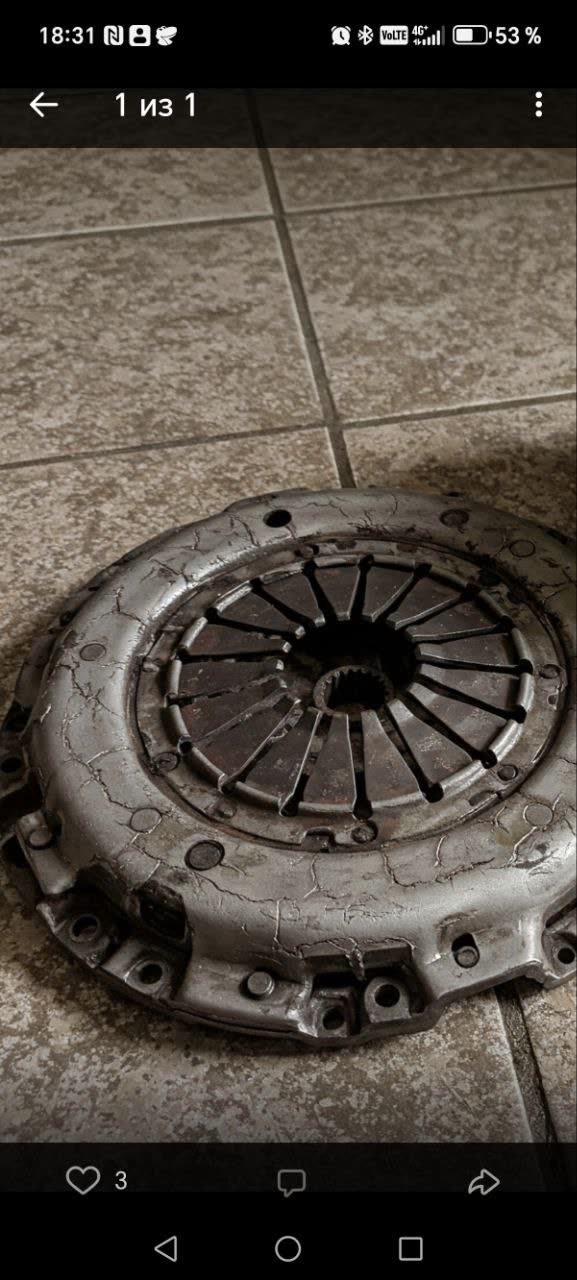

Close-up photo of a stamped metal part, posted with a question about whether the finish reflects normal stamping technique or poor metal quality

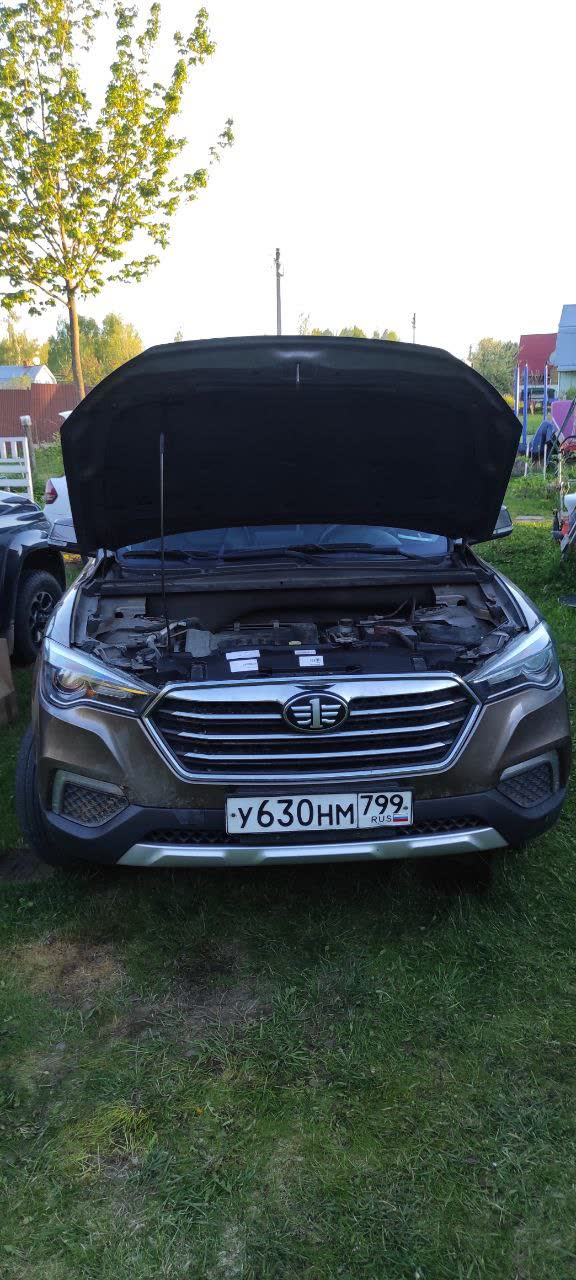

Photo of engine bay / cooling components during a major replacement job

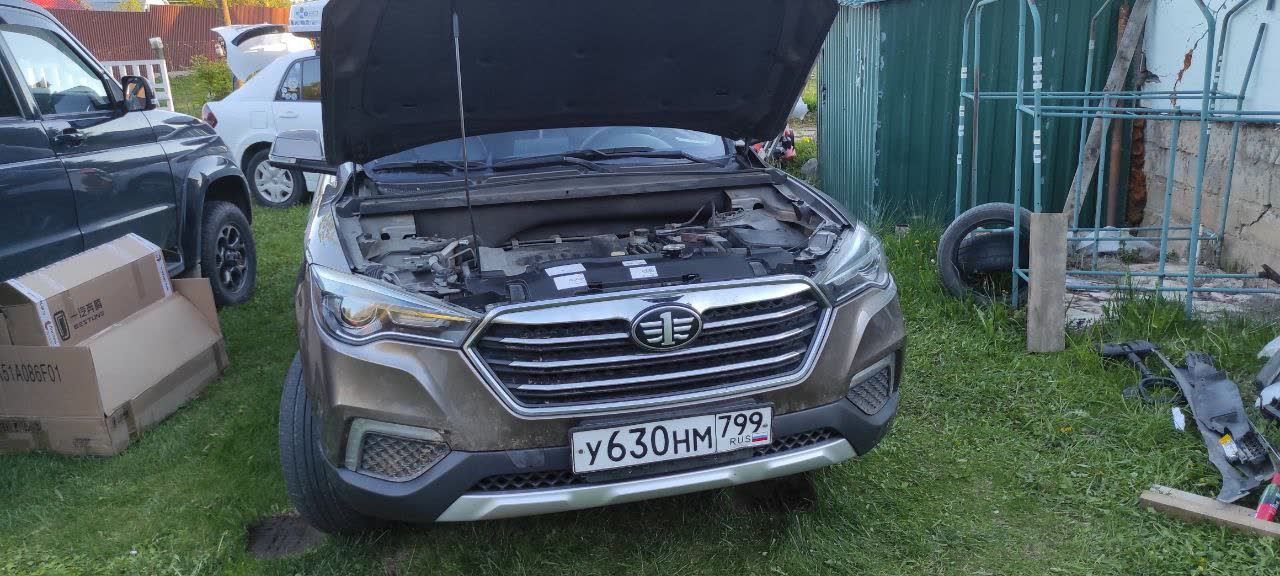

Photo of radiator/cooling area during the same replacement job
