Oxygen sensor — diagnostics and alternatives

Tags: #bosch

Normal spec and fault codes. The bank-1/sensor-1 oxygen sensor's normal operating voltage is 0.2–0.8V, fluctuating during acceleration/load changes ¹. A reading of 0.475–0.5V is within normal range ². Error P0134 ("upstream O2 sensor circuit signal faulty") appears when voltage goes outside that range or the signal wire shows no activity ³⁴. Related code P013400 has also been reported for the same sensor family, with a failed sensor showing zero voltage output ⁵⁶. To diagnose: test the voltage response during throttle application, check continuity to the ECU signal wire, and verify the heater circuit ⁷; a faulty sensor should be replaced.

Front sensor sourcing (OEM). The factory front oxygen sensor's part number is 5DA0188G1 (Bosch OEM, the same sensor that ships with new vehicles) — purchasable on Ozon (ozon.ru/t/1xq0Gyo), price point documented 2024-12-04 ⁸⁹. A user confirmed a successful replacement with continued normal function ¹⁰¹¹.

Lada/VAZ cross-compatibility alternative. A Bosch oxygen sensor made for Lada (Vesta/Granta) can substitute for the X80's, with the connector replaced/adapted — Bosch-branded units are recommended for quality, and the price was about 1500 RUB (RU market, 2024-10) ¹²¹³¹⁴. Multiple sources confirm this cross-compatibility workaround ¹⁵. In one detailed report (DK1/fuel-pressure sensor context), the original FAW connector differs physically from the VAZ one, but the pins line up identically, so a connector adapter completes the swap; after replacement the P013400 error clears and the signal normalizes ^{161718 19202122}.

P0420 (catalyst efficiency) is usually the lambda sensor. P0420 is a common code on these cars, usually caused by faulty oxygen (lambda) sensors. A commenter says the only proper fix is replacing the lambda sensor and that clearing the code with an ELM327 only hides it; he reports his first lambda had a P0420 fault from new²³.

Warning light after bad petrol. An owner who filled up with bad petrol saw the engine warning light, which went off after he changed the fuel²⁴.

Media

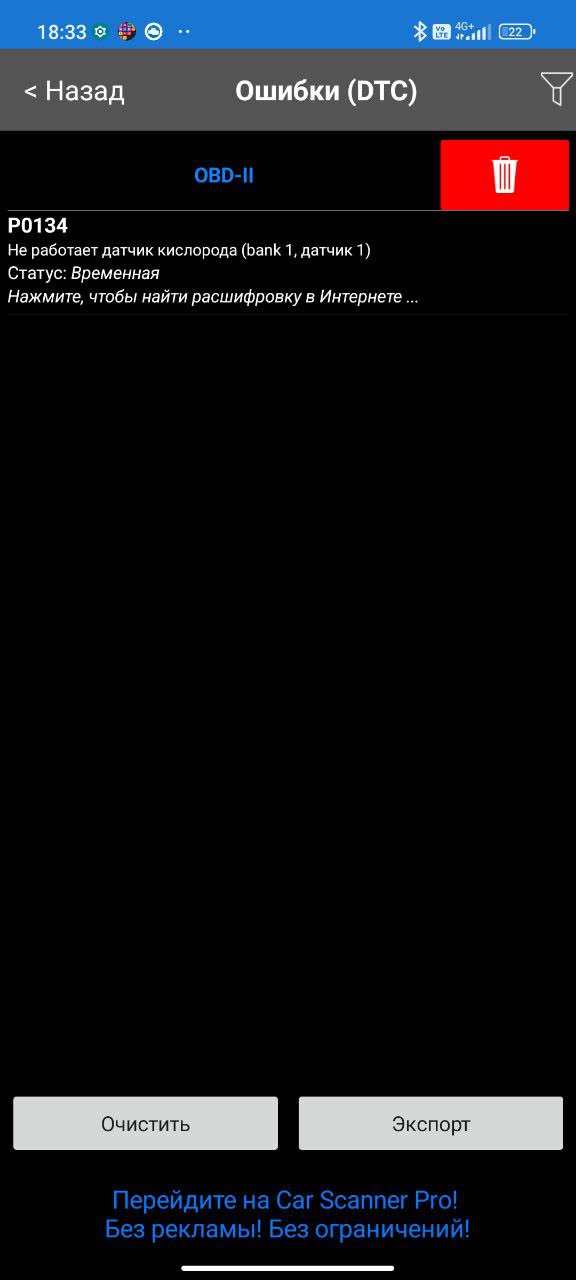

OBD-II scanner display showing error P0134 "Oxygen sensor (bank 1, sensor 1) not working", status "Temporary"

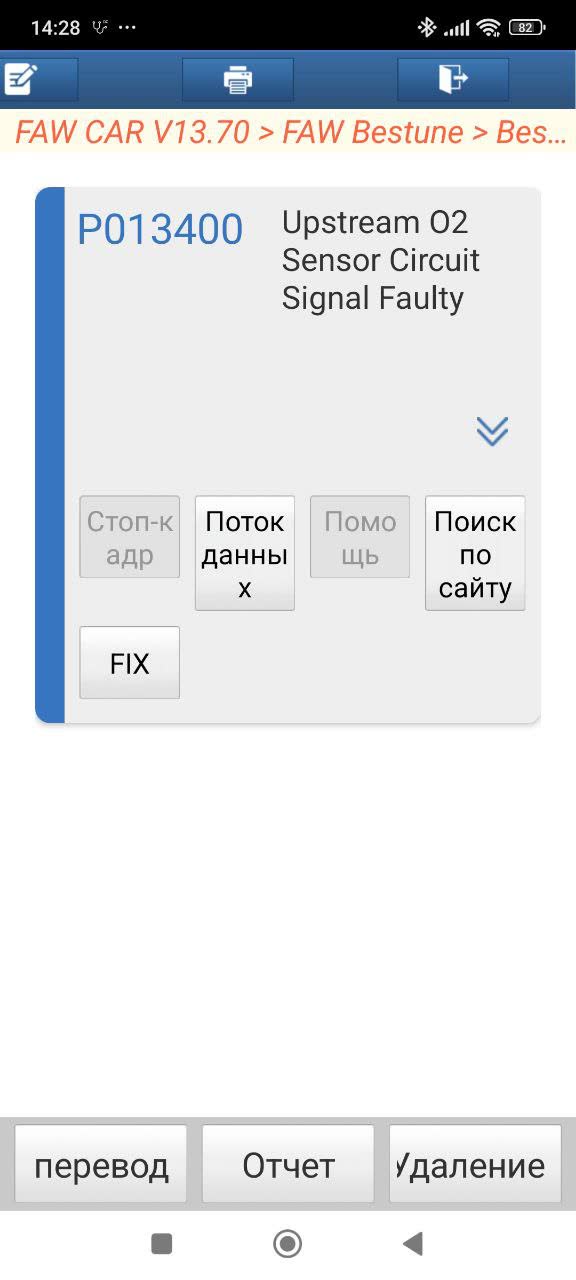

Diagnostic app showing error P013400 (upstream O2 sensor circuit faulty)

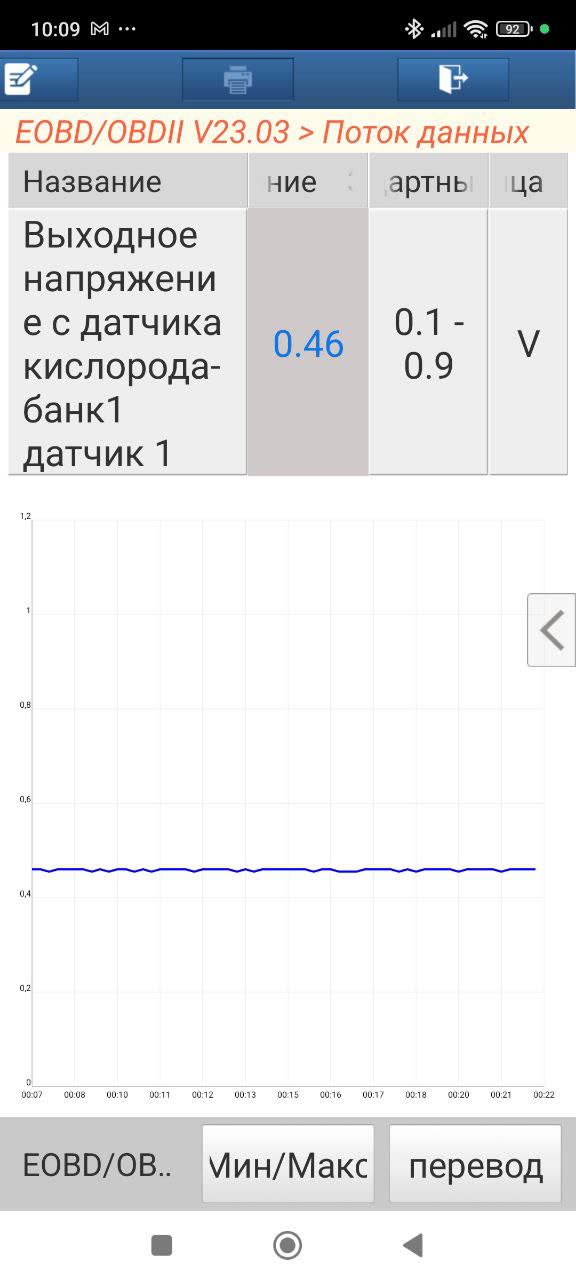

Diagnostic app screen, part of the same P013400 troubleshooting sequence

Sensor voltage data reading, part of the DK1/O2 sensor replacement sequence

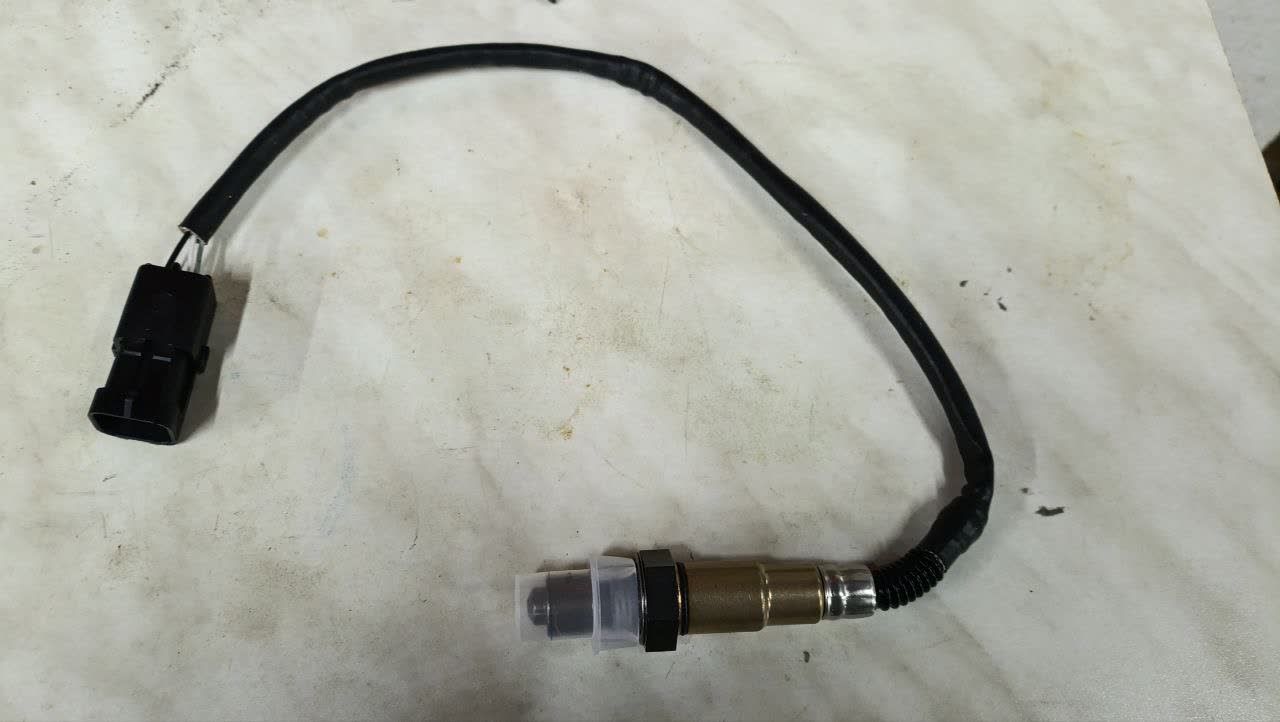

Failed OEM sensor appearance

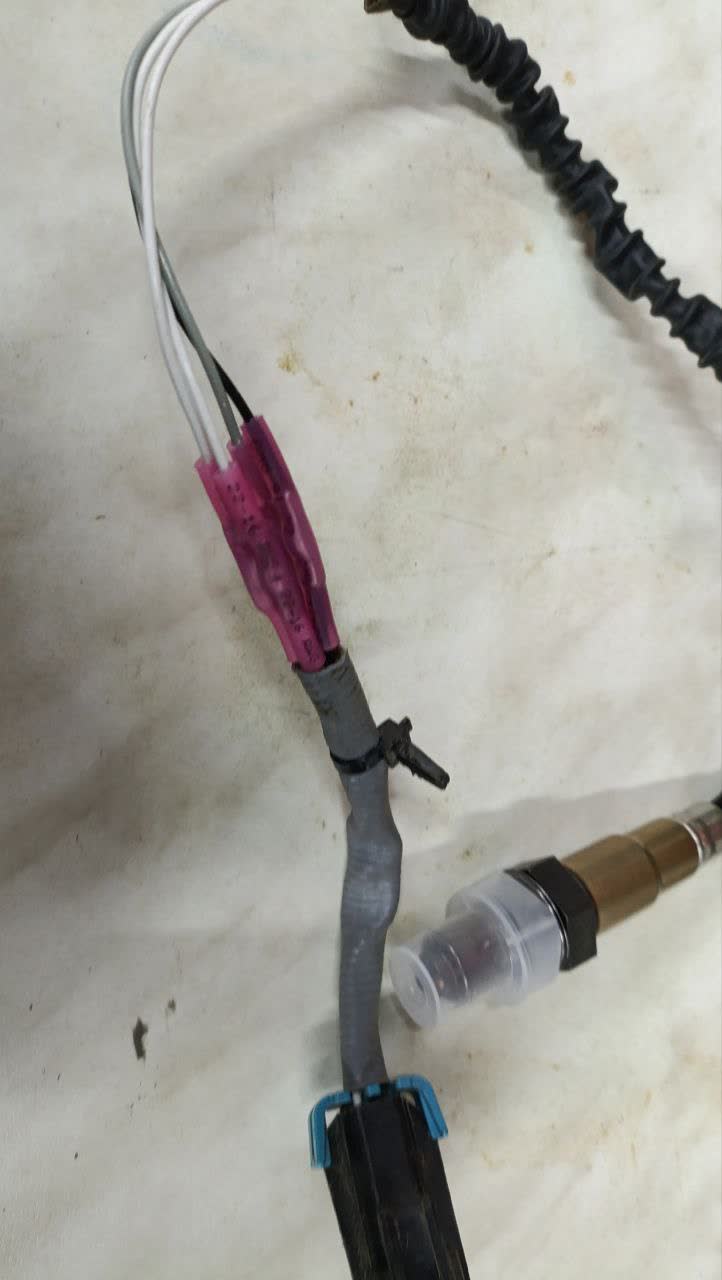

VAZ/Lada replacement sensor with connector adapter

Corrected sensor signal shown after installing the new sensor (voltage ~0.46V, within normal 0.1–0.9V range)

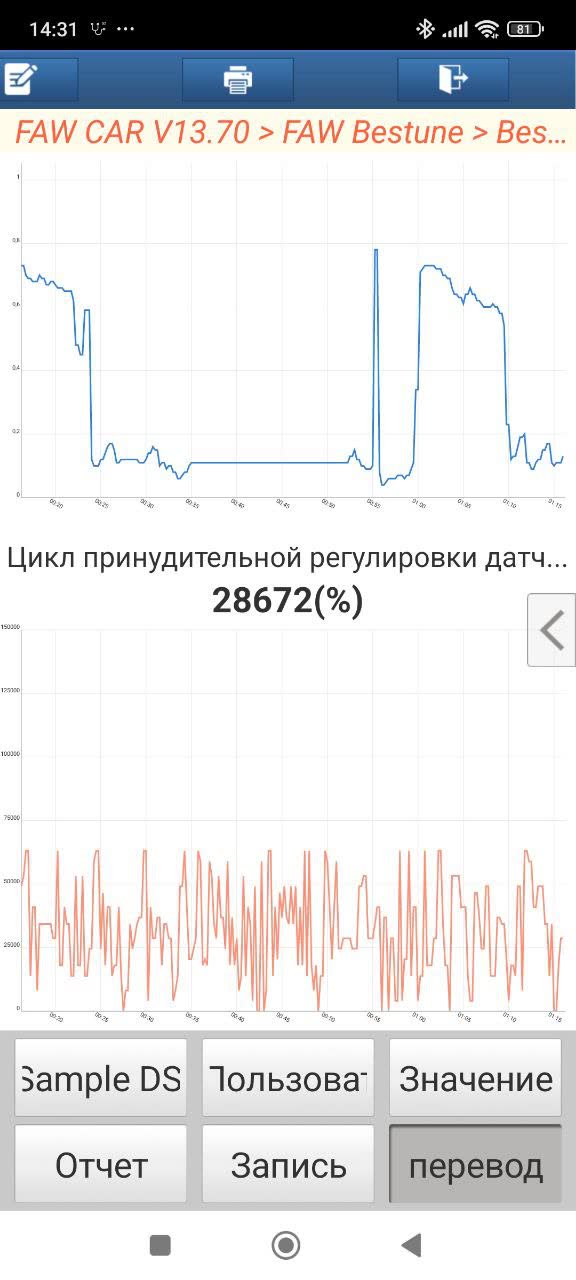

Additional diagnostic screen from the same replacement sequence
