Valve clearance adjustment (Duratec HE) shims

Tags: #price

Engine platform. The X80 uses the Duratec HE engine, the same platform as certain Ford/Mazda applications — shims and machining know-how cross over, and shops experienced with Ford/Mazda Duratec engines are a good source for this job.¹²³⁴⁵⁶

Shim-under-bucket procedure. (1) Remove the cam cover. (2) Identify the shim cups ("стаканчики") under the rocker arms. (3) Measure clearances and select shims sized to target approximately 0.15mm. (4) Adjustment method: a machine shop or skilled mechanic can either precisely grind the cup seat faces, or swap in differently-sized shims. Shim cup surfaces can be modified with filing/grinding, but this requires precision and patience.¹²³⁴⁵⁶

Shim sourcing. Ford/Mazda Duratec HE shims are compatible and available on Ozon. One community member (Eduard Yanonis) offers private consultation on the grinding procedure for owners who want guidance.^7891011

Is it routine at moderate mileage? Valve clearance adjustment is not a routine service item on early/mid-mileage X80s — one owner reported no prior adjustment at 115,000 km. Valve seats do sink and settle over time, which is why periodic adjustment is eventually needed regardless of mileage-based service schedules. Many owners defer this service until higher mileage or until symptoms (noise, rough idle) appear.^12131415

Cost — market quote vs. overselling concern (2025-01, Moscow-area invoice). One community-reported quote: 55,900 RUB labor + 36,750 RUB parts (total 92,650 RUB) (RU market, January 2025) for work claimed to include head removal, diagnostics (2,500 RUB), compression/hermetic tests, and a gasket kit (25,000 RUB), dated 2025-01-17. The community flagged this invoice as containing many unnecessary operations — head removal is not required for a valve-clearance adjustment alone, so this quote is considered a cautionary example of a shop overselling work.^16171819

More typical market cost (2025-02/03, Moscow region). For a qualified technician correctly diagnosing and performing just the adjustment (no unnecessary head work), average cost is 40,000–45,000 RUB (as of February 2025, RU market). The main challenge is finding a mechanic experienced specifically with the X80/Duratec HE who won't oversell unnecessary work.^12131415

Recurring question, same consultation offer still stands (2025-11 update). The "has anyone adjusted the valves?" question recurs periodically in the group; Eduard Yanonis's private-consultation offer (see above) remains current, and a Drive2 guide continues to be shared as a reference: https://www.drive2.ru/b/659026654919674056/²⁰²¹²²

Regional cost spread, another data point — Naberezhnye Chelny at 6,000 RUB (2024-07 report). An earlier community-reported price point adds to the regional cost comparison already documented above: 6,000 RUB for a valve clearance adjustment in Naberezhnye Chelny (2024), described by the owner as a simple adjustment without head removal, after which the car felt noticeably livelier. Other community members questioned how this compared favorably against quotes elsewhere naming 25,000 RUB (Chelyabinsk) and 30,000 RUB (Moscow) (RU market, July 2024) for what should be comparable work — reinforcing the card's existing point that cost depends heavily on whether the shop does a minimal shim-adjustment-only job versus unnecessary head removal.^23242526

Pre-facelift (dorestyle) models specifically require manual adjustment. Pre-facelift ("Dorest") X80 models lack hydraulic valve compensators (lifters) entirely, so periodic manual valve-clearance adjustment (the shim procedure above) is a genuinely required maintenance item on these cars — not merely a symptom-driven repair. Facelift (restyled) models with hydraulic compensators do not need this routine procedure. Follow the service manual for the exact interval on your specific model year.²⁷

LPG usage and a lower cost data point, another dorestyle case (2025-12 report). A dorestyle owner (120,000 km at time of the LPG usage note; 150,000 km at time of this valve-adjustment report) who runs the car on LPG reports the intake manifold gasket kit includes five gaskets. Cost for a valve-clearance adjustment on this car: 10,000 RUB (RU market, December 2025), with the owner grinding their own shims to the exact required thickness rather than buying pre-sized ones — a lower-cost data point that adds to the regional cost spread already documented above, and a further corroboration that dorestyle (no hydraulic-lifter) cars need this service periodically, including under LPG operation.^28293031

CA4GD1 (2.0 L): no figure in the manual. A member notes the valve clearance cannot be found in the manual for the CA4GD1 and says it is set by choosing bucket shims (стаканчики) of different thickness, not with a screw adjuster³²³³.

Media

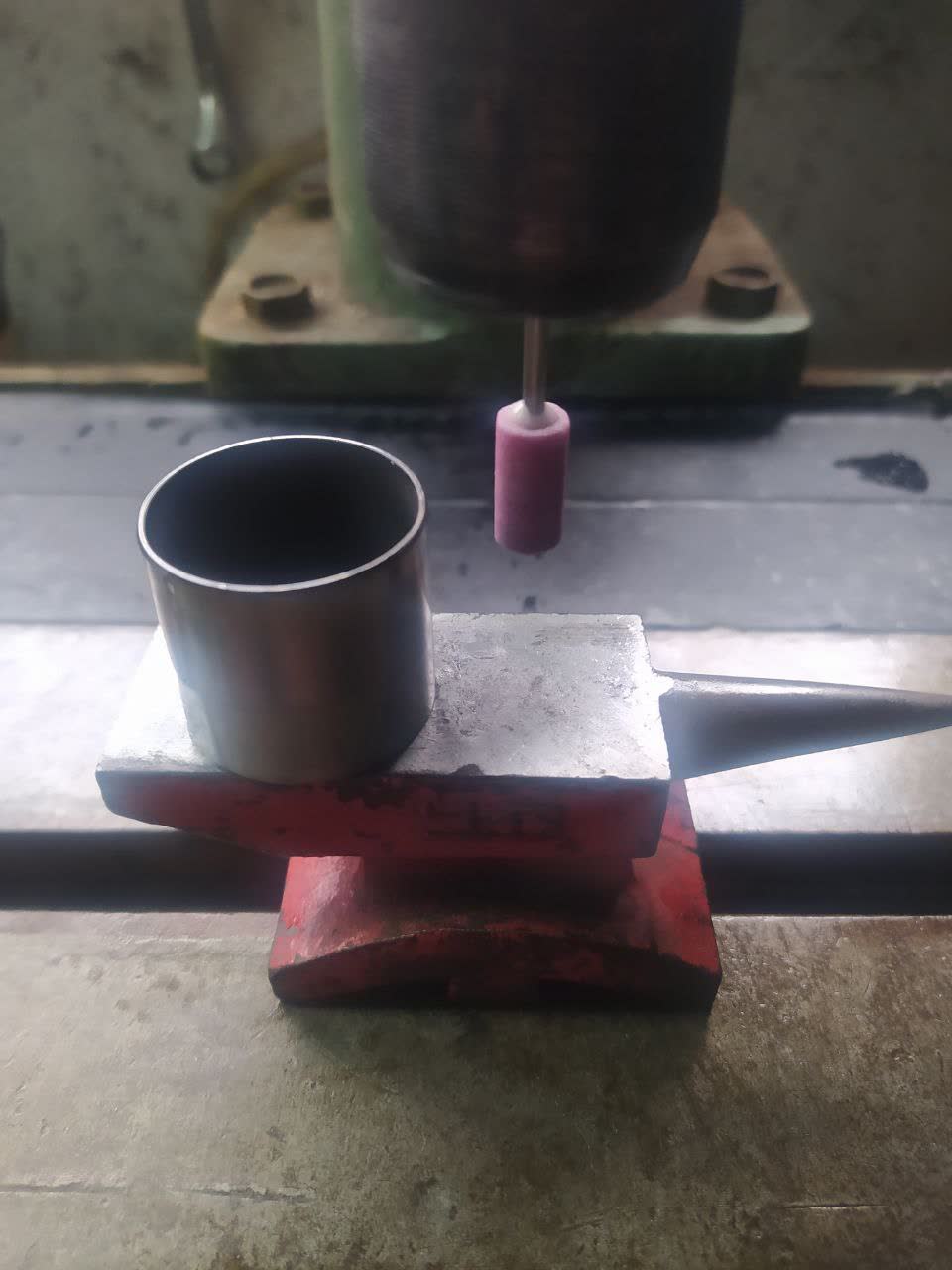

Valve adjustment shim cup on a machining table with grinding/precision finishing setup — demonstrates the manual method of modifying shim cup surfaces

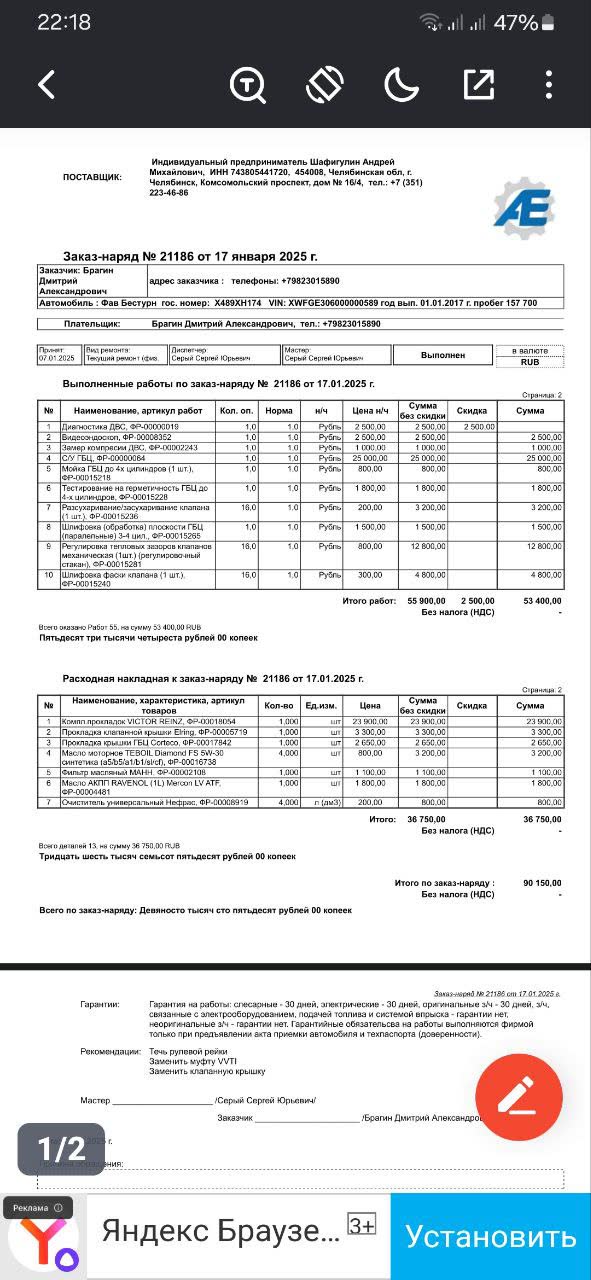

Service invoice dated 17 Jan 2025 showing 55,900 RUB labor, 36,750 RUB parts, including a 25,000 RUB gasket set — flagged by the community as containing unnecessary operations
