Aftermarket Android head unit — CANBUS wiring

Tags: #head-unit · #esp · #installation · #parking-sensor

CANBUS adapter is required on restyle X80 (2018+) when installing an aftermarket Android head unit, otherwise a false ESP error light appears on the dashboard ¹²³⁴⁵. Verified working adapters: - Hiworld CANBUS, model FW08.11 H2AGY9D30A — confirmed no false errors ⁶⁷. - Raysen CANBUS — alternative option ⁸. - Mayifun BOS-mini A5 CANBUS — also confirmed working ⁹. - Cable cost: ~2,000 RUB on AliExpress (Sept 2024, RU market) ¹⁰.

If the ESP light appears despite a CANBUS adapter, an alternative/additional fix is updating the original radio's MCU firmware (file CR482XA_V1.56_20200224.MCU); some owners needed to update both the radio firmware and the CANBUS adapter firmware together ¹¹¹⁰. TEYES CC3L/CC3 are the most commonly installed models for the 2018–2022 restyle ⁶.

Dashboard panel removal (to access the factory radio slot): use plastic trim-removal tools (127–1,500 RUB on OZON depending on quality; Sept 2024, RU market); improvised plastic pry tools work too, with higher risk of panel damage. Procedure: remove trim panels around the radio, disconnect electrical connectors, remove mounting clips, slide the unit out; reverse to install. Clips/connectors are fairly durable ^121314151617.

CANBUS cable for tablet-style units: FAW X80 2018+ specific cable interfaces factory wiring with the aftermarket radio, available on Ozon and other retailers ¹⁸¹⁹.

Antenna: the factory antenna is very short and needs an extension when installing an aftermarket unit; extension cables with standard connectors are sold on Ozon — route the extended antenna to the upper dash or under roof trim. Complete installation kits often include the extension ²⁰²¹²².

Full install checklist (from a documented DIY installation): route wires through the air vents to the dash using anti-squeak tape; integrate the rear camera with parking sensors (may need to remove broken factory connector clamps); install an external microphone on the dash panel to avoid a Bluetooth feedback loop — internal mics on the factory unit are disabled by the manufacturer; expect extra time if wire channels are tight ^{23242526272829}.

Total antenna count on a fully-loaded install: 3–6 antennas (3 GPS + 2 GSM/ GLONASS + 2 Starline + 2 head-unit, up to 6 with OTA) — plus relocating the climate control module and rerouting harnesses ^{3031323334353637}.

Known fix — outside temperature stops showing after stereo swap: after installing an aftermarket stereo (e.g. Teyes), the outside-temperature display can disappear from the instrument cluster. Causes/fixes: (1) enable the temperature toggle in the stereo's own settings menu ("Наружная температура"); (2) verify the correct X80 model/CANBUS profile is selected in setup; (3) some trims simply lack the external temp sensor ^{38394041424344454647484950515253}.

Parking sensor compatibility after Android head unit swap: parking sensors may stop working after installing an aftermarket Android head unit. Cause: the Android unit may not support the original CANBUS protocol, or the aftermarket parking sensors themselves lack CAN compatibility. Workarounds: (1) verify the Android unit supports CANBUS for original-sensor integration (check its settings); (2) if the sensors are aftermarket/non-OEM, they may be incompatible with the CAN adapter — some installers add an extra interface block to bridge the sensors and the stereo; (3) some installations cannot simultaneously support both parking sensors and steering-wheel controls through a single CAN interface — choose the priority based on preference ⁵⁴⁵⁵⁵⁶.

Steering-wheel button integration: when installing an aftermarket infotainment unit, the head unit auto-detects the vehicle and CANbus signals in its settings during installation — the CANbus profile must be manually configured to match the correct FAW X80 model/year, or steering-wheel buttons will not function. One owner initially skipped this step and had no button response; the fix (matching CANbus profile) was worked out via private message with another group member ^{57585960616263}.

Aftermarket infotainment installation with factory integration: aftermarket head units can integrate with several factory systems — rear camera (where fitted), steering-wheel buttons (via CANbus), and remote control (on some trims). Installation vendors such as frontcam.ru sell pre-configured units for the X80 with mounting brackets and wiring harnesses, and offer bundle promotions (head unit + accessories such as a dash cam, voice-assistant activation, or rear camera). CANbus settings must match the vehicle's actual configuration — automatic-transmission models use a different CANbus profile than manual-transmission ones, and manual (MKPP) installs are more prone to wiring/parking-sensor/rear-camera issues that need an electrician's help to resolve. Installers report the process is well-documented ("installation for dummies"), with the CANbus profile usually obtained from the seller via chat ^{646566676869707172737475}.

Facelift model — Teyes CC3L popular choice: Teyes CC3L (4GB RAM / 32GB storage, 10-inch screen) is a popular Android head unit for the facelift (рестайлинг) X80, sold with a CAN bus adapter included. Price on Wildberries: ~5,000–6,000 RUB for the unit alone, plus ~4,000 RUB more for a premium installation (December 2025, RU market) ^{7677787980818283848586}. Installation notes: factory trim clips are very tight and easy to break — take your time; the plastic housing under the rear-view camera needs filing/cutting because the factory camera connector differs in size from the aftermarket one; antenna and USB wiring often can't reach the new head-unit location and must be rerouted through the dashboard, commonly via the glove-box area. The factory rear-view camera's image can look worse on the larger new screen; some owners plan to pair the head unit with a higher-resolution aftermarket camera ⁸⁶.

Teyes CC3L CAN bus profile mismatch — use Mazda 6 settings: on a 2017 pre-restyle X80, a Teyes CC3L initially set to the X80 CAN bus profile left the parktronics and multifunction steering-wheel controls non-working and the climate display blank. Fix: switch the CAN bus configuration to Mazda 6 settings — this restored all controls except the climate feedback display (still blank). Installation requires careful wire routing; the climate harness is short and may need slight trim removal to reach ^{87888990919293949596979899100}.

10-inch retrofit — universal adapter frame, rear-frame trimming, power steering cooler clearance: installing a 10-inch Android head unit requires a 10-inch universal adapter frame mounted to the factory fascia. The rear lip of the frame may need trimming to fit; resulting gaps can be sealed with epoxy resin. Before finalizing the install, verify the power steering cooler depth for clearance behind the new unit — the cooler can interfere with the larger tablet-style unit's housing depth ¹⁰¹¹⁰².

Teyes UIS8141E tablet-style unit — connector-damage risk and performance notes: one owner (Kirill) installed a Teyes UIS8141E Android tablet-style head unit (specs: 4 cores @ 1.3 GHz, 2GB RAM, 32GB storage, Android 8.1). Issues encountered during installation: the rear camera connector was damaged (a contact torn) and the physical radio buttons below the screen stopped working (suspected loose cable/connector) — a caution for anyone installing this specific tablet-style unit. Performance notes: Yandex Navigator v3.96 runs acceptably fast on this hardware; the newer v27.0.2 is noticeably slow. Recommendation from the reporting owner: consult the 4PDA forum for custom ROMs and hardware-specific optimizations for tablet radios. Overall, tablet-radio integration is viable but requires careful connector handling during install ^{103104105106107108}.

10-inch head-unit mounting panel — dorestyle only: a custom mounting panel for a 10-inch aftermarket head unit ("magnetola") is available for pre-restyle FAW X80 models only — not compatible with restyle (2018+) variants. It allows installing a large modern touchscreen unit in place of the stock radio opening ¹⁰⁹¹¹⁰.

BOS-MINI A2 multimedia player: the BOS-MINI A2 car multimedia player (4K AHD, CarPlay, steering-wheel control, MirrorLink, voice command) is compatible with the X80. Installation requires a CANbus adapter (purchased separately, not included) to keep steering-wheel control and dashboard integration working. The unit has a 1280×720 screen, FM radio, Bluetooth, and USB ^{111112113114115116117}.

GU Element-5 Android head unit — pricing and features (2022): a popular aftermarket head unit, the GU Element-5 (Android OS, optional sound processor), cost 27,000 RUB (2022, reported March 2024, RU market), negotiable down to 29,000 RUB — professional installation labor added 1,700 RUB. Features: display-timeout/screen-always-off mode, adjustable time-display angle, anti-glare settings. Note: some restyle-model owners experience windshield glare reflections off the unit's screen due to a different tint angle versus pre-restyle vehicles. Compatibility is confirmed across generations ^{118119120121122123}.

Teyes tablet head-unit — CANbus + mounting-frame requirement (2018+): to install a Teyes tablet-style head unit on a FAW Besturn X80 2018+, two additional parts are needed beyond the head unit itself: (1) a CANbus cable adapter (available on AliExpress for roughly 2,000 RUB (July 2024, RU market)); (2) an installation frame/mounting bracket sized for the X80 ^124125126.

9-inch to 10.1-inch mounting-frame adapter: the factory head-unit opening is 10.1 inches. Owners retrofitting a 9-inch aftermarket unit (e.g. Teyes) need an adapter frame to bridge the size gap — example: Carav 22-1200, roughly 800 RUB (Aug 2024, RU market) from Ozon. Some adapter frames use self-tapping screws for mounting; shop around for the mounting style you prefer ^{127128129130131}.

False "drunk road" warning after head-unit replacement — CAN-bus wiring fix: after replacing the factory head unit (ГУ) with an aftermarket one, a false "drunk driving/road" warning light can appear on the dashboard. Fix: proper CAN-bus wiring connection — a video walkthrough identifies a specific pin sequence, connecting a yellow wire to a particular position on the brown connector. For one affected owner (Марина), this correct connection resolved both the false warning light and a parking-sensor malfunction simultaneously. Alternative approach if the exact pin isn't known: source the correct CANBUS connector for the vehicle, or add a specific bridging wire to the correct pins ^{132133134135136137138139140141142143}.

Audio interface adapter codes (unverified, 2020 car). For a 2020 car, the audio interface adapter codes RZ-YQBT11 and RW-NCL-0504 were given in reply to a question; the reply adds that the exact head-unit model must be specified when buying the adapter. The thread does not say which adapter type these are, so confirm with the seller ¹⁴⁴.

Media

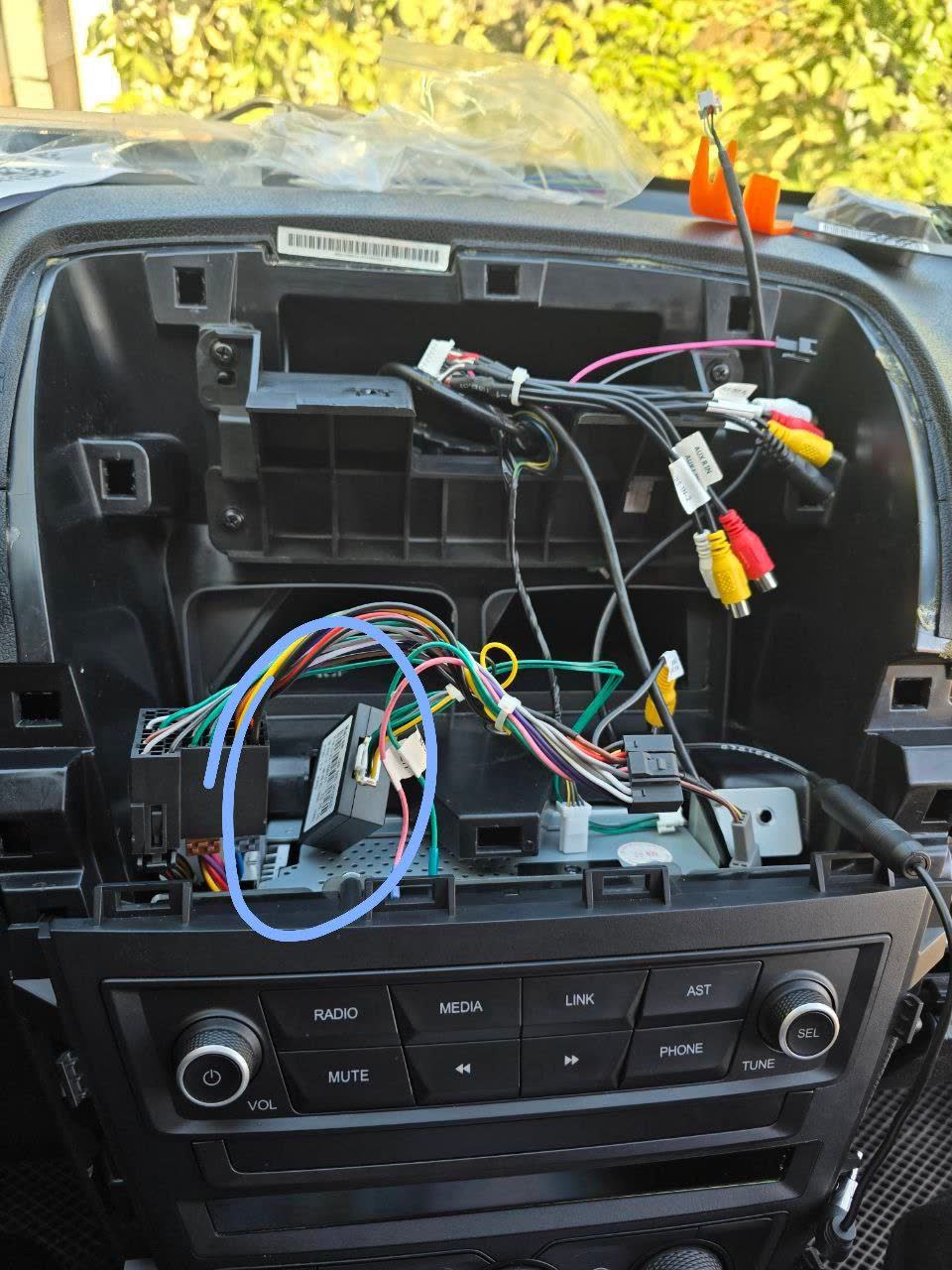

Photo of the CANbus interface connector shown during steering-wheel button setup discussion

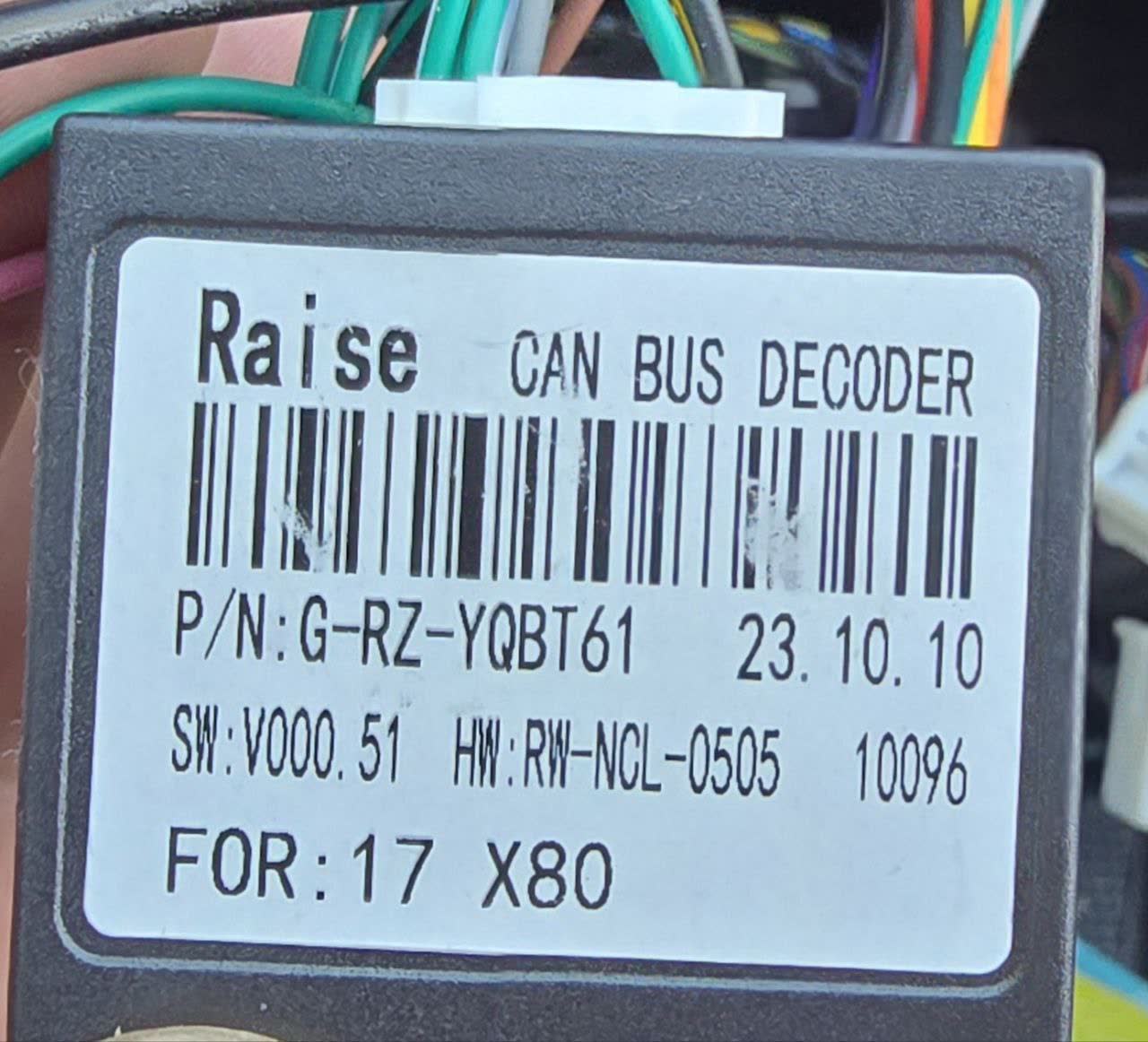

Photo of the CANbus setup process on the head-unit settings screen

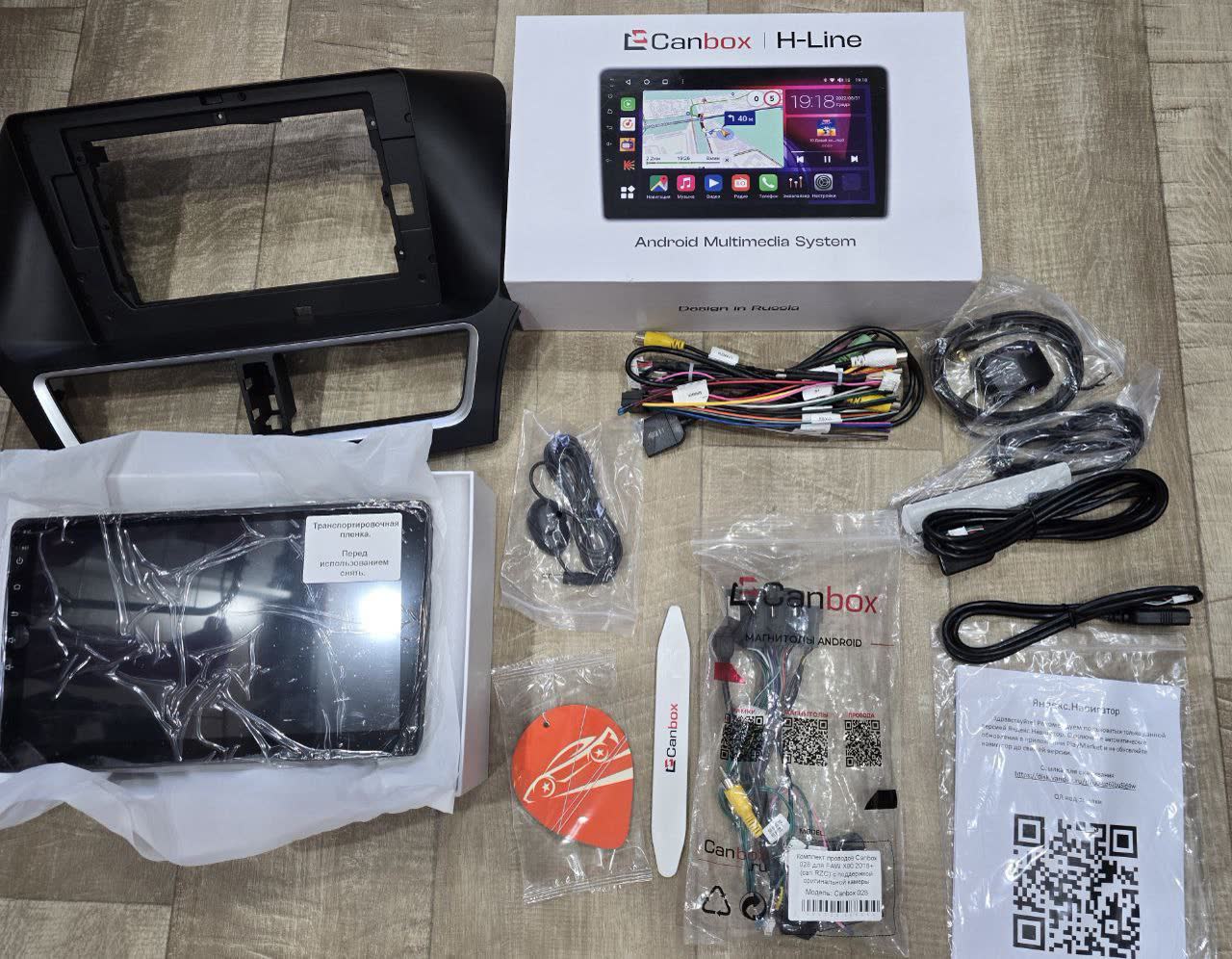

Photos/video showing aftermarket head unit installation, display integration, and rear camera operation

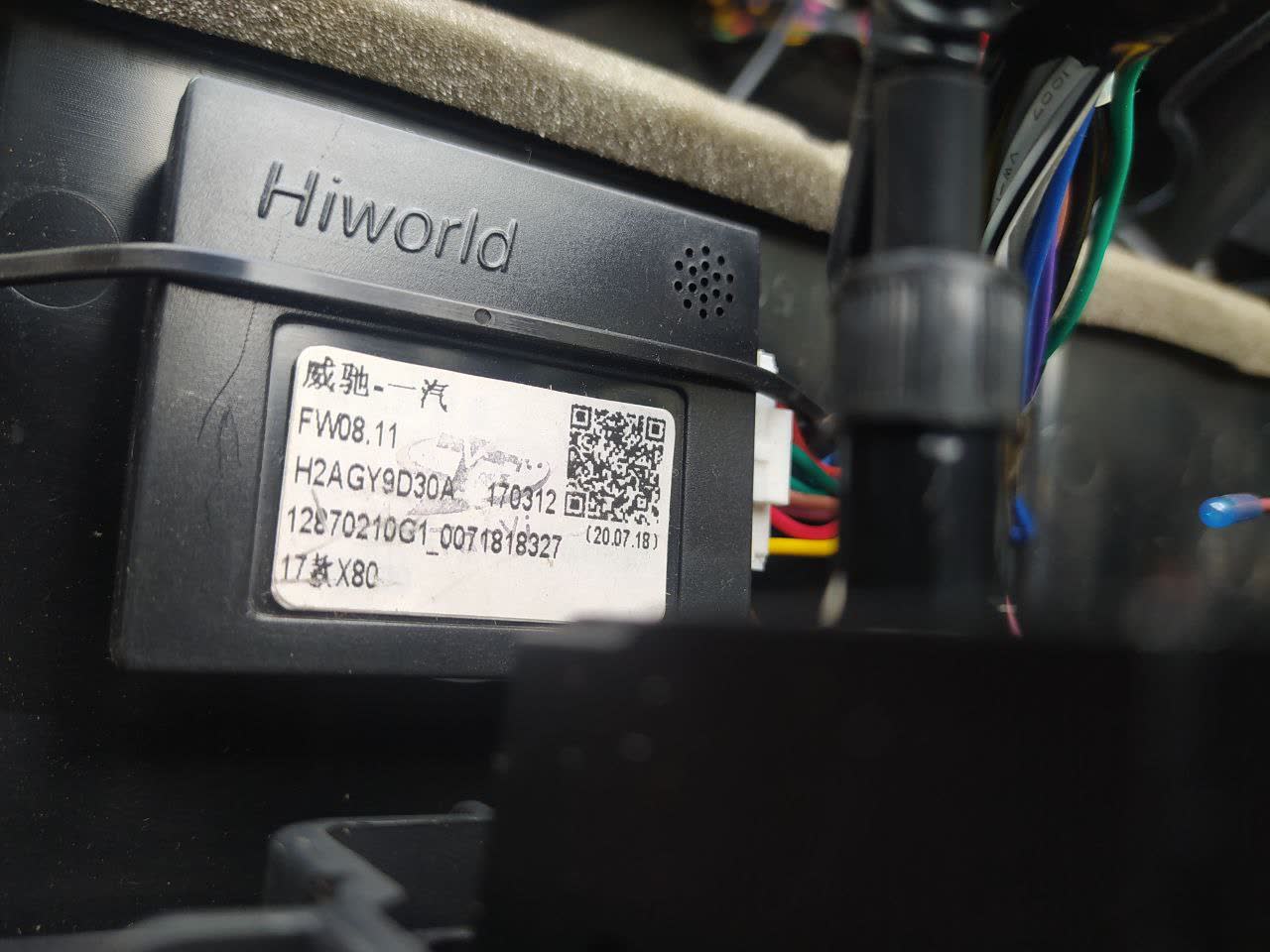

Photo of Hiworld CANBUS adapter module showing brand name and technical specifications

Photo of plastic trim removal tools set (yellow and blue colored)

📎 Attachment: 10732_CR482XA_V1.56_20200224.MCU — MCU firmware update file (CR482XA_V1.56_20200224.MCU) shared for radio/CANBUS update procedure

📎 Attachment: 10733_руководство_по_обновлению_мангитолы_Х80_BASIK_MT_ESP.docx — Instruction document (Russian) for the radio/CANBUS firmware update procedure

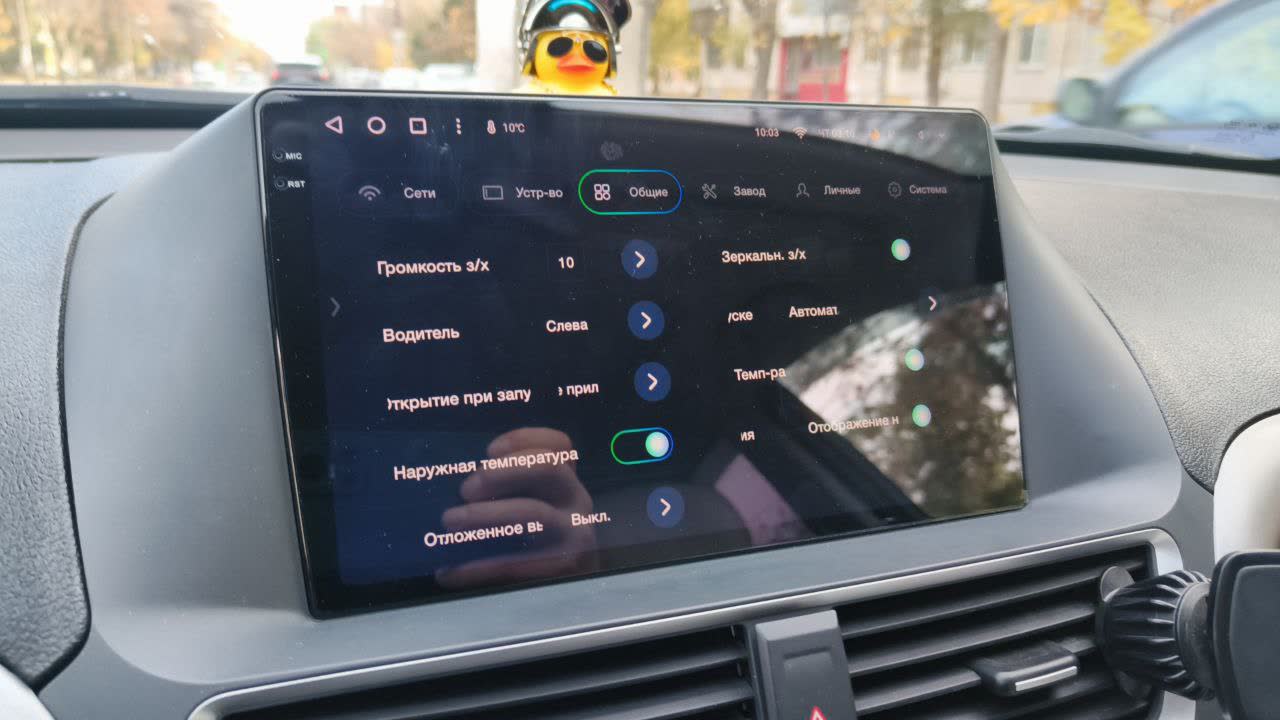

Screenshot of Teyes stereo settings showing "Наружная температура" (outside temperature) toggle enabled

Video showing a technician counting connector pins to identify the correct CAN-bus wiring attachment point for the head-unit install
