Water leaks — fender and cabin ingress

Tags: #water-ingress · #fender

Cabin water leaks are very common on the X80 and rarely have a single cause: the sources reported by owners are the fender technical drain hole, the cowl (жабо) and hood air-intake drains, sunroof and roof drain tubes, door and body seals, and the trunk/5th-door area. The paragraphs below keep the overview facts; each sub-topic has its own card.

Uncapped technical drain hole under the fender: the X80 has technical drain holes on both the driver and passenger sides under the fender, behind the wheel-opening area. One or both may be left uncovered at the factory during manufacturing/assembly, letting water that normally drains from the roof enter the interior instead ¹²³⁴. This can leave standing water on the interior floor and cause damage ⁵⁶. Fix: access the area from under the fender liner (снять подкрылок) and seal the uncovered hole ⁷⁸.

General cabin water-ingress checklist: water can enter the cabin through several other points besides the fender hole — check all of them if a leak source isn't obvious: 1. Sunroof — inspect the roof drain system. 2. Door seals and weatherstripping. 3. Windshield frame sealing. 4. Rear door / hatch seals. 5. 5th door (liftgate) water drainage. 6. Gutter drains beside the windshield.

One owner reported water streaming directly into the luggage compartment, a persistent problem that needed a custom weatherproofing fix ⁹¹⁰. Regular inspection of these points is recommended, especially before winter ¹¹.

Comprehensive cabin water-leak source investigation: common ingress sources differ between pre-facelift and facelift models: (1) the rain pan drainage under the hood is normally adequate (large drain holes on both sides, slanted toward the edges) — typically not the source; (2) sunroof/roof drain tubing connections in the wheel arches become disconnected, routing water directly into the cabin; (3) door-seal drain holes (at the belt line inside the car) can become blocked; (4) on pre-facelift models, rubber seal stickers covering wheel-arch technical holes can detach, letting water flow directly into the cabin — facelift models reportedly fixed this design issue; (5) fix for drain-connection leaks: insert rubber/silicone tubing (rather than sealant) to extend the drain path away from the cabin. A properly functioning rain pan with perforated drain openings and an internal partition effectively directs water away ^{1213141516171819}.

Three main water-intrusion sources — a quick diagnostic summary: a condensed diagnostic summary identifies three main sources of cabin water leaks on the X80: (1) rear-door/5th-door molding clip gaps if poorly refitted; (2) missing or clogged drain holes under the hood/cowl (жабо); (3) poor door-sill seals. Check all three locations during diagnosis before assuming a single cause ^202122232425.

Overall water-leak prevention strategy — the four main sources: a community summary identifies the four major water-leak sources on the X80: (1) windshield seal deterioration; (2) hood/cowl (жабо) drainage and seal; (3) sunroof drain clogs; (4) heater-core housing seal. A durable fix requires addressing all four sources, not just symptoms. The community has repeatedly asked for centralized documentation (test videos for each leak location and its repair) but this remains sparse. Temporary mitigation: use silica gel or zeolite desiccant in the cabin to manage humidity and slow corrosion while diagnosing the source ^2627282930.

Detailed guides:

• Water leaks — cowl and hood intake drains — water entering through the cowl (жабо), hood air intake and its drain ports
• Water leaks — sunroof and roof drains — sunroof and roof drain tubes, fittings and cleaning
• Water leaks — door seals and body sealing — door seals, sill plugs, body seams and underbody drain plugs
• Water leaks — trunk and rear door — water in the trunk, spare-tire well and 5th-door molding
• Water leaks — footwell diagnosis and A/C drain — wet footwells and floors: diagnosis checklists and the A/C drain

Media

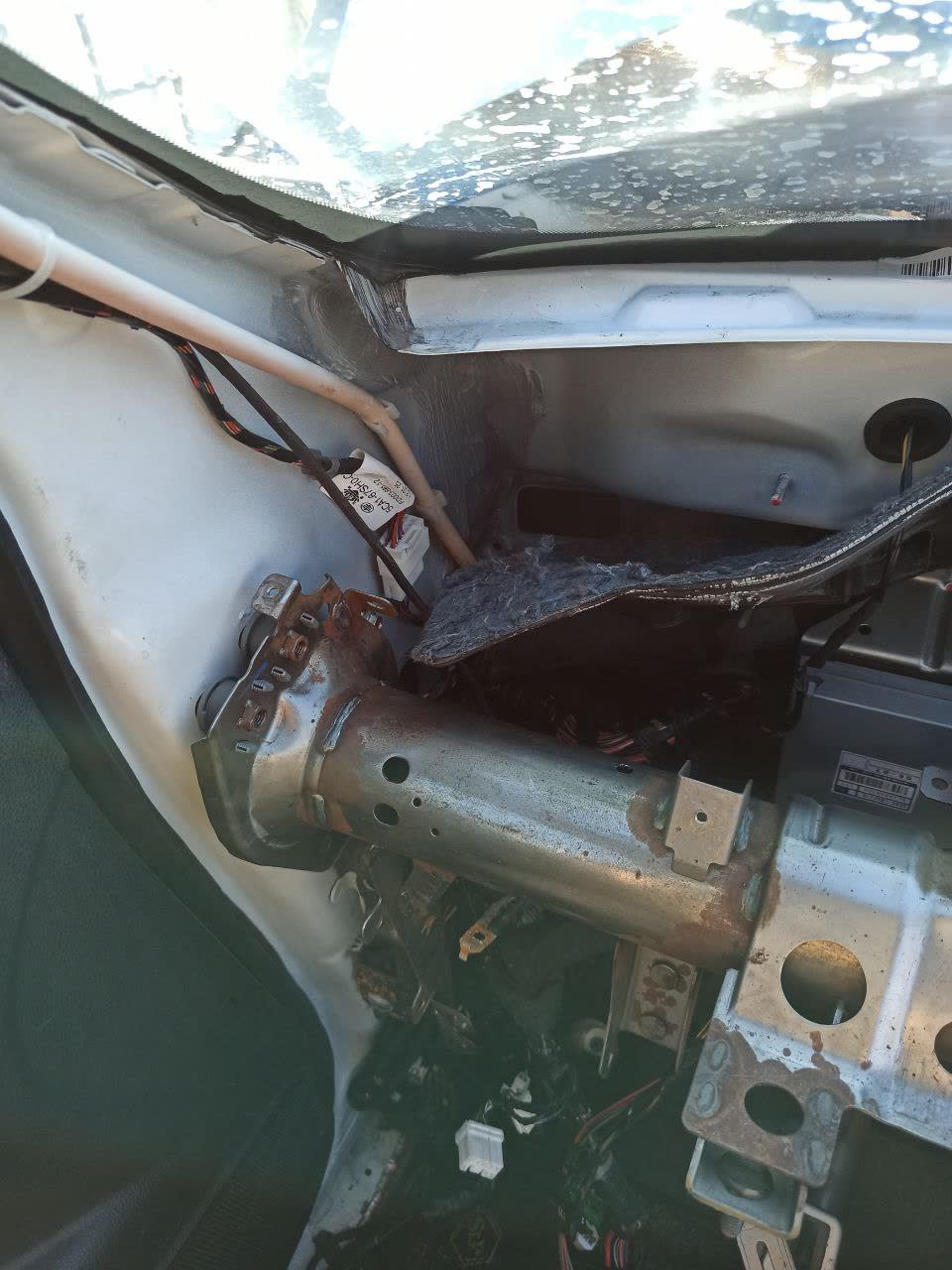

Photo showing water leak location under the fender with the uncovered technical hole

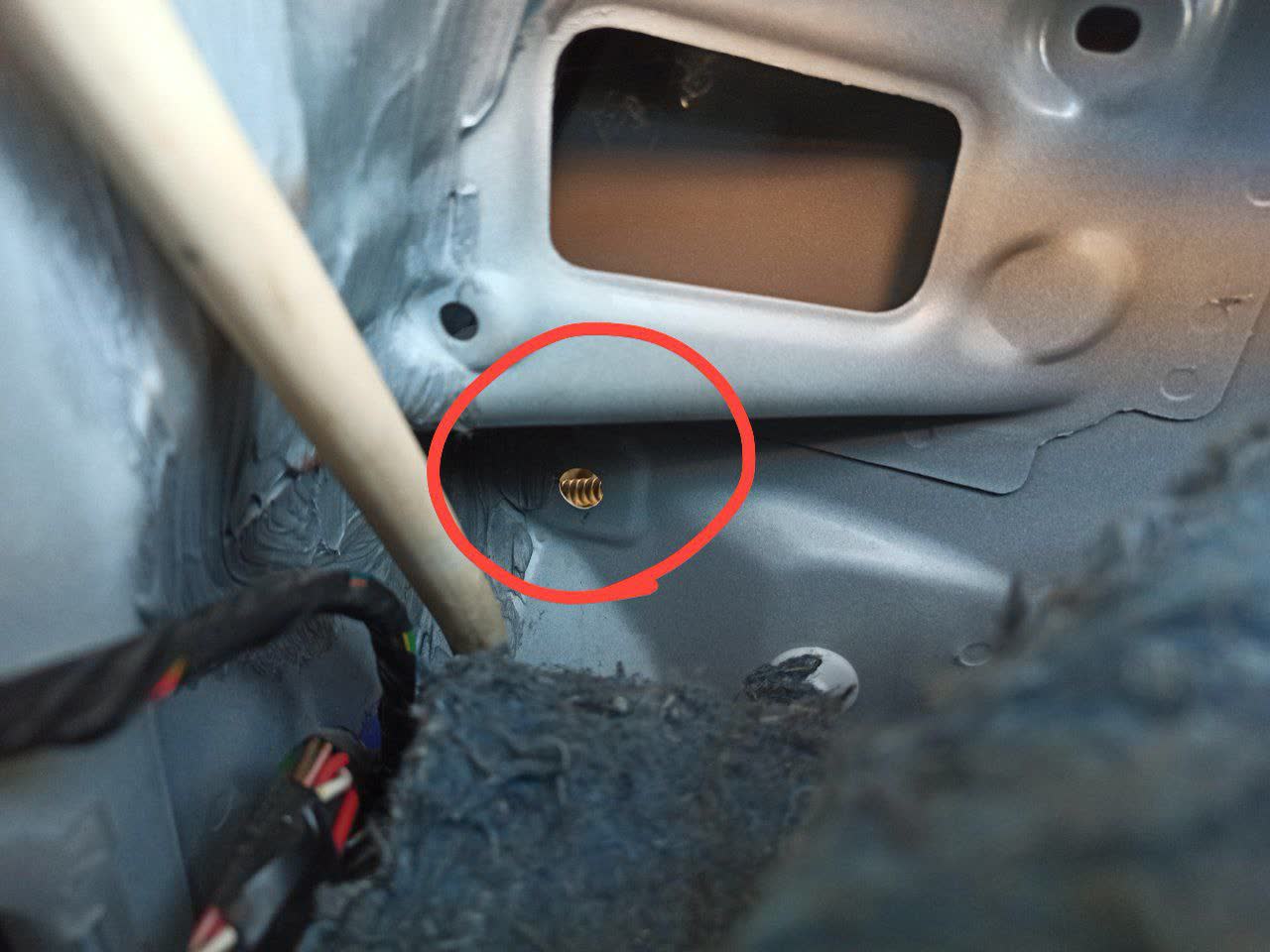

Photo of water ingress into car interior floor area from the leak

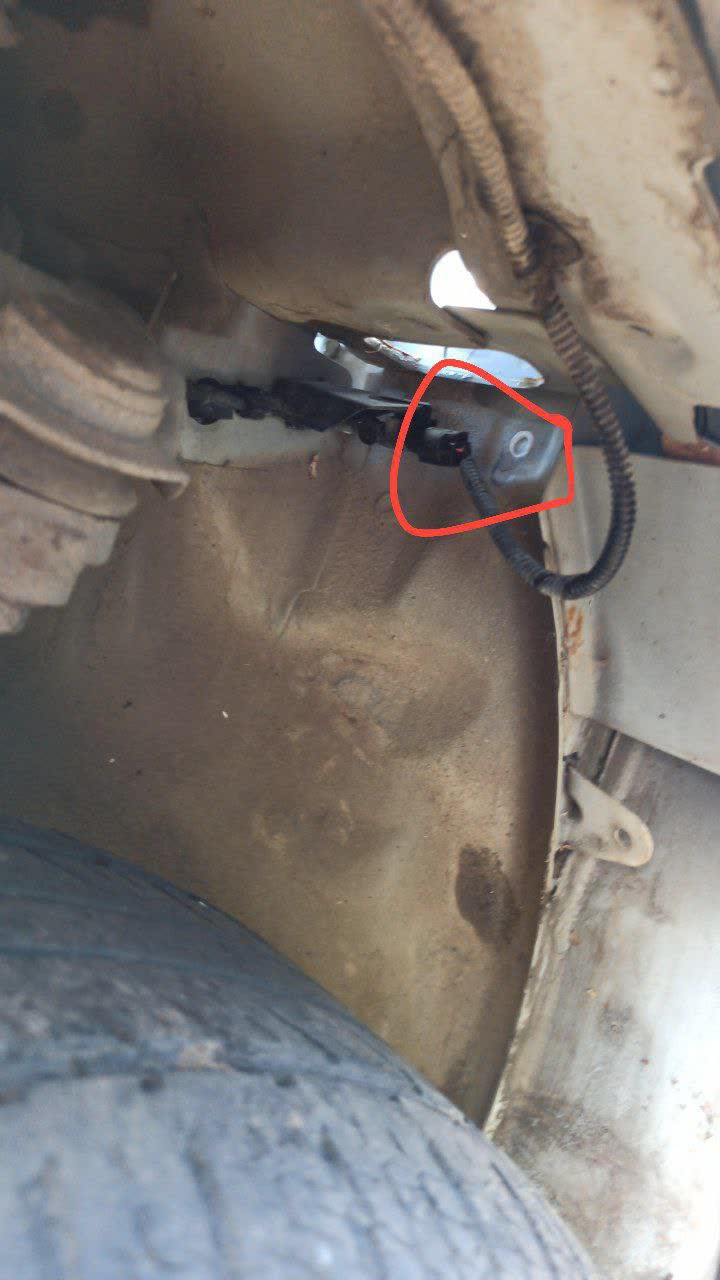

Close-up photo of the uncovered drain hole under the fender before sealing

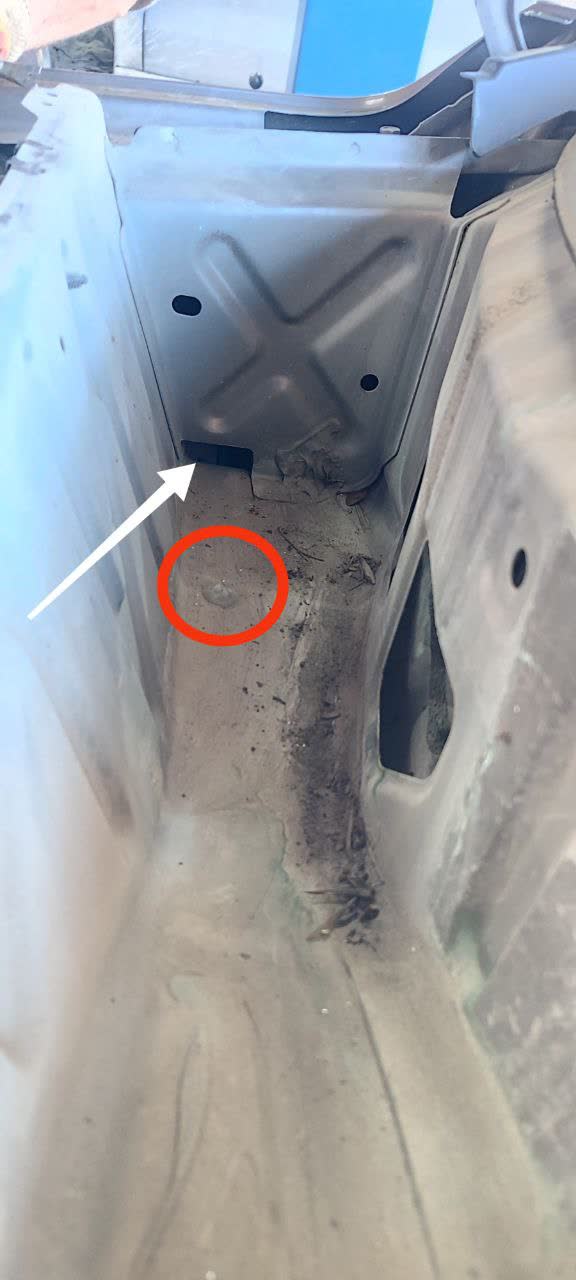

Rain pan investigation showing drain holes and internal partitions
