AKPP wear signs, shift symptoms and outcomes

Tags: #automatic-transmission · #atf · #wear

What the drained fluid and pan revealed, shift symptoms that call for a fluid change, and what owners saw afterwards.

Wear evidence at 100,000 km (never previously changed). One owner's first transmission fluid inspection at 100k km (fluid never changed) found numerous small brass/bronze shavings (bearing wear particles), magnetic deposits of ferrous particles on the pan magnets, and a clogged filter screen. Per Aisin's own guidance, fluid should be changed every 20,000–60,000 km depending on driving conditions (more frequent for stop-and-go urban driving). After a full drain (~2.5–3 L extracted) and sump cleaning, subsequent maintenance can be done by partial drain-and-refill through the bottom sump plug; full sump removal is recommended only at that first deep service after 100k km (or longer), not routinely.^1234567

Diagnosing shift-to-neutral jerking, and pan-gasket brand caution (2026-02 report). For a car exhibiting AKPP pitching/jerking into neutral unexpectedly, an OBD2 scanner (ELM327-type) is unlikely to show a fault code — check and change the fluid first, not the electronics. Full procedure reported to fix this symptom: unbolt the drain plug and dipstick tube, remove the pan, drop the filter (mesh can be rinsed and reused), install a BRAVE BREK124 pan gasket — buyers were warned not to source the gasket from Kitszap, since a cheap Kitszap gasket reportedly blew out within 2 days of installation — and reuse the OEM distance spacers/washers (they sit slightly shorter than some aftermarket copies). Repeat the partial fluid change 2–3 times at 500–1,000 km intervals for a thorough flush. If the fluid itself looks fine, check for debris in the pan and a clogged heat exchanger (теплообменник) — in summer/heavy city driving this may call for adding an auxiliary transmission cooler.^{891011121314151617181920212223}

Partial-change interval — "still like new" at 80,000 km (2024-07 report). One owner bought the car at 60,000 km and did a partial (semi-proliv) change at 80,000 km; fluid condition was reported as "like new" at that point, corroborating the 30,000–40,000 km partial-interval consensus documented in the overview card.²⁴²⁵

See also: Automatic transmission (AKPP) — ATF fluid & intervals; AKPP partial ATF change — drain plug, pan, mesh; ATF partial vs full exchange and volumes.

Media

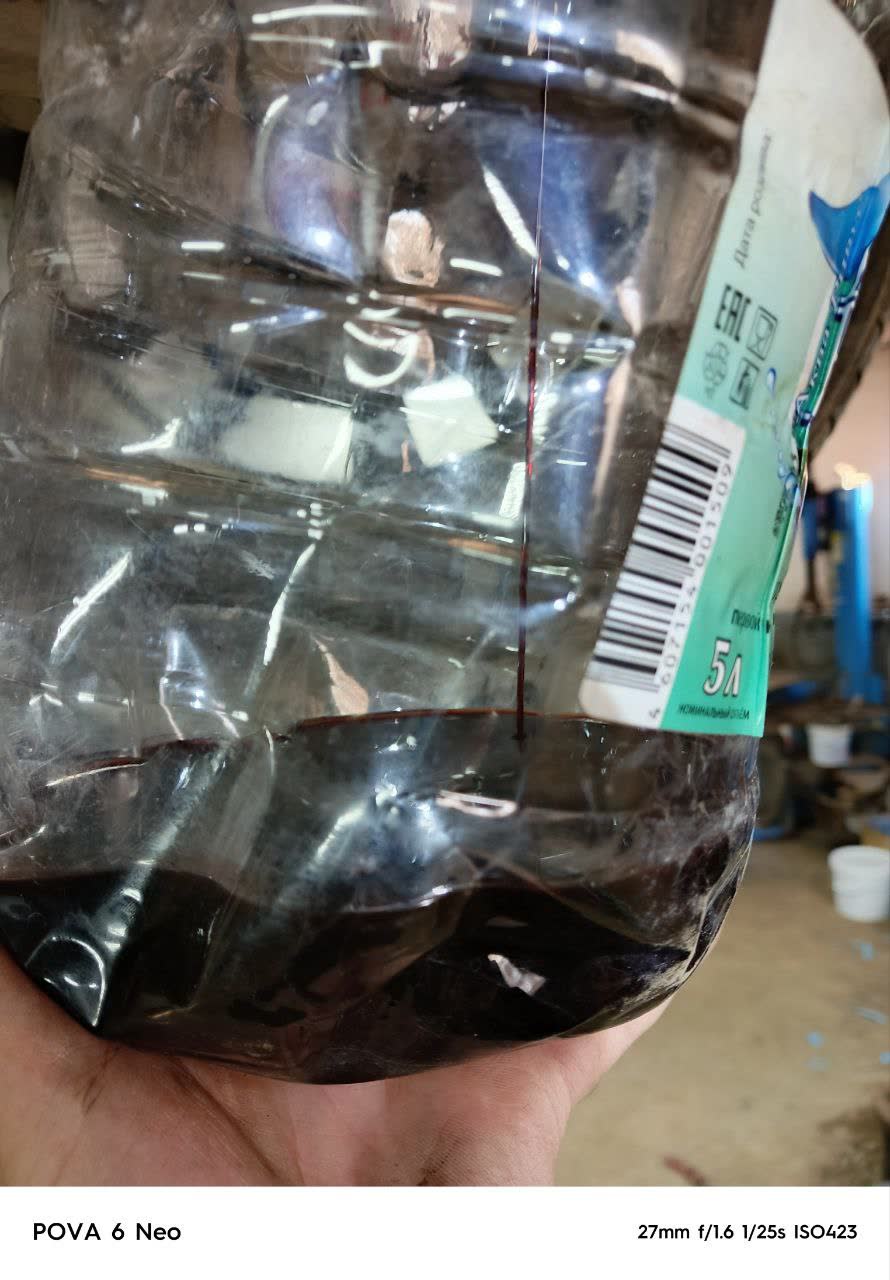

Transmission fluid being drained from the AKPP sump, approximately 2.5–3 L extracted

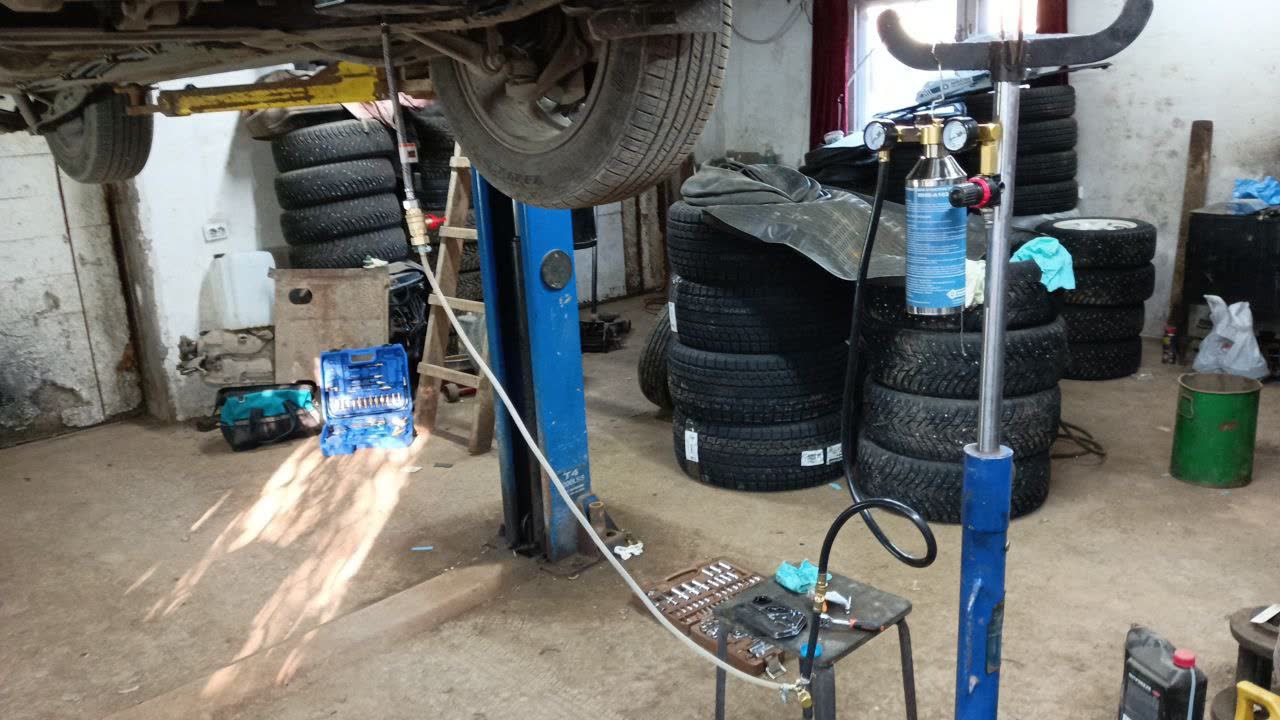

Dropper-bottle method used for precise top-up refill through the bottom drain plug
