Spark plug specifications and cross-references

Tags: #spark-plugs · #part-number · #torch · #cross-reference · #price

OEM nominal part number: 370701037K (Chinese part number).¹ OEM standard spec: TORCH QH5RTIP-13.¹ Alternative iridium option: TORCH QH6RIU-11 — one owner at 100,000 km successfully replaced with this same model.²¹

Recommendation. TORCH brand is considered reliable by the community; both the standard and iridium versions are acceptable, with the choice coming down to owner preference and budget. Some owners have also used non-iridium alternatives or other brands successfully.³²⁴¹

Torque specifications (2025-06 report). Spark plug tightening torque varies by thread/hex diameter: 8mm plugs → 8–15 Nm; 10mm → 15–20 Nm; 12mm → 20–25 Nm; 14mm → 20–25 Nm; 18mm → 20–30 Nm. Contact nut torque: M4 → 0.8–1.5 Nm; M5 → 3.0–4.0 Nm. Using the correct torque wrench setting is critical to avoid over-tightening and thread damage.⁵⁶

Removal/installation tools and more brand data points (2025-09 report). Spark plug socket size is 16mm; a special long socket with a rubber insert or magnet is recommended to avoid dropping the plug into the cylinder. Additional brand data points from the community: NGK plugs verified working at 2,900 RUB per piece (RU market, September 2025); TORCH QH5RIU-13 also tested and confirmed working; Miles 067 verified reliable past 9,000+ km. Some owners apply spark-plug grease/vaseline to the connector and contact terminal to ease future removal — helpful but not required.^{789101112131415161718}

QH5RIU-13 as a recommended X80 (2020) plug (2025-10 report). TORCH QH5RIU-13 is separately recommended for the FAW X80 2020, available on the Ozon marketplace by searching the code directly.¹⁹

Miles ALSP067 iridium plugs as a Ford/Mazda equivalent. Miles ALSP067 iridium-electrode plugs serve as an analog to Ford/Mazda-spec plugs; one owner reported 10,000 km of successful operation.²⁰

Pricing (2025-10). Spark plugs cost approximately 1,600 RUB for a set of 4 when ordered from Emax (October 2025, RU market).²¹ Separately, LYNXauto SP216 iridium/platinum plugs were purchased for ~1,800 RUB (November 2025, RU market) — reported as high quality, with even gaps, perfect fitment, and a quieter-running engine after installation.²²²³

Removal difficulty at 100,000+ km (2025-11 report). At high mileage, spark plugs can be very difficult to remove due to corrosion/seizing, with a real risk of breaking the ceramic insulator if over-torqued during removal. Recommended installation torque: 18 kgf maximum — do not over-tighten. One owner spent 4.5 hours replacing a single plug after breakage during removal.^{24252627282930313233}

Degradation by 30,000 km causing hard starts (2024-08 report). Factory-fit TORCH QH6RTIP-13 plugs (1.3mm gap) showed significant electrode wear and insulator damage by 30,000 km, causing hard starts and weak ignition on one owner's car. Community-suggested alternatives: QH6RIU-11 (0.2mm gap difference from OEM, same heat range) and QH5RIU-13 (1.3mm gap matching OEM, one heat grade lower, cheaper). Reported pricing: these alternatives run roughly ₽50–100 each on AliExpress, versus a dealership markup of ₽500–700 per plug (both RU market, August 2024) for the same/equivalent parts.^{34353637383940414243444546}

Budget spark plug set pricing (2026-05 report). A budget spark plug set was available at approximately 900 RUB for a full set (May 2026), with Miles-brand plugs and other alternatives at similarly competitive prices.⁴⁷

Wear inspection at 30,000 km — photo documentation (2026-05 report). One owner removed the spark plugs at 30,000 km for inspection; photos show typical deposit accumulation and wear patterns for that mileage, used by the community as a wear-progression reference point.⁴⁸

Media

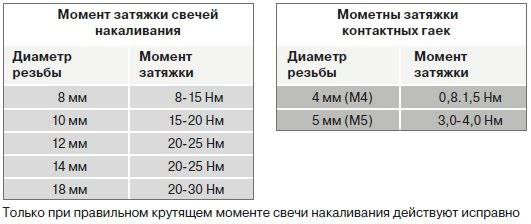

Spark plug torque specification table (Russian)

TORCH spark plugs in packaging

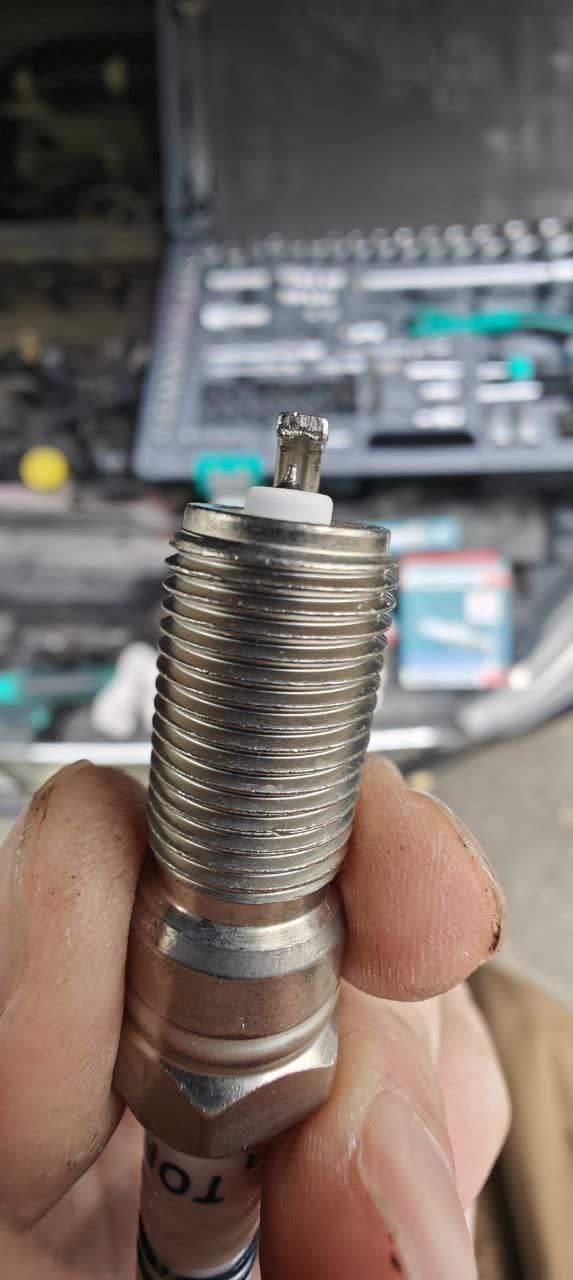

TORCH spark plug close-up showing electrode

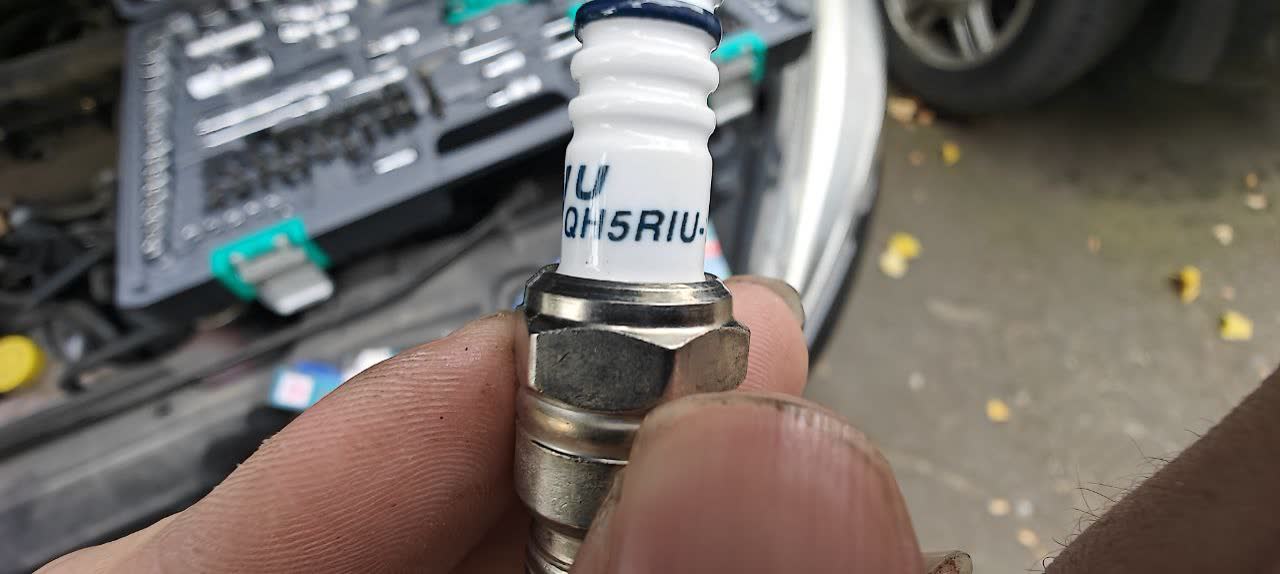

TORCH spark plugs installed, comparison view

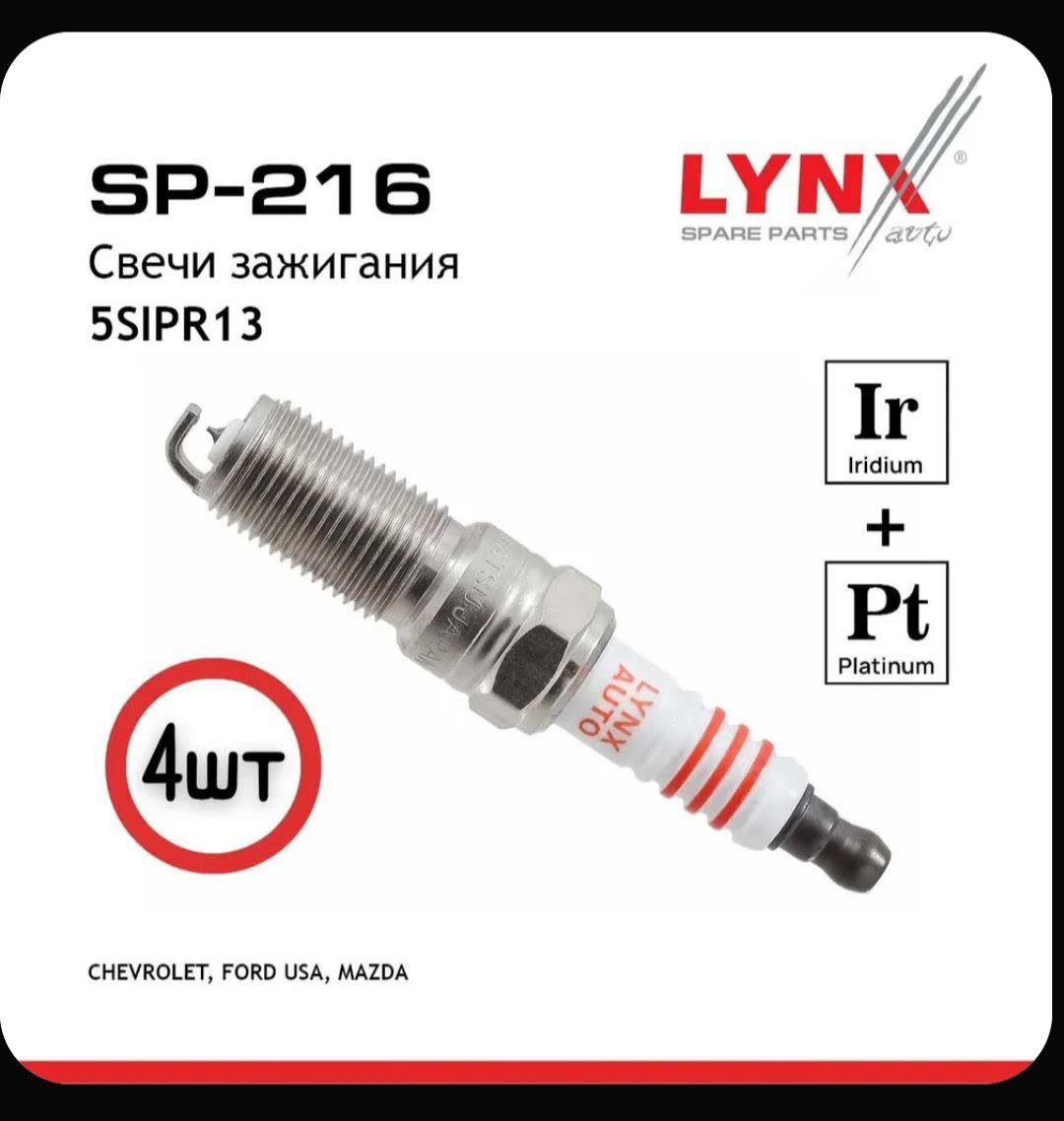

Four LYNXauto SP216 iridium/platinum spark plugs showing even gap spacing and high-quality construction

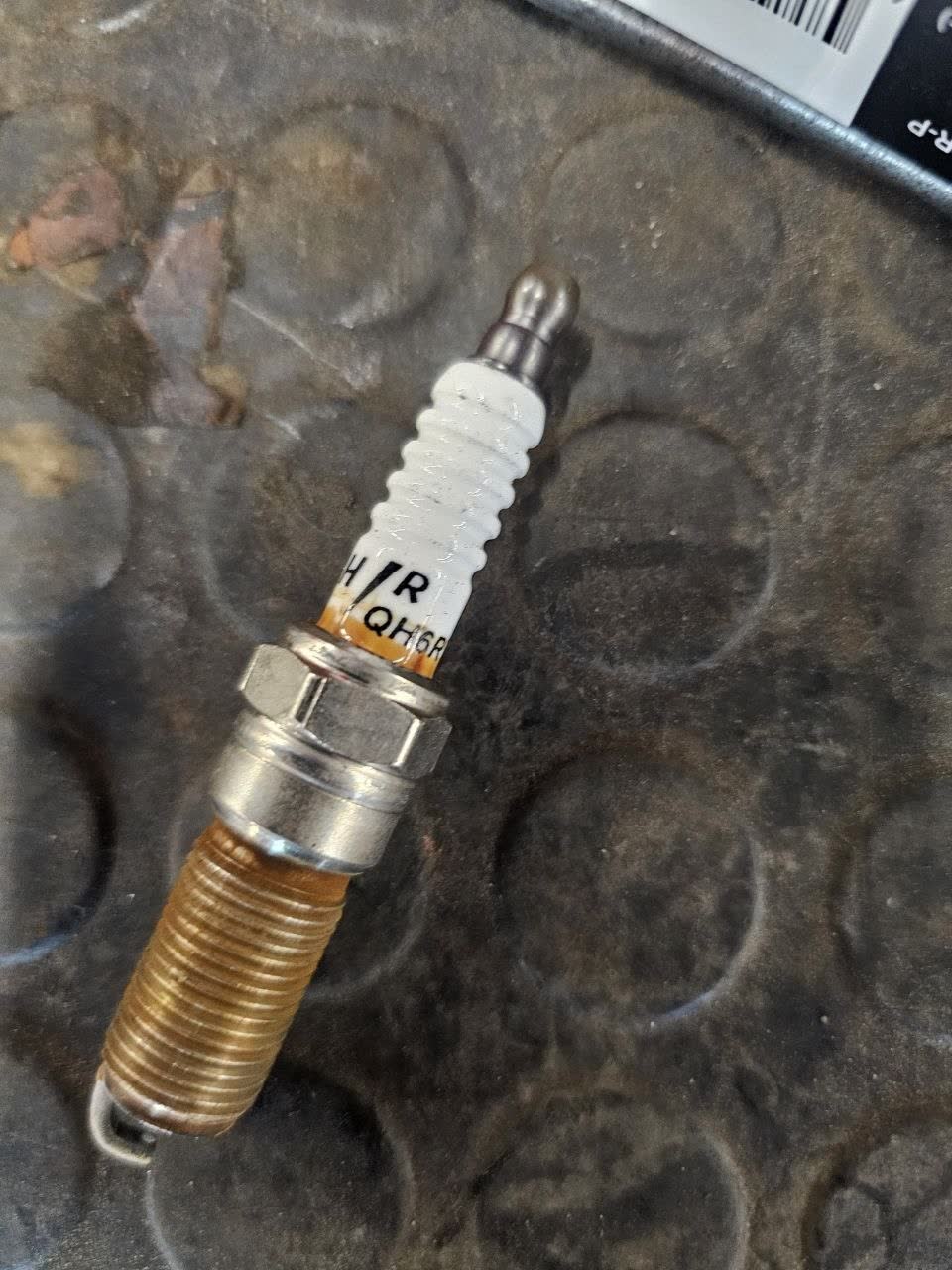

Spark plug removed after 30,000 km showing deposit accumulation

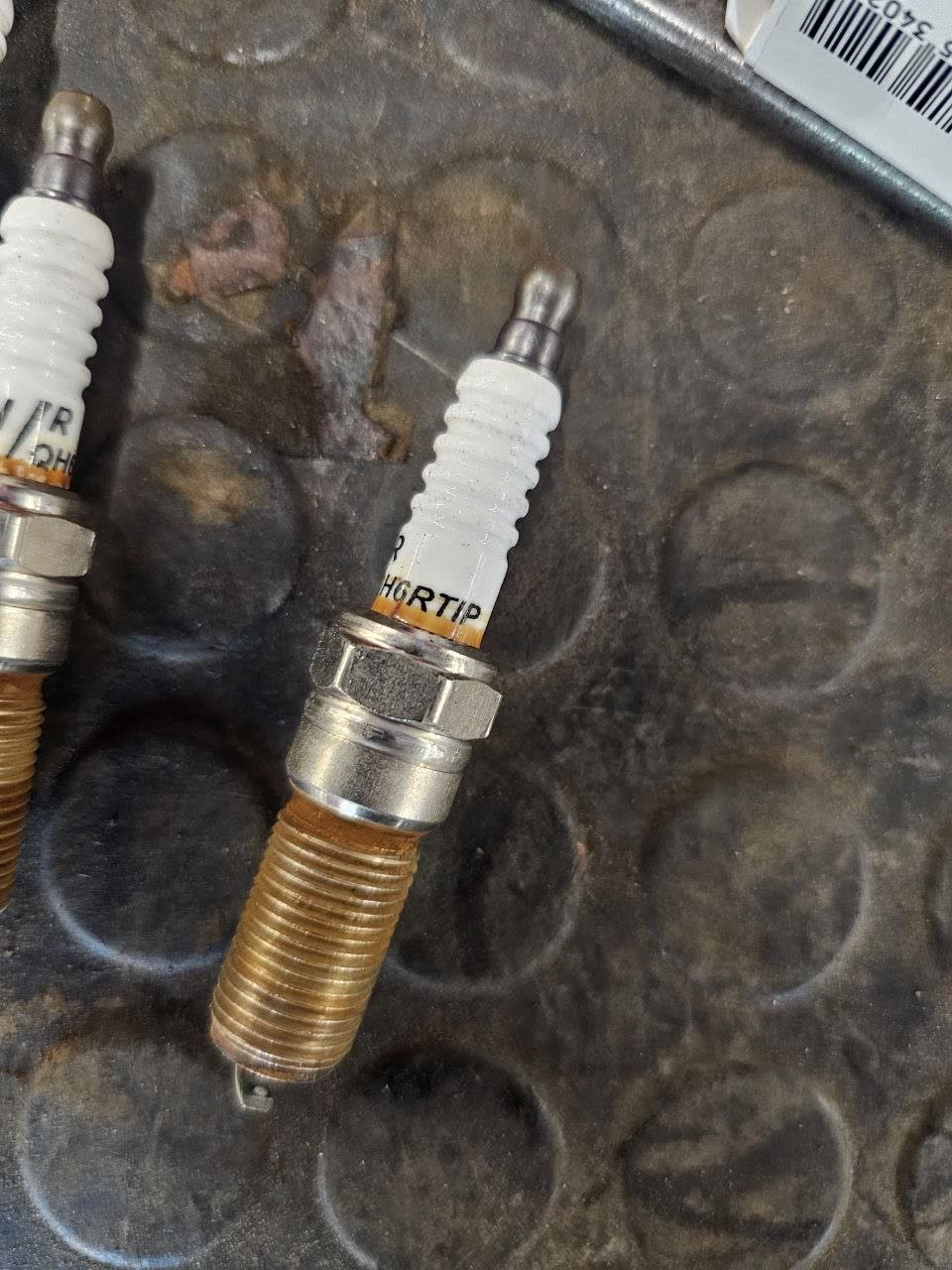

Second spark plug from the same 30,000 km inspection, showing similar wear

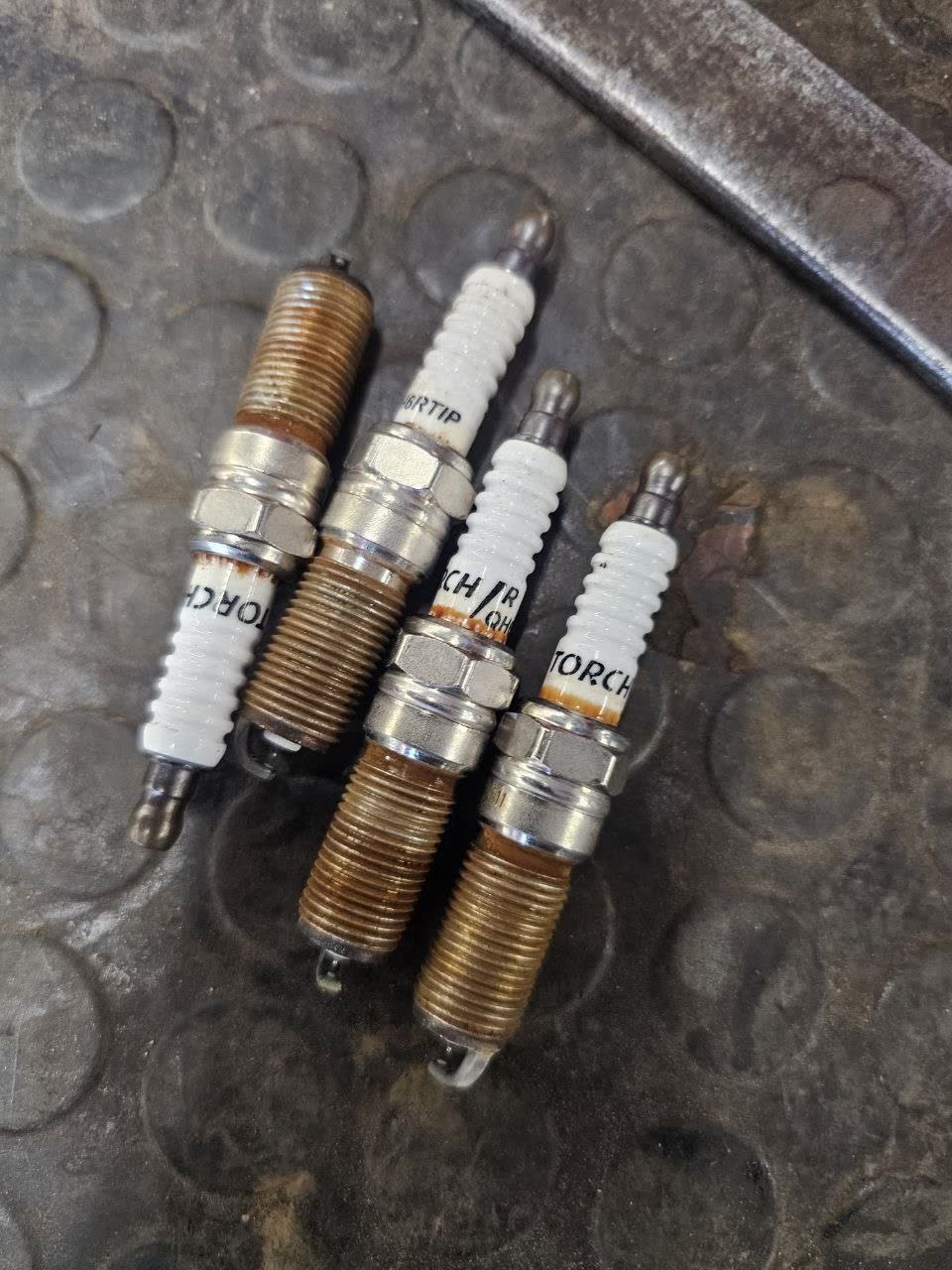

Third spark plug from the same 30,000 km inspection
