Off-road wiring damage and full-system fault diagnosis

Tags: #wiring · #diagnostics · #obd · #esp

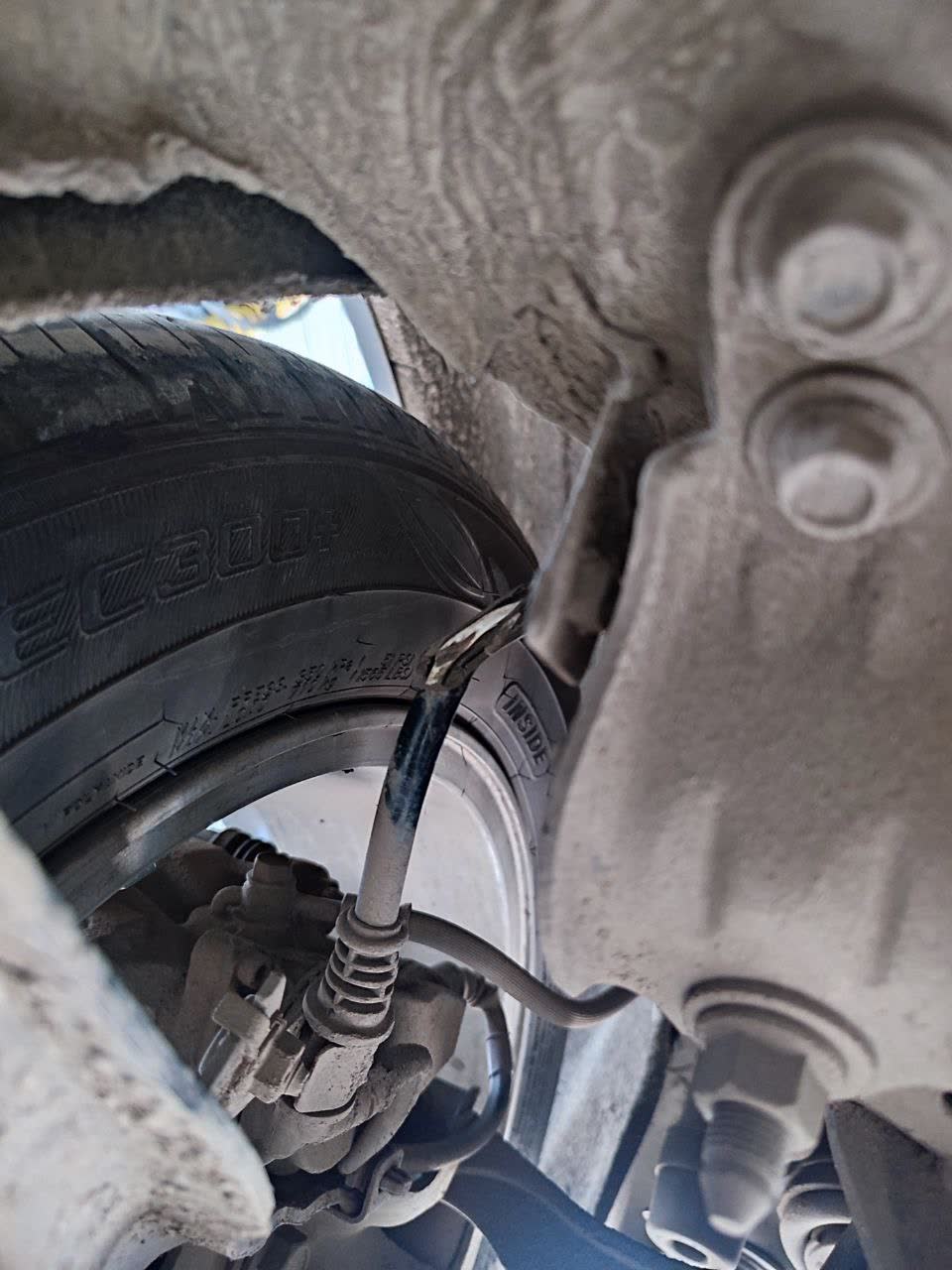

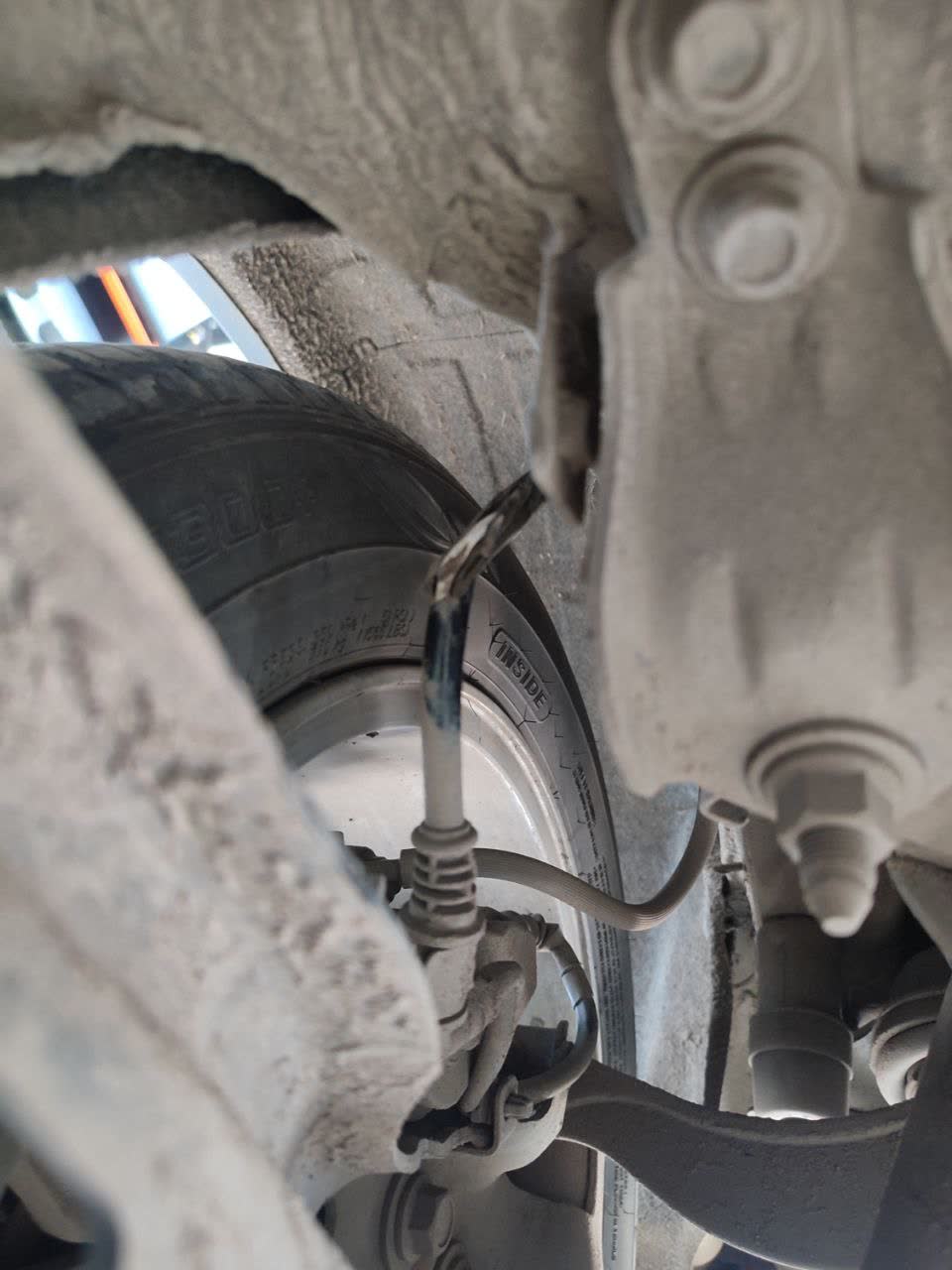

Off-road use (muddy fields, rough terrain) can expose the wiring harness and break connections. After any off-road driving, check for broken or pinched wires in the undercarriage and engine bay¹²³. Photos from one owner show a broken wiring harness in the engine bay caused by off-road use⁴⁵⁶.

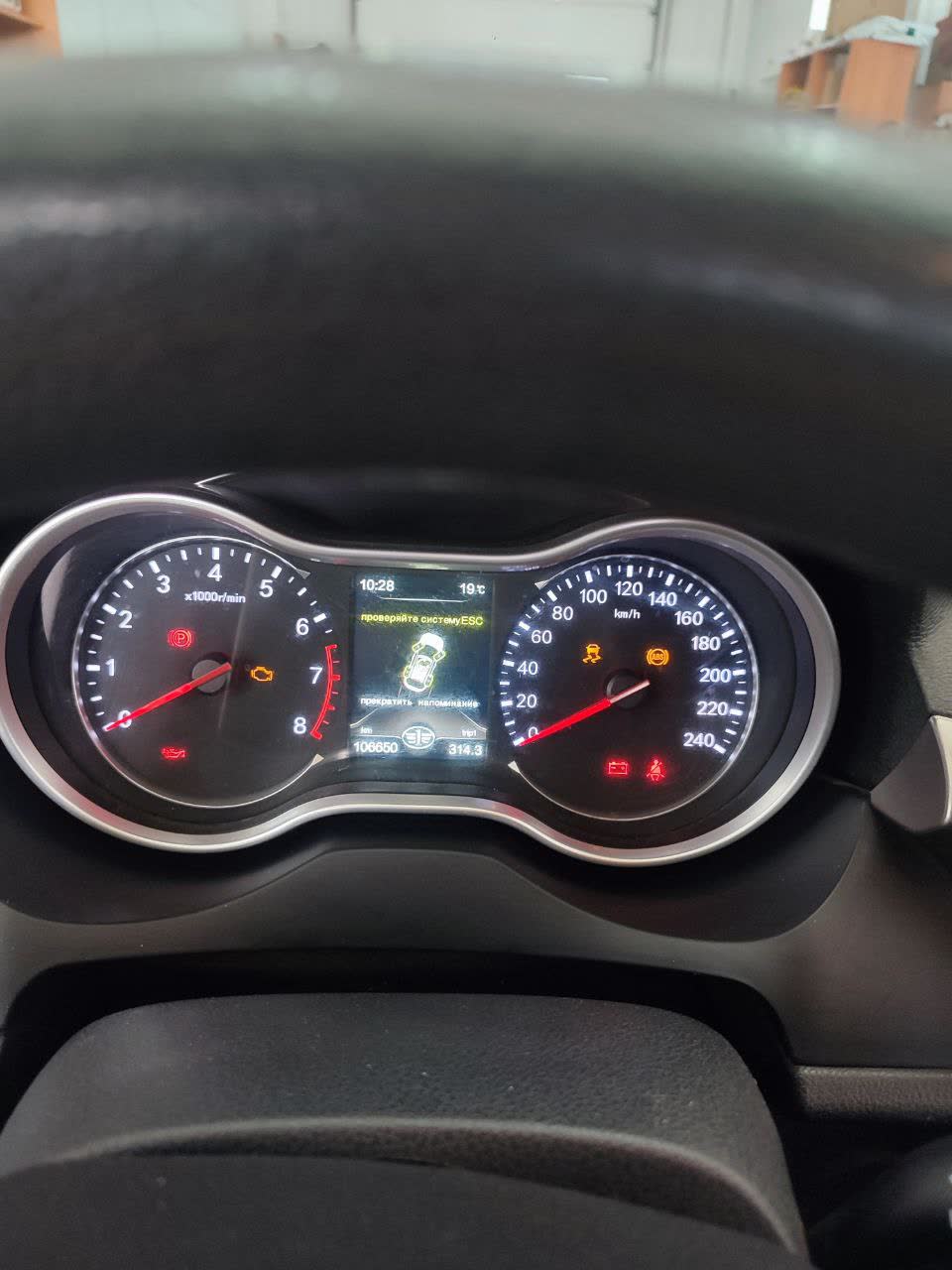

For diagnosis, a basic ELM327 OBD scanner only reads engine codes — it will miss faults in other systems such as ESP. Full-system scanners recommended by the community: Diagzone, Mucar BT200, and DiagSelect, which can read fault codes across all vehicle systems, not just the engine⁷⁴.

Media

Photo of broken wire harness in engine bay after off-road use

Photo of broken wire harness in engine bay after off-road use

Photo of broken wire harness in engine bay after off-road use
