PDC sensor issues after bumper removal

Tags: #bumper

Errors after rear bumper removal. Multiple users reported parking-sensor errors appearing after the rear bumper was removed for unrelated maintenance work. Common causes: a connector not fully re-seated, a damaged wire inside the connector, or sensor positions swapped during reassembly¹²³. The system allows sensor position swapping without immediately triggering an error code, which can make the fault confusing to trace⁴⁵⁶. Temporary workaround: apply thick transparent 3M tape over the malfunctioning sensor to stop the beeping while arranging a repair. Dealership replacement is possible under warranty⁷⁸⁹. Community dispute: HS Development argued that all stock sensors are electrically identical and shouldn't error if swapped, but user experience showed problems occurring after swaps — the likely resolution is that some non-OEM replacement sensors have enough drift/variance that position-matching does matter in practice¹⁰.

Non-original sensors from Ozone marketplace. Separately, non-original PDC sensors bought on the Ozone marketplace showed internal resistance/impedance problems (0–10Ω across all directions instead of the proper impedance curve), causing persistent ERROR codes with the engine running — even though the sensors buzzed normally when bench-tested¹¹¹². Original OEM sensors worked reliably by comparison. Root cause: a faulty internal potentiometer assembly in the cheap sensors^13141516. Solution: buy original OEM sensors, or carefully vetted third-party units with a verified proper impedance curve — check seller reviews closely¹⁷¹⁸¹⁹. Some owners found partial success by flushing/reseating the BCM connections or checking grounds, but sensor quality was identified as the primary issue^202122232425.

Rear parking-sensor error that clears itself. One owner saw a rear parking-sensor error that cleared on its own and suspected a frozen control unit²⁶. Victor says the failing part is an individual parking sensor (парктроник), not the control unit: once a sensor starts dying the error keeps coming back²⁷. Igor agrees that sensors fail on their own and suggests checking by reversing close to a wall and watching the display²⁸. Victor points to a Drive2 guide with a step "find which parking sensor is faulty"²⁹.

Media

Dashboard error display screenshot showing parking sensor error light indication

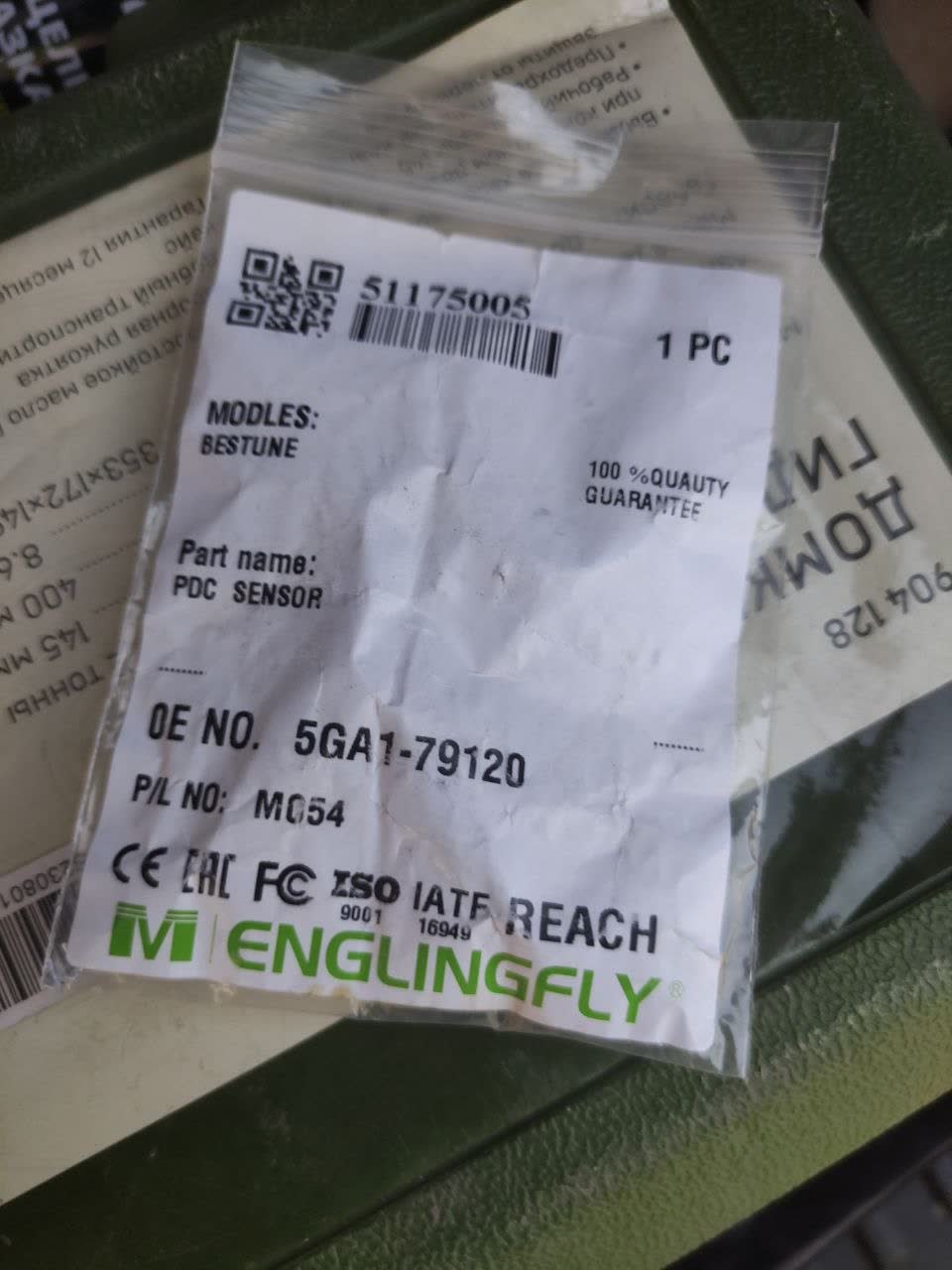

Photo of a non-original PDC sensor

Photo of the PDC control block removed from the trunk, showing the 6mm threaded mounting point (plastic nut with wide flange, thread often damaged during removal)
