OBD diagnostic scanners, software, and TPMS tools

Tags: #obd · #diagnostics · #scanner · #tpms · #elm327 · #battery

Software/platform. Diagzone (X431 ecosystem) is the community's main diagnostic software; the Diagzone Pro subscription covers 650+ vehicle brands and includes the X80 ¹². It pairs with a cheap Mucar BT200 Wi-Fi/OBD dongle re-flashed to run the Diagzone backend, which can read the whole car (not just the engine) ¹². A "FAWCARS" module for Diagzone with updates specific to facelift (2019+) models is needed to read those cars correctly ³. The Android app CarMin contains wiring schematics (electrical diagrams) for the X80, separate from any scan tool ⁴.

Hardware options. - Mucar/Makar BT200 + Diagzone Pro: the community's default budget combo, ~8,000 RUB for the dongle alone (RU market, October 2024) ⁵; needs the Diagzone firmware flashed onto it (or paying an extra 8,000–10,000 RUB (RU market, October 2024) for a pre-flashed unit) to unlock full-vehicle diagnostics ⁶. Bought without flashing, it reads engine (ECU) codes only, and even then not on every model ⁷. For transmission/electrical fault diagnosis, professional shop diagnostics (with a mechanic, not just the scanner) is recommended ⁸. As of 2024-12-27, community pricing for a minimal working setup was: Mucar BT200 hardware (~10,000–25,000 RUB retail) + Diagzone software/FAWCARS module (~720 RUB) (RU market, December 2024) + a smartphone/tablet to run it ⁹. Several members bought units via Ozon links shared in-chat around that date ¹⁰. - Thinkdiag 2: an alternative first-generation scanner that uses the same server/database backend as Diagzone-flashed Mucar units, so it should support the same vehicle list ¹¹. - Autel TS508: a separate, dedicated tool — not a general OBD scanner — used specifically for TPMS (tire pressure sensor) programming/cloning ¹². - ELM327 Bluetooth Mini v1.5 (Ozon product 929042666): a cheap generic Bluetooth OBD2 adapter confirmed to pair with the X80 without issues ¹³. Recommended free companion apps: Car Scanner or ScanMaster ¹⁴. Limitation: this class of adapter reads/clears only engine (ECU) codes over the OBD2 protocol — it cannot read mileage, airbag status, or other body-control-module data ¹⁵. The same class of generic ELM327 adapter was also independently confirmed to work for reading Opel and Škoda vehicles, not just FAW — i.e. it isn't FAW-specific hardware ¹⁶.

OBD-II port location. Under the steering wheel, slightly to the right of center, pointing downward. No trim/plastic needs to be removed to access it ¹⁷¹⁸.

ELM327 adapters — a separate cheap tier from Diagzone/Mucar. Distinct from the Diagzone-ecosystem hardware above, plain ELM327 clones are the budget default many owners simply keep in the glovebox: a "ELM327 OBD2 WI-FI v1.5, chip PIC18F25K80" unit sold on Ozon (https://ozon.ru/t/ynzRtEQ) pairs with the free Car Scanner Android app ¹⁹²⁰. Reliability is inconsistent — quality control on ELM327 clones is "luck of the draw": one owner's unit connected intermittently and dropped every 5 minutes and was called unusable, while another reported the same class of adapter working without issues since 2015; a third bought a v2.1 model hoping for better luck ²¹²²²³. Cost is low enough (~900 RUB (RU market, March 2024)) that replacing a bad unit isn't a big loss ²². - Car Scanner ELM OBD2 (Google Play: com.ovz.carscanner) is the community's preferred free app over the alternative OBD Mari, per an owner who tried both ²⁴²⁵. It displays lambda-sensor readings, engine load %, intake-manifold pressure, long- and short-term fuel-trim correction, coolant temperature and idle RPM, in addition to reading/clearing engine codes ²⁵²⁶. - Hard limit, confirmed by two different owners independently: a plain ELM327 can read/clear engine (ECU) codes only — it cannot read the airbag module, the AKPP (AISIN automatic transmission) module, or other body-control-module data, matching the limitation already noted for the ELM327 Bluetooth Mini above ²⁷²⁸. No Android app exists that surfaces X80-specific real-time parameters beyond the generic OBD2 PIDs — asked directly in-chat, the answer was a flat "no" ²⁹³⁰. - Battery-drain false codes. A flat/weak battery can trigger a wave of simultaneous fault codes (including on the AKPP) that clear on their own once the battery is reconnected/recharged. One owner had an airbag warning come on, took the car to a shop, was shown a long list of fault codes, and paid 1,500 RUB (RU market, February 2026) for a "diagnosis" that turned out to be exactly this — a fully discharged battery, not a real fault; afterwards they bought a cheap ELM327 adapter off AliExpress to check codes themselves in future and haven't seen any errors on it since ³¹³². A second, independent report corroborates the pattern: another owner's AKPP threw a low-voltage fault code after their battery went flat, and it likewise cleared once the battery issue was resolved ³³. - Erasing (not just reading) codes may need a "dual-board" ELM327. One owner who bought an extended-chip ELM327 (paired with PC/phone software) a few years earlier noted that clearing/erasing fault codes needs a "2-плата" (two-PCB) version of the adapter — the listing has to say this explicitly; a plain single-board unit reportedly can read but not reliably erase ³⁴. - FCAR CW700 — a separate professional-tier OBD2 scanner marketed for Chinese brands (Chery, Haval, Geely, Changan) with full-system code reading and free updates; suggested as an alternative when an ELM327 isn't enough, sold on Ozon (https://ozon.ru/t/b2ThFxa) ³⁵.

TPMS (tire pressure sensors). - Sensor batteries are normally sealed inside the sensor housing and not meant to be user-replaceable, though a video exists showing a practical workaround for opening a sensor and replacing its battery ³⁶. - A Moscow-based Avito service listing offers professional TPMS sensor programming, cloning, and adaptation to the vehicle — relevant for owners who buy generic/used replacement sensors and need them matched to the car ³⁷. - A RuTube video walks through TPMS sensor installation and programming for the X80, including adapting universal (non-OEM) sensors ³⁸³⁹.

Media

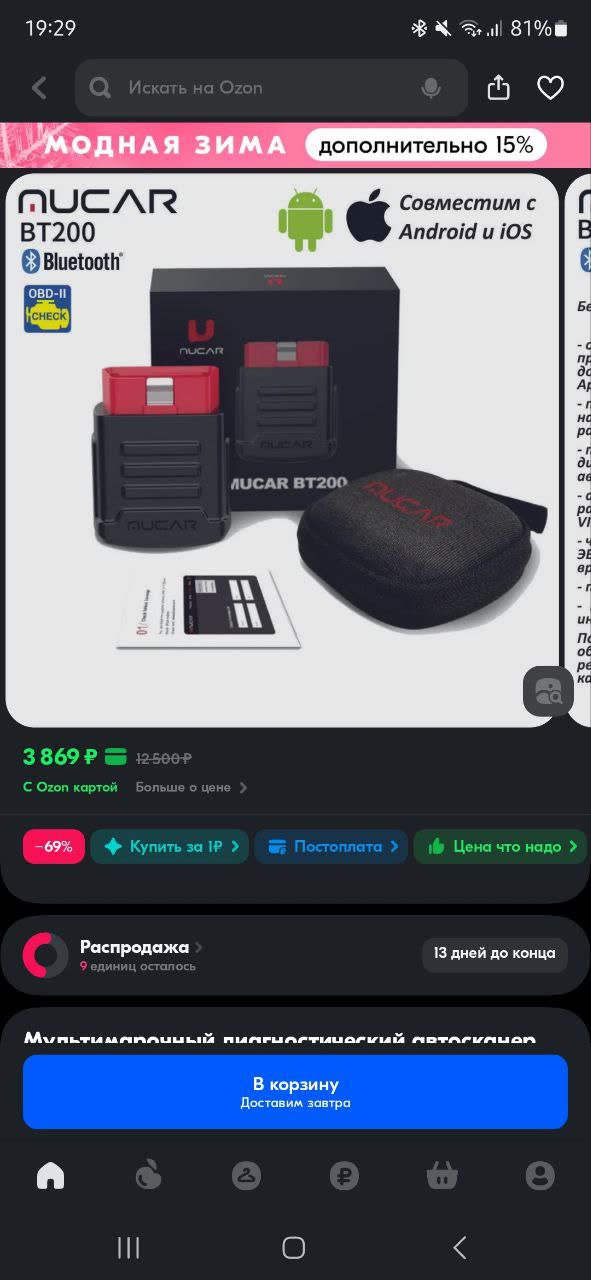

Photo of a Mackay (Makar) VT200 OBD scanner device discussed for use with Diagzone Pro software

Second photo of the Mackay VT200 scanner device, confirming the model being discussed

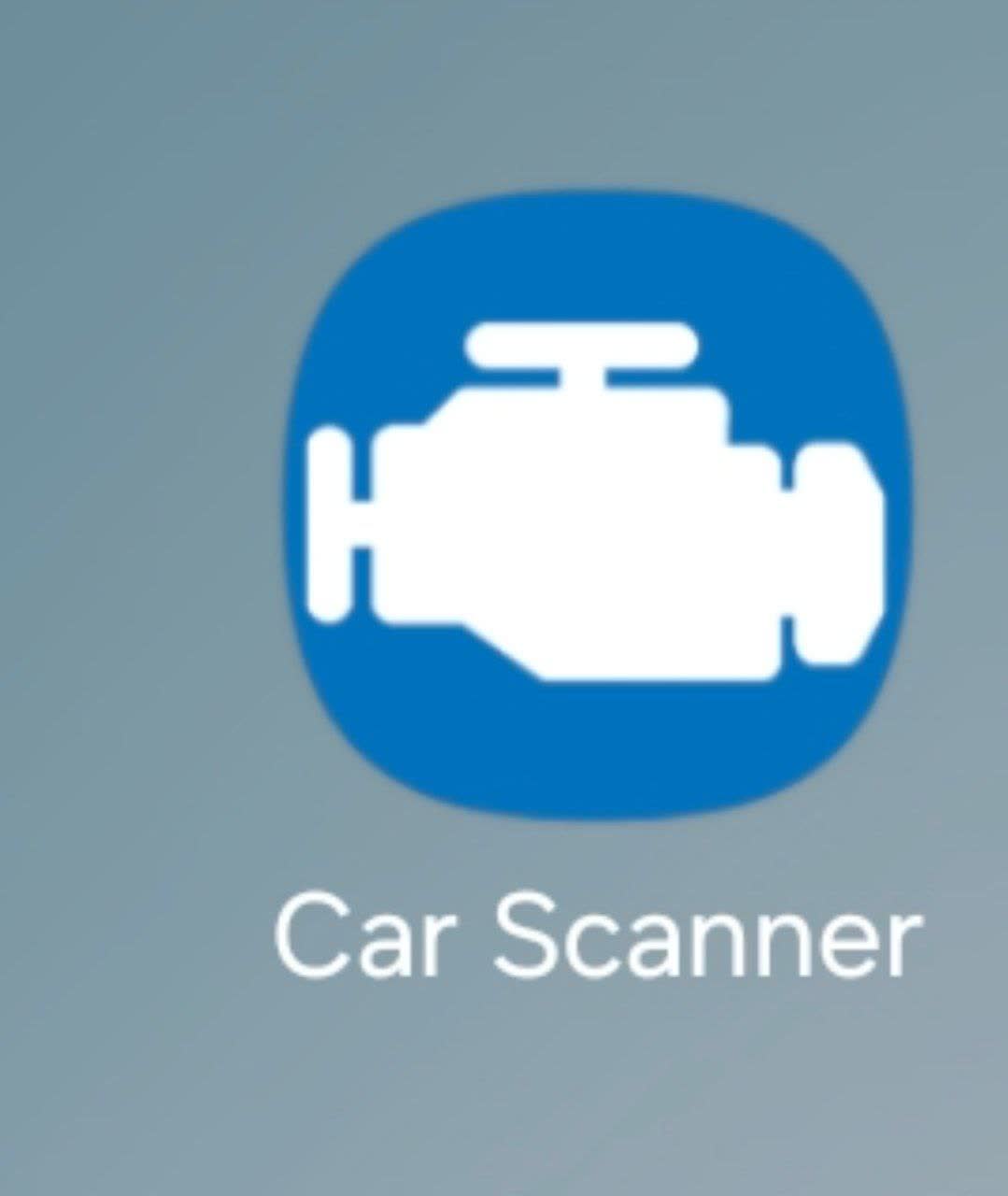

Screenshot of the Car Scanner ELM OBD2 Android app diagnostic interface
