Front springs — ride height and settling

Tags: #springs · #fitment

Front suspension height imbalance after Sufix spring install (March 2026): installing new Sufix-brand front springs (confirmed OEM-spec replacement) caused the front of the vehicle to sit ~2cm higher than the rear, an unbalanced stance resembling a "lifted" vehicle. Root cause: the new front spring's stiffness combined with the (separately) worn/ sagged rear springs, not a defect in the front spring itself. Fix: install 20–30mm rubber spacer shims under the rear springs to re-level the stance — Clearance-Plus-brand 30mm spacers made for the Mazda 6 GH were confirmed compatible. No negative handling effects were reported at highway speeds of 140+ km/h after the correction ^12345678. Cross-reference: see the rear springs card for the matching rear-spacer fix in detail.

Suspension tuning — how wire thickness, spring rate, and shock condition interact (April 2026): spring stiffness is set primarily by the wire (rod) thickness — many buyers select springs only by physical dimensions (width/length/height/diameter) without considering stiffness, and get caught out. A worn/soft shock absorber can mask a spring stiffness problem: if the shock no longer damps properly, the front end can visibly sag/dip even with correctly-rated springs, which owners sometimes misdiagnose as a spring issue. Victor clarifies: the shock absorber itself does not affect ride height (it only damps motion) — height is set by spring rate, which usually correlates with wire thickness. A thicker-wire (stiffer) spring compresses less under the car's weight and therefore results in a higher final ride height than a thinner-wire spring by roughly 5–15mm; overall front-left/front-right height should still come out even once matched correctly ⁹¹⁰.

Cutting a coil to lower the front makes bumps harsher — fix is a full Mazda 6 GG fork + KYB swap: cutting one coil off the front springs lowers the car (leveling out a nose-high stance) but makes the suspension noticeably harsher over bumps — at 30–40 km/h over a speed bump, the impact becomes a jarring hit instead of the shocks absorbing it smoothly. Fix recommended by shops: replace the front struts entirely with longer-stroke Mazda 6 GG forks (not GH — see the shock absorbers card for the GG-vs-GH stroke-length distinction) paired with KYB shocks. This requires a complete fork replacement, not just a shock swap — guides are available on Drive2.ru (https://www.drive2.ru/l/588344000172297904/ and https://www.drive2.ru/l/588012772294411407/). Reported to noticeably improve suspension geometry/compliance after the lowering mod ^{11121314151617}.

SUFIX SZ-1303 — 2020+ models, ~3cm lift, some settling in the first weeks: further corroborating reports on SUFIX SZ-1303 (already documented above): confirmed specifically for 2020-and-later X80 model years, giving roughly +3cm at the front. Some owners observed slight settling/subsidence within the first 1–2 weeks after installation. Owners measured resulting ride height with different reference points (wheel-center-to-arch vs. rocker-panel/порог) — readings are not directly comparable across methods, so pick one measurement method and stick with it before/after. Confirmed stiffer than stock ¹⁸¹⁹.

LYNXauto SC-1590 — long-term settling, ~1cm over 6+ months: additional owners confirm LYNXauto SC-1590 springs fit the factory struts without modification, but several separately report the same settling characteristic: roughly 1cm of sag after 6+ months of use. Spring diameter matches factory spec; aftermarket coil-material quality is reported to vary between batches ^2021222324.

Ride height, boots and settling (Sep 2026 thread). Victor: the stock X80 front spring is about 380 mm free height, not 400 ²⁵; the Suffix SZ1303 is also 380 mm, and the one-piece (not two-part) GG-type dust boots (пыльники) add 10-15 mm ²⁶. He says the stock front shock resembles the Mazda GH strut with a GG-style hose lug welded on, so the matching spring has GH parameters, but is the stiffest one ²⁷. Olga fitted yellow reinforced Suffix SZ1303 springs and the front rose a lot — 470 mm — to the point that the car felt as if it would take off ²⁸²⁹; Che Guevara noted the group had blamed the double dust boot from Mazda ³⁰. Settling claims disagree: Victor relays that the Suffix version with a 13 mm rod sags within one to two months according to Mazda owners ³¹, while Olga reported no sag after two months ³², and Arсhi 77 argued that mileage, not calendar time, decides whether springs settle ³³. Victor measured her wire at 13.5 mm rather than 13 mm ³⁴, supported by a caliper photo ³⁵; his own 14 mm-rod Suffix ("too stiff") measured 460 mm right after fitting and 450 mm after settling ³⁶. When reporting height, measure from the wheel centre to the arch, not from the floor, because owners run different tyre sizes ³⁷.

Related cards: Front springs overview; Coil springs — aftermarket numbers and sag (all springs)

Media

Side-by-side stance comparison before/after rear spacer installation, showing the front-vs-rear height differential caused by new front springs

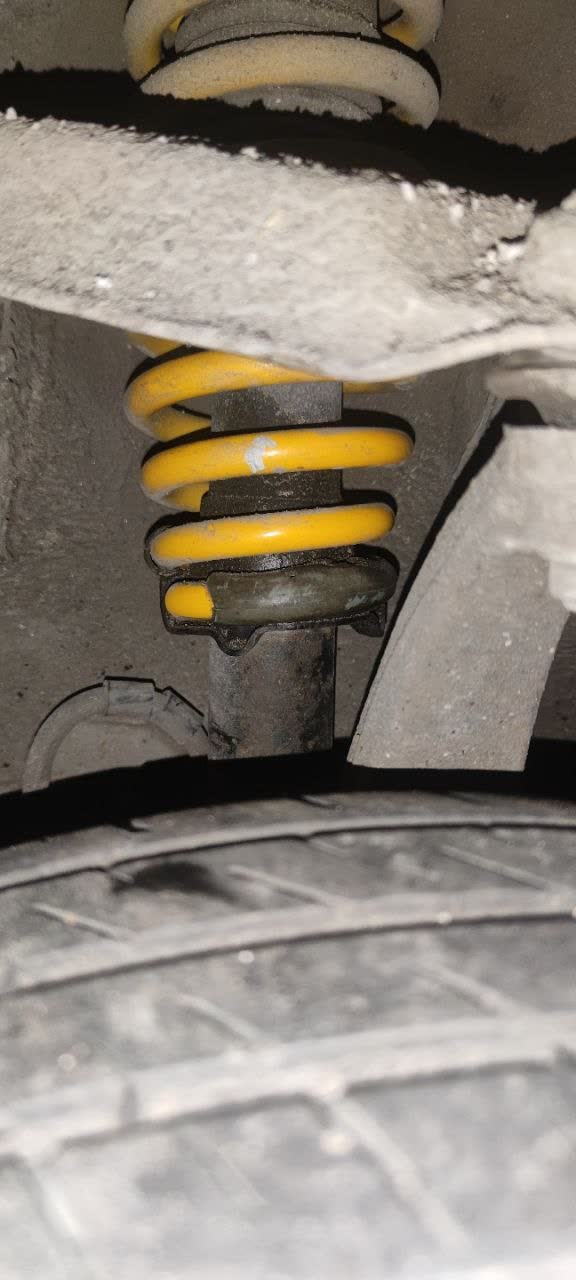

Yellow coil spring seen from inside the wheel arch above a bump stop and a shock (Olga's Suffix springs)

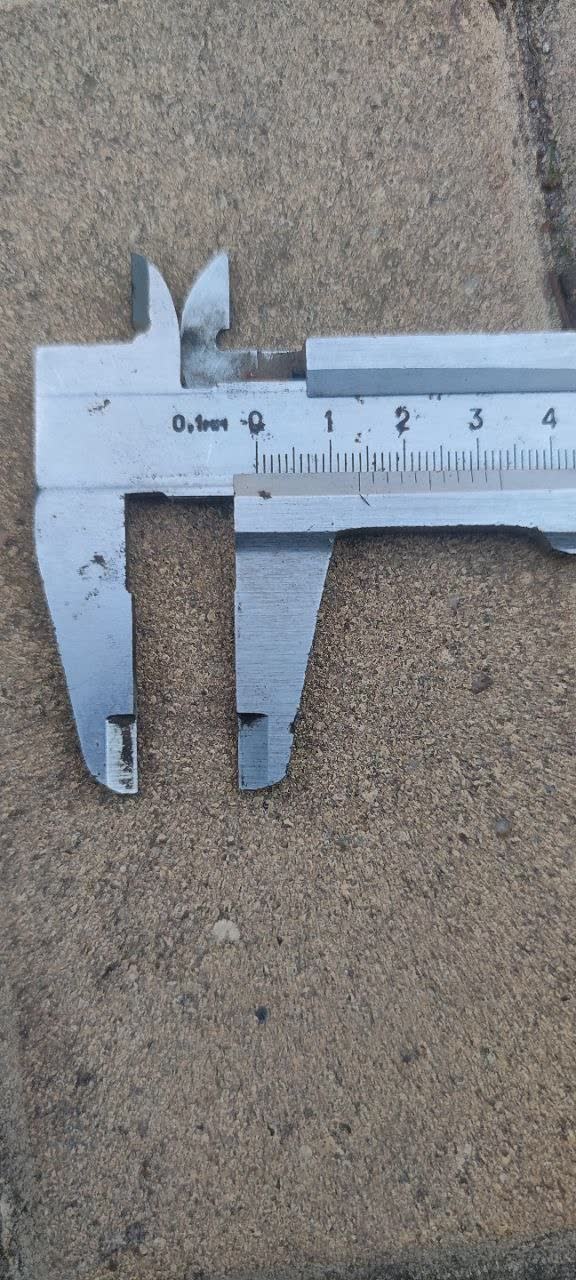

Vernier calipers measuring the spring wire; the reading is about 13.5 mm
