Front suspension noise diagnostic checklist

Tags: #diagnostic · #squeak

Two separate threads cover cases where the cause of a front suspension noise was not obvious and required systematic elimination. See also the dedicated cards on upper control arm squeak and stabilizer bar bushings for the most common specific causes.

Squeak appearing right after a tire shop visit: a front-left squeak heard when rocking the car up and down first appeared immediately after a tire-shop visit. Two candidate causes were suggested by the community: (1) a seized ball joint or worn lower front control arm — the shop suggested a dealership inspection to formally diagnose it; (2) stabilizer bar bushings — a common symptom of worn stabilizer bushings is the car rocking side-to-side over bumps. Recommendation: have the shop check both the upper control-arm play and the stabilizer bushing condition before leaving, since either can produce a similar-sounding squeak (unresolved conflict — the thread does not confirm which one it actually was) ¹²³⁴.

Persistent front-left knock, 2 years unresolved: one owner reported a small, persistent knock in the front-left wheel that had resisted multiple repair attempts over two years, including a power steering pump replacement and a full steering rack replacement — neither fixed it. Community-suggested checklist for this kind of hard-to-pin-down knock: - Check brake caliper guide-bushing play by grabbing the caliper by hand and shaking it — a felt play there is a strong lead. - Inspect the stabilizer bar bushings. - Verify the engine underbody protection plate is tightened (a loose plate can rattle/drum and be mistaken for a suspension knock). - Check subframe fastener tightness and front suspension arm silentblock tightness. - A similar-sounding knock on a Citroën was once traced to a small stone stuck in the spring cup — a reminder to check for foreign objects too.

Diagnostic approach recommended: isolate exactly when the noise occurs (over bumps, under braking, while steering) and then systematically check each suspension/brake component's play in turn, rather than replacing parts speculatively ⁵⁶⁷⁸.

Multi-cause noise at 73,000 km: one owner's front-end noise (increasing with speed, worse in turns) turned out to have several simultaneous causes once diagnosed: worn front hub bearings on both sides, brake pad wear, and worn front suspension bushings (sway bar links and longitudinal arm bushings), plus worn rear sway-bar bushings. See the dedicated front wheel hub bearing card for the hub bearing details of this case — a reminder that a single noise complaint can have more than one simultaneous root cause, so a full check rather than a single-part swap is often warranted ⁹.

Possibly the strut mount, not the arms: in another case, front suspension clicking/knocking that was first suspected to be the upper control arms or lower ball joints turned out not to be either — the owner resolved a similar-sounding noise by replacing the strut mount (опорник) instead. Even when visual inspection shows no damage or cracking, worn internal strut-mount components can still cause noise, and replacement is relatively inexpensive — worth trying before assuming the arms or ball joints are at fault ¹⁰.

Bump-stop replacement resolved rear knocking: the X80 uses relatively soft dampers, so spring load ends up concentrated on the bump stops (отбойники). One owner's rear knocking/clunking while driving was resolved by replacing the rear bump stops, with the side benefit of a noticeably softer ride; he recommends checking and replacing the front bump stops on the same schedule for consistent comfort ¹¹¹²¹³.

Metallic clunking over potholes — not always visible on inspection: some owners report metallic clunking/clicking specifically over potholes and uneven surfaces, which a dealer's visual diagnostic did not identify as damage. A possible cause raised by the community is loose/worn upper suspension-arm bolts ¹⁴¹⁵. A separate, confirmed fix for a similar symptom: disassembling both upper suspension arms and lubricating all bolts with SHRb-4 grease eliminated the clicking/squeaking over bumps — this can be done without fully removing the arms ¹⁶¹⁷ (see also the upper control arm card for the fuller writeup of this fix).

Dull clunk traced to the shock-absorber bump stops: a separate report describes a dull, metallic clunk at low speed, most noticeable on small suspension movements, traced specifically to the shock-absorber bump stops (rather than the spring-side bump stops above); replacing the rear shock-absorber bump stops eliminated this particular noise ¹⁸¹⁹.

Clunking/knocking radiating to the wheel or pedals — broader checklist: for knocking on small bumps or during turns that radiates to the steering wheel or the pedals, the community's broader list of possible causes (beyond the bump stops and upper-arm items above) includes: stabilizer bar bushings (still the most common single culprit), worn CV joints (both inner and outer ШРУС), steering-linkage wear, and even brake-pad issues — all should be checked in turn rather than assumed ²⁰²¹²².

Extended clicking/clunking discussion — comprehensive cause list at 7 years / 130,000 km: a long community discussion of clicking/clunking during acceleration or over bumps compiled a broader set of candidate causes than any single thread above: loose ball joints on the steering knuckles (шаровые опоры цапфы) not properly secured by cotter pins; worn stabilizer-link bushings and rods; hardened damper bump stops and protective boots; worn upper ball joints; and worn stabilizer-bar rubber mounts. A recurring point in the discussion: simply re-tightening fasteners does not fix clicking on its own — the root cause is wear and play at the joints themselves, so tightening alone is a temporary measure at best. At around 7 years / 130,000 km, a comprehensive suspension inspection and refresh (rather than chasing a single part) was the recommendation. Unresolved debate: contributors disagreed on whether stabilizer-rod noise or damper-rod noise better explained the symptom depending on exactly where on the road (which bump, which manoeuvre) the noise appeared — the thread does not settle this, so isolate the trigger conditions carefully before replacing parts ²³²⁴²⁵.

Long thread — worn upper-arm bushings causing grinding/creaking in turns, ~100k km: an extended troubleshooting thread (JÚLIA's car) started with a grinding/creaking noise during turns/cornering, initially suspected to be a broken spring. After inspection on a lift, the noise was traced to worn upper control-arm bushings (silentblocks) rather than the spring or brakes — at around 100,000 km these bushings can wear out completely. Replacing the bushings resolved the noise, and the suspension felt noticeably more responsive afterward. A brake-line routed against the body panel was separately flagged as capable of producing a similar-sounding noise, so it's worth ruling out too. Note on process: the thread includes a debate about whether a shop's diagnosis to replace "almost the entire suspension" from a lift inspection alone (without a clear description of the specific play found) can be a sales tactic — the community's advice is to ask for the specific worn component found, not just a general "replace everything" recommendation ²⁶²⁷²⁸.

General reminder — don't skip the OBD scanner: tangential to suspension noise specifically, but a recurring community reminder worth noting here: a check-engine warning light can indicate many different faults, and simple visual inspection of the dashboard alone is insufficient to diagnose it — always read the actual diagnostic trouble codes with an OBD scanner before attempting any repair ²⁹.

Right-side dull knock that fades after driving a bit — strut suspected but unconfirmed (Oct 2025): a dull knock from the right side, disappearing after driving a short distance, was hunted extensively without a clear culprit; the owner suspected the strut/shock (стойка) as the most likely remaining source, even though the shaft moved smoothly by hand and no play was found by shaking the car. Community input: "plenty of things" in this dense suspension can make a dull sound, and the stock ride is very good at transmitting road noise generally — check stabilizer bar clearance from the frame as another possibility. This overlaps with, but was not conclusively resolved by, the OEM-shock-fork thread already on this card ³⁰³¹³².

Right-side "under the fender" knock persisting after a full front suspension refresh (Oct 2025): after replacing essentially the entire front suspension on one side — control arms, stabilizer links, lower links, strut, springs, bushings — a persistent right-side knock from under the fender area remained. Likely remaining sources discussed: steering-rack play over bumps, upper control-arm bushings, the steering knuckle, or a driveshaft/CV-boot area (bell-housing) issue. Systematic isolation (one component swapped at a time) was recommended rather than guessing ^{333435363738394041}.

Cold-weather clunking — multi-cause dispute, no single fix confirmed (Dec 2025): an extensive, later thread specifically about clunking that appears (or worsens) in cold weather on small bumps and fades as the engine/car warms up. Diagnostic steps discussed: check CV-joint dust boots for tears, verify ball joints, inspect the stabilizer linkage and bushings (the stabilizer bar can shift right under load from worn bushings or geometry issues — one owner measured it sitting only ~1mm from the frame), check for play in the reactive/control arms, and examine the rear engine mount for cracks. One owner attempted a fix by loosening the subframe and reseating the reactive arm, suspecting a misaligned bolt on the left side near the body, but reported the tie rod/arm still drifted back out of position afterward — replacement parts alone did not resolve it for this owner, even with new OEM bushings installed and torqued with the car at ride height. Conflict: the thread does not converge on one cause — contributors variously blame stabilizer bushings, ball joints, or reactive-arm/frame geometry, and several report that replacing components didn't fully fix it; treat cold clunking as having multiple possible failure modes, some possibly design- or frame-tolerance-related, until proven otherwise on a specific car ^{42434445464748495051525354555657}.

Rear engine mount — check for cracks as a specific cold-clunk source: as part of the cold-weather clunking diagnostic above, the rear engine mount (задняя опора ДВС) is called out specifically as worth checking for cracks or deterioration; see the engine mount card for full engine-mount diagnosis detail ⁴².

Cold "pok pok pok" wheel noise — separate report, same seasonal pattern: a related but separate report describes a knocking/tapping "pok pok pok" sound from the front and/or rear wheels specifically below freezing, likened to wooden parts or stiff rubber — audible at low speed, nearly silent once the car warms up. Likely cause discussed: suspension bushings (сайлентблоки) stiffening in the cold, or loose suspension fasteners expanding/contracting with temperature. Not urgent, but worth inspecting for sagging, bushing deterioration, or loose mounting bolts ⁵⁸.

Right-side clicking with all-new suspension except the strut — amortisseur vs. ball joint (disputed, Dec 2025): a right-side clicking noise over bumps persisted despite every front suspension component being new except the strut; shaking the car by hand found no play except laterally. One owner leaned toward the strut or a ball joint as the cause; a second owner with genuinely new struts (sourced secondhand from Avito) still had the same noise, which weakens the "just replace the strut" theory. Conflict: the thread does not resolve which component is responsible — treat this specific right-side click as an open, recurring community complaint rather than a solved case, consistent with the cold-weather clunking conflict already on this card ^{596061626364656667}.

Vibration at 100–140 km/h (chassis, not steering wheel) — wheel/rim/ brake-disc diagnosis path (Nov 2025): a chassis-only vibration (no steering-wheel input) appearing specifically in the 100–140 km/h range, with wheels rebalanced multiple times without resolving it and new engine mounts already ruled out, and the same vibration present on both summer and winter tire sets on the same rims — points away from tires/balance and toward a bent wheel rim or brake-disc runout. Suggested check: remove the wheel and manually rotate the hub/disc to feel for contact or wobble; no vibration under braking suggests the brake discs are internally OK, but radial runout (bent rim, or debris/rust inside) can still cause vibration unrelated to braking itself ^{68697071727374757677787980}.

Cold-tire-change knock — seasonal tire swap onto different rims (Nov 2025, low confidence): a loud knock when turning right appeared immediately after switching from 215/60 summer tires to 215/55 winter tires on a separate set of rims (~40,000 km car); absent on the summer set, and wheel-lug tightness was double-checked. Suggested causes: tire-size/geometry mismatch, rim imbalance, or a CV-joint/drive-shaft issue coincidentally surfacing at the same time; recommended diagnostic: remove the affected wheel and manually rotate the hub while turning the wheel to the affected side to isolate the source ^8182838485.

Front strut mount clunk on a restyle — rotating vs. non-rotating bearing type (March 2026): Маksim (restyle, 2018) reported a persistent clunk from the front shock/strut mounts and asked whether others had run into the same issue and what mounts should actually be fitted. He had previously had mounts with a rotating bearing ("подшипник поворотные") installed, which stopped the spring from turning with the wheel; per the parts catalog, the non-rotating ("не поворотные") type is listed as the correct original-spec part — but this non-rotating type clunked even brand-new. Shocks were replaced up to three times chasing the noise before the mounts themselves were identified as the actual cause; Маksim then re-ordered a second, different mount (matching the first photo he'd shared) after confirming the diagnosis. Сергей Крисман separately confirmed he'd go change his own the next day. This is the earlier stage of the same overall diagnostic saga that later used a specialized vibration bench, documented immediately below ^{86878889909192939495}.

Vibration-bench diagnostics can isolate the exact suspension component: for cases like the ones above, a specialized vibration bench (вибро стенд) can diagnose suspension noise/vibration sources with much more precision than a road test or a visual check — the shop runs multiple scanner/sensor tools on the bench to isolate which specific component is at fault, distinguishing between shock-absorber failure, bushing wear, spring problems, and bearing issues. This service is available at some specialized repair shops and is worth seeking out for a noise that has resisted the usual part-by-part elimination process ⁹⁶⁹⁷⁹⁸.

Suspension bolts loosen after the first winter — preventive retightening: after a car's first winter season, suspension bolts (including shock-absorber fork/clevis mounts) can gradually loosen; ball joints may also loosen slightly from their factory torque. Recommended preventive maintenance: retighten all suspension bolts once after the first winter ⁹⁹.

Rattle from the catalytic converter dust shield: a rattle/noise from the rear/underside of the engine can also originate from the catalytic converter's dust/heat shield (пыльник катализатора) — this sheet-metal shield can vibrate and produce noise at highway speed or in specific RPM ranges, and is worth checking alongside the engine-mount and exhaust-mount causes described on the engine mount card ¹⁰⁰.

Metallic rattle from the rear — check for a partially broken spring coil: a distinct metallic rattling/clanging sound from the rear can indicate that a rear coil spring has partially broken, with the loose metal fragment striking the surrounding suspension component on every bump. This requires visual inspection of the rear springs and, if confirmed, spring replacement — see the rear springs card for sourcing ¹⁰¹¹⁰².

Stiff ride over parking-lot bumps is normal "stock tuning", not a fault: new owners frequently report that the X80 feels very stiff and transmits every small bump, especially at low speed in parking lots and over speed bumps. The community consensus is that this is normal for the platform's stock suspension tuning, not a defect. The only community-suggested remedy is to swap in softer Mazda-sourced suspension components for a more comfortable ride — at the cost of somewhat reduced handling precision; see the shock absorbers card and front springs card for the specific Mazda cross-fit parts ^{103104105106107}.

Rear suspension bounce test — quick damper diagnosis: quick diagnostic for weak rear dampers: open the trunk and press down firmly on the rear of the car with your body weight, then release. Working dampers compress smoothly and return to rest position in a single motion without bouncing. Excessive bouncing (more than one oscillation) indicates worn/failing shock absorbers or weak springs. This symptom often shows up after speed bumps if the dampers are degraded ^108109110111.

Rattle mistaken for suspension noise — loose exhaust heat shield: a loud rattling/ticking sound from underneath the car, especially under acceleration or in specific RPM ranges, is often not a suspension fault at all — it's commonly a loose exhaust heat shield (термозащита) whose mounting points have loosened from vibration. Diagnosis: locate the shield (typically over the catalytic converter or silencer area) and visually check for gaps or movement. Fix: tighten or re-seat all mounting fasteners; if the shield has fully detached and is resting against the exhaust, either reinstall it properly or remove it if it serves no remaining function. Self-tapping metal screws can serve as a temporary fix if the original bolts are missing. Worth ruling out before assuming a suspension component is the source of an underbody rattle ^{112113114115116}.

Metal-on-metal clunk on takeoff — brake pads vs. suspension vs. engine mounts (undiagnosed): one owner reported a metal-on-metal clunk/click heard specifically when moving off from a stop (forward or reverse), intermittent rather than constant. A shop check (pry bars, shaking components) found "everything fine," but the clunk recurred at the next stoplight. Suggested causes from the community, in likely order: (1) Mazda-sourced brake pads that are physically shorter than spec and rattle inside the caliper bracket — especially noticeable moving off in reverse and braking; also check for stuck caliper guide pins or a sticky piston preventing the pads from retracting cleanly (lift the wheel, remove the caliper — if the pad has vertical play, that's very likely the cause); (2) worn suspension components — sheared ball joint or a cracked spring; (3) engine mount play. In this specific case the pads were confirmed genuine/non-Mazda and silent, and the noise was located at the front — the owner suspected engine mounts and, separately, found and suspected a spring crack (see the dedicated front springs card for that part of the same thread) — root cause was not conclusively confirmed in this thread ^117118119.

Winter squeaking below -15°C — usually stabilizer bushings, resolves somewhat with driving: a recurring cold-weather complaint: suspension squeaking below about -15°C, typically on cold start and easing off after driving 1–2 km as things warm up. Most contributors point to the stabilizer bar bushings as the usual cause (see the dedicated stabilizer bushing card), though one owner who had already replaced the stabilizer bushings on service-shop advice still had squeaking afterward — just quieter, described as "creaking like a carriage" over bumps — suggesting strut top mounts or spring-seat spacers can also be squeak sources, not only the stabilizer. Separately, a distinct rattling (not squeaking) complaint in the same cold conditions, described as "sounding like a rattle from every direction at low speed," was attributed by one contributor to rubber bushings/mounts stiffening in the cold generally — a broader, less specific cold-weather symptom than the stabilizer-bushing squeak. One owner reported that replacing all bushings (сайленты) a year prior, at 100,000 km, had already improved things ^{120121122123124125126127128129130}.

Front clicking on small bumps — caliper guide pins/pallets first, then links: front-suspension clicking/knocking over small bumps, with no play found on a vibration-stand ("вибростенд") check at two separate shops, both of which reported "everything is fine." Community diagnosis priority for this specific car: check the strut top mounts and caliper guide pins ("пальцы суппортов") first, then stabilizer links ("линки") if those check out. Field test: with the wheel off and cold, grab and shake the caliper by hand — if it moves freely side-to-side on its guide pins, that free play is what rattles when cold (grease resolves it once warm in summer, but the play returns in winter until serviced). This is described as an almost universal X80 symptom in cold weather — "like a rattle" — that quiets down as temperatures rise. A second diagnostic technique: drive over bumps while lightly braking — if the clunk disappears under light braking, that confirms the caliper as the source ^{131132133134135136137}.

"Is the ride supposed to be this noisy/bouncy?" — yes, this is normal X80 character, not a defect: a new owner coming from a Ford Maverick asked whether the X80's noticeable shaking over every bump/speed bump was normal. Community answer: yes — "that's called suspension... it's noisy by nature," and the suspension is inexpensive to service if the bushings and springs are actually worn (see the suspension origin and weight note for why the Mazda-derived suspension feels soft/noisy on the heavier X80 body) ^138139140.

Steering-wheel squeak while turning — reported, cause not identified (low confidence): a new owner separately asked about a squeak from the steering wheel specifically during turns. No diagnosis or fix was offered in this thread — flag as an open/unconfirmed report; possible causes by analogy with other steering-noise threads on this wiki include column trim contact or column lubrication (see the dashboard bezel squeak card for a related but distinct interior squeak) ¹⁴¹.

Oct 2026 — metallic knock over bumps after steering and arm work. Валерий replaced the steering rack with tie-rod ends, fitted an aftermarket straight lower control arm and had the alignment set, which cured the crooked steering wheel; a knock over speed bumps remained ¹⁴². The metallic knock is present even at low speed, and the right side became quieter after he replaced the right driveshaft, though play remains ¹⁴²¹⁴³. He suspects the right driveshaft or a rubber "donut" (бублик), because the noise fades as speed and engine rpm drop and starts at about 20-30 km/h ¹⁴⁴. Arсhi 77 suggests crossing the bump slowly and smoothly should be quiet ¹⁴⁵, and that loose brake pads moving back and forth a couple of millimetres will make noise anyway, and to listen to the stabilizer bar on potholes ¹⁴⁶. The causes are unresolved; the positions (driveshaft vs pads/stabilizer/strut) are recorded as stated.

Media

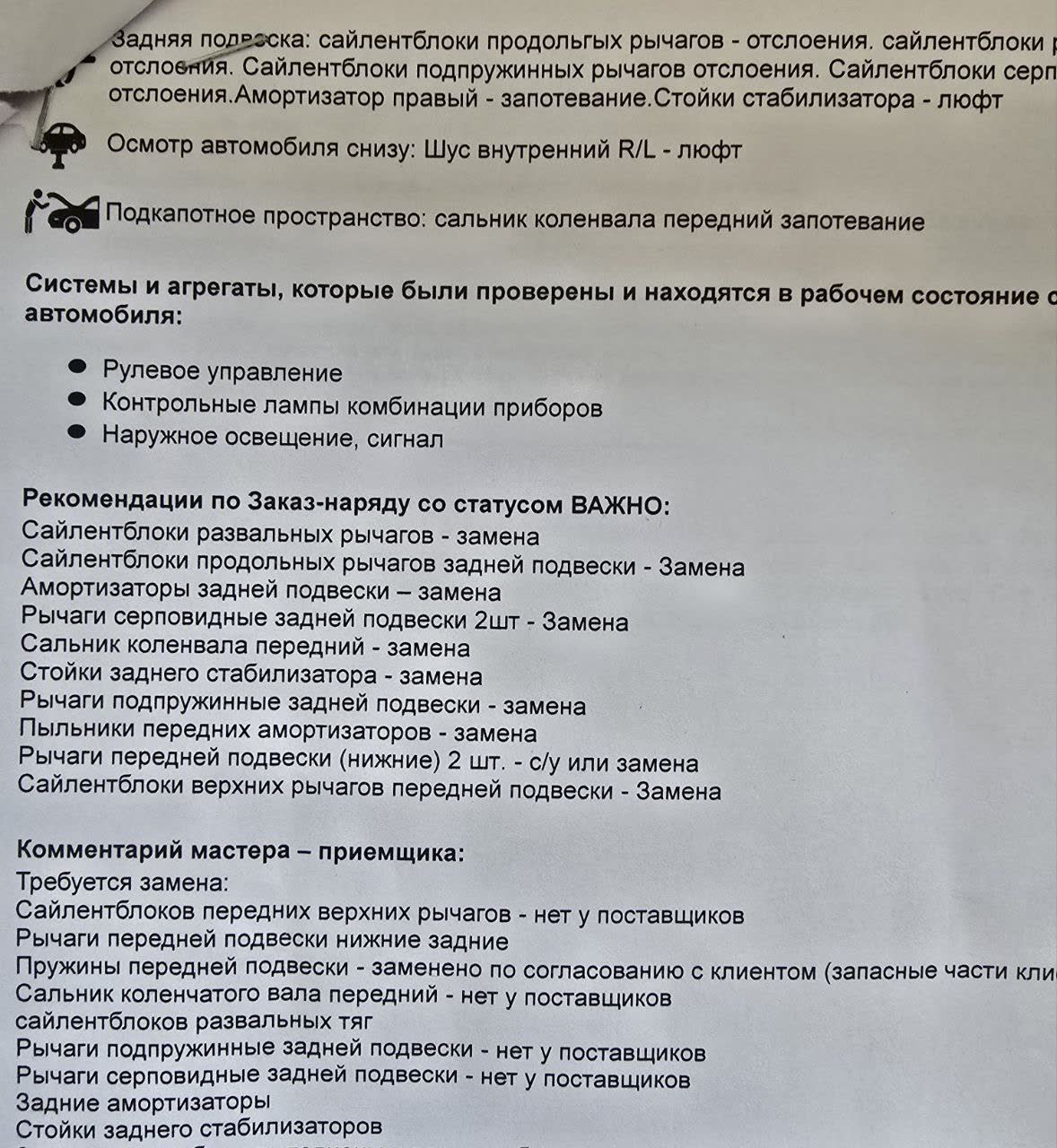

Shop inspection document listing suspension parts recommended for replacement (bushings, dampers, rods)

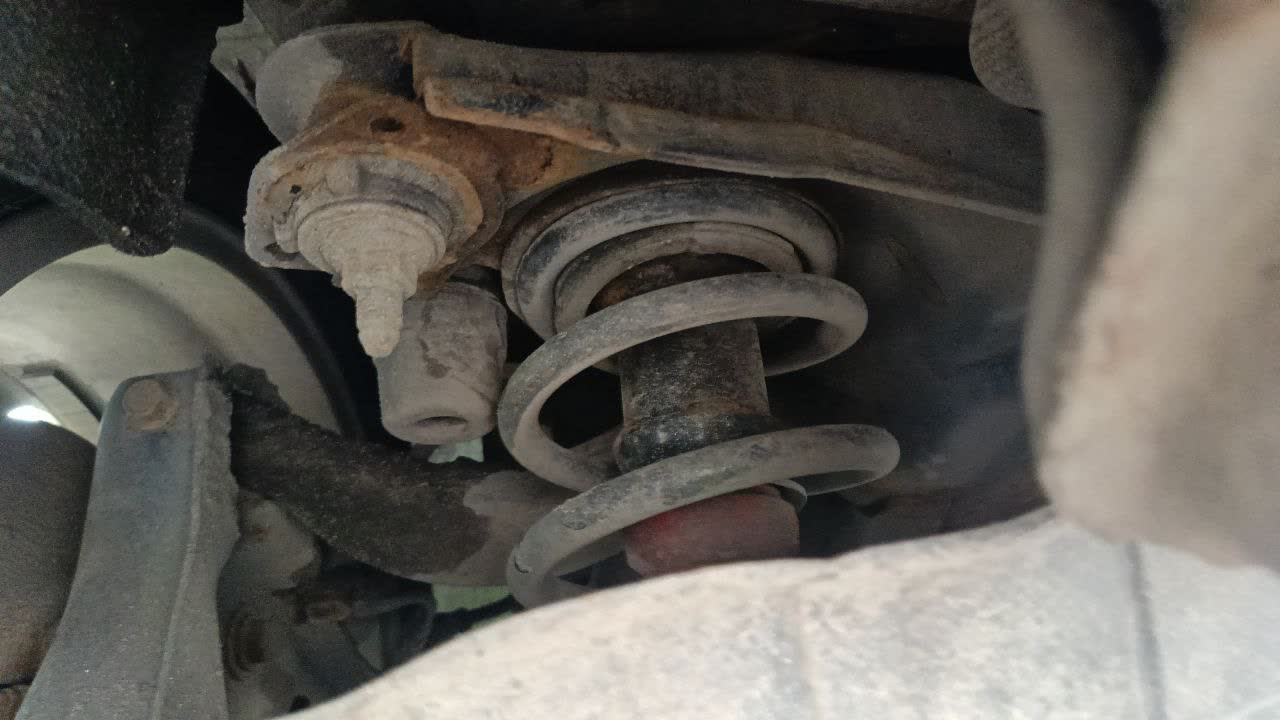

Suspension components being inspected during the grinding/creaking-noise diagnosis

Video of a vibration-bench diagnostic session — sound analysis and step-by-step component identification for a suspension noise complaint

Silent video demonstrating the rattling/ticking symptom from underneath the car, later traced to a loose exhaust heat shield rather than the suspension

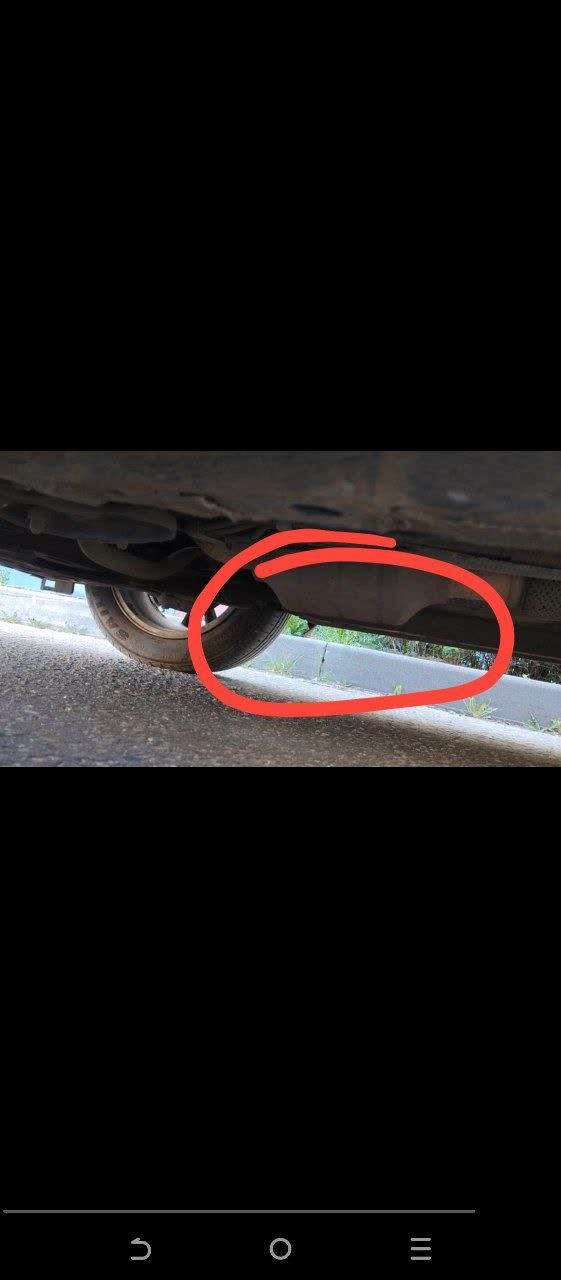

Photo of the exhaust heat shield showing damage/separation from its mounting points
